Станок для резки и перемотки

Описание и отзывы

Трекер стоимости

Характеристики

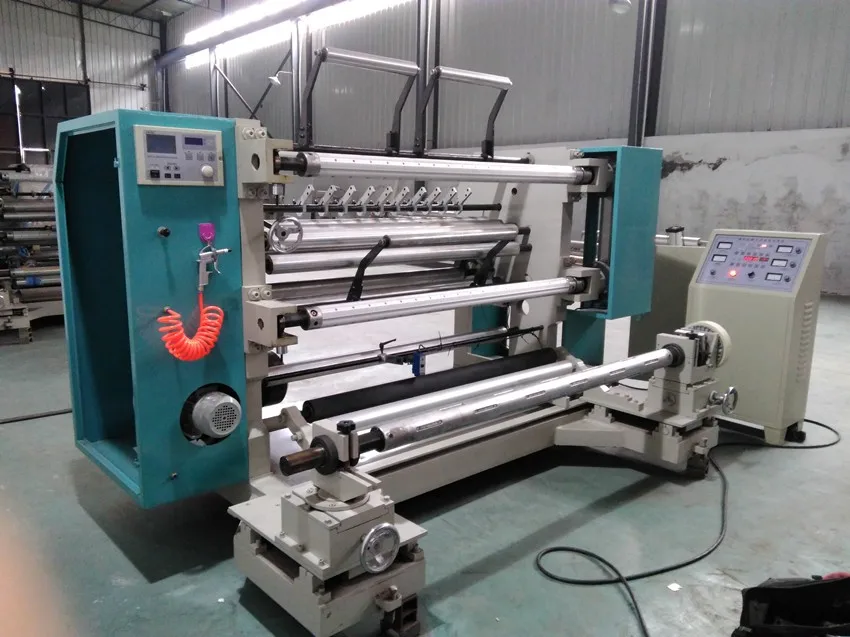

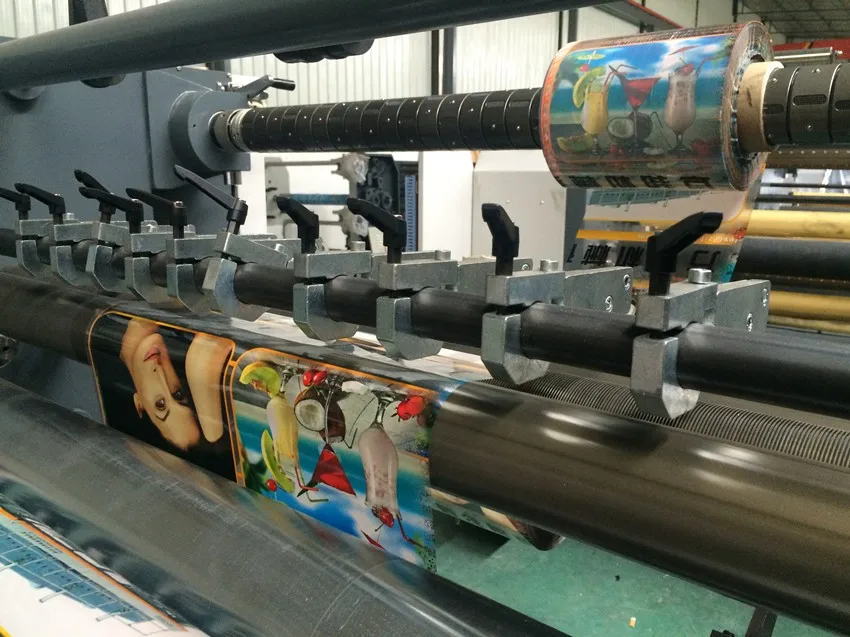

This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE,

PVC, aluminum foil laminated with film and paper, etc. And can cut edge, separate and cut material according

to different requirements during production.



1. Main Motor equipped with inverter for speed regulation.

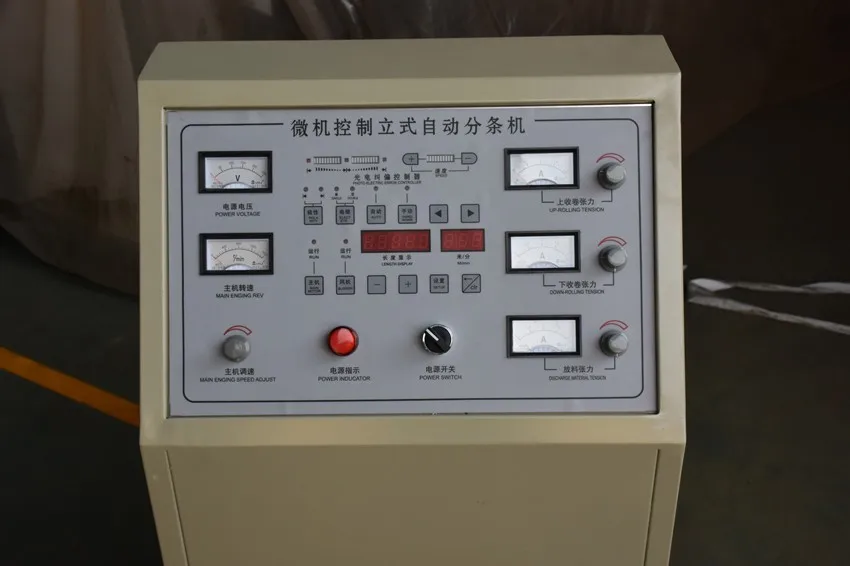

2. Separated General Control Cabinet, more flexible and even easier operation.

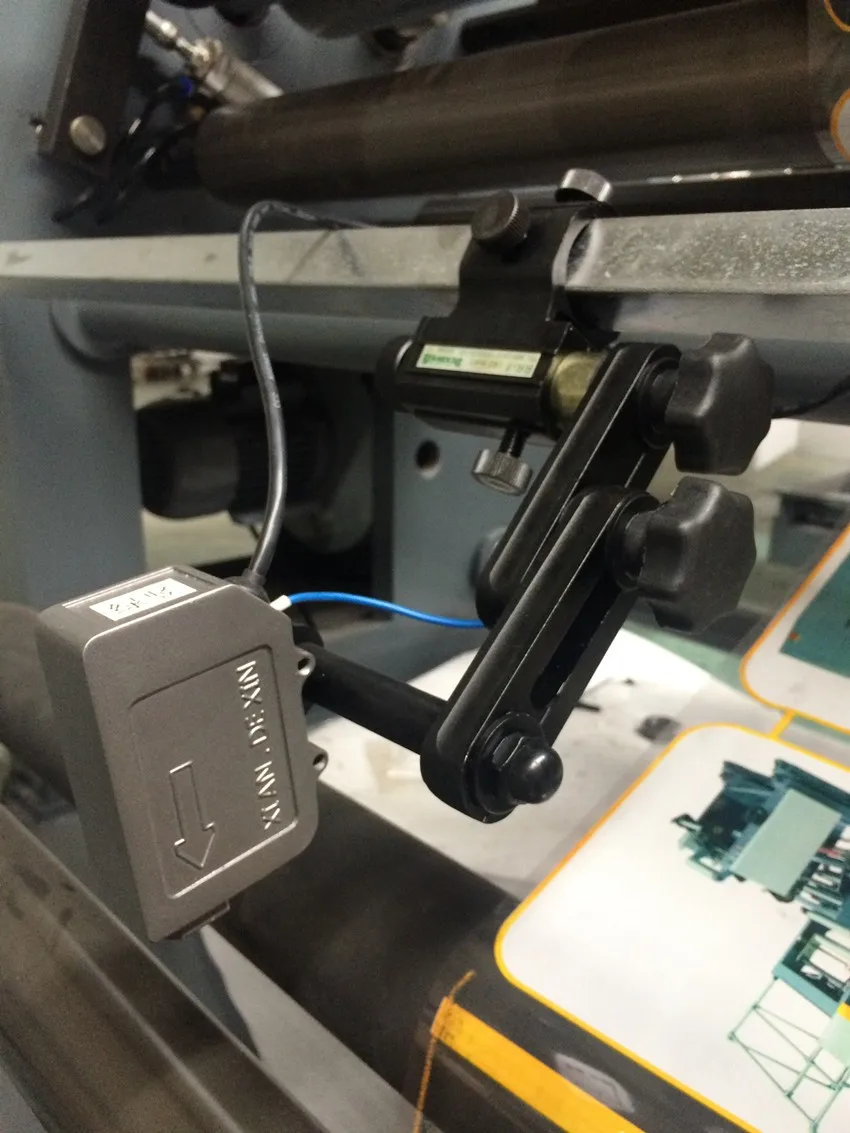

3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and/or
the line of material.

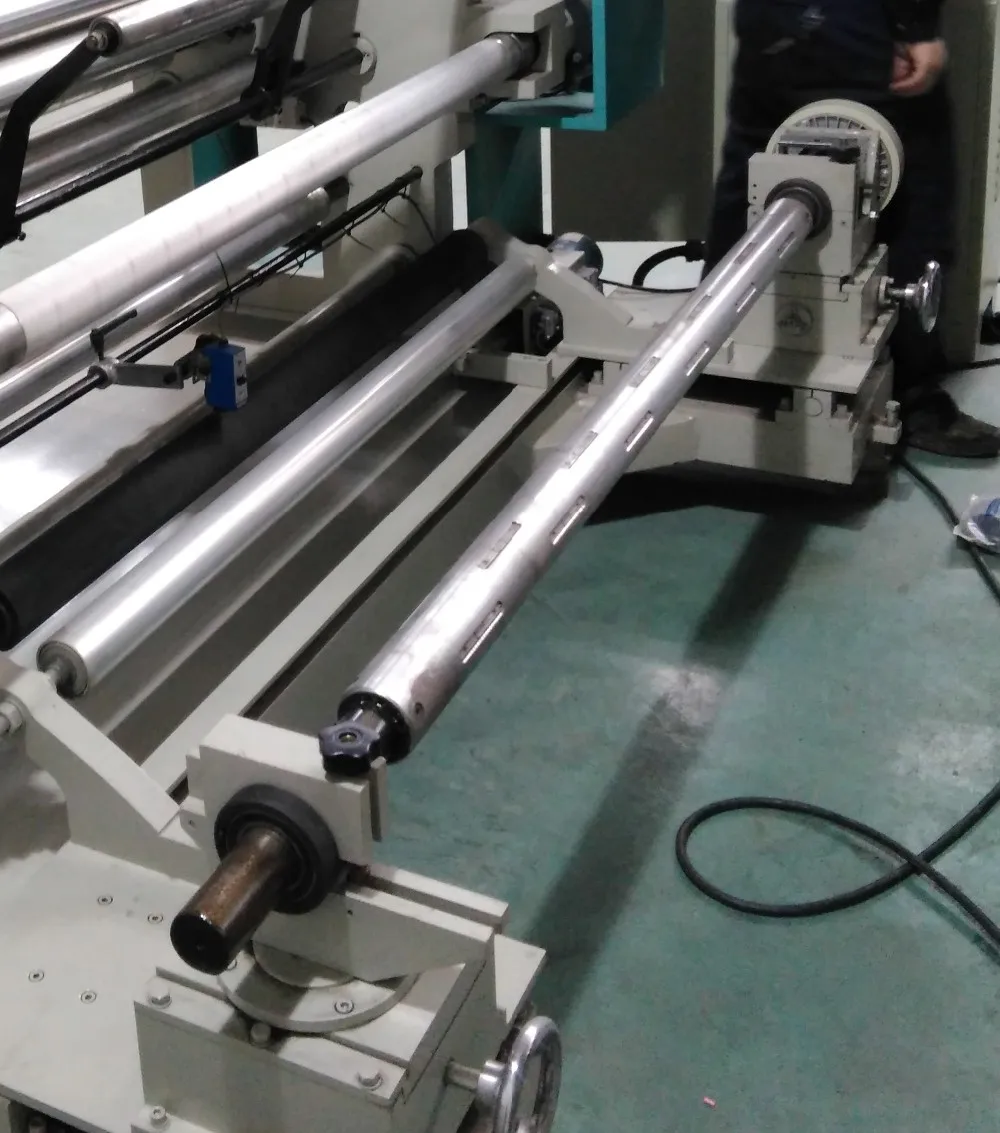

4. Equipped with air shaft for unwinding material loading, magnetic powder brake
5. Air shaft for rewinding (frictional cam shaft available for option), Magnetic powder
clutch for rewinding tension control
6. Equipped with air trim discharge conveying system.
7. Automatic meter counting device.
8. Pressure roller for rewinding to make rewinding roll more uniform.
9. Disk knife available for option.





Type	LFQ-700A	LFQ-1100A	LFQ-1300A
Max.Width of Mother Roll	700mm	1100mm	1300mm
MAX.Diameter of Mother Roll	Φ600mm	Φ600mm	Φ600mm
Width of Final Roll	30-600mm	30-600mm	30-600mm
Slitting and Rewinging Speed	5-160m/min	5-160m/min	5-160m/min
Tolerance of EPC	<±0.5mm	<±0.5mm	<±0.5mm
Total Power	2.7kw	3.5kw	3.5kw
Weight of Machine	1500kg	2000kg	2200kg
Overall Dimension	2000×1110×1400	2400×1110×1400	2600×1110×1400













 We also have other products, If you interest, Please Click it

Film blowing machine

Plastic bag making machine

Printing machine

Gove making machine





1,Q: Your factory is trading company or factory?

A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.

We are Factory, so we have cost advantage than others



2, Q: How do your company control the machine quality?

A: First we control the raw materials quality.

Second, we control the quality of machine when we are processing.

Third, Our installment engineer will test machine.



3, Q: How about payment term, payment safety and delivery time?

A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.

Delivery time is 20 to 30 days. It is according to order quantity.



4,Q: What is your company after sale service?

A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.

Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
