Высокая скорость Isobaric машина для розлива бутылок пива/полная
- Категория: Разливочные машины >>>
- Поставщик: Zhangjiagang,City,AK,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 41055.73 $* | 43108.29 $* |
| Aug-16-2025 | 40710.45 $* | 42746.85 $* |
| Jul-16-2025 | 34155.46 $* | 35863.40 $* |
| Jun-16-2025 | 40020.30 $* | 42021.25 $* |
| May-16-2025 | 34845.65 $* | 36587.99 $* |
| Apr-16-2025 | 39330.99 $* | 41297.65 $* |
| Mar-16-2025 | 38985.35 $* | 40934.40 $* |
| Feb-16-2025 | 38640.62 $* | 40572.72 $* |
| Jan-16-2025 | 38295.32 $* | 40210.57 $* |
Характеристики
Product Description

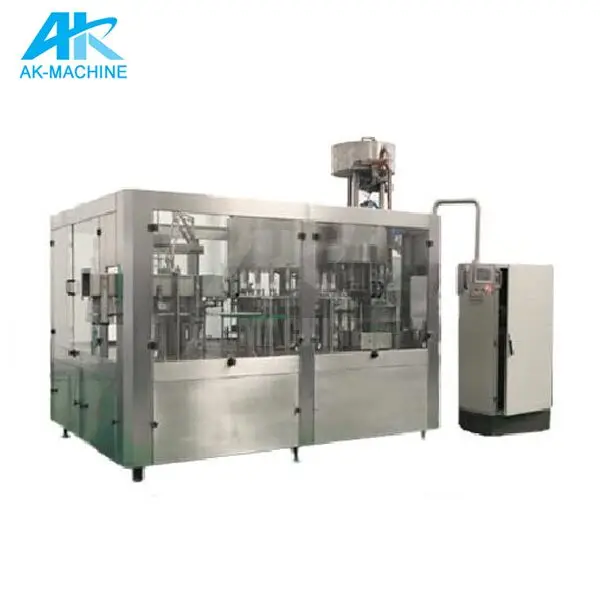

High Speed Isobaric Beer Glass Bottle Filling Machine/Complete Beer Bottling Machine
Machine Size | 2260 * 1650 * 2600 |
Production Capacity | 4000 Bottles Per Hour |
Bottle Size | 330~2000ML |
Weight | 4000KG |
Bottle Material | Glass bottle |
Machine Material | Stainless Steel 304/316L |
Way Of Filling | Isobaric Filling |
Pressure | 0.7Mpa |
Air Comsumption | 0.8m³/min |
The machine is a glass bottle, beer bottle, filling and capping machine designed by our company. It has three stable machines, stable equipment, advanced technology, beautiful appearance and complete functions.
Detailed Images

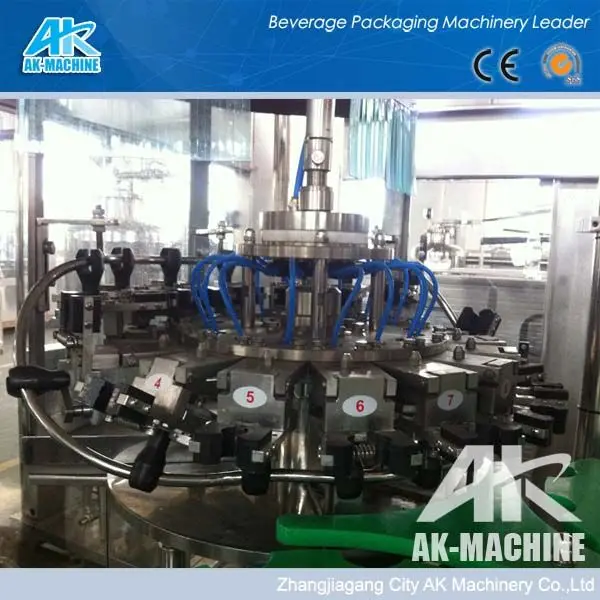

Washing part of water filling machine
1.Stainless steel 304/316L washing heads.
2.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the pollution.
3.Washing pump is made of stainless steel.
4. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.

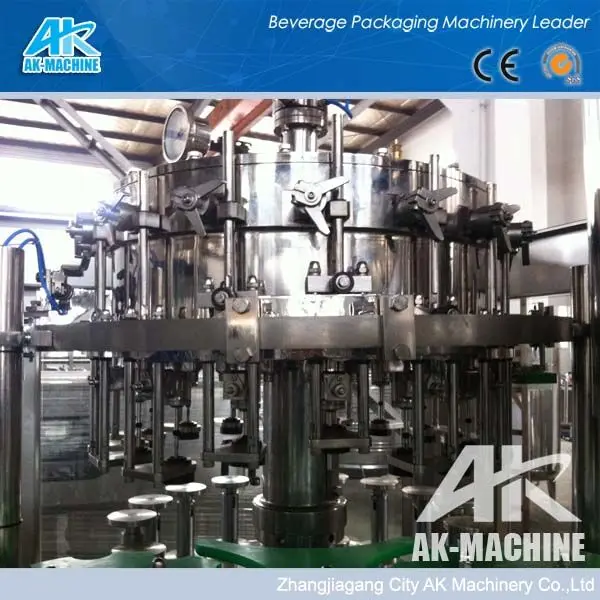

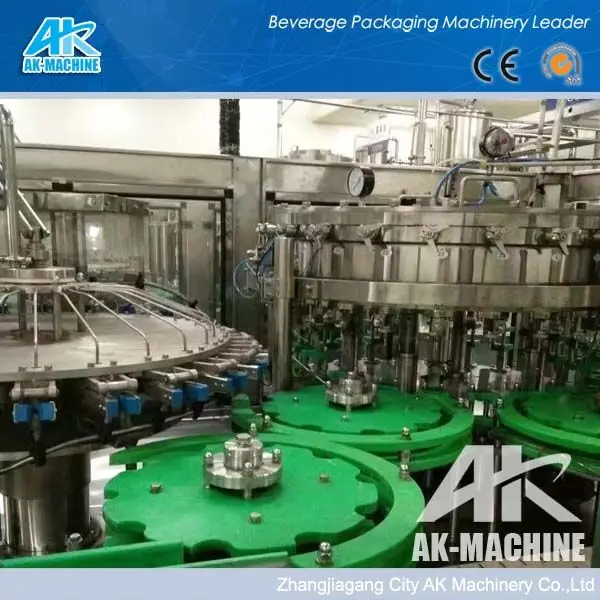

Filling part of water filling machine
1.Filling method for Negative pressure filling
2.Filling valve manufactured SUS 304/316L.
3.High precision, high speed liquid filling.
4.Filling move by the rack drive system through gear transmission.
5.Hydraulic cylinder controlled by a float liquid level.
6.Using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.

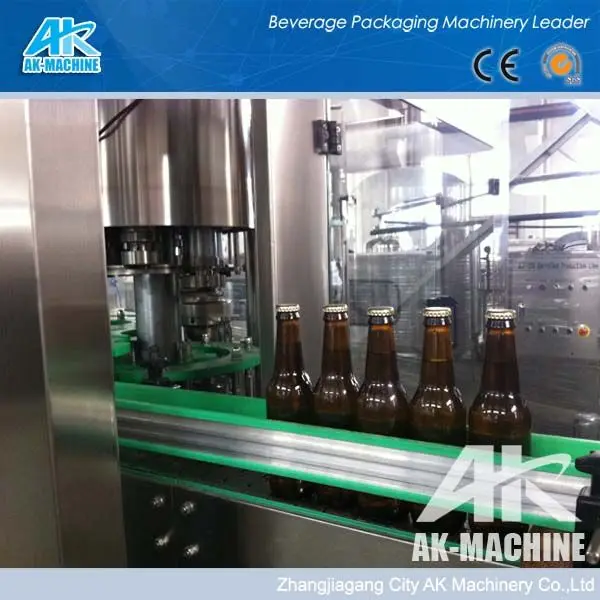

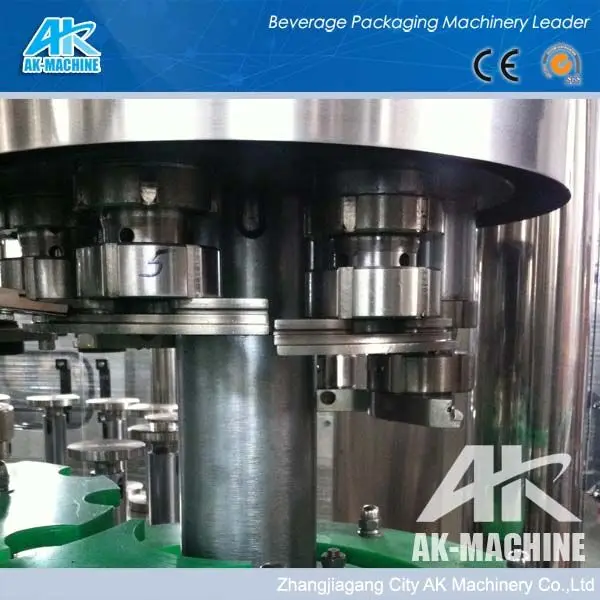

Capping part of water filling machine
2.Capping heads in stainless steel 304/316L.
3.Capping heads stop working when lack of bottle.
4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
5.High efficiency centrifugal principle.
Contact Us
Related Products
Packing&Shipping
All the machines packed in wooden case packing with plywood.
After Sales Service
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 20-30 days,if complete production line it is 45-60 days.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
Before shippment.
