Характеристики
Product Description

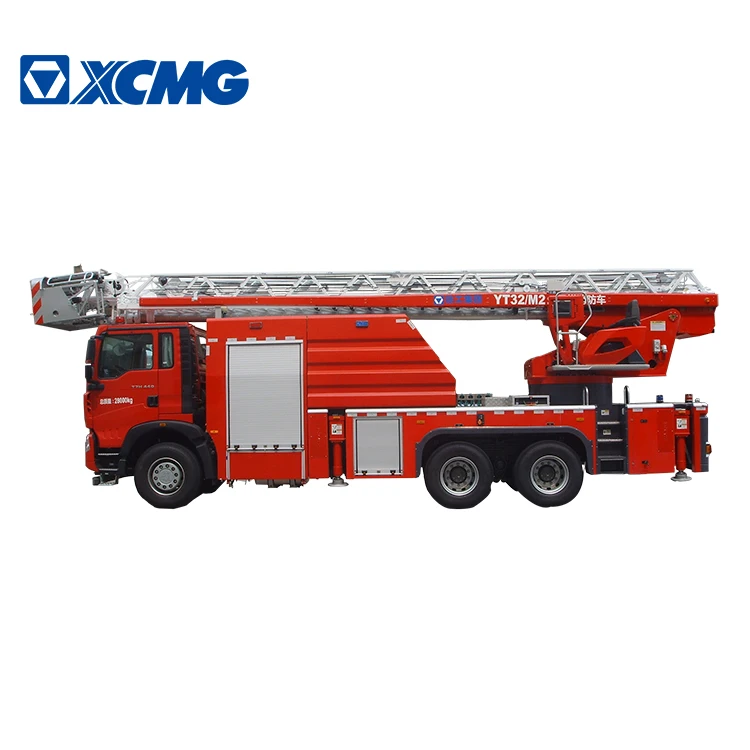

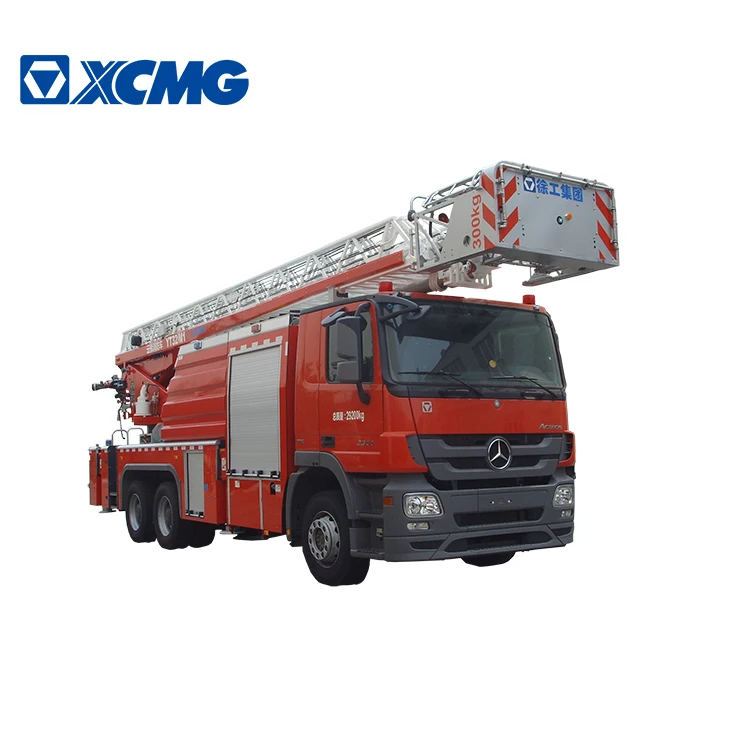

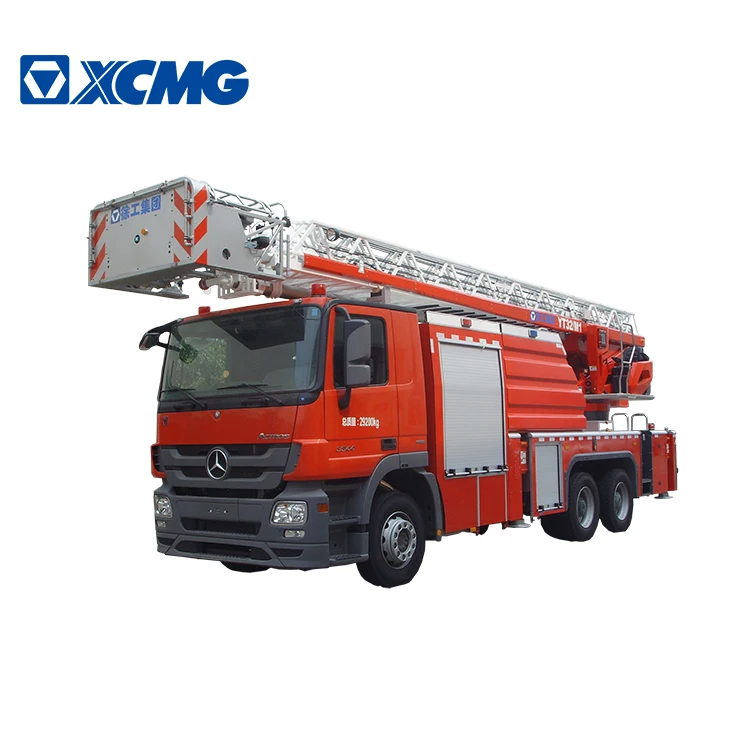

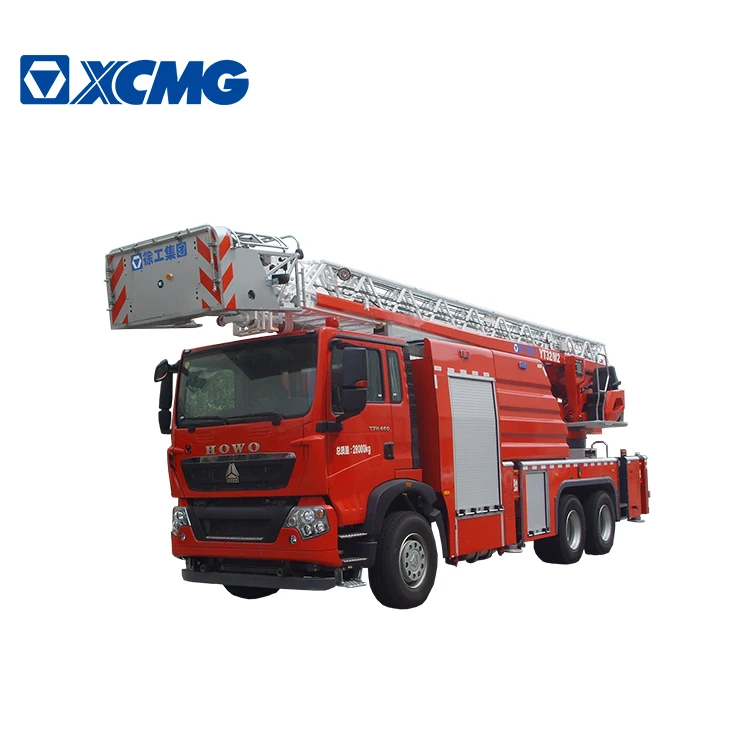

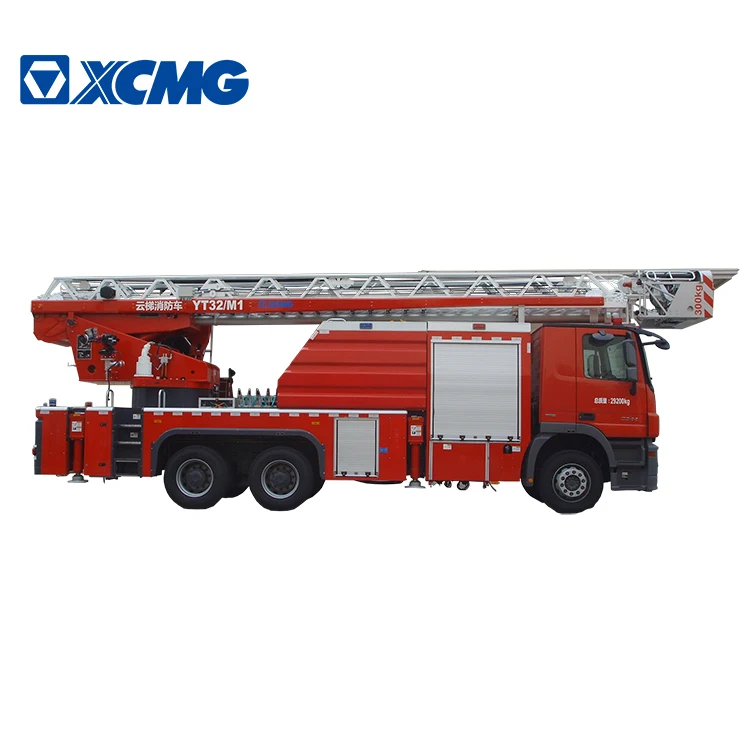

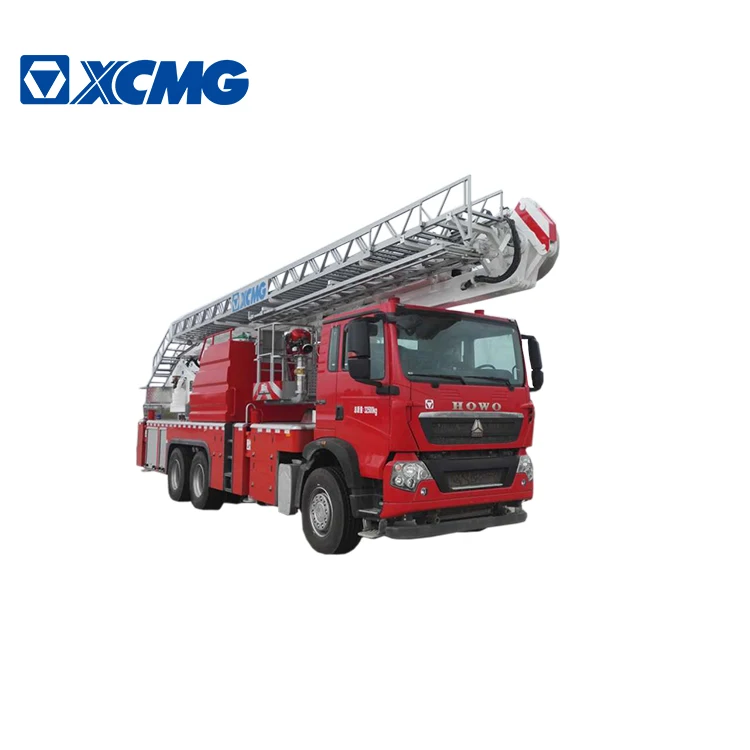

XCMG official manufacturer fire fighting truck YT32M1 ladder fire truck
YT32M1 aerial ladder fire truck: 3482 electric-controlled fire monitor + PSP1500 water pump + 4-section telescopic aerial ladder + (National V Standard) 3344 6×4 second-class universal chassis.
YT32M1 aerial ladder fire truck is based on the existing mature technology of our company. It focuses on the design, development and manufacturing technology of upper structure ladders, leveling control technology of turntables, double helix twin-rotation winding and telescoping technology, multi-state operating curve control technologies, and independent work platform leveling control technologies, etc. , is urban fire control main battle vehicle integrating the functions of rescue in the air and fire-fighting.
With features of flexible, strong adaptive capacity of site, quick rescue speed and high technical security, it is widely used for fire-fighting and rescue operation of mid-rise buildings in cities and towns, mines, oil field and factories, it is the necessary equipment to put out fires in mid-rise buildings, rescue person in distress and property.
YT32M1 aerial ladder fire truck: 3482 electric-controlled fire monitor + PSP1500 water pump + 4-section telescopic aerial ladder + (National V Standard) 3344 6×4 second-class universal chassis.
YT32M1 aerial ladder fire truck is based on the existing mature technology of our company. It focuses on the design, development and manufacturing technology of upper structure ladders, leveling control technology of turntables, double helix twin-rotation winding and telescoping technology, multi-state operating curve control technologies, and independent work platform leveling control technologies, etc. , is urban fire control main battle vehicle integrating the functions of rescue in the air and fire-fighting.
With features of flexible, strong adaptive capacity of site, quick rescue speed and high technical security, it is widely used for fire-fighting and rescue operation of mid-rise buildings in cities and towns, mines, oil field and factories, it is the necessary equipment to put out fires in mid-rise buildings, rescue person in distress and property.
Specification
Main performance parameters | ||||||
Outline dimension (L×W×H) | 11380×2500×3880 | |||||
Max. total mass | 28150kg | |||||
Max. travel speed | ≥95km/h | |||||
Min. turning diameter | ≤22m | |||||
Approach angle | ≥16° | |||||
Departure angle | ≥11° | |||||
Max. grade ability | ≥25% | |||||
Outrigger span | Longitudinal span | 5400mm | ||||
Lateral span | 5200mm | |||||
Load capacity of working platform | 300kg | |||||
Max. working height | 32m | |||||
Maximum working range | 22m | |||||
Boom elevating range | Telescopic boom-12°～﹢75° | |||||
Slewing range | 360° full-rotation | |||||
Outrigger unfolding time | ≤25s | |||||
Time for boom raising to rated height and rotating 90° | ≤55s | |||||
Max. slewing speed of turntable | 0.5~1.5r/min | |||||
Fire pump | Rated flow | 50 L/s | ||||
Rated pressure | 1.5MPa | |||||
Fire monitor | Model | 3482+5177+737 (water spray) | 3482+5177+737 (foam spray) | |||
Rated flow | 48 L/s | 48 L/s | ||||
Rated pressure | ≤0.7MPa | ≤0.7MPa | ||||
Reach | ≥60m | ≥55m | ||||
