Грузовик XCMG 54 м с воздушной платформой пожарная
- Категория: Fire Trucks >>>
- Поставщик: Xuzhou,Construction,Machinery,Group,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1190000.9 $* | 1249500.48 $* |
| Aug-16-2025 | 1180000.72 $* | 1239000.41 $* |
| Jul-16-2025 | 990000.56 $* | 1039500.73 $* |
| Jun-16-2025 | 1160000.72 $* | 1218000.59 $* |
| May-16-2025 | 1010000.95 $* | 1060500.54 $* |
| Apr-16-2025 | 1140000.60 $* | 1197000.35 $* |
| Mar-16-2025 | 1130000.86 $* | 1186500.80 $* |
| Feb-16-2025 | 1120000.22 $* | 1176000.71 $* |
| Jan-16-2025 | 1110000.21 $* | 1165500.10 $* |
Характеристики
Product Description

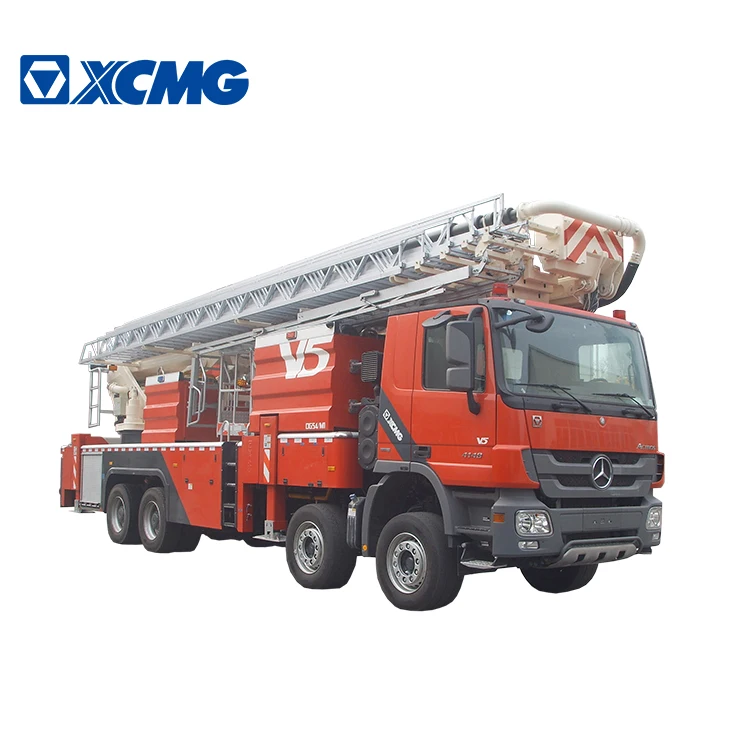

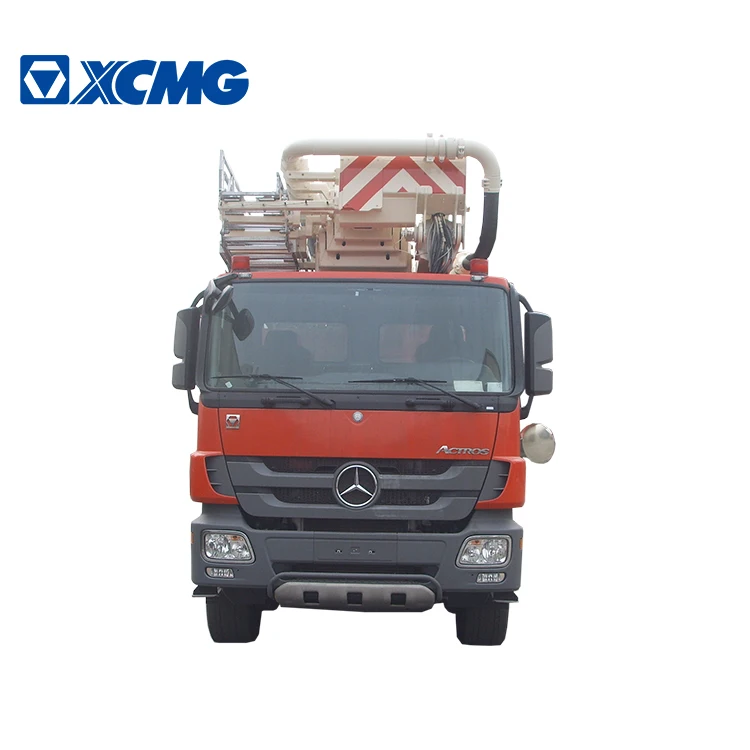

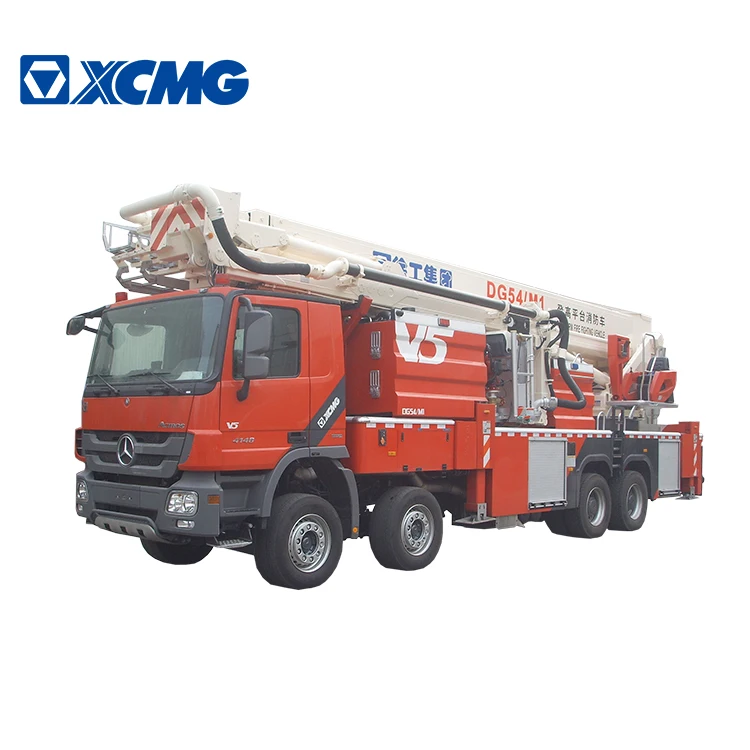

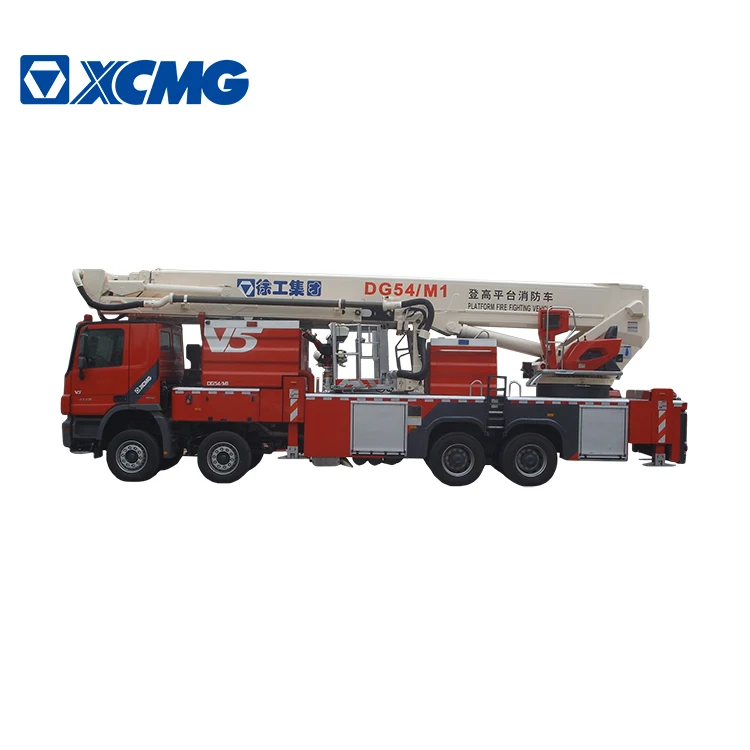

XCMG official DG54M1 emergency rescue equipment fire fighting water tank truck
DG54M1 Aerial Platform Fire Truck is a main battle vehicle that integrates functions of water tower fire truck, aerial spraying truck and aerial fire truck, which is widely applied in fire fighting and rescue operation in cities and towns, mine, oil field and plant as well as other medium and high-rise buildings, in addition, it also is the first choice for medium and high rise building fires, rescue of persons in distress and properties.
1. Professional appearance molding design with pretty appearance is adopted in the complete machine, and the operation and usage is humanization with good effect.
2. The platform is equipped with manual and automatic leveling functions, with high accuracy and fast speed.
3. Wider operation scope. The height of limit operation reaches 54m, and the maximum operation range reaches 23 25m (regional control), the test depth is 6m underground.
4. The obstacle crossing capability is more than 10m.
5. The outrigger can conduct unilateral operation, satisfy the narrow space operation requirements.
DG54M1 Aerial Platform Fire Truck is a main battle vehicle that integrates functions of water tower fire truck, aerial spraying truck and aerial fire truck, which is widely applied in fire fighting and rescue operation in cities and towns, mine, oil field and plant as well as other medium and high-rise buildings, in addition, it also is the first choice for medium and high rise building fires, rescue of persons in distress and properties.
1. Professional appearance molding design with pretty appearance is adopted in the complete machine, and the operation and usage is humanization with good effect.
2. The platform is equipped with manual and automatic leveling functions, with high accuracy and fast speed.
3. Wider operation scope. The height of limit operation reaches 54m, and the maximum operation range reaches 23 25m (regional control), the test depth is 6m underground.
4. The obstacle crossing capability is more than 10m.
5. The outrigger can conduct unilateral operation, satisfy the narrow space operation requirements.
Specification
Main Performance Parameters of Vehicle | ||||||||
Boundary dimension: (Length × width × height) | 11760×2500×4000mm | |||||||
Full mass | 41600kg | |||||||
Maximum speed | ≥90km/h (electric speed limit) | |||||||
Minimum turning diameter | ≤24m | |||||||
Approach angle | ≥23° | |||||||
Departure angle | ≥9° | |||||||
Maximum gradeability | ≥25% | |||||||
Outrigger span | Longitudinal span | 6700mm | ||||||
Horizontal span | 8000mm | |||||||
Work platform load | 500kg | |||||||
Maximum working height | 54m | |||||||
Maximum operating radius | 25m | |||||||
Elevating angle of boom | The elevating angle of telescopic boom is 0 to 83 degrees, and that of boom NO.2 and telescopic booms is 0 to 177 degrees. | |||||||
Rotation scope | 360° full-rotation | |||||||
Spread time of outrigger | ≤35s | |||||||
Time for lifting the boom to rated height and rotating 90° | ≤150s | |||||||
Maximum slewing speed | 0.1~1.0r/min | |||||||
Fire pump | Rated flow (L/s) | ≥70 | ||||||
Rated pressure (MPa) | ≥1.6 | |||||||
Fire fighting gun | Water monitor | Model | PLKD120ZB-3480 | |||||
Rated flow (L/s) | 64 | |||||||
Rated pressure (MPa) | ≤1.0 | |||||||
Range (m) | ≥65m | |||||||
Foam monitor | Model | PLKD120ZB-3480 | ||||||
Rated flow (L/s) | 64 | |||||||
Rated pressure (MPa) | ≤1.0 | |||||||
Range (m) | ≥60m | |||||||
The swing range of the monitor head | Elevating range (°) | -45~+60 | ||||||
Slewing range (°) | -80~+90 | |||||||
