Welcome to OBT, I hope you can pick the right product, you can see a working video of our product first. follow us to visit our product and company~

Specifications

Production line composition

Name	Model	Quantity	Power
Single screw extruder	YF-90	1 set	75KW
Hanger Extrusion Die	YJM-150	1 set	3KW
Pressure roller device	YG-200	1 set
Screw Feeder	ZD-1000	1 set	1.5KW
Plastic mixer	150KG	1 set	4KW
Winding forming table	CL-4000	1 set	5KW
Gas preheating system		1 set
Insulation heater		1 set	60KW
Control system		1 set
Trimming machine		1 set	2KW
Demoulding winch	5T	1 set
Adjustable walking roller frame	HGK-10	2 set	3KW
Welding turntable		1 set	3KW
Extrusion welding machine		1 set	8KW
Long arm welder		1 set	8KW

Process flow

PP raw material---feeding machine---host---plate extrusion die---pressing device---setting die device---

mold platform front and rear moving device, rolling device---directional heating device- --Fixed length cutting

--- demoulding device --- loading and unloading

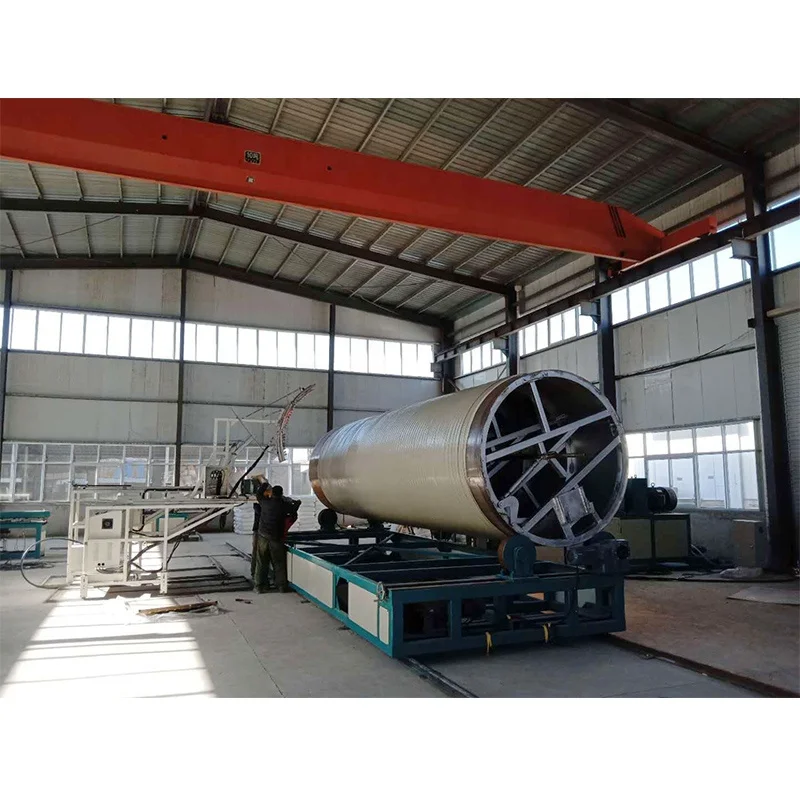

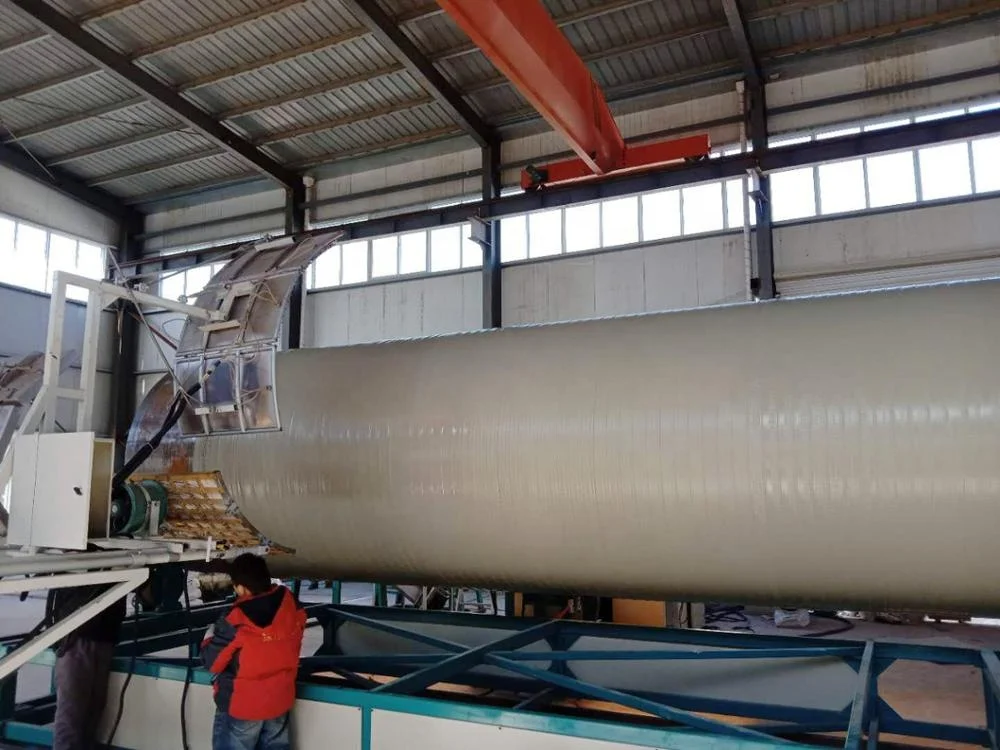

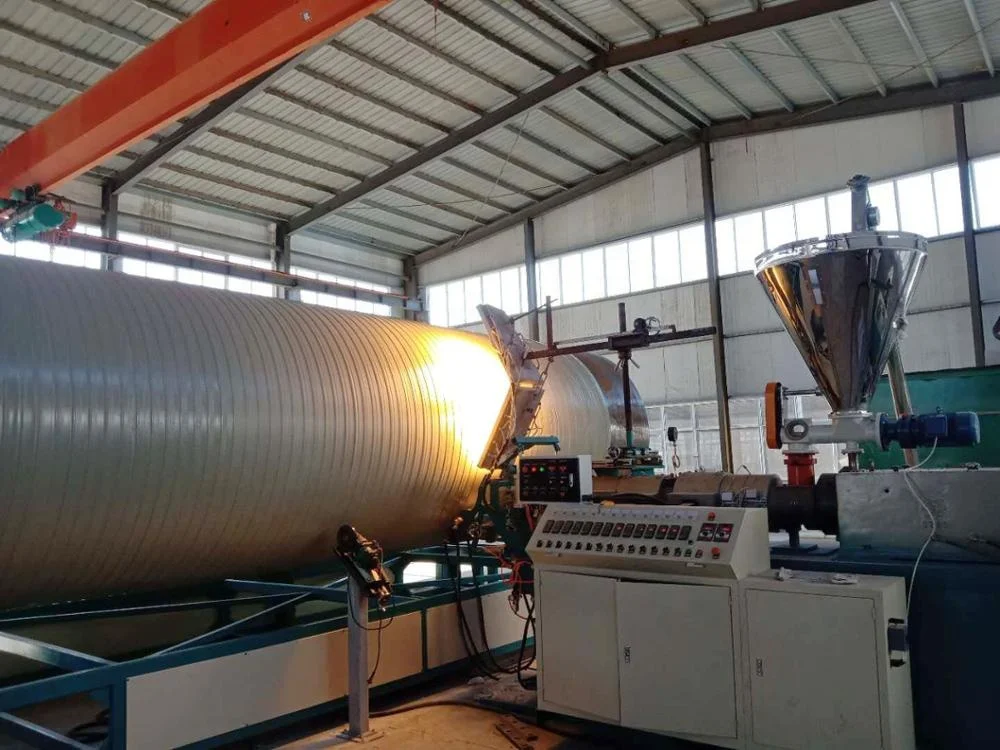

Production line plan:

What are the characteristics of our products compared to other products?



1 ) The cylinder steel used in our factory is Q235 original flat plate. With the entire plate, the weld will be minimized.

     Better overall and more stable quality. The advantages of the original flat plate produced by our factory are mainly

     that the flatness, mechanical properties and dimensional stability of the material are higher than those of the general

     Q235 steel plate. The stress distribution in the original plate is uniform, and there is no difference in bearing capacity

     in different directions of vertical length. And the carrying capacity is also high with the general Q235 open tablet.

     Therefore, the material of the tube material of our factory is the original flat plate. The appearance and

     performance of the mold are better than those of other domestic counterparts.

2) The mold release mold is completed by the SWL worm gear screw lift and the RV worm gear reducer.

    The device features flexible use, high reliability, long service life, and accurate control of the flatness of the mold

    clamping. In operation, the transmission is stable, the noise is small, labor saving and labor saving. The motor casing is

    cast with aluminum alloy, which is light in weight and high in heat dissipation efficiency. Precision ladder type screw. Motor power 1.5KW.

3) Precision polishing of special equipment on the wall surface. The finish is 6.3. The seam of the cylinder is less than 1mm.



Where can be applied?



our company and factory
