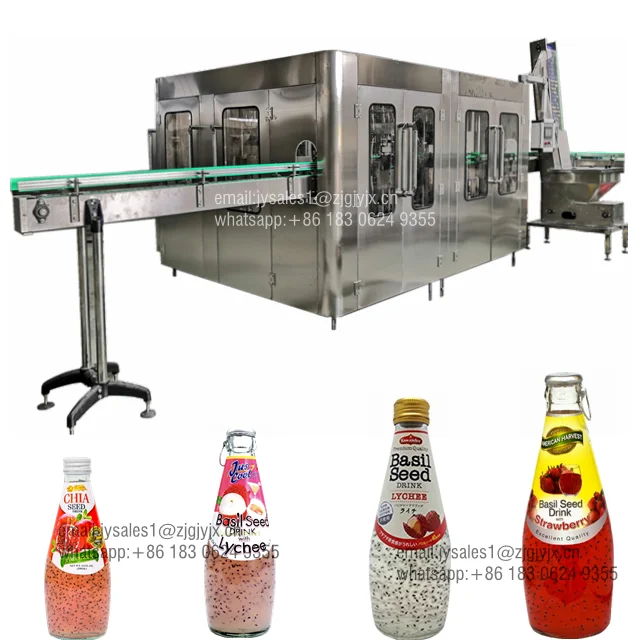

Basis Seed Glass Bottle Filler, Water Bottling Glass, Juice Glass Bottle Twist Cap Machine
Product Description
This complete line is used to produce glass bottle gasless drinks, like basis seed drink, various juice, tea drink, dairy drink, flavor drink, water or other gasless drink.
Parameter
Model | CGFD18-18-6 | CGFD24-24-8 | CGFD32-32-10 | CGFD40-40-12 |
Number of washing, filling and capping heads | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 |
Production capacity(500ml) | 4000~5000 | 7000~7500 | 8000-12000 | 12000-15000 |
Suitable bottle specification(mm) |
φ=50-110 H=150 ~340mm volume=330-1500ml | |||
Washing pressure(kg/cm 2 ) | 2-3 | |||
Motor power(kw) | Main motor | Main motor | Main motor | Main motor |
Overall dimensions (mm) | 2650*1900 *2400 | 2900*2100 | 4100*2000 | 4550*2650 |
Weight (kg) | 4500 | 5500 | 7500 | 10500 |
Machine Description
We can supply the complete line plants
1. water treatment system
2. beverage mixing and sterilizing system
3. filling system
filler juice filler pulp filler capper
4. package system
Final products
FAQ
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
