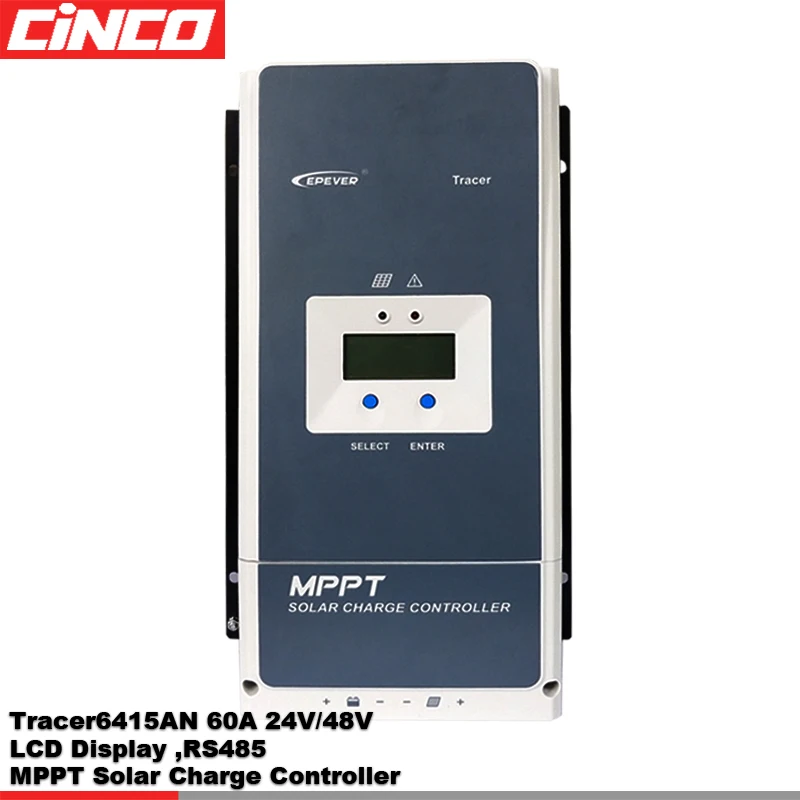

Контроллер заряда EPsolar Tracer6415AN 12/24V/36/48V 60A MPPT солнечный с аккумуляторным предохранителем вход
- Категория: Контроллеры солнечных зарядных устройств >>>
- Поставщик: Ningbo,Zhenhai,Geebo,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 199.84 $* | 203.24 $* |
| Jul-17-2025 | 162.13 $* | 165.1 $* |
| Jun-17-2025 | 196.15 $* | 200.88 $* |
| May-17-2025 | 195.28 $* | 199.67 $* |
| Apr-17-2025 | 155.66 $* | 158.39 $* |
| Mar-17-2025 | 192.56 $* | 196.67 $* |
| Feb-17-2025 | 190.14 $* | 194.25 $* |
| Jan-17-2025 | 188.83 $* | 192.32 $* |
Характеристики
Products Description
1.MPPT tracking efficiency above 99.5%
2.Maximum charge conversion efficiency as high as 98%
3.Battery type selection: Sealed, Gel, Flooded and User(programmable)
4.Common negative grounding, Charging current up to 100A
5.Charging power and current limitation function
6.High –temperature charging power derating function
7.3 relays design for different demand: utility, generator and load
8.Support up to 6 units in parallel
9.Remote temperature and voltage sensor design
10.Isolated RS-485 with 5VDC/200Ma with MODBUS protocol
11.CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3)
2.Maximum charge conversion efficiency as high as 98%
3.Battery type selection: Sealed, Gel, Flooded and User(programmable)
4.Common negative grounding, Charging current up to 100A
5.Charging power and current limitation function
6.High –temperature charging power derating function
7.3 relays design for different demand: utility, generator and load
8.Support up to 6 units in parallel
9.Remote temperature and voltage sensor design
10.Isolated RS-485 with 5VDC/200Ma with MODBUS protocol
11.CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3)

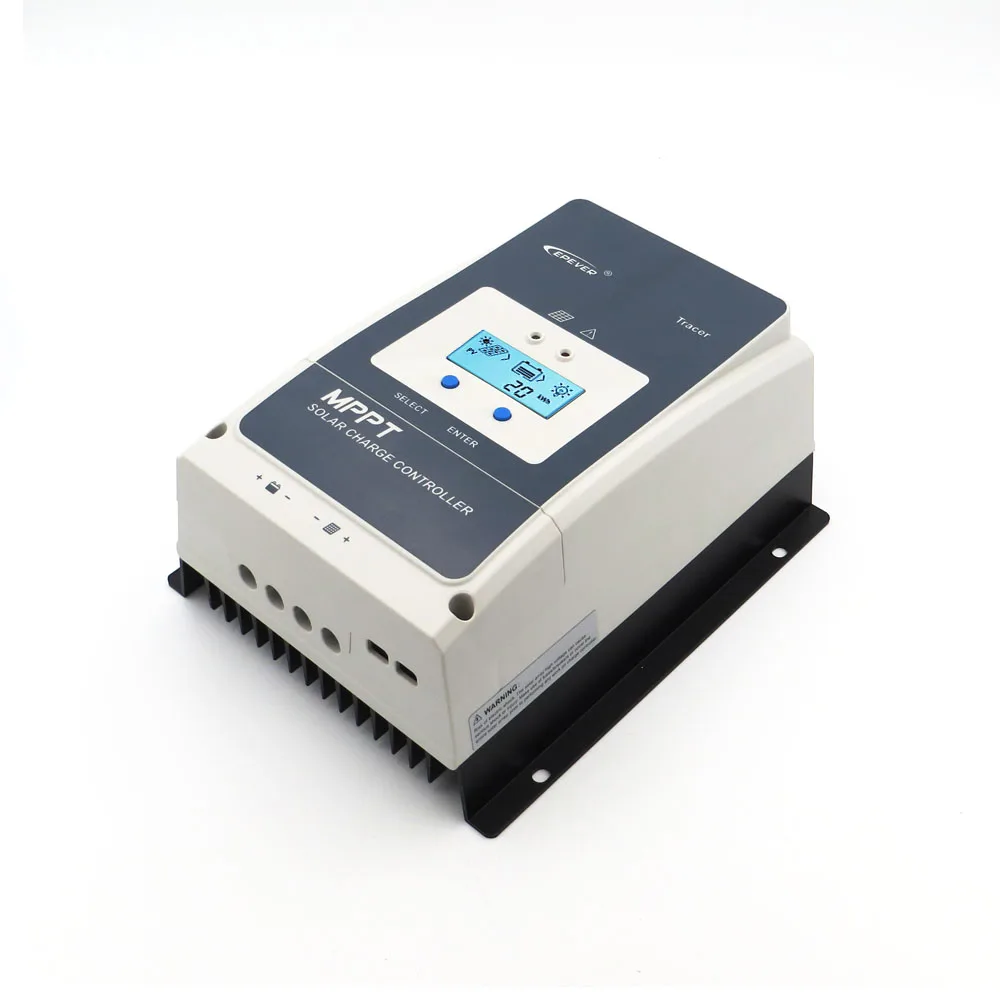

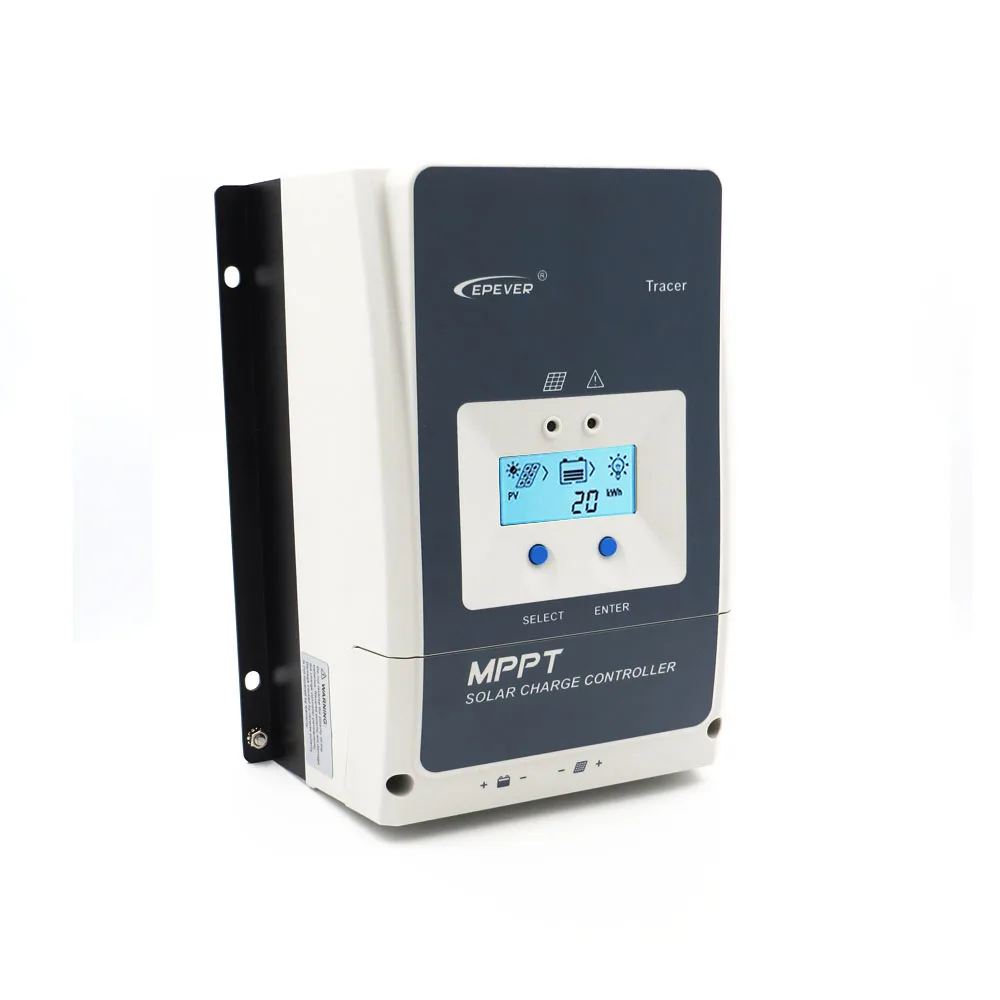

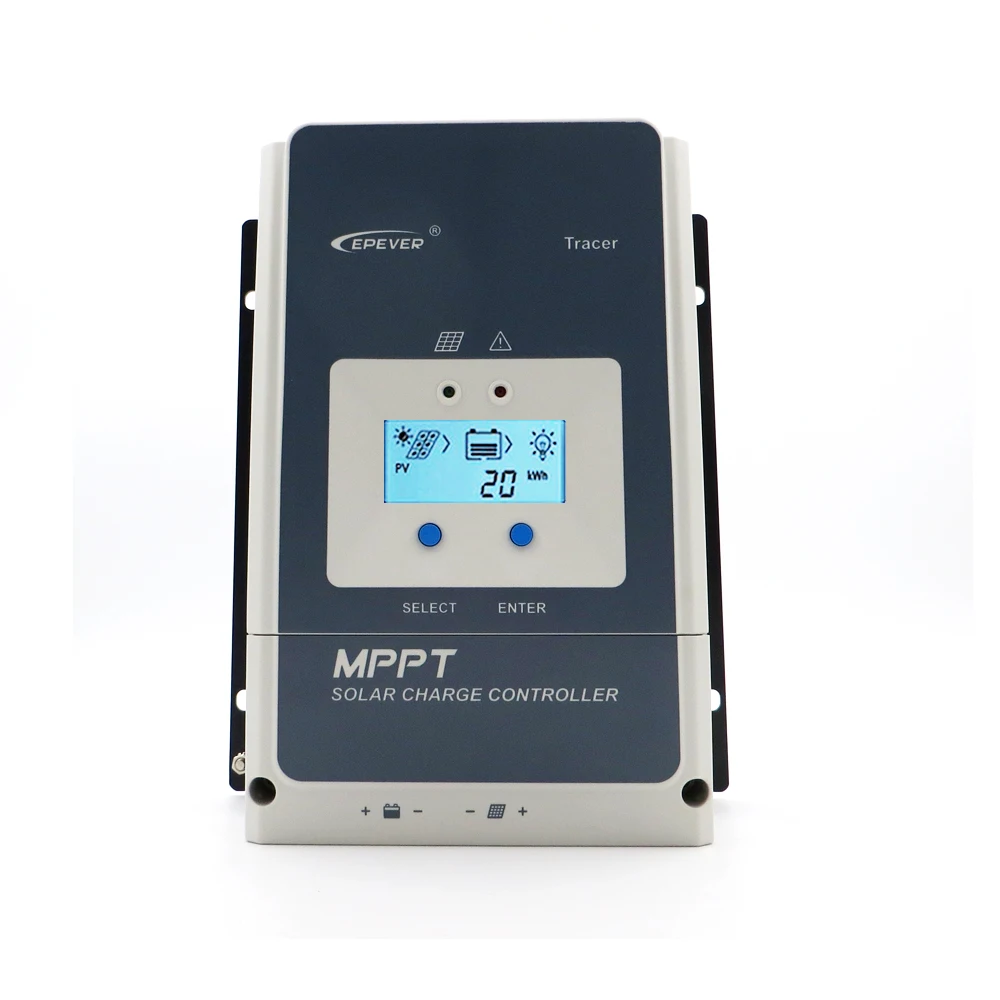

Details Images

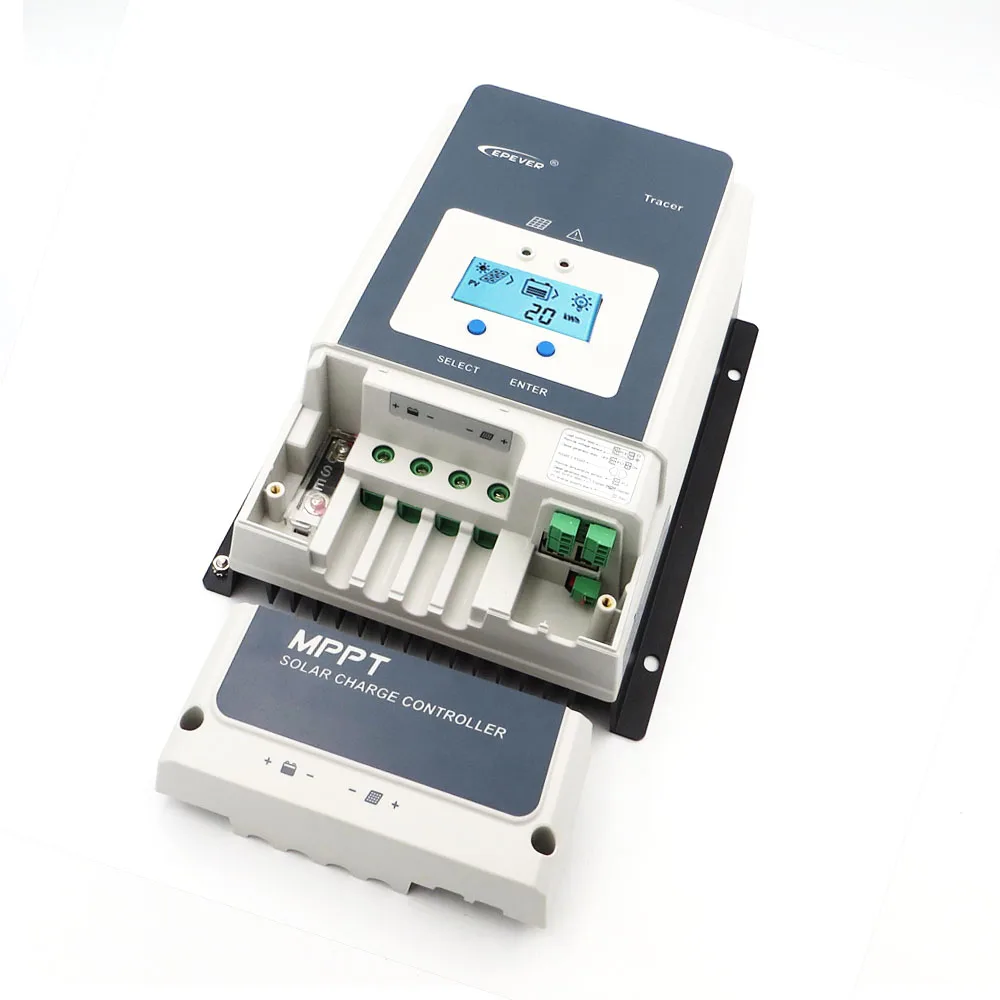

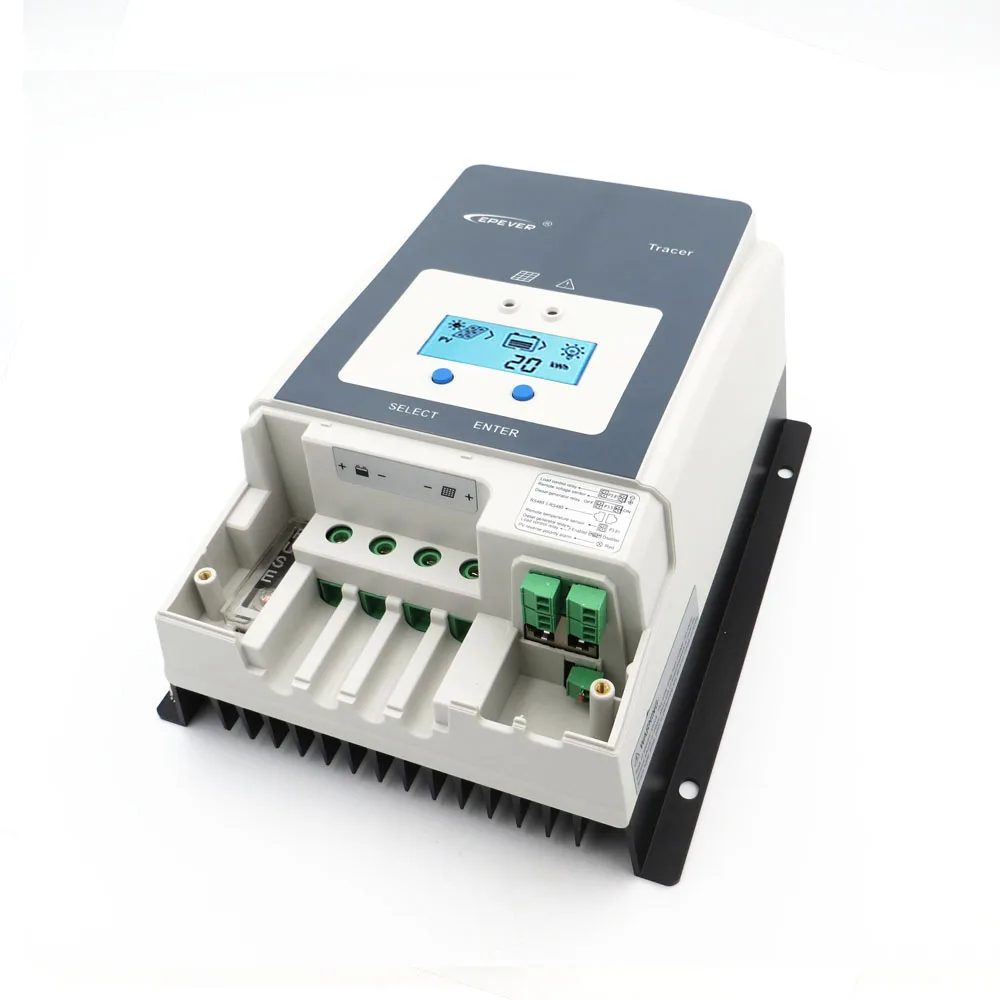

Wiring order & Accessories
Product Paramenters
Model | Tracer5415AN | Tracer6415AN | Tracer8415AN | Tracer10415AN | ||||
Nominal System Voltage | 12/24/36/48VDC or Auto | |||||||
Battery Input Voltage Range | 8V～68V | |||||||
Battery Type | Lead-acid Battery :Sealed(Default)/Gel/Flooded/User Lithium Battery :LiFePO4/ Li(NiCoMn)O2/ User | |||||||
Battery fuse | 80A/58V | |||||||
Rated charge current | 50A | 60A | 80A | 100A | ||||
Rated charge Power | 625W/12V 1250W/24V 1875W/36V 2500W/48V | 750W/12V 1500W/24V 2250W/36V 3000W/48V | 1000W/12V 2000W/24V 3000W/36V 4000W/48V | 1250W/12V 2500W/24V 3750W/36V 5000W/48V | ||||
Max. PV open circuit voltage | 150V① 138V② | 150V① 138V② | 150V① 138V② | 150V① 138V② | ||||
MPP Voltage Range | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | ||||
Tracking efficiency | ≥99.5% | ≥99.5% | ≥99.5% | ≥99.5% | ||||
Max. conversion efficiency | 98.3% | 98.6% | 98.5% | 98.6% | ||||
Full load efficiency | 97.8% | 98.0% | 98.0% | 98.0% | ||||
Temperature compensate coefficient | －3mV/℃/2V(Default) | |||||||
Self-consumption | 98mA/12V;60mA/24V;50mA/36V;46mA/48V | |||||||
Grounding | Common negative grounding | |||||||
Relay | Rated Value:5A/30VDC; Max. Value:0.5A/60VDC | |||||||
RS485 interface | RS485(5VDC/200mA, Two RJ45 ports in parallel) ③ | |||||||
LCD backlight time | Default:60S,Range:0～999S(0S:the backlight is ON all the time) | |||||||
①At minimum operating environment temperature; ②At 25℃ environment temperature; ③When connect the controller to external devices,only one of the ports can be used; when use multiple controllers in parallel, the port are for cascaded use | ||||||||
Ambient temperature range | -25℃～+60℃(Derate above 45℃) | |||||||
LCD temperature range | -20℃～+70℃ | |||||||
Storage temperature range | -30℃～+85℃ | |||||||
Relative humidity range | 5% to 95% (N.C.) | |||||||
Enclosure | IP20 | |||||||
Pollution degree | PD2 | |||||||
Dimension(mm) | 261×216×119 | 340×236×119 | 394×240×134 | 394×242×143 | ||||
Mounting dimension(mm) | 180×204 | 260×224 | 300×228 | 300×230 | ||||
Mounting hole size | Φ7 | |||||||
Terminal | 6AWG/16mm2 | 2AWG/35mm2 | 2AWG/35mm2 | 2AWG/35mm2 | ||||
Recommended cable | 6AWG/16mm2 | 6AWG/16mm2 | 4AWG/25mm2 | 2AWG/35mm2 | ||||
Weight | 3.5kg | 4.5kg | 6.1kg | 7.4kg | ||||
