Гидравлический ротатор для древесного грейфера FR
- Категория: Forestry Machinery >>>
- Поставщик: Yucheng,Restone,Machinery,And,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.39 $* | 0.89 $* |
| Aug-15-2025 | 0.46 $* | 0.16 $* |
| Jul-15-2025 | 0.99 $* | 0.36 $* |
| Jun-15-2025 | 0.44 $* | 0.22 $* |
| May-15-2025 | 0.11 $* | 0.78 $* |
| Apr-15-2025 | 0.95 $* | 0.56 $* |
| Mar-15-2025 | 0.65 $* | 0.10 $* |
| Feb-15-2025 | 0.44 $* | 0.66 $* |
| Jan-15-2025 | 0.82 $* | 0.51 $* |
Характеристики

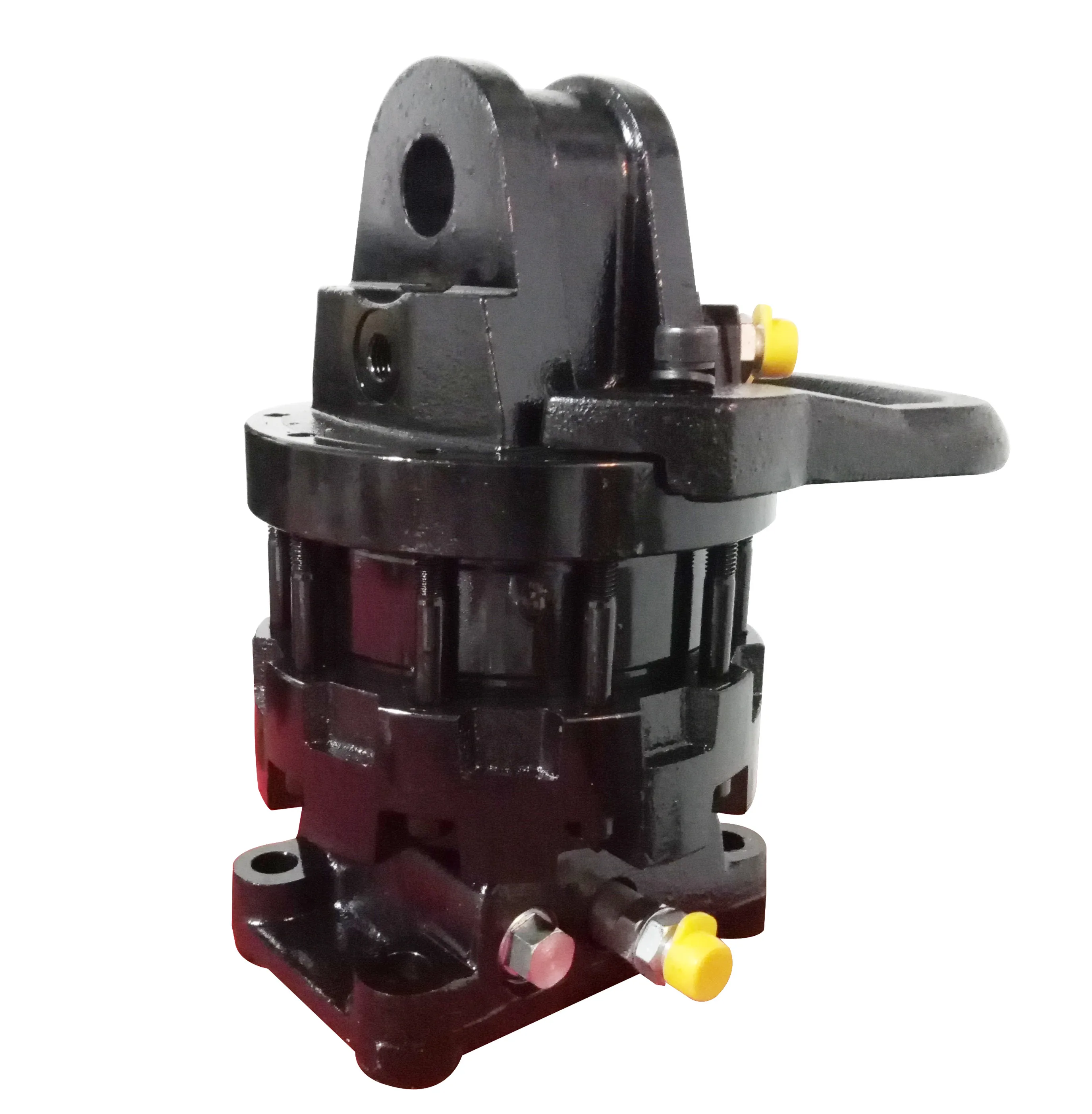

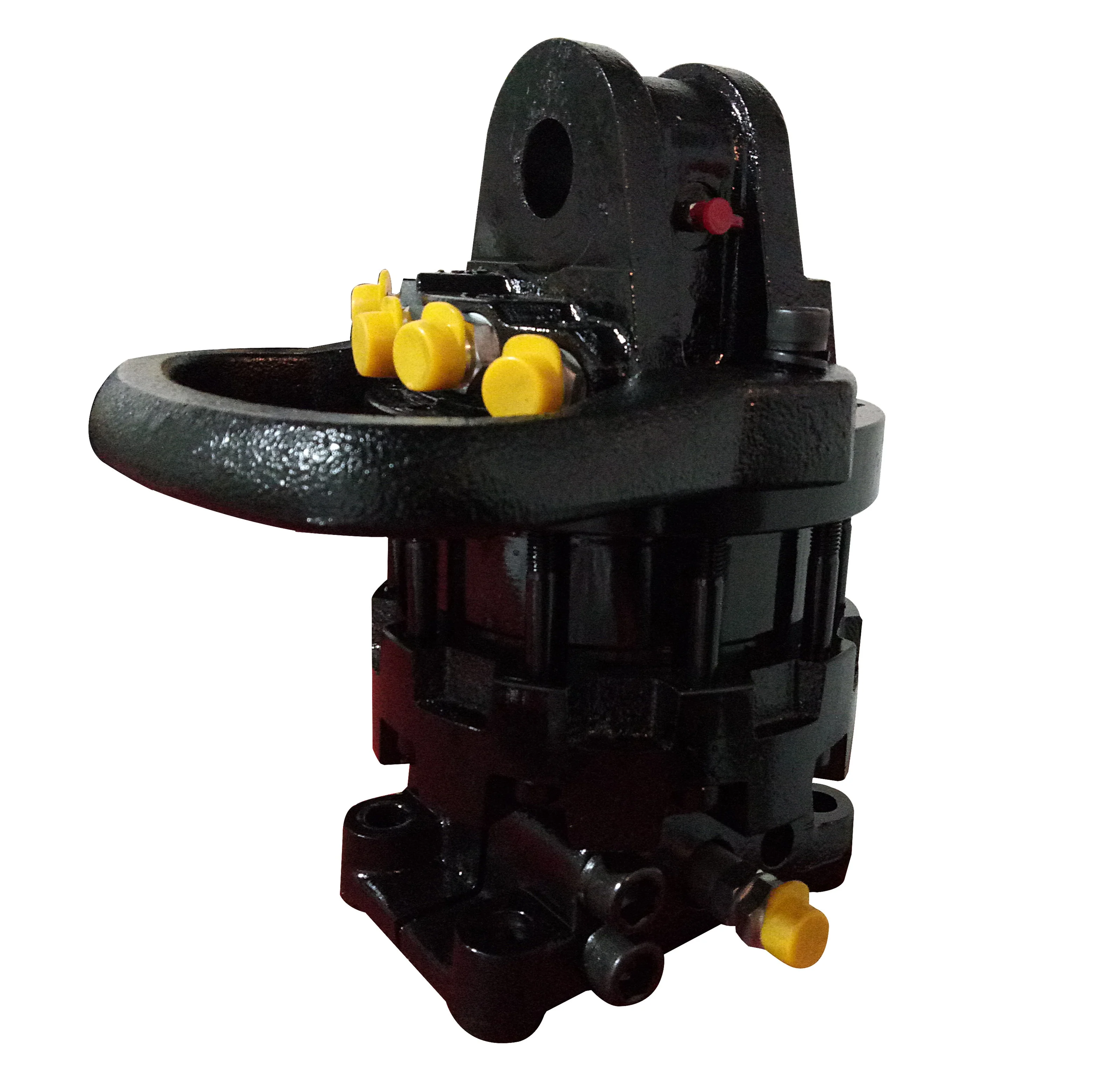

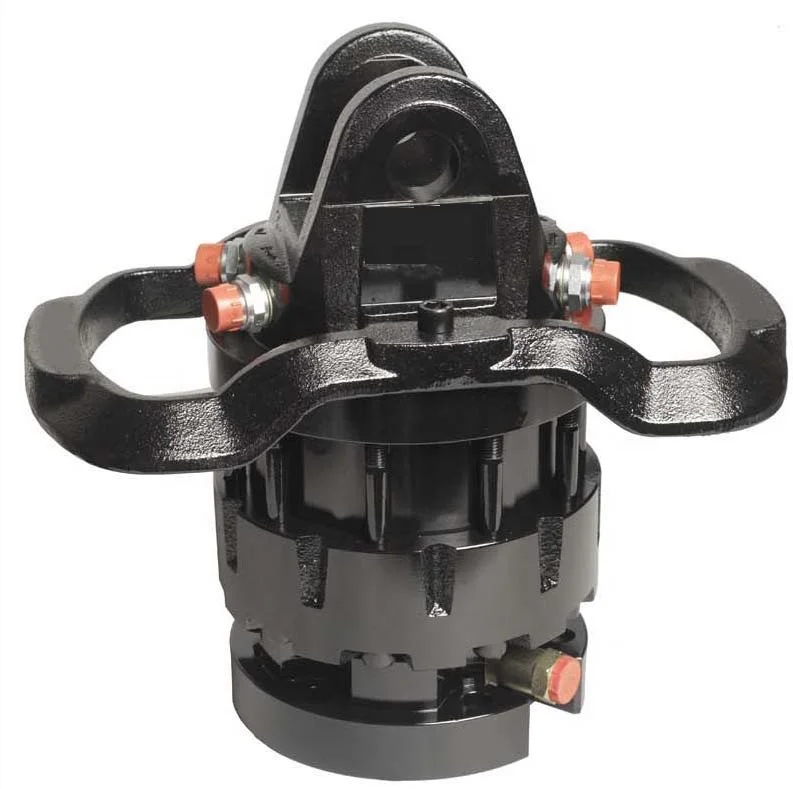

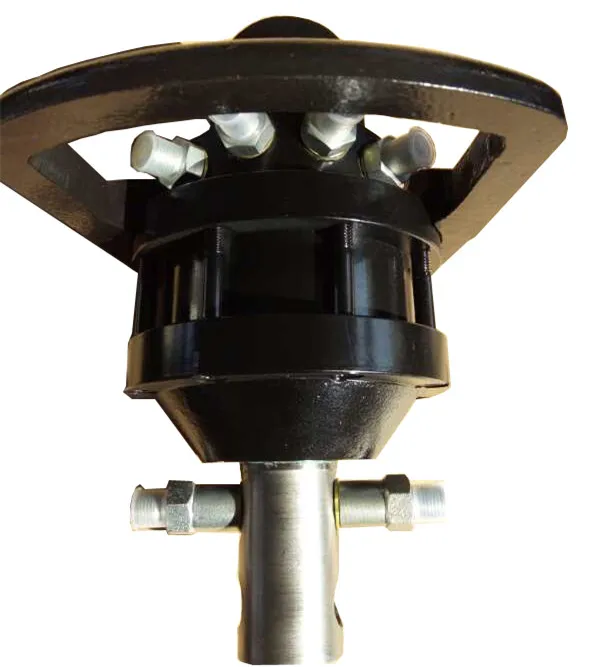

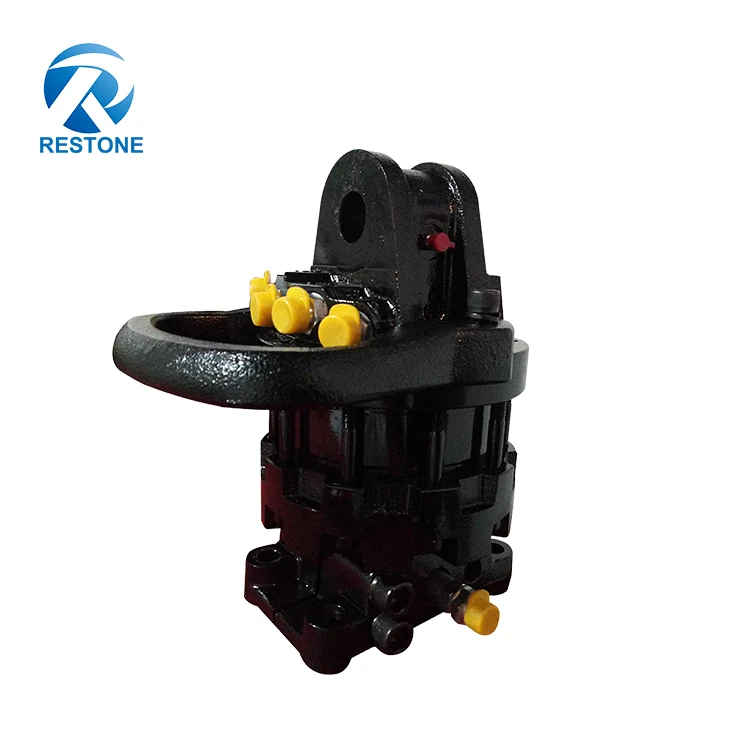

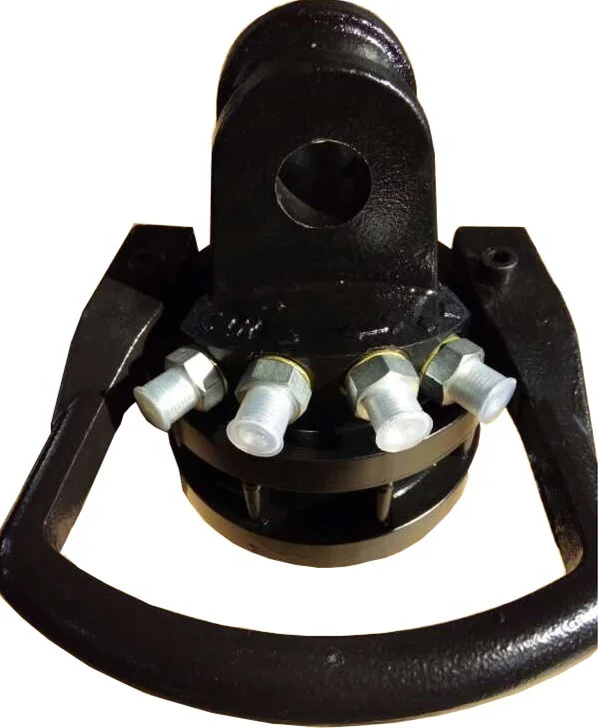

Hydraulic Rotator for Timber grapple-- FR-35
Product Description
FR-15 | FR-35 | FR-35F | FR-50 | FR-50F | FR-65 | FR-65F | FR-110FSH | FR-110FDH | FR-160FS | |
Max. Axial Load (Static) | 10KN | 30KN | 30KN | 50KN | 50KN | 60KN | 60KN | +100/-80KN | +100/-80KN | +120/-90KN |
Max. Axial Load (Stat) | 5KN | 15KN | 15KN | 25KN | 25KN | 35KN | 30KN | +50/-40KN | +50/-40KN | +60/-45KN |
Rotation Angle | 360° cont. | 360° cont. | 360° cont. | 360° cont. | 360° cont. | 360° cont. | 360° cont. | 360° cont. | 360° cont. | 360° cont. |
Torque Nm (at 250 bar) | 450Nm | 900Nm | 900Nm | 1400Nm | 1400Nm | 1800Nm | 1800Nm | 2700Nm | 2700Nm | 2900Nm |
Rated Displacement | 193ml/r | 330ml/r | 330ml/r | 465ml/r | 465ml/r | 670ml/r | 675ml/r | 870ml/r | 870ml/r | 950ml/r |
Connection | 1/4'' BSP | 3/8" BSP | 3/8" BSP | 3/8" BSP | 3/8" BSP | 1/2" BSP | 1/2" BSP | 1/2" BSP | 1/2" BSP | 1/2" BSP |
Weight | 10kg | 16kg | 22kg | 28kg | 33kg | 45kg | 48kg | 64kg | 67kg | 76kg |
Warranty | 1 Years | |||||||||
Delivery time | 20 days | |||||||||
