Product Description

Product

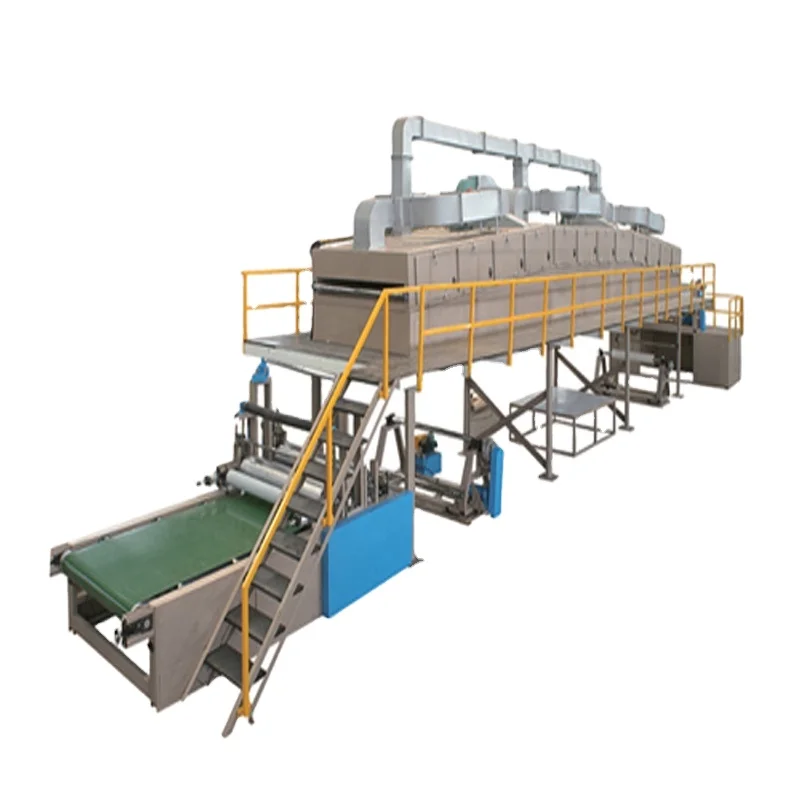

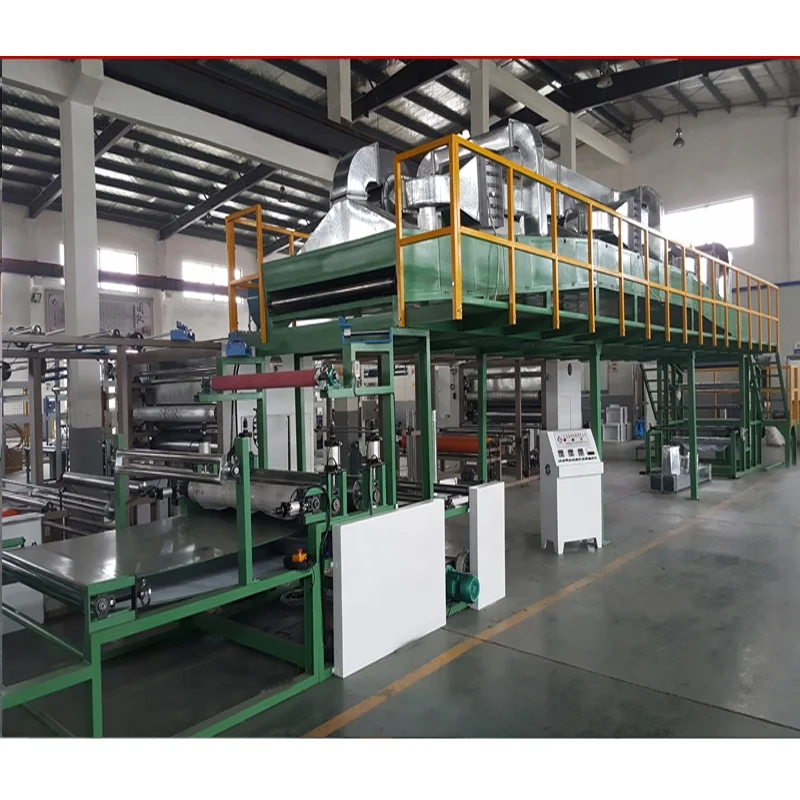

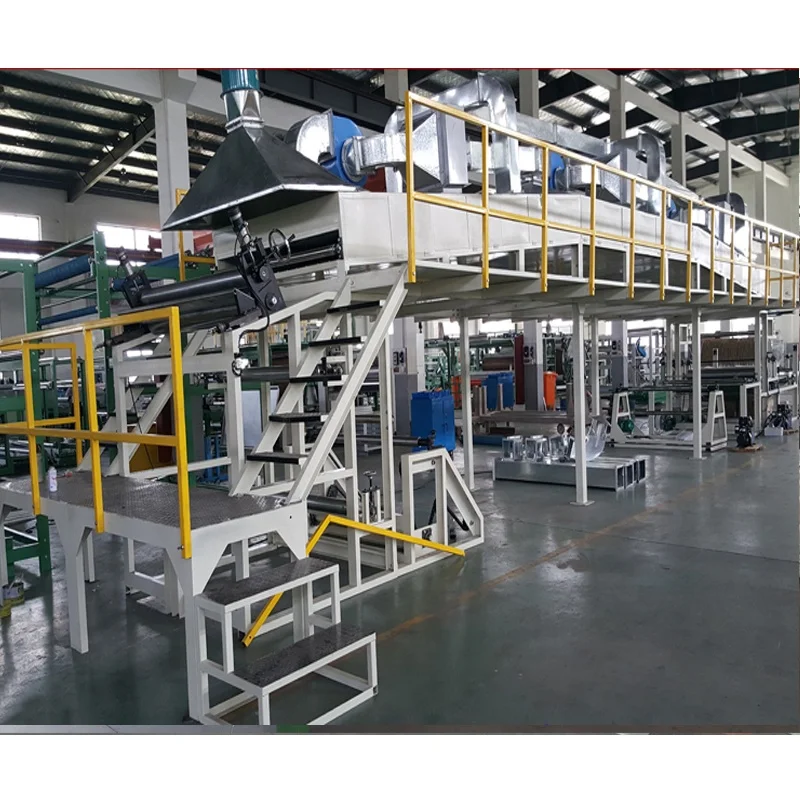

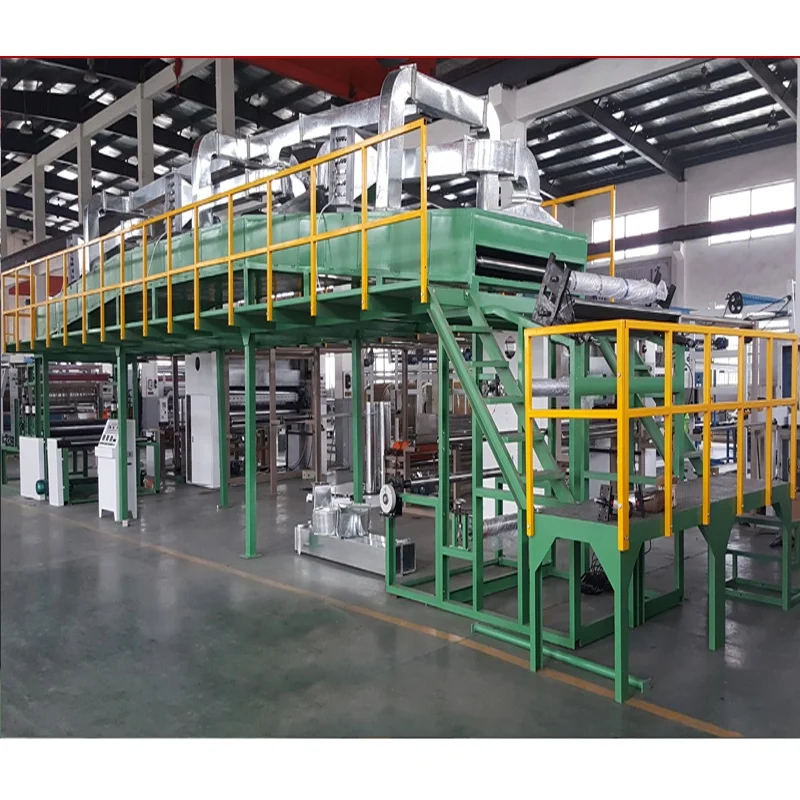

release paper water baesd glue laminating machine
This machine is suitable for the lamination of coating oily or water-based pressure-sensitive adhesive on Kraft paper, trademark,
self-adhesive paper,advertising paper, BOPP, masking Tape, PE, non-woven fabric, PU, EVA, foam, leather,sponge and so on. Widely
used in many industries like shoes, handbag, bag and luggage, lighting, advertising, packaging, upholstery, etc.

Features:
1.Tension control system: the whole machine winding and unwinding are controlled by magnetic particle tension control system.
2.The unwinding frame, winding frame and the exit of oven are each equipped with a set of EPC gas/liquid automatic rectifying devices (total 3 sets).
3.The oven safety system: when the oven temperature reaches the setting temperature, it automatically stops heating and
automatically heating when the temperature is lower than the setting temperature. The interlocking circuit of the exhaust system and heating system is set up to improve the safety and reliability of the production.
4.Energy saving type oven: oven adopts external type electric dryer, super heat preserving, low energy consumption, uniform heat; using intelligent digital PID SCR temperature control system,high precision temperature control.
5.Man-machine interface digital control system : machine driven by cycloid reducer motor and vector frequency control, machine utilizes PLC programmable control system with microcomputer touch screen, man-machine interface, color touch screen operation,simple operation, high degree of automation, all parameters in the factory has been set in the best condition, only by regulating the line speed of the button. It can realize automatic control of synchronous dynamic.

Main technical specifications:

1. Effective coating width:1300mm (coating roller,blade,machine rollers width are 1500 mm )
2.Machine's speed:0-35m/min
3.Coating and laminating speed:5-30m/min
4.Gross Motor: about 15KW
5.Power of electric heating:about 60KW (full-load power )
6.Coating of variation:±0.005 mm
7.Coating thickness:thinnest 0.01mm
8.Drying heating method:electric heating air circulation
9.Coating method:comma knife coating
10.Gluing amount:20~120 g/m²
11.Temp. control:Max. 120 °C (±3 °C) ; 12m oven (customizable)
12.Max. unwinding diameter:Ø 1000mm
13.Max. winding diameter:Ø 1000mm
14.Winding uniformity:± 2 mm
15.Temperature control of drying track: ≤ 100 °C accuracy:±3 °C
16.Voltage: 380V ± 10% , 50Hz , 3 phase five-wire
17.Gross Power: about 220 KW. (Normal production consumes about 80kW) only for reference .
18.Overall Dimension(L*W*H): about 18000mm×3000mm×4550mm

The main raw materials:
(1) Based Material: release paper (silicone oil paper), tissue, membrane (BOPP , CPP , PE , PU,etc.)
(2) Glue:oily or water-based pressure-sensitive adhesive,solvent-based adhesive
(3) coating method: Comma knife coating
