Китай оптовая цена портативный цифровой осциллограф UTD2102CEX + полоса пропускания 100 МГц
- Категория: Oscilloscopes >>>
- Поставщик: Huazheng,Electric,Manufacturing,(Baoding),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 369.7 $* | 387.41 $* |
| Aug-18-2025 | 366.45 $* | 384.11 $* |
| Jul-18-2025 | 307.68 $* | 322.14 $* |
| Jun-18-2025 | 360.81 $* | 378.11 $* |
| May-18-2025 | 313.75 $* | 329.58 $* |
| Apr-18-2025 | 353.95 $* | 371.19 $* |
| Mar-18-2025 | 350.6 $* | 368.27 $* |
| Feb-18-2025 | 347.98 $* | 364.21 $* |
| Jan-18-2025 | 344.51 $* | 361.95 $* |
Характеристики

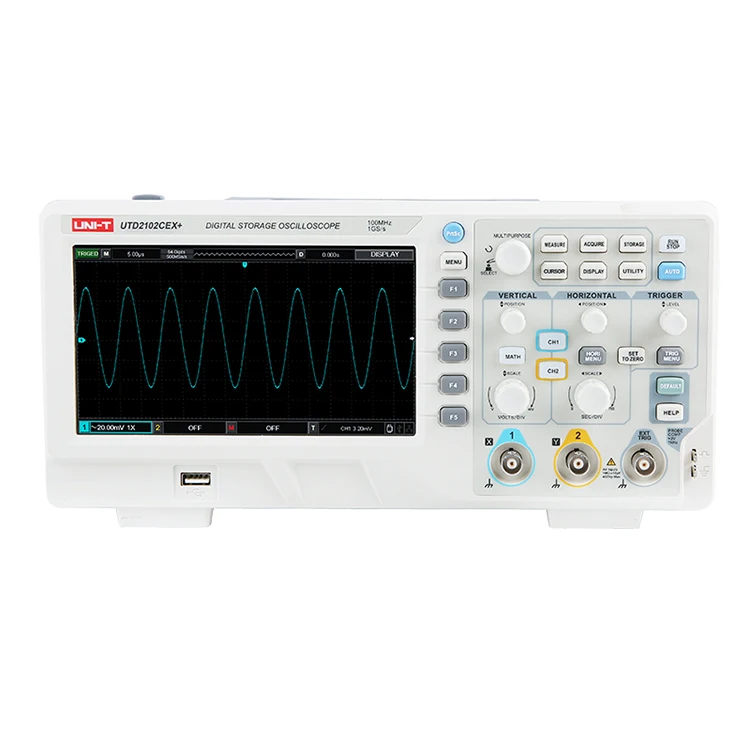

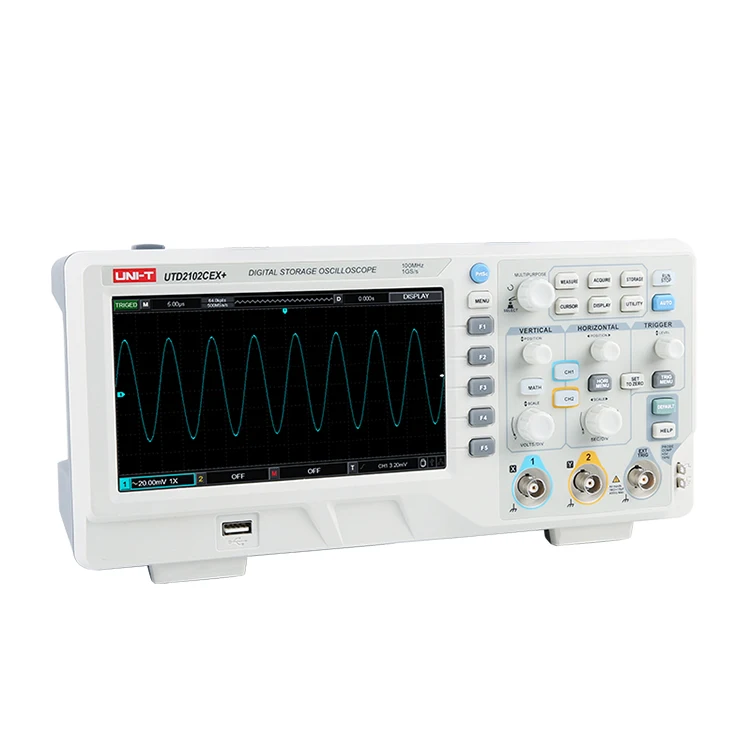

China Wholesale Price UTD2102CEX handheld digital storage oscilloscope 100MHz Bandwidth, Dual Channel
Product Description
1. 2 channels, wide vertical range: 1mV/div~20V/div;
2. 7 inch widescreen LCD display;
3. The new interface style;
4. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5. USB drive system software upgrade;
6. Storage of waveform setups and interface waveform and setup reproduction;
7. Automatic measurement of 32 waveform parameters;
8. Unique waveform record and replay function;
9. Multilingual menu available
Technical specifications:
| Specifications | UTD2102CEX | ||
| Channels | 2 | ||
| Bandwidth | 100MHz | ||
| Sample Rate | 1GS/s | ||
| Rise Time | ≤3.5ns | ||
| Memory Depth | 25kpts | ||
| Waveform Acquisition Rate | ≥2000wfms/s | ||
| Vertical Sensitivity (V/div) | 1mV/div~20V/div | ||
| Timebase Range (s/div) | 2ns/div~50s/div | ||
| Storage | Setup, Wave, Bitmap | ||
| Trigger Modes | Edge, Pluse, Video, Slope, Alternate | ||
| Interface | USB OTG | ||
| General Characteristics | |||
| Power | 100-240VAC, 45-440Hz | ||
| Display | 7 inches 64k Color TFT LCD, 800×480 | ||
| Product Color | White and grey | ||
| Product Net Weight | 2.2kg | ||
| Product Size (W×H×D) | 306mm ×147mm × 122mm | ||
| Standard Accessories | Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD | ||
| Standard Individual Packing | Gift Box, English Manual | ||
| Standard Quantity Per Carton | 2pcs | ||
| Standard Carton Measurement (L×W×H) | 450mm× 420mm × 280mm | ||
| Standard Carton Gross Weight | 8.5kg | ||
| Optional Accessories | |||
| LA Module | |||
Accessories:
Probe×2 (1×, 10× switchable),
Power Cord,
USB Cable,
PC Software CD,
LA Module (UT-M09)*
