Фотосессии с изображением в стиле пожаротушения 80 м до 100 струей высокого давления пожарной машиной
- Категория: Fire Trucks >>>
- Поставщик: Chengli,Special,Automobile,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 154700.65 $* | 162435.72 $* |
| Aug-19-2025 | 153400.1 $* | 161070.92 $* |
| Jul-19-2025 | 128700.52 $* | 135135.34 $* |
| Jun-19-2025 | 150800.93 $* | 158340.98 $* |
| May-19-2025 | 131300.83 $* | 137865.45 $* |
| Apr-19-2025 | 148200.68 $* | 155610.93 $* |
| Mar-19-2025 | 146900.19 $* | 154245.26 $* |
| Feb-19-2025 | 145600.9 $* | 152880.9 $* |
| Jan-19-2025 | 144300.73 $* | 151515.92 $* |
Характеристики
Product Description
[18m-Arm High Lifting Jetting Fire Truck]
CLW5250GXFSGZ3 HOWO 12000liters High Pressure Jet Fire Truck
- Manufacturerd by our company professional sub-factory, fire truck factory
- JP18 18m hydraulic high lift arm, with water pipe, jet nozzle, camera, and other sensors
- The max water jetting height can reach 80 to 100m for high buildings fire rescue
- Famous fire equipment brand, CB10/80 fire pump, large power and large range
- Water tank inside with anticorrosive resin paint, also can choose stainless steel water tank
- Specificated fire equipment compartment and pump compartment
- Fire water tank: 1000liters to 20000 liters
- Pump: CB10/20, CB10/30, CB10/40, CB10/60
- Pump pressure: common pressure pump, low pressure pump, high pressure pump
- Cabin: single row cab, double cab
- Chassis brand: HOWO, DONGFENG, FOTON, SHACMAN, HONGYAN, JAPAN BRAND, JMC, JAC, etc.
| Specifications of CLW5250GXFSGZ3 High Pressure Jet Fire Truck | |
| Vehicle Basic Parameters | |
| Model | CLW525GXFSSGZ3 |
| Water Tank | 12000 liters |
| Chassis brand & Year | SINOTRUK HOWO, 2018 new |
| Wheel Drive | 6x4, LHD |
| Overall Dimension | 10690x2500x3970mm |
| Gross Weight | 33800kg |
| Curb Weight | 19200kg |
| Load capacity | 12020kg |
| Engine | SINOTRUK WD615.38 380HP 6-cyl 9726cc Turbocharged Intercooled |
| Fuel Type | Diesel |
| Wheelbase | 4600+1350mm |
| Tires: | 10+1, 295/80R22.5 |
| Cabin | Double cab, 2+4 seats |
| Transmission | Manual, 10 front gears and 2 rear gear |
| Brake | Full air brake |
| Max Speed | 90km/h |
| High Lift Arm Jetting System | |
| Model | JP18 |
| Arm lifting height | 18 meters |
| Type | Hydraulic 2 section arm |
| Nozzle | High pressure water jet nozzle |
| Other | With camera |
| Pump | |
| Model | CB10/80 |
| Flow | 80L/s |
| Pressure | 1.0MPa |
| Water diversion time | <40s |
| Water suction depth | 7m |
| Water Tank | |
| Volume | 12000 liters |
| Material | stainless steel 304 |
| Manhole | One unit |
| Flow valve | One unit |
| Fire Monitor(shooting nozzle) | |
| Model | PS50 water jet nozzle |
| Pressure pump | 1.0MPa |
| Flow | 50L/s |
| Range | >60m |
| Rotation angle | 360° horizontal |
| Other Config. | |
| Fire pump compartment | One unit, with three sets aluminum shutter doors |
| Fire tool compartment | 2 sets, aluminum shutter doors |
| Fire tool | 21 sets |
| Lighting light | One unit, at rear top of truck |
| Side warning light | 8 pcs |
| Spare tire | One unit |
| Water suction hose | 2 pcs, 6m long ruber hose per pcs |
| Ladder | One set |
| User manual | One pcs |
| Reflective stickers | Factory standard |
| Logo painting & Color | Customzied |

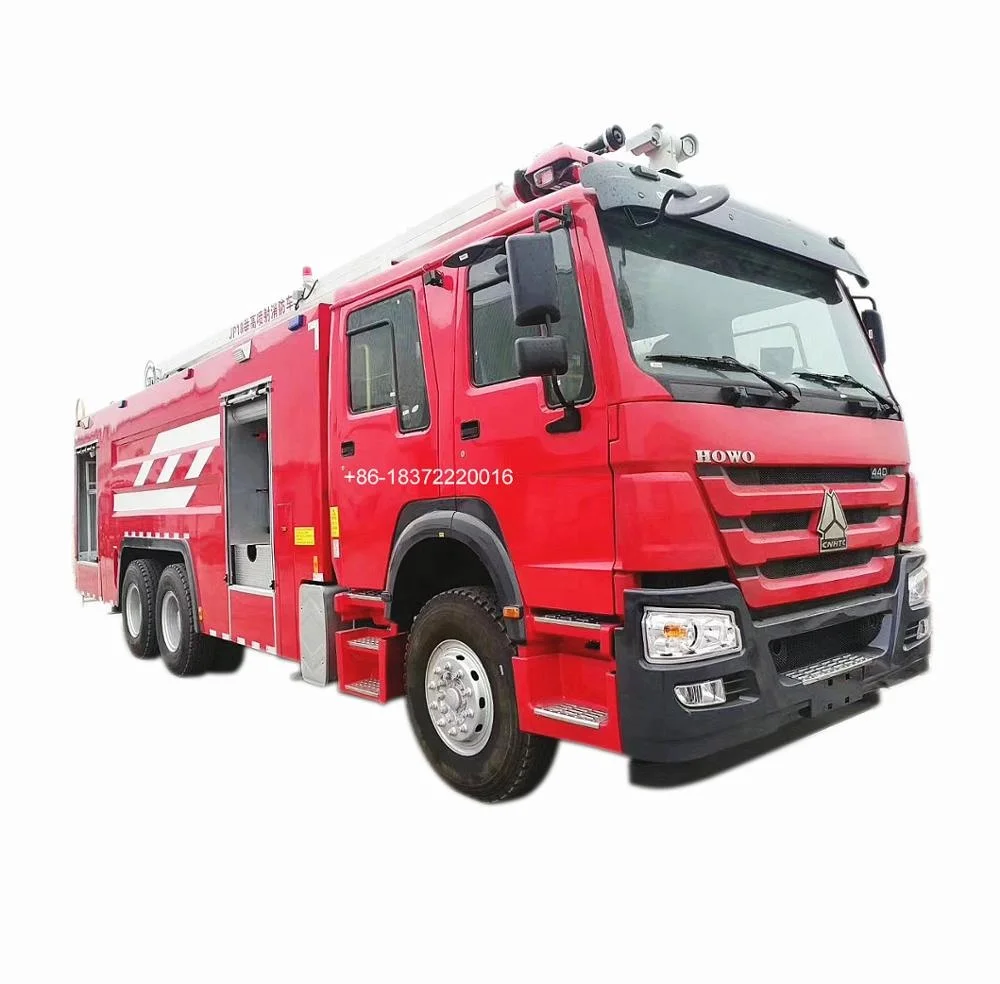

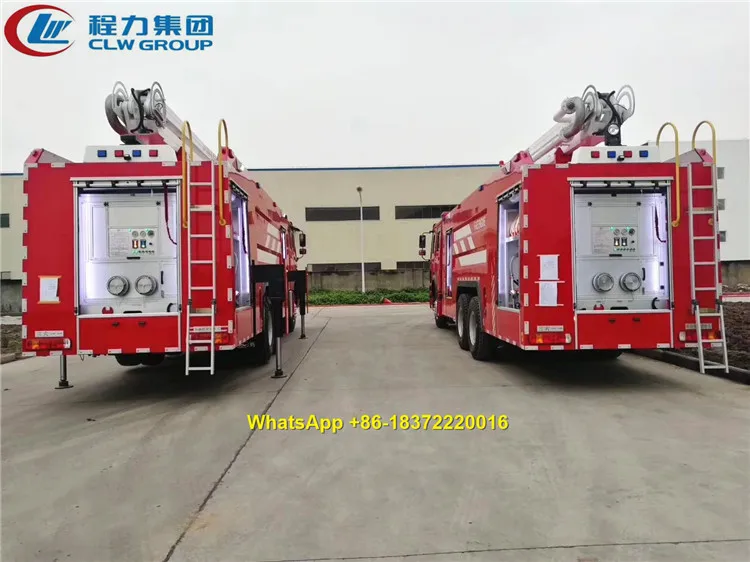

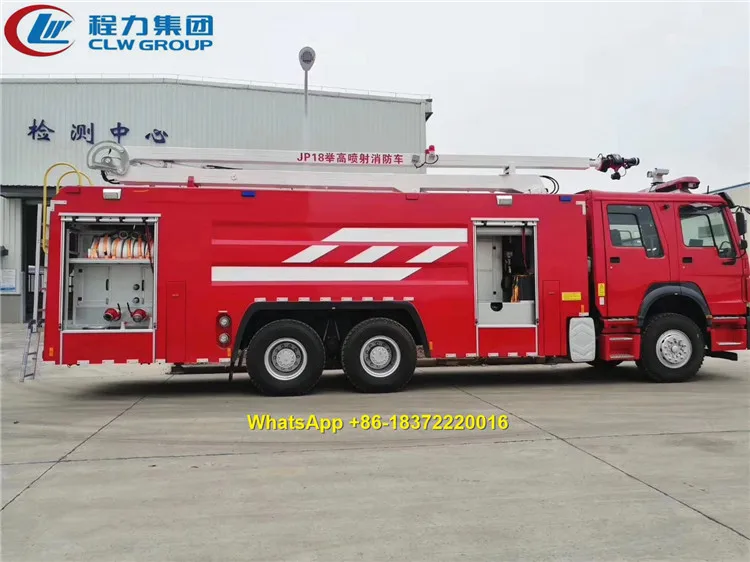

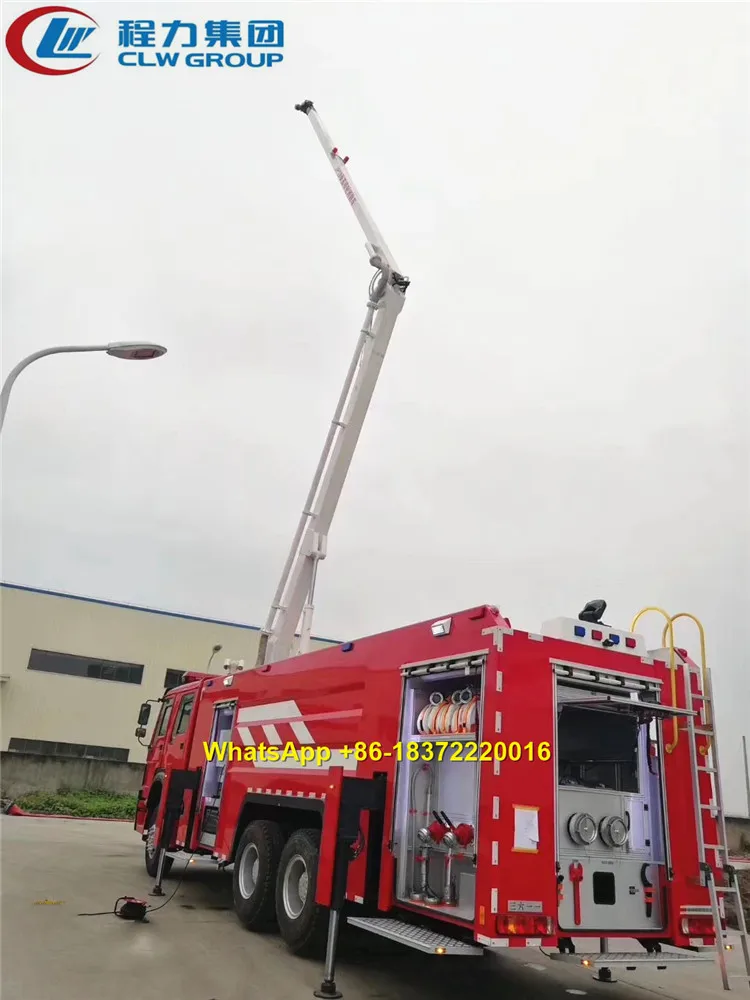

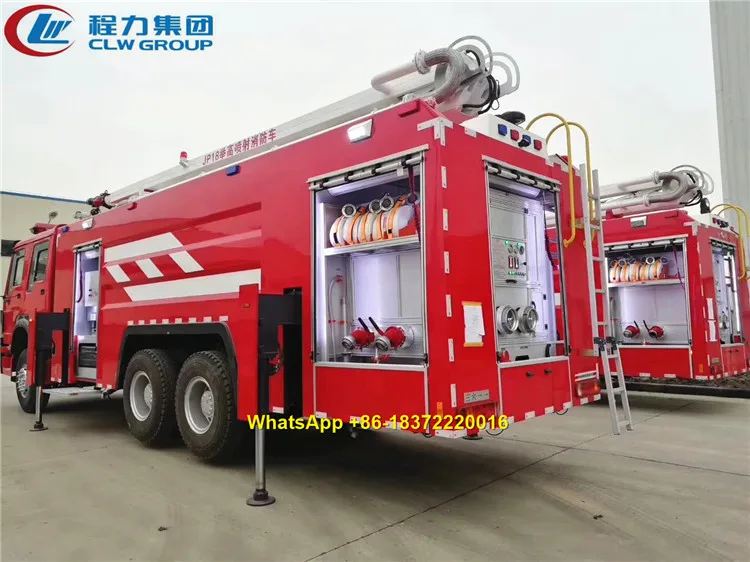

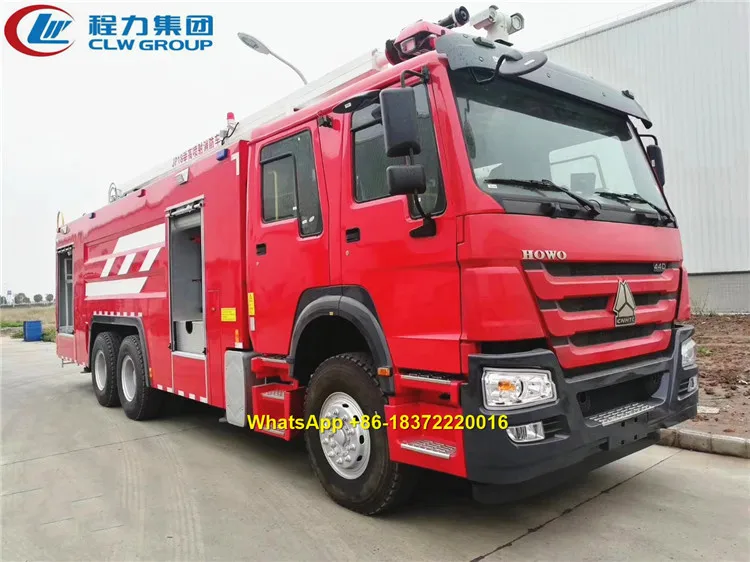

Reference Photos of High Pressure Jet Fire Truck:
Common Equipped Fire Tools:
More options of CLW fire fighting+ truck:
- Fire truck type: water sprinkler fire truck, water fire truck, foam fire truck, powder-water fire truck, rescue fire truck, high lifting jetting fire truck, commander fire truck, LED advertising fire truck, etc
- Chasiss brand optional: HOWO, DONGFENG, JMC, FOTON, SHACMAN, JAC, JAPAN BRAND, LIUQI CHENGLONG, etc
- Volume: from 1000liters to 20000liters
Company Information
Chengli Special Automobile Co.,Ltd
ChengLi Group, located in the Southern Suburb of Zengdu District, Suizhou City, is a diversified group company integrating automobile technology research and development, automobile manufacturing, automobile modification, auto parts, finance, education and home investment.
CLW Group "CHENGLIWEI" brand special trucks are the best sells in whole nation, and exported to South America, the Middle East, Central Asia, Southeast Asia, Africa, more than 30 countries and regions.
CLW Group "CHENGLIWEI" brand products occupy an important share in the domestic and international market. The leading products include: all kinds of water trucks, garbage trucks, suction sewage trucks, road sweeper trucks, fuel tank trucks, chemical trucks, wrecker trucks, aerial work trucks, fire trucks, truck mounted crane, refrigerated trucks, van trucks,LPG(pressure vessel), highway maintenance trucks, flatbed transport trucks, bulk grain trucks, stage trucks, LED advertising trucks, mobile sales truck, heavy duty truck mounted crane, concrete pump trucks, drug transport trucks, new energy trucks, and other series of more than 800 varieties.
Factory Images:
We have passed certifications of ISO9001-2008 Quality Management, ISO 14001 Environmental Management, OHSAS18001 Occupational Health And Safety Management System Certification, 3C Mandatory Certification, GJB9001B-2009 National Military Standard Certification and Confidentiality Certification (national level 3), the Bational Weapons and Equipment Production License, Energy-saving Environmental Certification, Automotive Exemption Certification, the US Mechanical Rngineer Asme (ASME) Certification, the EU Agreement ADR Certification. We have obtained production license qualification for special trucks including : A2, C2, C3 pressure vessels, truck mounted crane, crane trucks, fire trucks, buses, new energy vehicles production and other qualifications.
Certificates:
Packaging & Shipping
Packaging: nude packaged, waxed
Transport type: Land transport, train transport, ship transport according to detail situation.
Ship type: ro/ro ship, bulk ship, container ship(20GP/40GP/40HQ/40OT,etc)
Marine shipping time: 7 days~45 days according to distance.
*Remark: for details about packaging and shipping, please confirm before placing an order.
Customers Visit
FAQ
1. What is the term of delivery?
Answer: EXW, FOB, CIF, DAP.
2. What is the payment term?
Answer: FOB,CIF,DPA; T/T, 30% in advance and 70% balance before shipping.
3. How about the delivery time?
Answer: Commonly, it takes 15~35 days of production after the receipt of your advance down payment and 7 days for delivering after full payment.
4. What is the warranty time?
Answer: 12 month from the date of supply for vehicles; technical support and spare parts supply liftlong.
5. What is the packaging?
Answer: bulk ship, ro-ro ship, container ship, flat rack, etc.
Professional, economic and safe methods and measures to package trucks or equipments.
6. Can we supply samples if customers need sample in advance?
Answer: If we just right have the sample in stock, we can supply it for you. But the customer need pay for the cost.
7. How to establish a long term cooperation?
Answer: We try our best to guarantee great quality and good price policy for our old customers to ensure the benefits of our customers. Moreover, we respect every customer and sincerely do business, making friends with them, no matter who they are, wherer they are from.
