2020 Прямая поставка с завода резиновая гусеничная лента

2020 Прямая поставка с завода резиновая гусеничная лента

Категория: Engineering & Construction Machinery >>>
Поставщик: Ningbo,Kemer,Engineering,Machinery,Co.,ltd.

Цена:4 680,00 $ - 4 700,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	5569.42 $*	5847.12 $*
Aug-20-2025	5522.6 $*	5798.95 $*
Jul-20-2025	4633.25 $*	4865.56 $*
Jun-20-2025	5429.12 $*	5700.75 $*
May-20-2025	4727.47 $*	4963.63 $*
Apr-20-2025	5335.36 $*	5602.29 $*
Mar-20-2025	5288.65 $*	5552.70 $*
Feb-20-2025	5242.58 $*	5504.27 $*
Jan-20-2025	5195.77 $*	5455.64 $*

Характеристики

Product Description

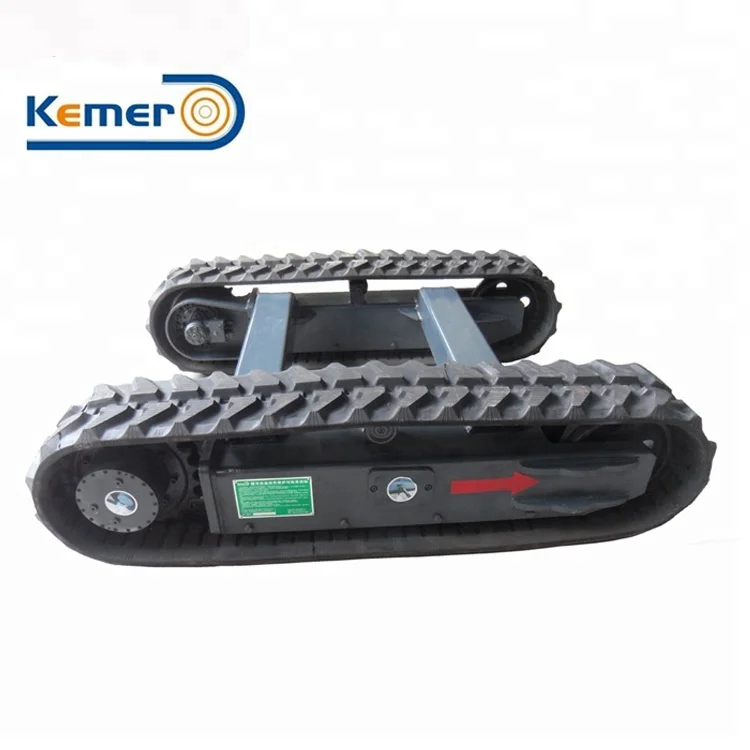

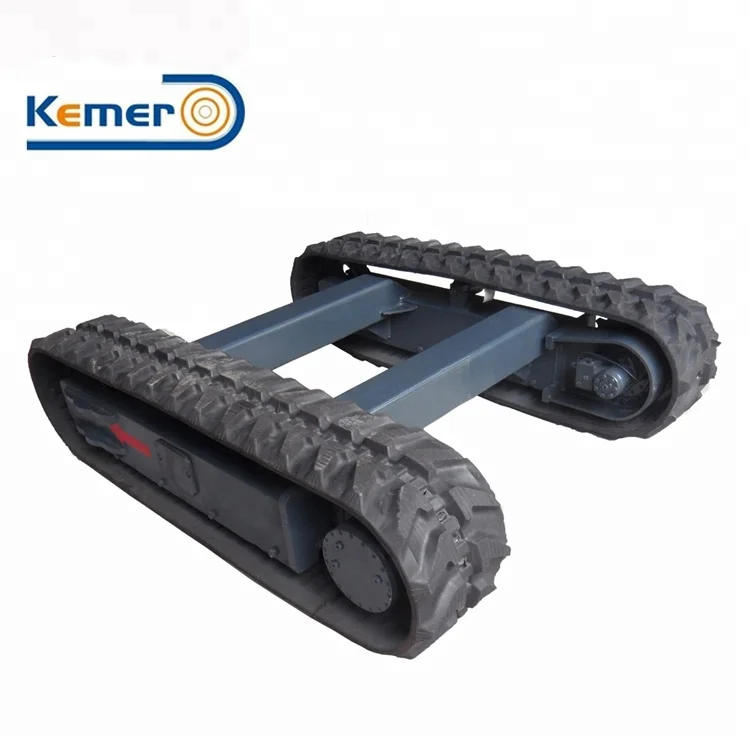

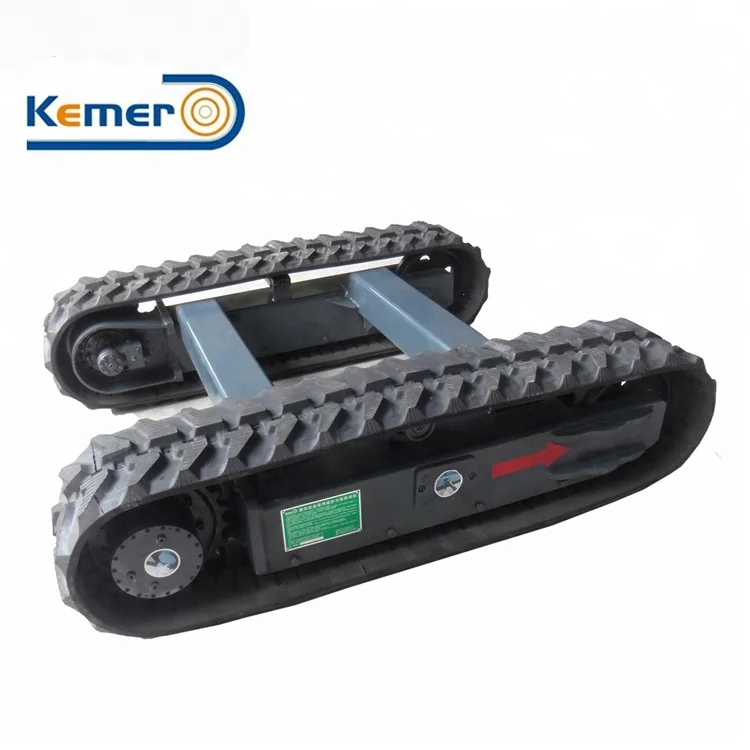

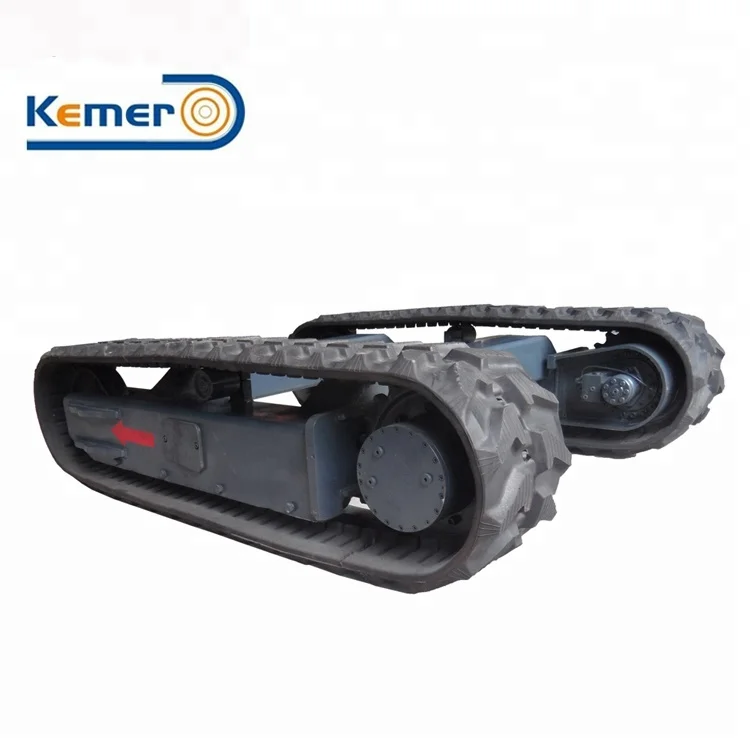

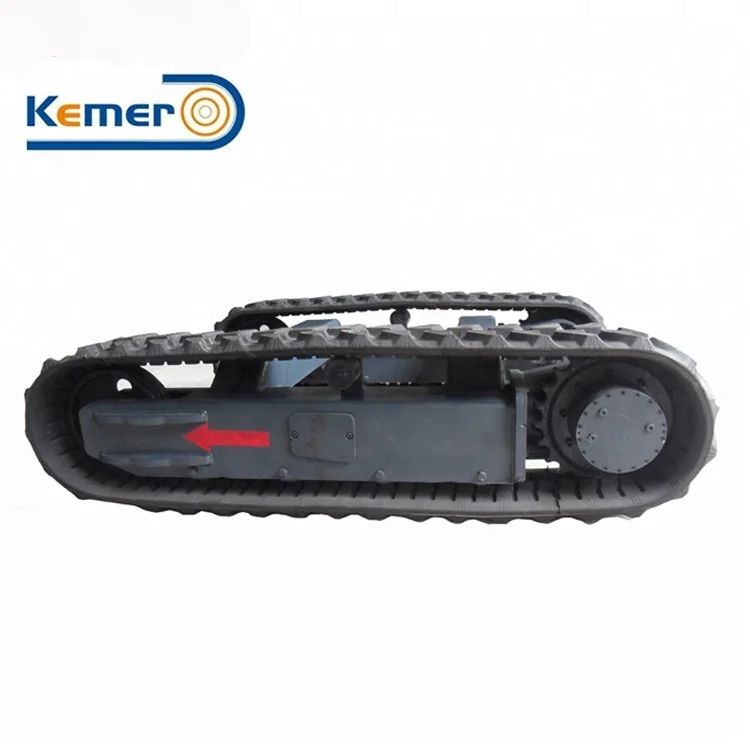

2018 Directly supplied Factory customized Rubber Crawler Track

This model of rubber crawler track is KRT3000.

\t SPECIFICATIONS FOR 3 TON RUBBER CRAWLER TRACK
\t Dimension	\t Length	\t 1826mm	\t 2425
	\t Width	\t mm	\t 800-2300
	\t Height	\t mm	\t 495
\t Specification	\t Ratio	\t	\t 21.4
	\t Max Gradeablity	\t °	\t <=35
	\t Rated Pressure	\t Mpa	\t 25
\t Technical Data	\t Travelling speed(single side 22L/min)	\t Km/h	\t 0-3
	\t Output torque(single side)	\t N.m	\t 3000
	\t Loading capacity	\t T	\t 3

Main Features

1) The wider width can make the Rubber Crawler Track stable and reliable .

2) Equipped with doosan motor which can be easily changed when the motor do not work.

3)We use two speed motor on this model of rubber crawler track,when you transfer from one place to another it can travel in the fast speed,when it is working it can tavel in a low speed.This can best suit your needs.If you need a wider speed range,you can choose a variable displacement pump with fix displacement motor.That depends on your needs.

4) When the field is muddy,the rubber drawler track is a best solution.

Other Models

Our Service

Pre-Sales Service

* Inquiry and design support. Choose the best solution.

* Sample testing support.

* View our Factory.

After-Sales Service

* Our products are all purchased by manufacturer of the whole machine so we will supply the suggestion about the

system specs.

* We can supply the spare parts in the warranty.

Application

This model (KRT3000)of rubber crawler track is used on fruit pick machine.

Packing & Delivery

\t Packaging
\t Size	\t 1.8(L) * 2 (W) * 0.72 (D)
\t Weight	\t 1.1 T
\t Packaging Details	\t Usually we pack the rubber crawler track by steel pallet and wrapping film.And the slew beaing is packed by wooden box.But as the width is 2300mm,so we did not use the steel pallet for this model of rubber crawler track.If you have special needs about rubber crawer track,we will pack it according to customers special request.

\t Packaging
\t Size	\t 0.7 (L) * 0.7(W) * 0.8 (D)
\t Weight	\t 800KG
\t Packaging Details	\t The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too high,we will use pe film for packing or pack it according to customers special request.
