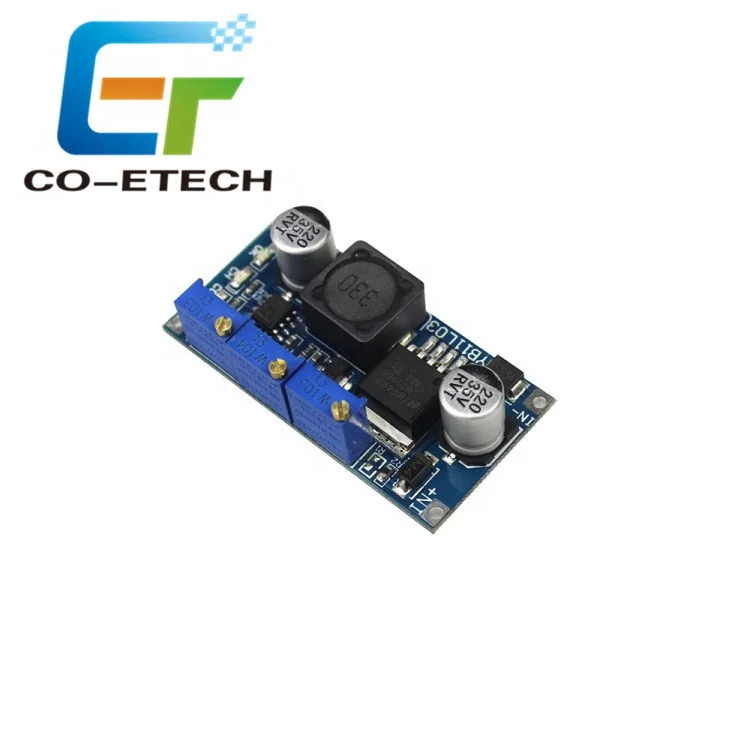

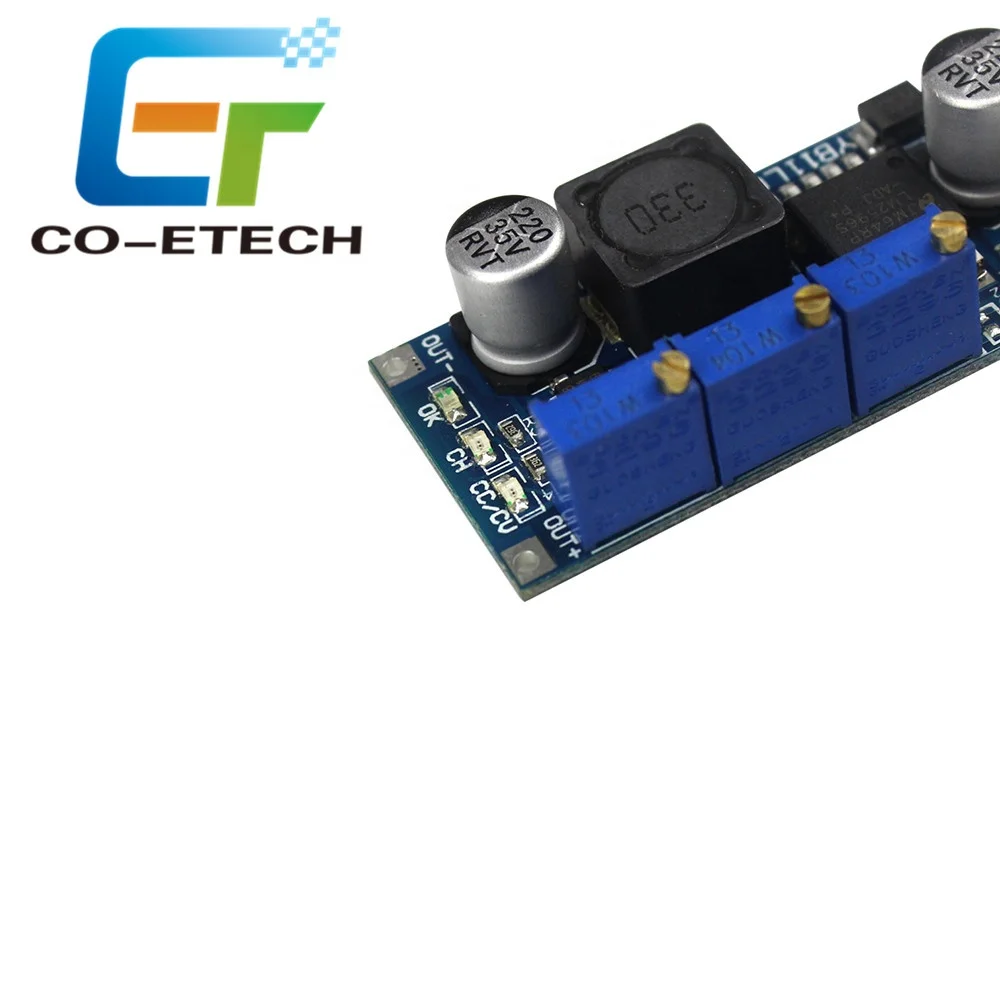

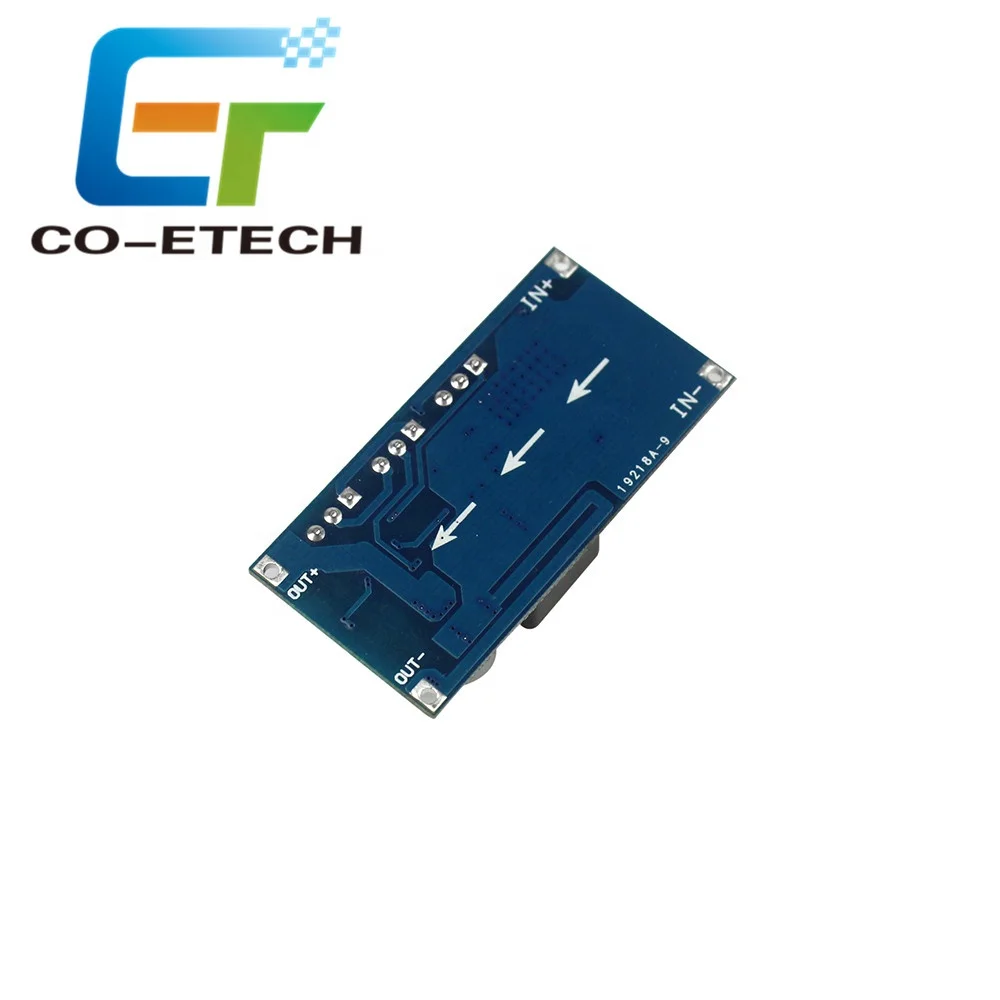

DC-DC понижающий Регулируемый Модуль LM2596 светодиодный драйвер CC/CV питание с литиевой батареей модуль зарядного

Size: 46 mmx23mmx10mm / 1.81 "x0.91 " x0.39 "(inch)

1. The Fixed turn the lamp current to 0.1 times the value of the constant current (at the when 2 identify been the 'is full);

2. Increased input reverse polarity for protection, diode;

3. Using dedicated reference for IC, and high - precision from the resistor, so that the constant current is more stable, (20 degrees to 100 degrees, the constant current 1 a, when the temperature drift of less than 1%).

Particularly suitable for the LED driver:

* High - power LED constant current drive
* Lithium 'charger (o ferroelectric)
* 4 v, 6 v, 12 v, 14 v, 24 v 'charger
* Nickel cadmium, Nickel metal hydride 'pack charger
* For solar panels and wind turbines
* the Module Properties: non - isolated constant current and voltage of the Module
* Rectification: non - synchronous Rectification
* Input voltage: 7 v - 35 v
* the Output voltage: 1.25 V - 30 V
* the Output current: adjustable maximum 3 a
* Conversion efficiency: 92% (the highest)
* Switching frequency, 150 KHZ
* the Output ripple: 50 mv (Max) 20 m bandwidth
* the Load Regulation: plus or minus 0.5%
* Voltage Regulation: plus or minus 2.5%
* Operating Temperature: -40℃ to + 85℃
