Портативный цифровой мультиметр для осциллограф UTD1025CL 25 МГц 200 мс/с Ручной
- Категория: Осциллографы >>>
- Поставщик: Xinjiang,Kaihong,Hardware,Electrical,Appliances,&,Chemical,Co.,Ltd.,[Xinjiang,China]Xinjiang
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 18647.44 $* | 19579.1 $* |
| Aug-19-2025 | 18491.39 $* | 19416.79 $* |
| Jul-19-2025 | 15513.2 $* | 16289.41 $* |
| Jun-19-2025 | 18177.59 $* | 19086.45 $* |
| May-19-2025 | 15827.18 $* | 16618.48 $* |
| Apr-19-2025 | 17864.27 $* | 18757.69 $* |
| Mar-19-2025 | 17707.72 $* | 18592.33 $* |
| Feb-19-2025 | 17550.56 $* | 18428.54 $* |
| Jan-19-2025 | 17394.40 $* | 18264.84 $* |
Характеристики

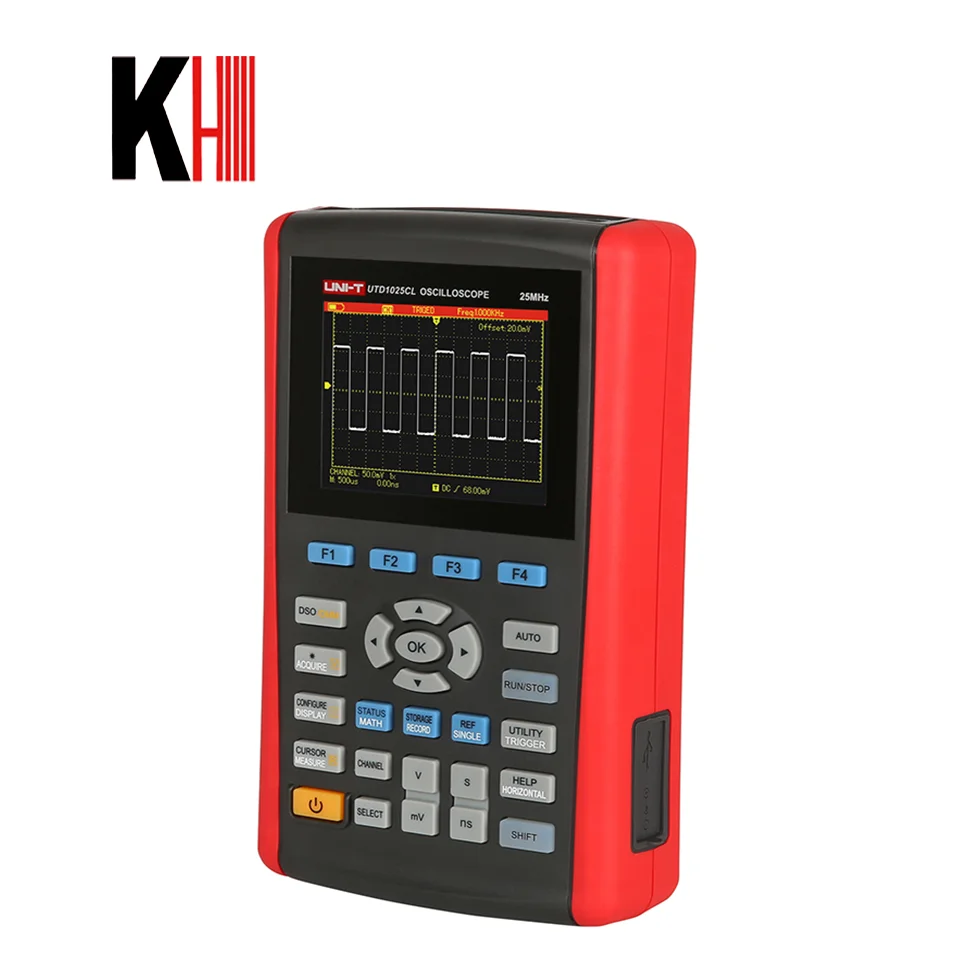

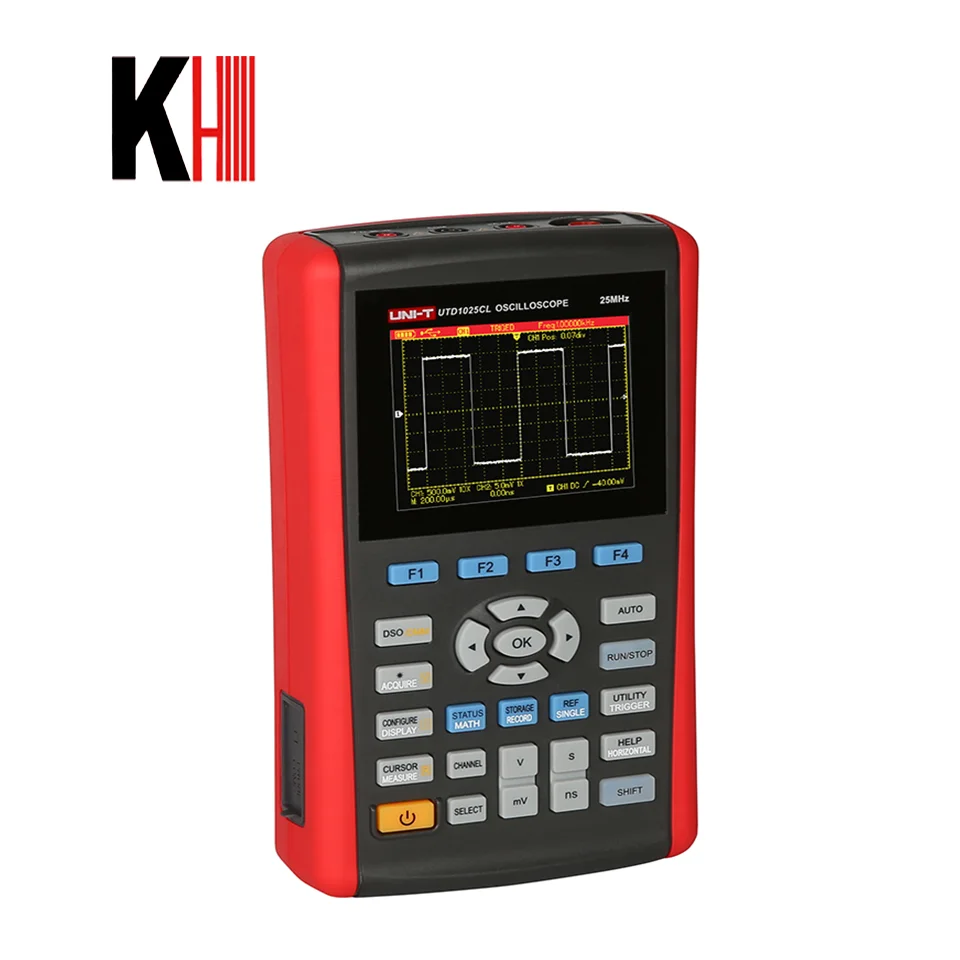

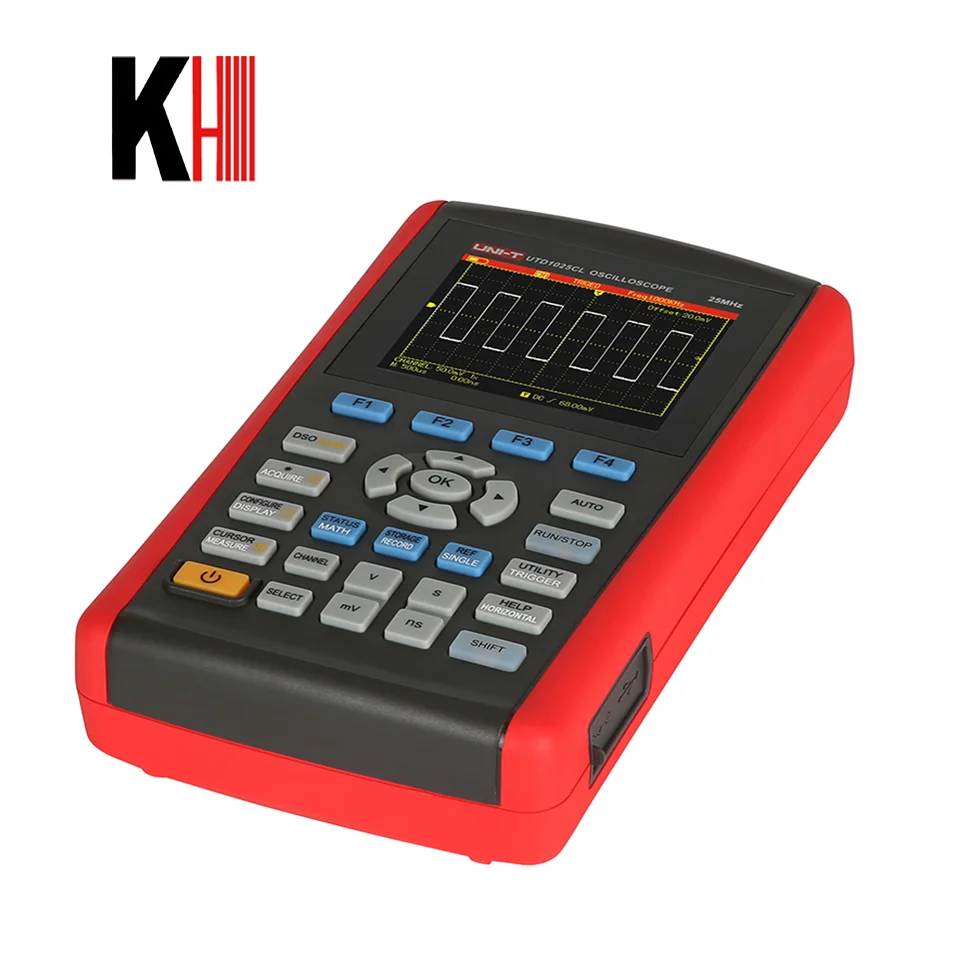

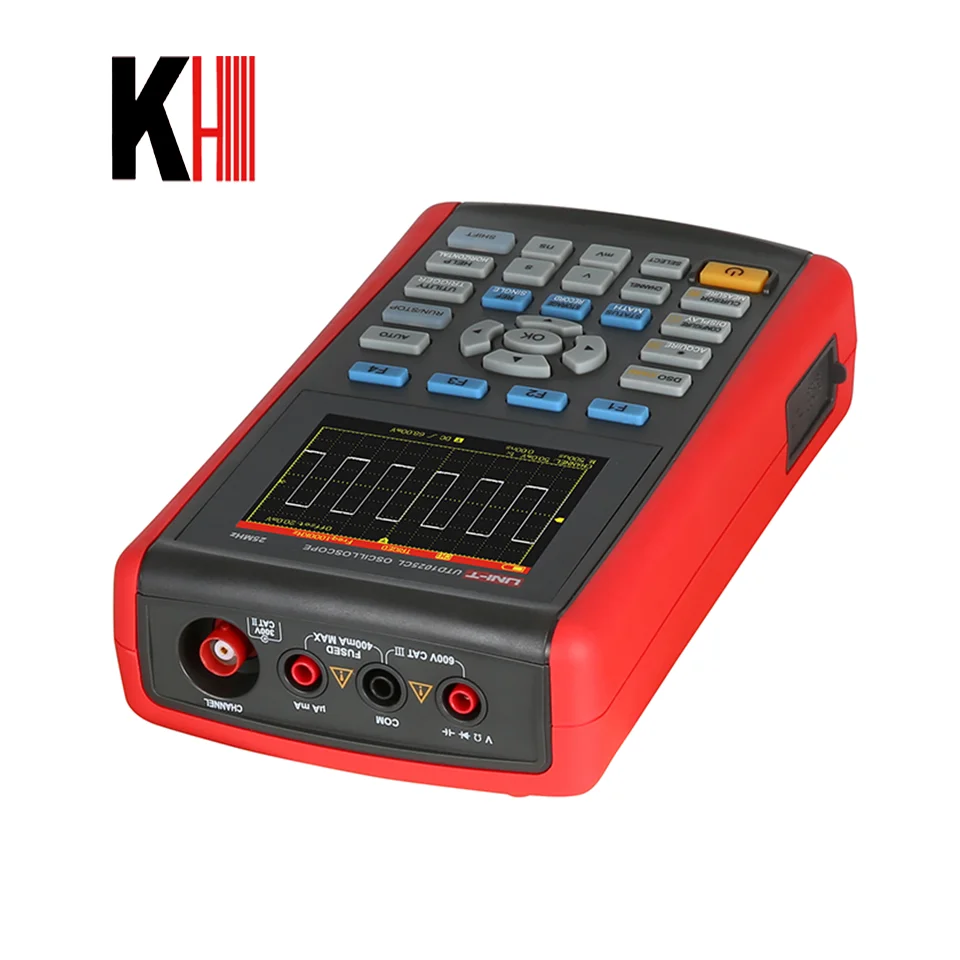

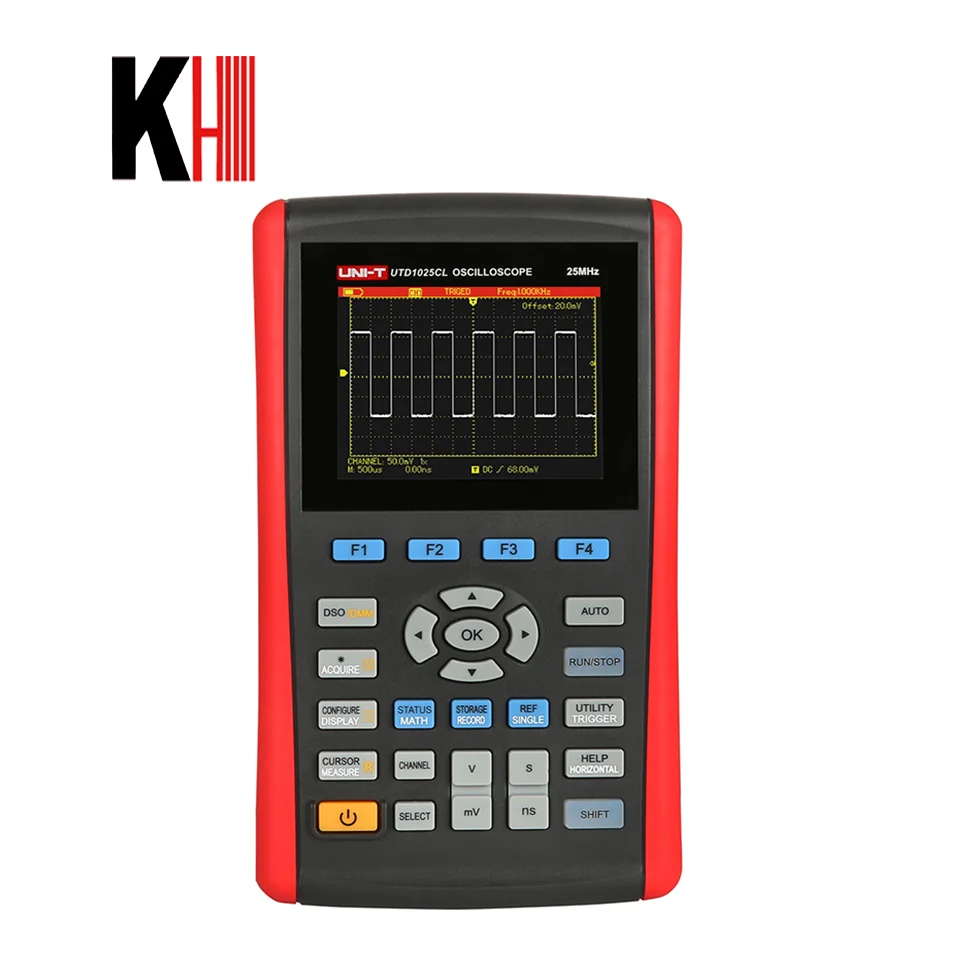

Portable multimeter for oscilloscope UTD1025CL 25MHz 200MS/s Handheld digital storage oscilloscope
Product Description
| Specifications | UTD1025CL | |
| Channels | 1 | |
| Bandwidth | 25MHz | |
| Sample Rate | 200MS/s | |
| Rise Time | ≤14ns | |
| Memory Depth | 12kpts | |
| Vertical Sensitivity | 5mV/div~20V/div | |
| Timebase Range | 10ns/div~50s/div | |
| Storage | Bitmap, Setup, Waveform | |
| Trigger Modes | Edge, Pulse, Video, Slope | |
| Interface | Mini USB | |
| Multimeter Specifications | Range | |
| DC Voltage (V) | 400.0mV/ 4.000V/ 40.00V/ 400.0V | |
| AC Voltage (V) | 400.0mV/ 4.000V/ 40.00V/ 400.0V | |
| DC Current (A) (External Convertor) | 400.0μA/ 4000μA | |
| 40.0mA/ 400mA | ||
| 10A | ||
| AC Current (A) (45Hz~400Hz) (External Convertor) | 400.0μA/ 4000μA | |
| 40.0mA/ 400mA | ||
| 10A | ||
| Resistance (Ω) | 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ | |
| 40.00MΩ | ||
| Capacitance (F) | 51.20nF/512.0nF/5.120μF/51.20μF/100μF | |
| Display Count | 4000 | |
| General Characteristics | ||

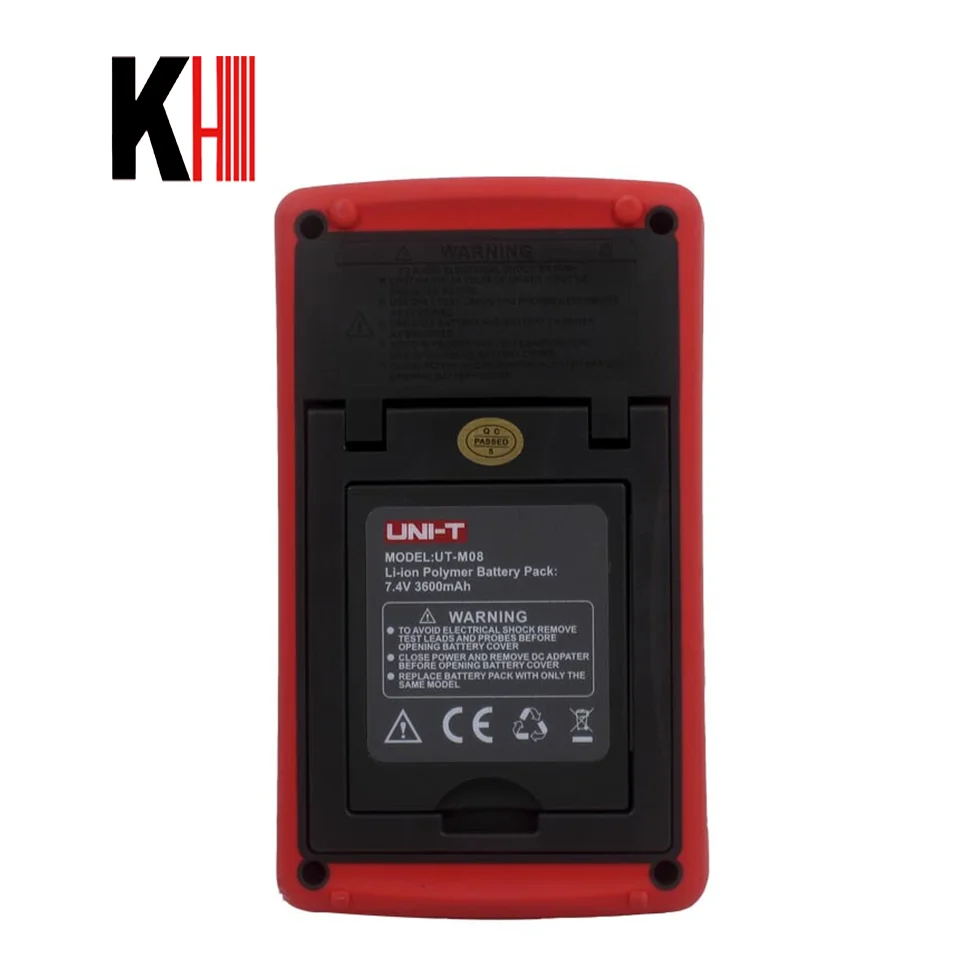

| Power | Lithium Battery: 7.4V 3600mAh; DC Adapter: 100~240V 50/60Hz input, 9V/4A Output | |
| LCD Size | 3.5 Inches TFT LCD, QVGA (320×240) | |
| Product Color | Red and Grey | |
| Product Net Weight | 0.9kg | |
| Product Size (W×H×D) | 199mm × 118mm × 49mm | |
| Standard Accessories | DC Adaptor, Test Lead, Probe×1 (1×,10× switchable), Current-to-Voltage Convertor, Power Cord, USB Cable, PC Software CD | |
| Standard Individual Packing | Gift Box, Carrying Bag, English Manual | |
| Standard Quantity Per Carton | 6pcs | |
| Standard Carton Measurement (L×W×H) | 515mm x 295mm x 315mm | |
| Standard Carton Gross Weight | 10.8kg | |
Certifications
Company Information
Contact us
FAQ
1.Are you a manufacturer or a trading company?
We are a trader who has established a long-term relationship with more than 300 well-known factories.
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
2.What is your company's business?
We now operate over 30,000 products, including hardware tools, mechanical and electrical products and garden tools, etc.
We now operate over 30,000 products, including hardware tools, mechanical and electrical products and garden tools, etc.
