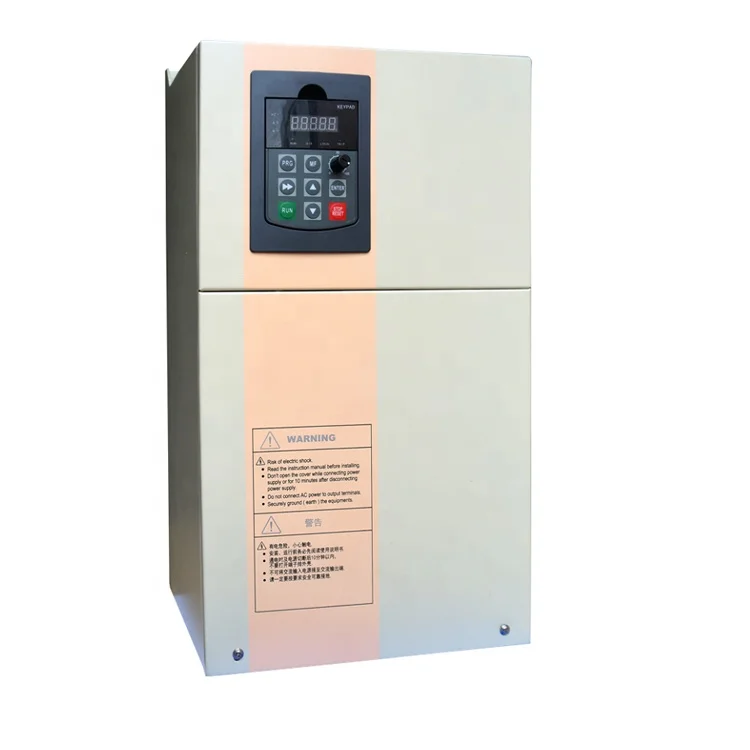

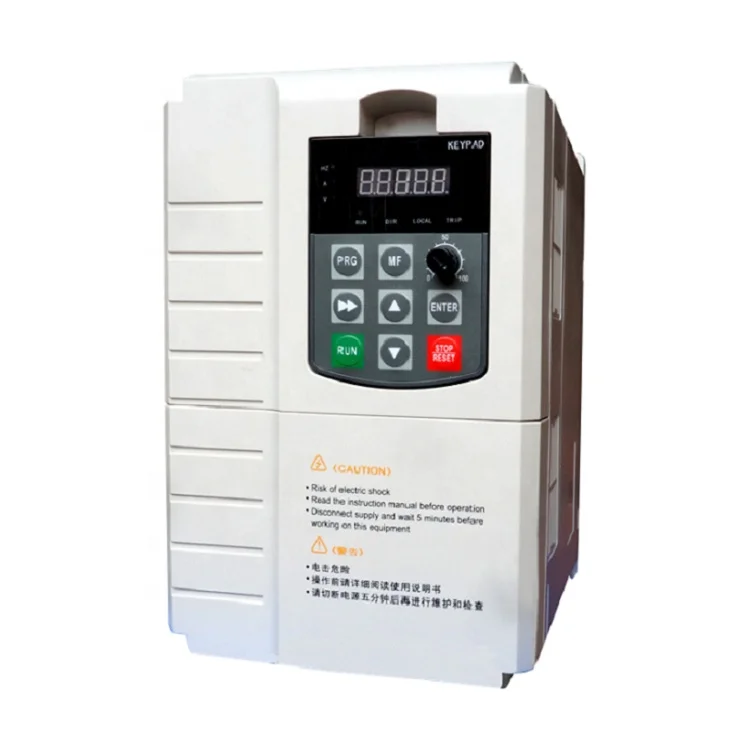

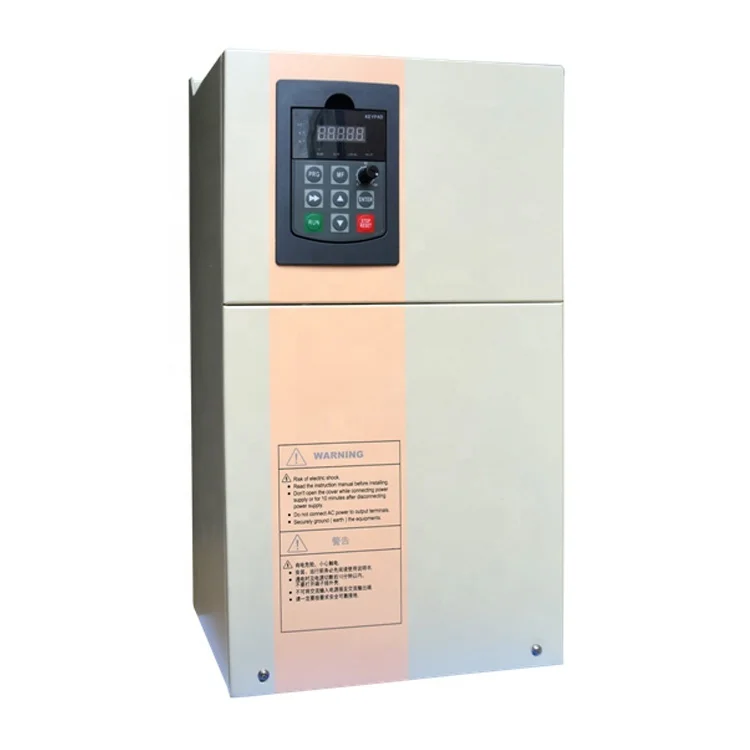

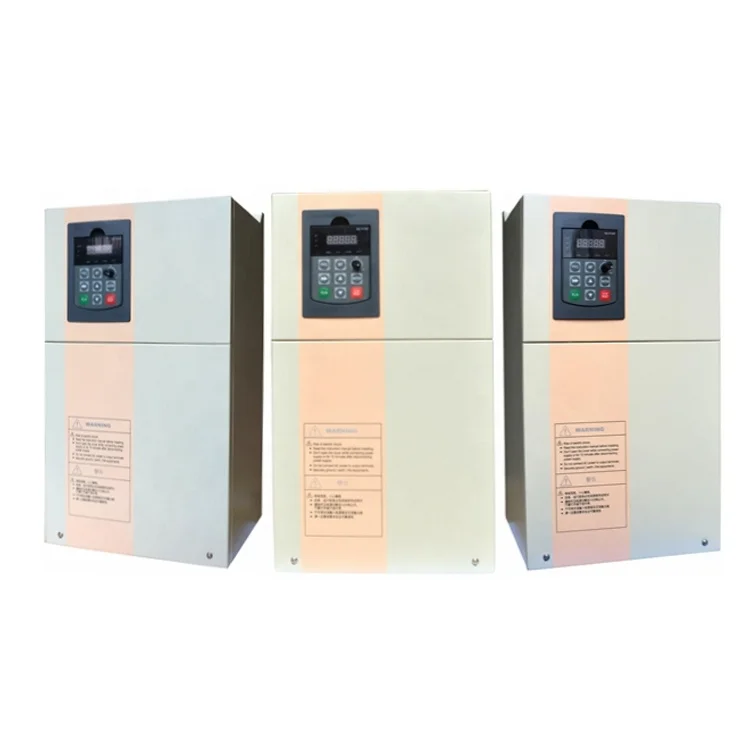

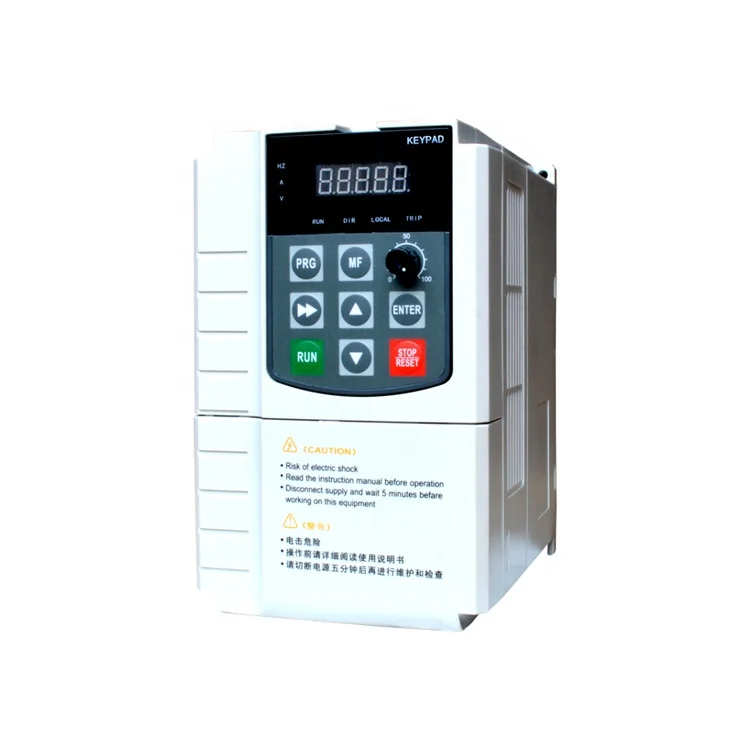

SG600 High Efficiency MPPT Solar Pump Inverter

Solar pump inverter controls and adjusts the soalr water pump system operation and converts the DC produced by solar array into AC to drive the pump, and adjust the output frequency in real-time according to the variation of sunlight intensity to realize the maximum power point tracking( MPPT). The pump,driven by 3-phase AC motor, can draw water from the deep wells or rivers and lakes to pour into the storage tank or reservoir, or directly connect to the irrigation system, fountain system, etc. According to the actual system demand and installation conditions, different types of pump such as centrifugal pump, axial flow pump, mixed-flow pump or deepwell pump can be used.

Descriptions and Features
1. Maximum power point tracking (MPPT) with fast response speed and stable operation efficiency> 99%
2. Suits for most 3 phase AC pumps and AC PMSM high efficiency pumps
3. The working voltage of solar panel can set by manual or MPPT automatically tracking
4. Compatible with dual power input, AC grid and DC power supply input
5. Built in automatic sleep-wake up function
6. Dry run (under load ) protection
7. Motor maximum current protection
8. Low input power protection
9. Lowest stop frequency protection
10. The PQ (power/flow) performance curve enables calculating the flow output from the pump
11. Digital control for fully automatic operation, data storage and protective functions
12. Intelligent power module (IPM) for the main circuit
13. LED display operating panel and support remote control
14. Low water probe sensor, and water level control function
15. Strong lightning protection
Protection features
It is provide kinds of protection function for pumps and inverters such as  Dry run protection (under load protection), High voltage surge, Low input voltage, Open motor circuit, Short circuit, Over heat, Earth fault, Phase missing, lowest running, water tank level...



Technical Specification :



Recommended MPPT voltage range	Vmpp 131 to 350 VDC for 1S (80V to 350VDC input, 3PH 110 to 220VAC output) Vmpp 280 to 375VDC for 2T ( 150V to 350VDC input, 3PH 220 to 240VAC output) Vmpp 486 to 750 VDC for 4T ( 250V to 800VDC input, 3PH 380 to 460VAC output)
Recommended input voltage (Voc and Vmmp)	Voc 180(VDC), Vmpp 155(VDC) for 1S model or 110V AC pumps Voc 355(VDC), Vmpp 310(VDC) for 2T model or 220V AC pumps Voc 620(VDC), Vmpp 540(VDC) for 4T model or 380V AC pumps
Motor type	Control for  permanent magnet servo motor and asynchronous motor pumps.
Input power	DC power from solar arrays or AC grid power
Maximum DC power input	450VDC for 220AC output /800VDC for 380V AC output
Rated output voltage	3-phase , 110V/160V/220V. 3-phase, 220V/380V/480V
Output frequency range	0~50/60Hz
MPPT efficiency	97%,
Ambient temperature range	(G-type inverter with submersible pumps, and P type for general pumps.
Solar pump control special performance	MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated  calculating.
Protection function	Phase loss protection, phase short circuit protection , ground to phase circuit protection , input and output short circuit protection. Stall protection
Protection degree	IP20, Air  force cooling
Running mode	MPPT , CVT, variable frequency mode

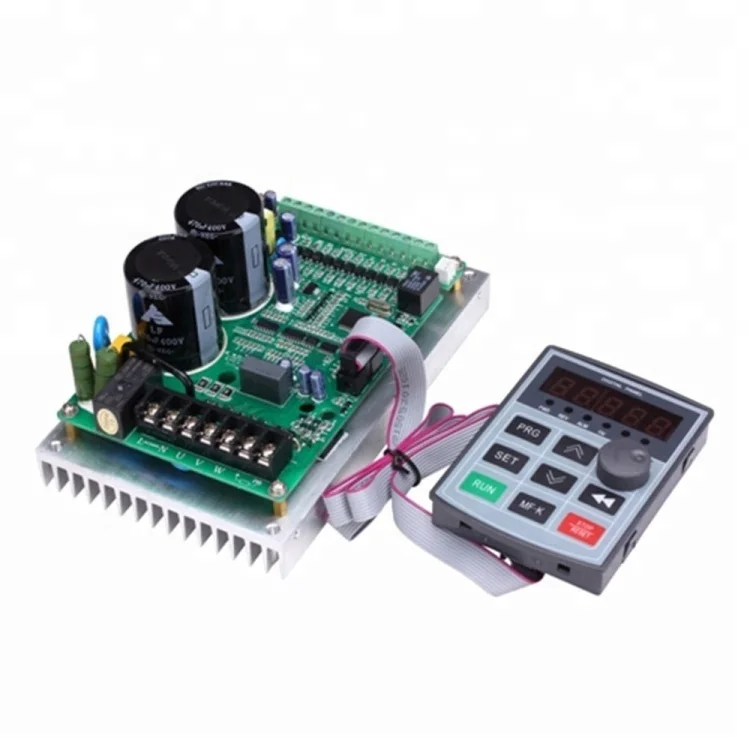

Hardware design:

Solar pump inverter developed based on S100 high performance vector control AC inverter with software MPPT and hardware updated.

The S100 vector control inverter is renowned for his excellent hardware deign and powerful software performance, long service life design.





Software design:
