DESCRIPTIONS

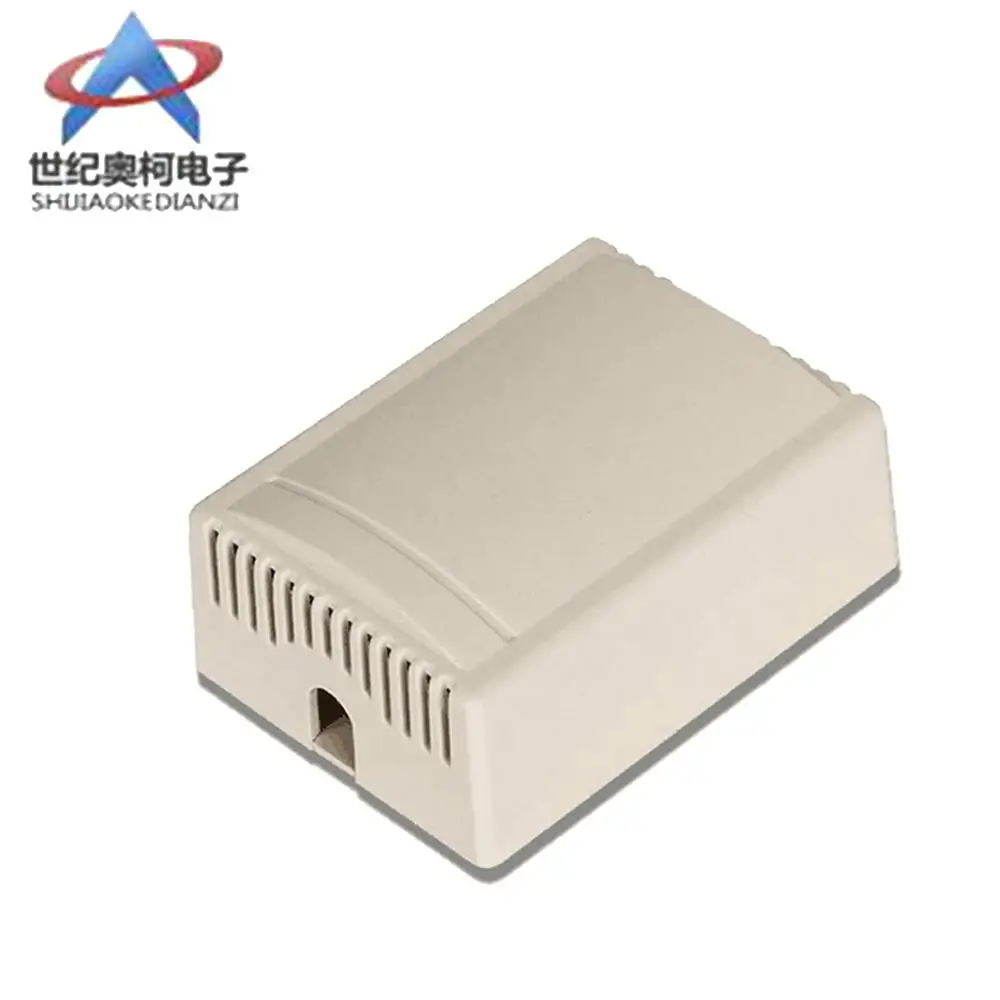

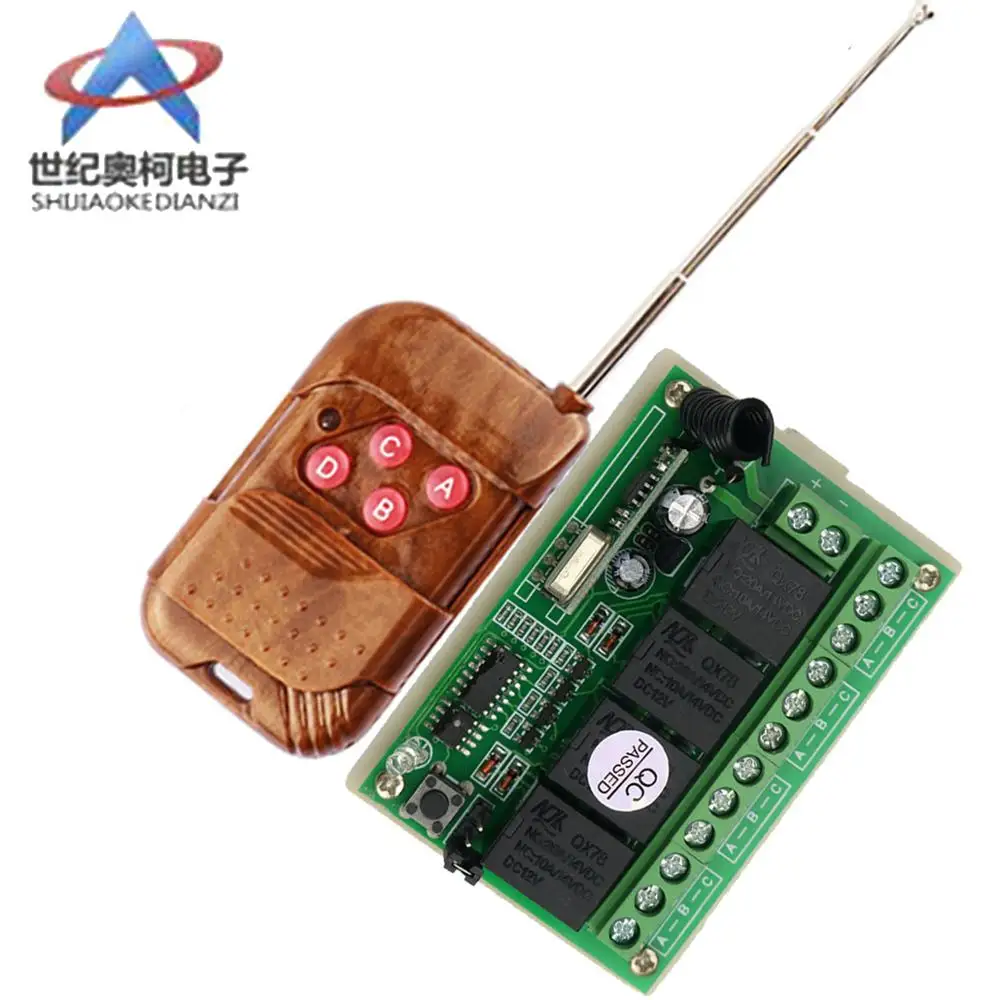

AK-RK04S-II RF SWITCH RECEIVER

Model: AK-RK04S-II

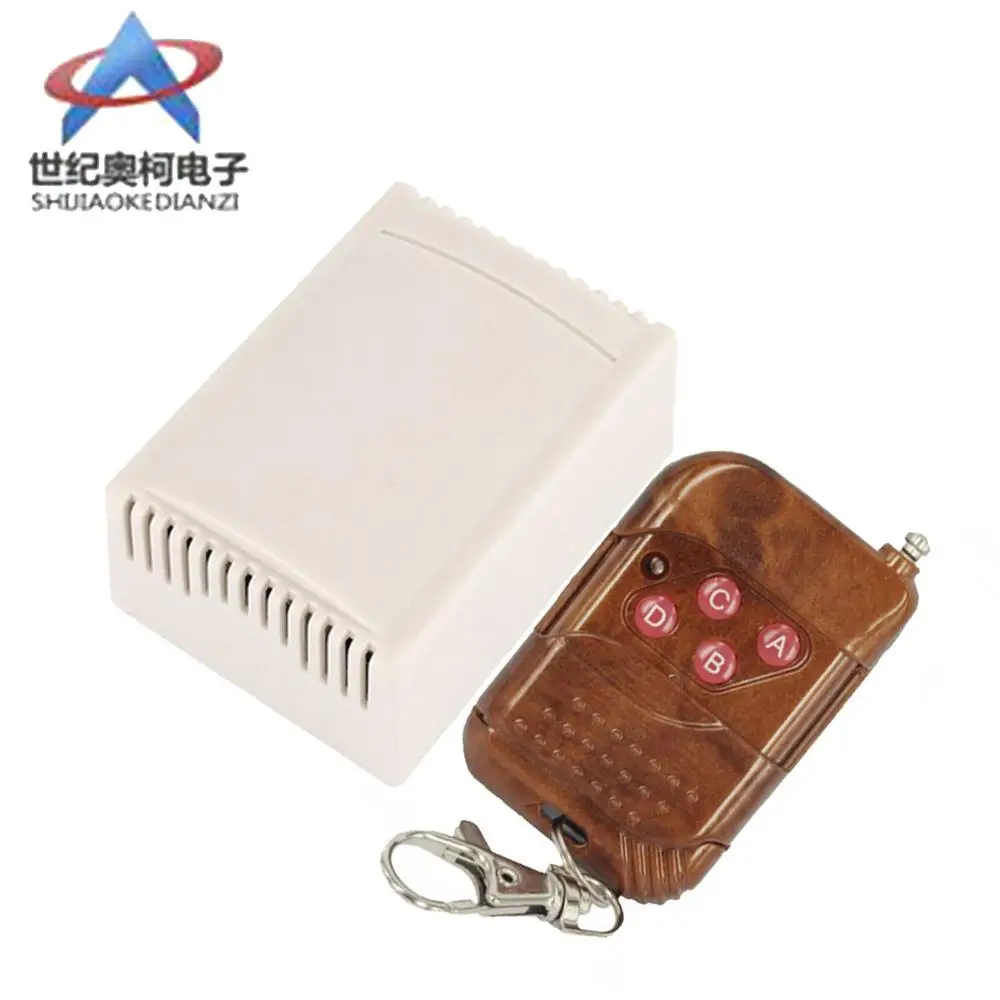

Name: multifunction, learning and 4-channel remote switch

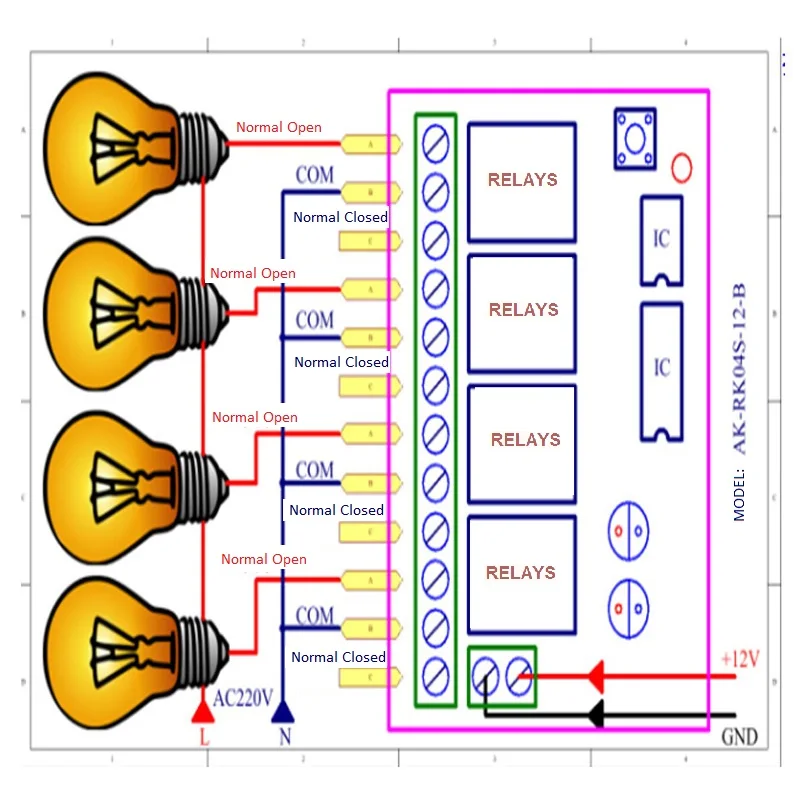

This 4-channel multifunction RF receiving controller is for sending open signal and close signal to 4 relays. It can be used to turn on/ off, connect/disconnect or implement other specific controlling program on the controlled devices or motor. Typical applications for relays include fields of electronically operated gate, windows, lifting appliance, switch, lifter, industrial control, security industry etc.

The RF controller has the advantages of high confidentiality, high stability, low power, and use expediently; no need for traditional connecting wire or dial fixing code switch, all you need to do is learn to match the code of the remote controller and the receiving controller.

First,Technical Specification,

1,Operating voltage:DC12V

2,Operating temperature:-40℃ - +80℃

3,Receiver sensibility:≥-105dBm

4,Operating frequency:315MHz,433.92MHz

5,Load control: alternating current/direct current

6,Output current: ≤10A

7,Weight:0.17KG

8,Size: 72mm*52mm*26mm

Second,Openrating Mode,

AK-RK04S-II has 3 output modes:

Momentary,Toggle,Latched

Third,Clear Code on the Receiver

Press and hold on the programming key (Learnning Button) about 8 seconds to turn indicating light off to on. clear code successful.

Fourth,Setting Output Mode Method:

Jumper:

Fifth,Learn Code Method

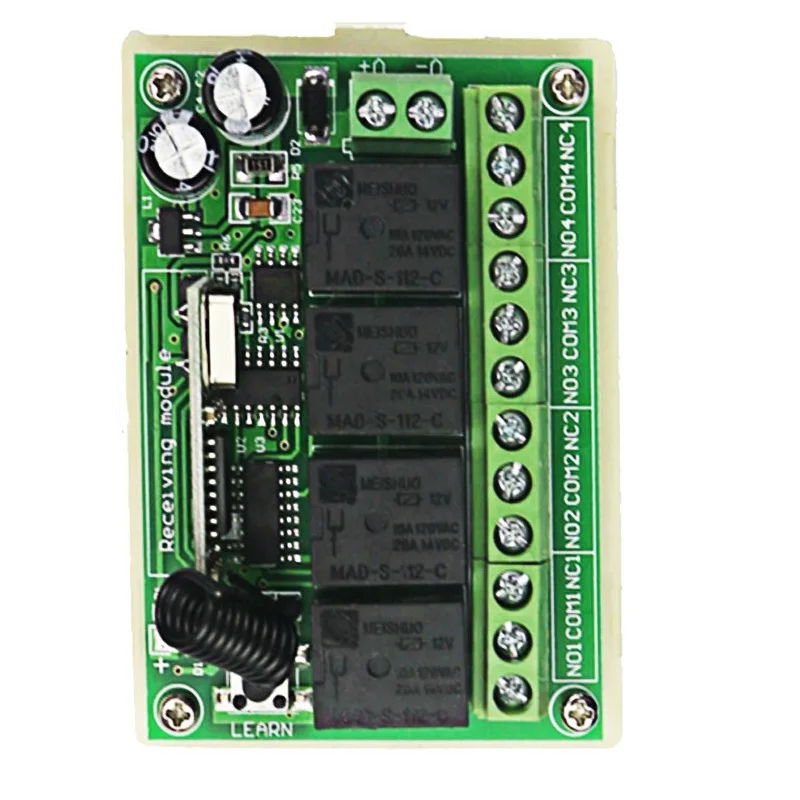

1, pushing the programming key (Learnning Button) on the receive and hold on,then BUZZING on, ——The buzzer sounds, indicating light off, that it has entered the learning state.

2,Press any button ——to stop The buzzer sounds,indicating light on,learning have successful.

For all of products,

Please find Catalogue Download weblink (click to download) as below:

High-Power Handheld RF Remote Control Transmitter

Plastic Shell Keyfob RF Remote Control Transmitter

Wireless Metal Keyfob RF Remote Control Transmitter

RF Remote Control Switch Receiver 2-1

RF Remote Control Switch Receiver 2-2

RF Remote Control Modules

Packing: Plastic bag and carton or as you requested

Shippping:

1.Delivery way: DHL/UPS/TNT/Fedex/Parcel

2.Lead time: 100-5000pcs 3-15 days

3.Payment: Paypal. West Union. T/T
