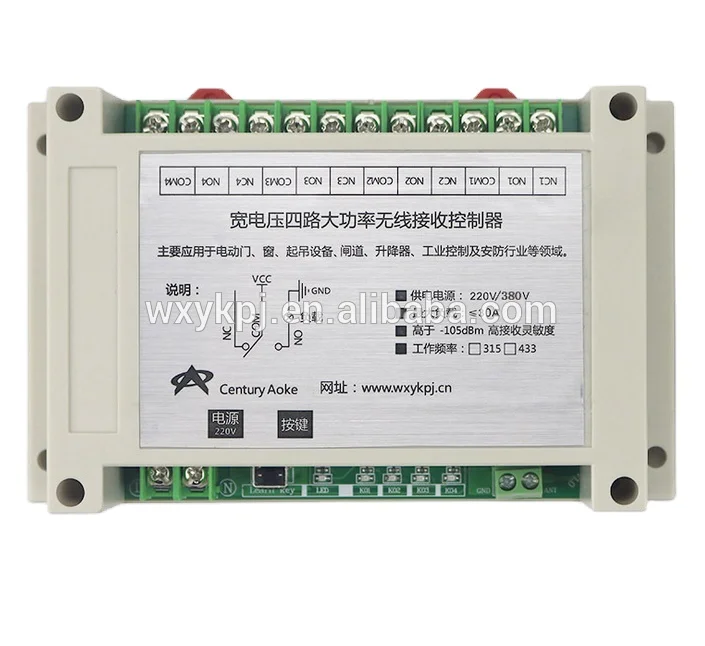

220-380v беспроводной релейный переключатель с дистанционным управлением

Описание и отзывы

Трекер стоимости

Характеристики

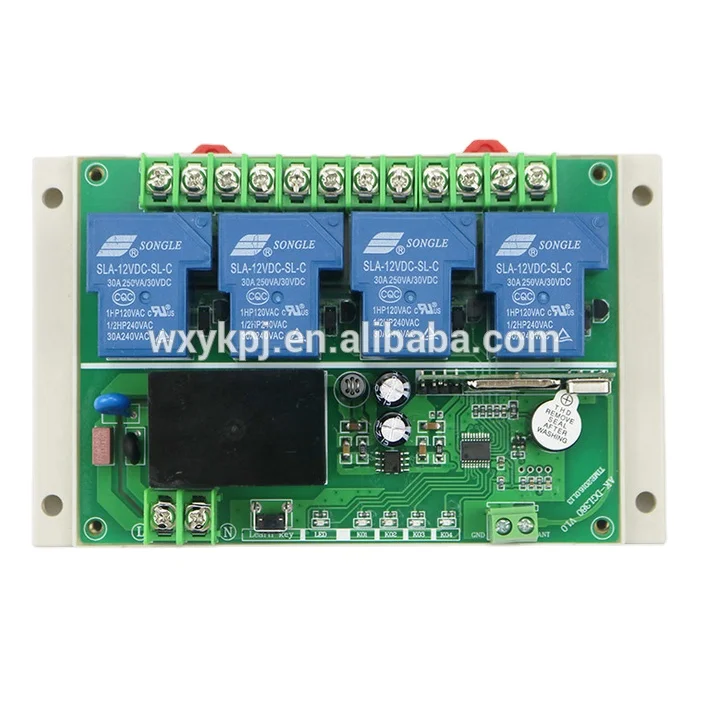

This remote control switch adopt 30A relay,can load high power electrical appliances, reception mode for learning microcontroller decoding.Can learn more than one remote control, and each remote control all buttons can learn.Each remote control can control multiple switch, a switch can also be multiple remote controller.Simple operation supporting flexible in any combination.

Use scope:

Mainly used in lamps and lanterns, electric door, window, hoisting equipment. Water pump, elevator control, security industry and agriculture irrigation and other fields, such as long-distance wireless remote control is easy to install, use the advantages of simple and safe and reliable.

Specification:

1, working voltage: AC220V - 380 v

2, working frequency: 315 MHZ / 433 MHZ (optional)

3, working temperature: - 40 ~ + 85 ℃

4, weight: 0.27 kg

5, maximum load: NO (30A/AC240v) and NC (20A/ AC240V)

6, receiving sensitivity: ≥ -105dBm

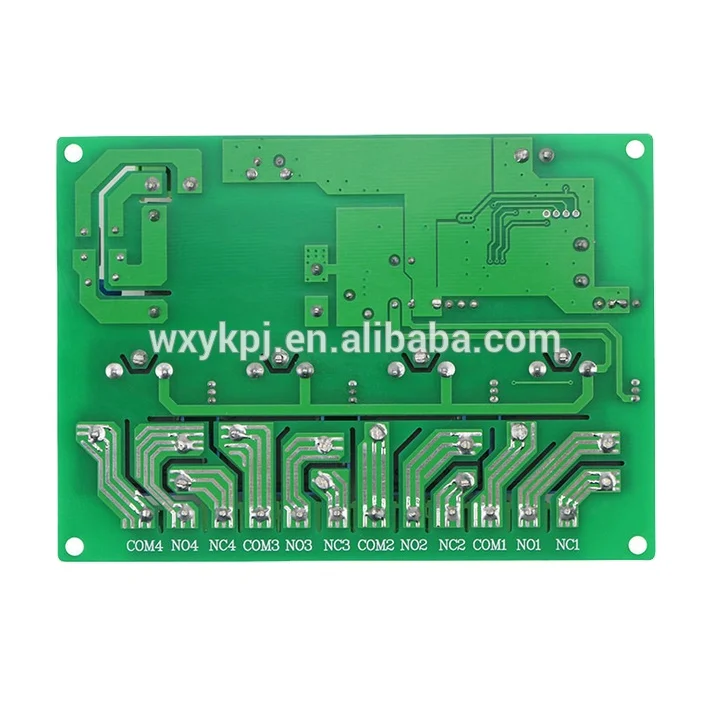

7, size: circuit board: 122 x87x17(mm)               with shell: 144.8 x91x40 (mm)

Learning methods and steps:

1, press the receiver learning key, light on said into the learning state

2, press any keyon the remote control,lights flash three times slowly, says it has learning success.

Remove the existing information:

Long press receiver learn button until the LED lights flash after five times out, said the stored information has been successfully removed.
