Увеличенная производительность ламинированная машина для производства пленки с воздушными

Увеличенная производительность ламинированная машина для производства пленки с воздушными

Категория: Экструдеры для пластика >>>
Поставщик: Shanghai,Shenxin,Plastic,Machinery,Factory

Цена:17 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	20230.98 $*	21242.39 $*
Aug-17-2025	20060.25 $*	21063.17 $*
Jul-17-2025	16830.5 $*	17672.34 $*
Jun-17-2025	19720.51 $*	20706.12 $*
May-17-2025	17170.30 $*	18029.26 $*
Apr-17-2025	19380.76 $*	20349.1 $*
Mar-17-2025	19210.47 $*	20171.12 $*
Feb-17-2025	19040.43 $*	19992.89 $*
Jan-17-2025	18870.59 $*	19814.18 $*

Характеристики

Machine Description

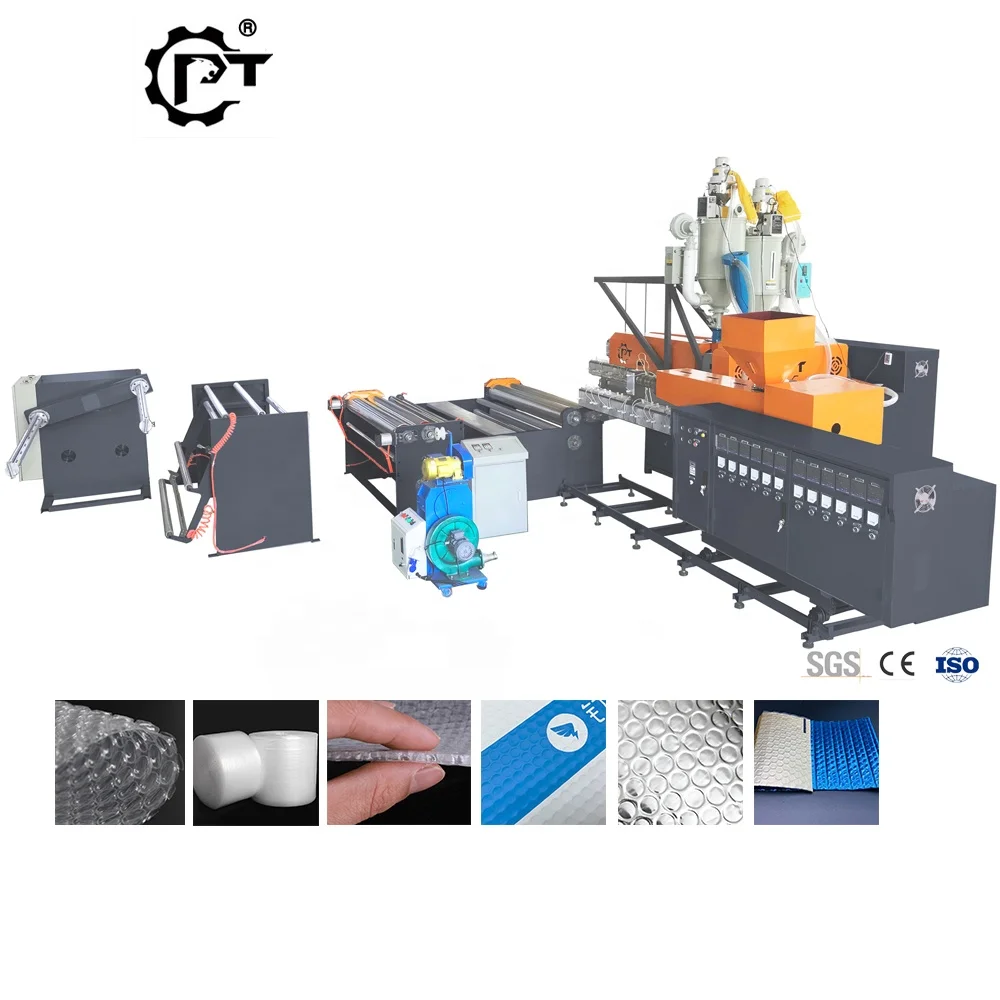

Following description is about our 3 meters wide 5-layer double-screw laminated air bubble film machine for your reference.

Production process on five layers double screws laminated air bubble film machine:

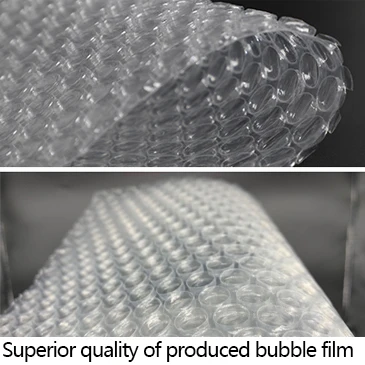

Produced air bubble film (try to click the products you want to produce)

Two layers

air bubble film

Two-side-flat

three layers air bubble film

Kraft paper laminated

four layers air bubble film

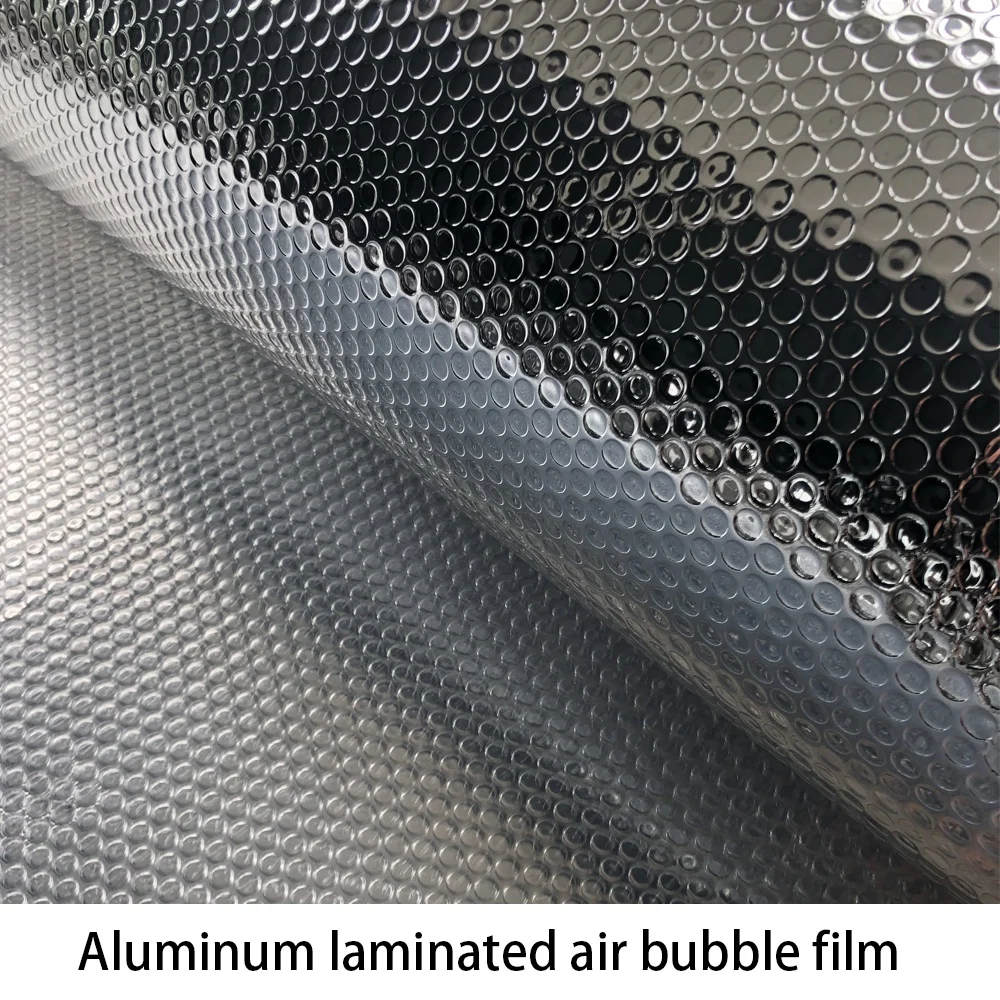

Aluminum laminated

four layers air bubble film

EPE/PE foam film

laminated air bubble film

Two-side-laminated

five layers air bubble film

Machine Parameters

The following form is our machine parameters about five layers double screws laminated air bubble film machine of different width for your reference.

Film width (mm)	1200	1600	2000	2600	3000
Model	SXDS-L5-W1200	SXDS-L5-W1600	SXDS-L5-W2000	SXDS-L5-W2600	SXDS-L5-W3000
Line speed (m/hr)	600 - 2100	600 - 2100	600 - 2100	600 - 2100	600 - 2100
Capacity (kg/hr)	85- 140	100 - 170	125 - 200	145 - 220	180 - 260
Thickness (mm)	0.04 – 0.3	0.04 – 0.3	0.04 – 0.3	0.04 – 0.3	0.04 - 0.4
Film weight (g/m2)	38 - 200	38 - 200	40 - 200	45 - 200	45 - 200

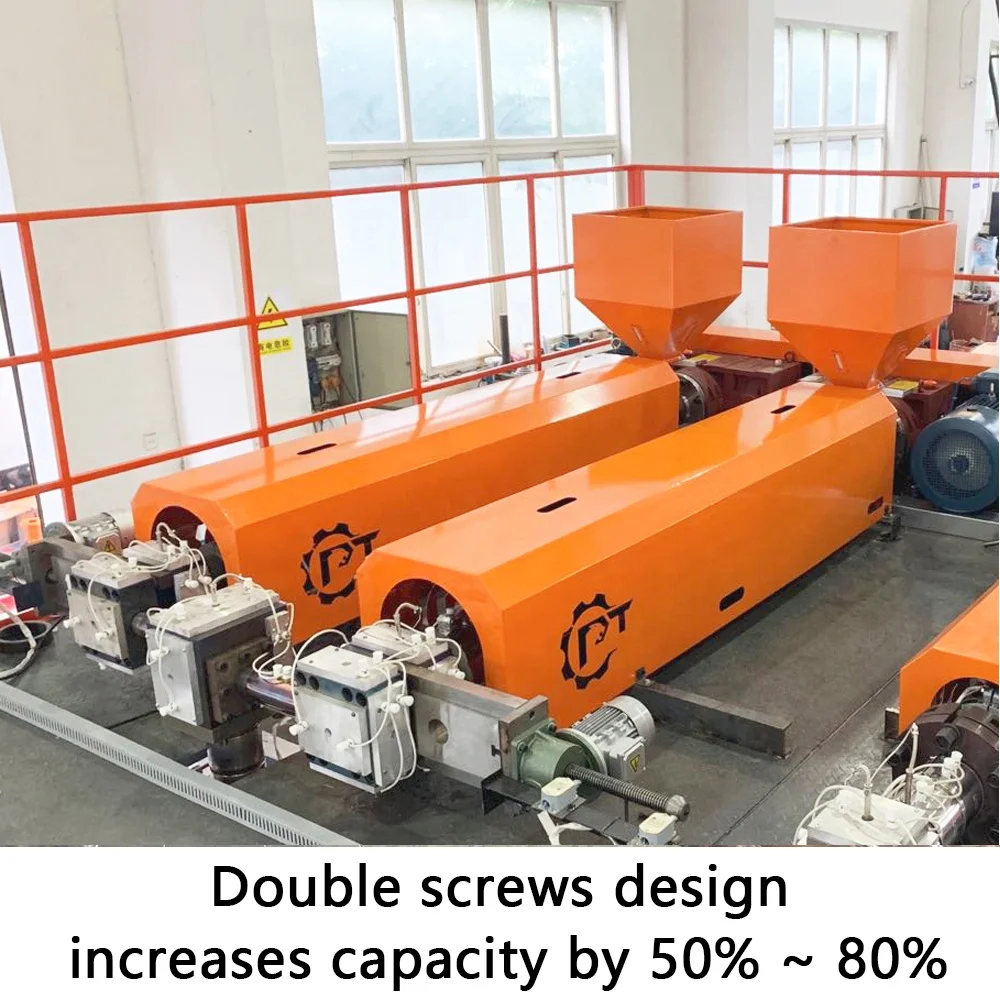

Screw Diameter (mm)	Φ65x2	Φ65x2	Φ75x2	Φ80x2	Φ90x2
Sub screw Diameter (mm)	Φ45	Φ45	Φ65	Φ75	Φ80
Power (kw)	40 - 68	59 - 82	68 - 95	78 - 110	92 - 130
Dimension L×W×H (m)	10×5.5×2.5	10×6.5×2.5	11×7.0×2.5	12×8.0×2.5	12×8.7×2.5
Weight (kg)	5500	6200	7500	9500	12000

Optional upgrades:

· High speed screw (capacity +20%)

· Water chiller (capacity +20%)
· Online waste edge recycler (save material)
· Automatic dryer (dry material)

· Fast eletrical filter changer (easy to change filter)

· Automatic winder & cutter (save labor cost)
· Perforator (easy to tear bubble film)
· Adjustable T-die (control film width)
· PLC control (Delta/Siemens)

Our Advantages

Certificates

We are one of the few verified suppliers passed SGS,CE, ISO 9001 and other certificates.

Different from gold suppliers, verified suppliers are officially examined by Alibaba.com, and proved to be solid and reliable manufacturers.

Established in 1992, Shanghai Shenxin Plastic Machinery Factory is an industry-leading manufacturer with 27-year experience specializing in research, development, production, sales and service of air bubble film machine and its derivatives. We are in Shanghai, the most developed city in China, which brings us the world class technologies, talents and logistics. In our factory, we own three manufacturing buildings and one office building.

In recent years, Shenxin has introduced a series of new CNC machines to ensure manufacturing quality. On the talents’ side, we have a strong team composed of senior engineers with over 20 years’ experience, engineers with US working background, and manufacturing experts with professional knowledge and skills in designing and manufacturing our products, which upgrades the features and operation stability continuously.
