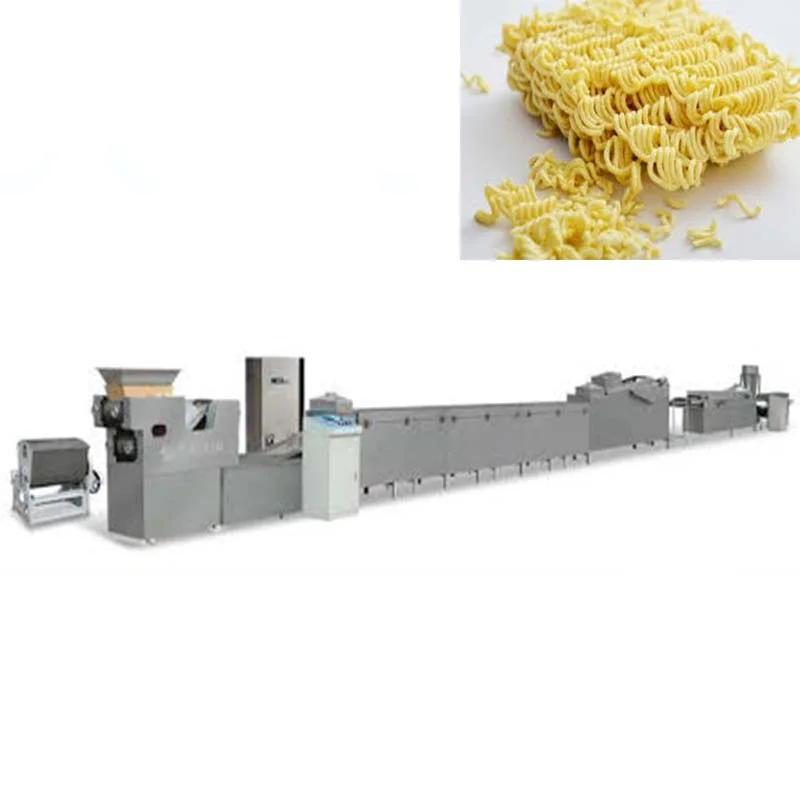

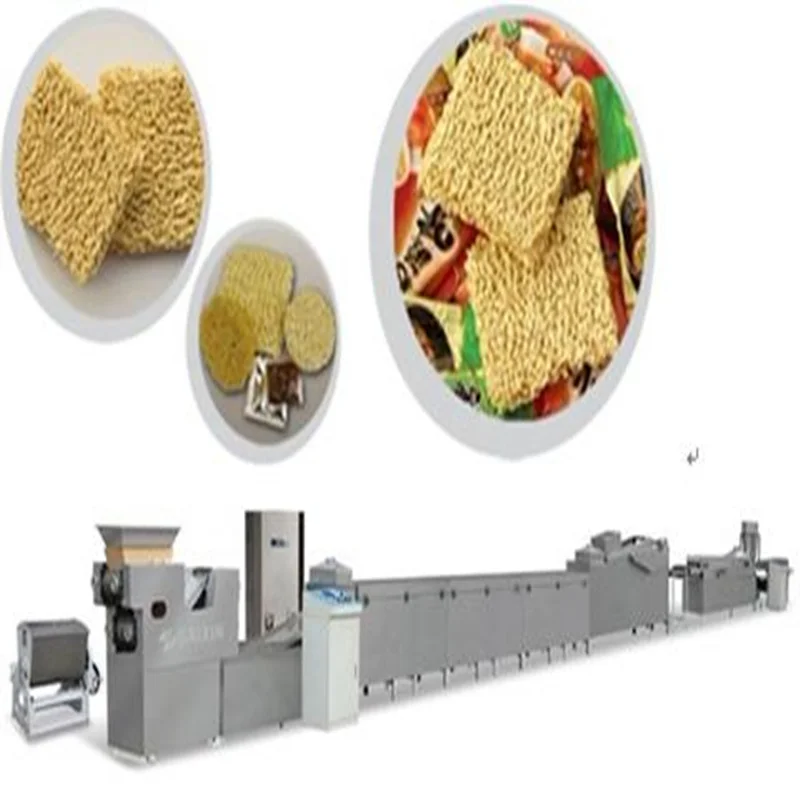

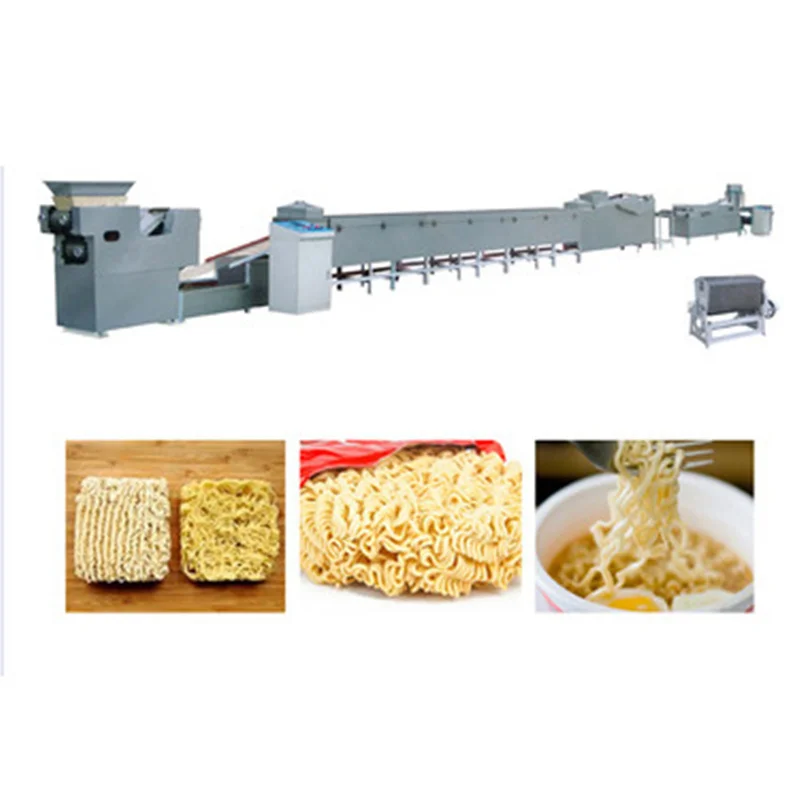

 Fried Bag Instant Noodle Production Line,which is shape like noodle cake

Production Weight&Output:The Capacity is about 30000 packages/8hours.







Item	Picture	Remark
Measuring and mixing tank		Power:0.75kw:volume:100L The surface touched with the water is Stainless Steel
Double speed flour mixing machine		Motor power:9/11kw,200kg/batch, door opening by manual, the surface touched with flour in Stainless Steel
Disc type feeder		Motor:4kw,tray size:φ 1800mmx410mm, the surface touched with flour is Stainless Steel

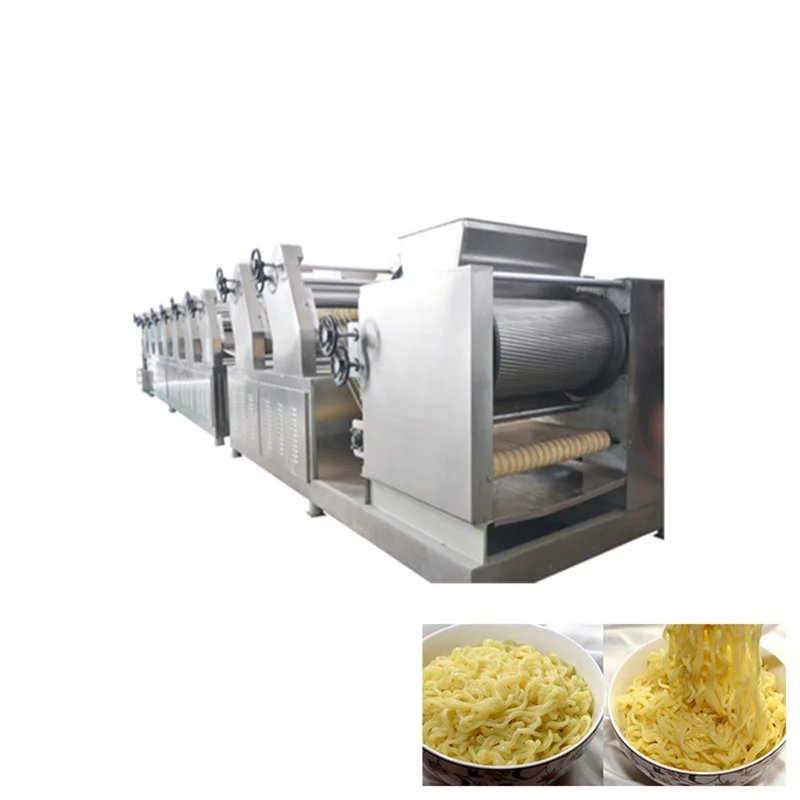

Compound&continous presser		Roll width:330mm,motor power:5.5kw+5.5kw,7 pairs of steel roller, twin wheel device to adjust the thickness of flour sheet. the Dia of the roller is:Φ180x2,φ240x2,φ162x1
Single layer steamer		16m,water airproof, Main driven:1.5kw,fan:0.37kwx2sets,Stainless Steel
Cutting&folding machine		Main driven:1.5kw Shaft:0.25kw,cutter:0.9kw With spray unit,cutting time 30times/min,adjustable
Frying and drier		Main driven: 2.2kw,rise and fall 2.2kw,cyc pump 7.5kw,gear pump 2.2kw,cutter 0.9kw,40m 2 sprial type hot exchanger 1 unit,2m 3 oil tank 1 set,carbon steel
Cooler		Main driven:0.75kw blower:0.37kw*8units,exhaust fan: 3 kw
Conveyor		Main driven:1.1kw,ss frame
Electrical system		PLC CONTROL
Finished product conveyor		Main driven:0.37kw,panel is as





Part 2 Automatic Bag Noodle Cake Packing Machine

Description:

Single Control Packing Machine

This machine is suitable for automatic packaging of instant noodles,biscuits,ice cream bar,snack,medicine,soaps,tissues,chocolate,frozen food,adhesive tape,industrial parts,etc.

Main technical data:

Capacity 50 to 200 packs/minute

Products size limits:

Length:70 to 400mm,Width:30 to 150mm,Height:5 to 88mm

Floor space(LxWxH):5,400x1,200x1.710mm

Power consumption:4.3kw,single phase 220V,50Hz

Net weight:1000kg

Mechanical Features:

1. Double-drive vertical sealer of automatic open-close structure

2. Center height of the end sealer can be adjusted to adapt the height of packing items

3. Feeding position can be adjusted at any time during operation

Electrical Features:

1.Digital servo motor control system

2.Operating status can be displayed and parameters can be set through touch screen

3.Frequency control,convenient,accurate and reliable

4.Eye mark can be positioned and tracked automatically

5.Length of packing bag can be measured and memorized automatically

 Part 3  Single Oil Flavor Packing Machine

It's three or four sides sealing automatic packing machine for filling and packing fluid,with three sets of roller.The machine is equipped with one set of vertical heating roller,one set of horizontal heating roller and one set of cold sealing roller.The vertical sealing roller is completed,continuous chessboard vein with leak-resistant line.The horizontal sealing roller is chessboard vein with leak-resistant line or plain sealing with leak resistant line.The filling device is Magnetic pump,which is applicable for liquid.There is zigzag cutter with I-notch.The machine is controlled by PLC,with touch screen showing the running state.It can be equipped easy-tear device and photo eye system.

*Inverter druven horizontal sealing device,adjusts the pouch length limitless,and pouch length can be set up on the touch-screen,as is easy and convinient.

*With intelligent photo-eye control system,the first pouch can be located automatically,and the interruption information of the incorrect design can be excluded.

*The effect of the film tensile force change can be eliminated.

Technical Parameter:

Item	Content	Remarks
Pouch Length	45-180mm	The appointed length+/-40mm
Pouch Width	Three sides sealing:30-95mm:Four sides sealing :35-100mm	Replace bag former when bag width changed
Capacity	0.5-60ml
Packing Speed	30-150p/m	Depends on the product and packing specification
Electric Power	3kw/AC380V or so
Dimension	L1400mmxW1000mmxH1800mm
Weight	450kg or so
Applicable Film	PET/AL/LLDPE PET/LLDPE,BOPP/VMCPP
Parameter of film	Outer Dimension of film 400:Inner Dimension of film 75
Standard Feeding Device	Magnetic Pump(M)
Standard Cutting Device	Zigzag Cutter
Optional Device	Easy-tear Device	Additional order







 Three sets of sealing roller,one vertical sealing,one horizontal sealing and horizontal cooling sealing.

Inverter driven,PLC controlled

Pouch length adjustable:45-60mm

Pouch width adjustable 35-60mm

Speed:80-100ppm

Zigzag cutting

Power:380V 3P 50Hz



Part 4 Twin Powder Seasoning Packing Machine

This machine is the single roll packing machine which designed for the double granule material automatic packaging;it can realize the trilateral sealing and double bag packaging.

The characteristics of the series packing machine.

This machine uses single seal hot roller device,realizes the lateral sealing and vertical sealing packing at the same time,adopts roller method sealing and complete.continuous checkerboard pattern.Metering device adopts double measuring plate method.The cutters used serrated way.This machine also can equip with easy tear notch device.

Low frequency conversion motor drive,realize the packaging speed stepless adjustment in the range of rated.

Intelligent temperature control

application

Series packing machine mainly used for packaging products or similar products as follows

Seasoning powder+chili powder double bag,seasoning powder +Fried onion double bag.

Technical Parameter

Name	Description	Remark
Bag length	35-160mm	Need to change the roller when bags length change
Bag width	Width range:60-95mm	Need to change the former when packaging width change
Filling capacity	0.4-50ml	According to the amount of packaging to choose suitable capacity cup
Packing speed	60-100 packages/min	According to the different material and specifications
Power	About:0.75kw/AC380V
Machine Dimensions	Length:1300mm,width:1000mm;height:1630mm
Machine weight	About 400kg
Applicable film	PET/AL/PE,PET/PE,OPP/CPP etc
Packing material parameters	film outer 400;film inner 75
Standard feeding methods	Double measuring plate and barrel
Standard cutting methods	Serrated blade
optional device	easy tear notch device	Separate order







Part 5 Steam Boiler with capacity 1 ton.fuel is natural gas
