Высококачественный центрифуга для сточных масел с высокой

Appication

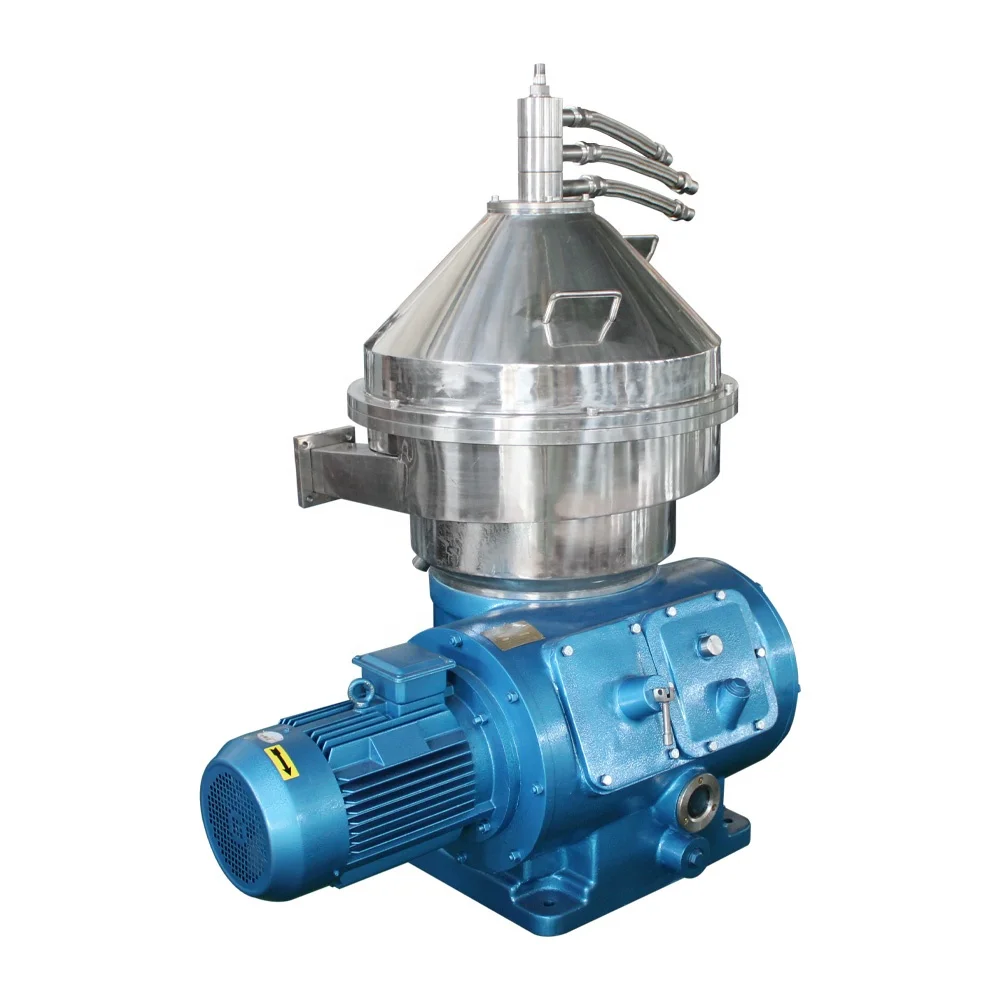

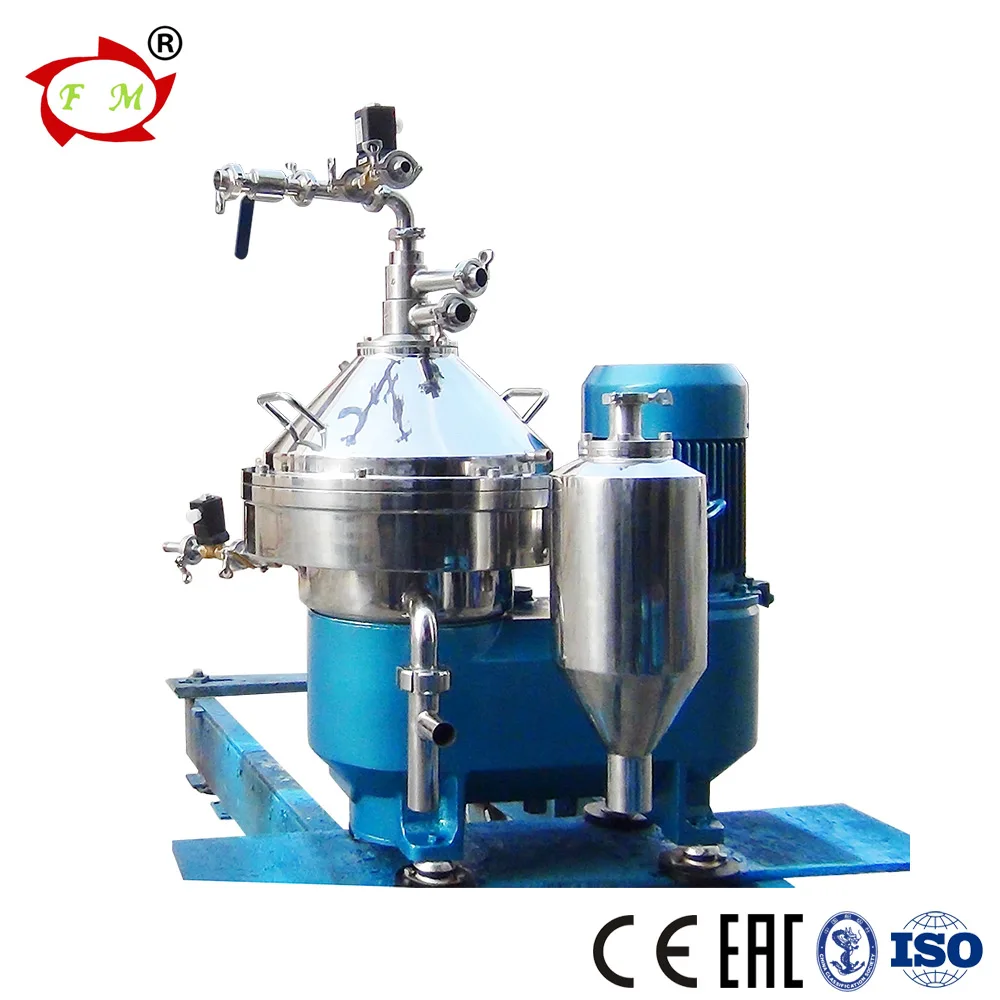

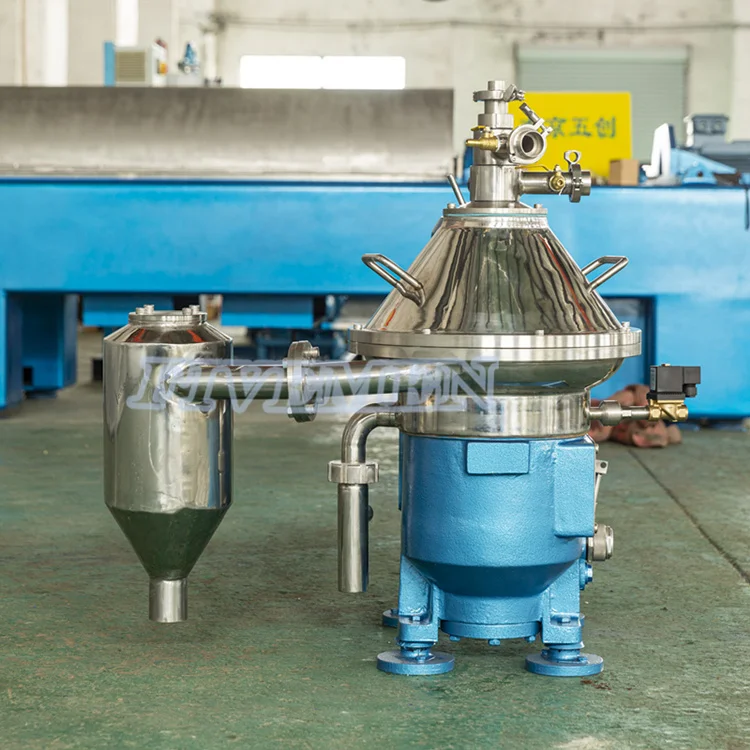

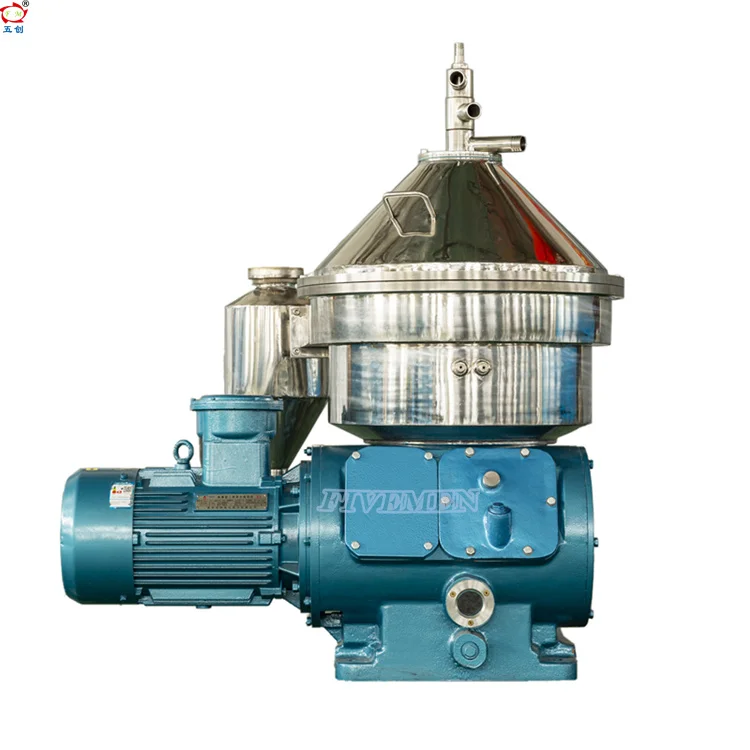

Plant oil separator is the main equipment for a vegetable oil continuous refining system,

can be used for plant oil refining,continuous degreasing, dephosphorization, de-soap,

dehydration and other procedures.

Reducing the harmful ingredients in vegetable oil, to meet national standards.

For the coconut oil/ soybean oil / palm oil, we have exported to many countries.

and have the working video of the separation.

Features

1. High Speed and high separation factor(7200 r/min )

2.running balance

3.simple  operation

4.low oil consumption.

5. Automatically discharging

6. continuous operation.

7. All the key parts of the machine bearing all use imported bearing((brand SKF)

8.Drum adopts 0Cr13Ni4Mo material that is steel high purity, good performance.

 9. In order to meet different requirements of production scale, the machine adopt bottom washing. Facilitate liquid seal and exclusive soap, the heart pump discharge the material, reducing system

operating pressure. Regulate different specific gravity ring, can be suitable for all kinds of oil, so that

better separation.

  Working Principle

Zydh can separate rapid succession of solid liquid and liquid liquid ,which is a kind of vertical centrifuge.

A rotary drum is install in the upper end of vertical shaft, the driving device driven by a motor to rotate

at high speed. Drum have a set of a butterfly shaped parts mutually overlapped together.

Have a very small space left between the disc and disc. Suspension pour intodrum by feeding tube

which is located center of the drum.When the slurry flows past the clearance between the disc, solid particles in centrifuge sinking to the sediment is formed on the disc. Sediment  falls of the disc along

the sliding surface of the disc and accumulate in the drum at the largest diameter.

The separation of the liquid exhaust drum from the liquid outlet .The function of the disc is to short

the distance between the settlement of solid particles or liquid droplets and to expand the area of settlement of the drum.Because the installation disc in the drum and greatly improves the separators’ production capacity.

     Technical parameters

    Main Parts

The control box need to customize, if you need the control box, pls inform us.

  Services

1. 12 months guarantee period from machine arrive date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4.7* 24 hours technical consultation.

5.Your workers could get trained both in our factory and yours.

6.Routine tracing till the machine work properly will be done timely.

7.We will remind you to do the normal maintenance.

8.Your suggestions or any comments & reflection would be treated in priority.

9.Marketing team will visit you during our visit to your country if your require.

Nanjing FiveMen Machine CO., LTD is professionally engaged in design, manufacture, sale and installation of kinds of separators. We are one of the leaders of disc centrifuge, decanters, tubular centrifuge, separation system and marine equipment in china. Which is located in Nanjing city of Jiangsu province,  the well-known ancient capital with beautiful sceneries in the Yangtze River Delta.

Over the years, our products have been successfully applied in liquid-solid or liquid-liquid-solid separation of biomedicine, traditional Chinese medicine, phytoextraction , health foods, beverages, dairy products, lanolin, animal and plant oil, mineral oil, petroleum, chemical industry, environmental protection and other industries. For some materials with small difference in specific gravity of liquid and solid phase ,small solid particle size and low content by use of centrifuge extraction, concentration and clarification , our company can provide you with ideal separation equipment.

We have passed ISO9000 quality system certification awarded by China Classification Society; our mineral oil separators used in inland rivers, offshore and ocean shipping have achieved CCS approval certificate, and the products used in fishing boats also passed the fishery inspection.

As an professional centrifugal manufacturer, Not only we provide high quality products and perfect after-sales service for our clients .But also, We own various kinds of inspection and testing facilities, So we have strict quality control and cost control in the production of centrifuges. even in the choice of raw materials and parts. Besides, we have strong professional engineering team. Our products are successfully exported to Japan, North Korea, South Korea, Taiwan, Thailand, Malaysia, Vietnam, Burma, India, U.S.A., Africa and some Latin American countries.enjoying high reputations in the fierce market competition.

Welcome to send your inquiry to us!!!!
