Нобилиарная новая технология 3 кг коммерческие машины для обжарки зеленых кофейных зерен с чугунным стальным барабаном
- Категория: Coffee Roasters >>>
- Поставщик: Henan,Wintop,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.82 $* | 0.38 $* |
| Aug-19-2025 | 0.62 $* | 0.96 $* |
| Jul-19-2025 | 0.86 $* | 0.38 $* |
| Jun-19-2025 | 0.6 $* | 0.89 $* |
| May-19-2025 | 0.26 $* | 0.78 $* |
| Apr-19-2025 | 0.47 $* | 0.14 $* |
| Mar-19-2025 | 0.82 $* | 0.14 $* |
| Feb-19-2025 | 0.71 $* | 0.68 $* |
| Jan-19-2025 | 0.20 $* | 0.87 $* |
Характеристики
Product Description
Full Automatic Commercial coffee Roaster 3 kg for specialty coffee/Italian coffee beans Coffee Roasting machine
WS-3 Master roaster is an full automatic coffee roaster, which can warm up- feed in- roasting according to roasting curve
-discharge roasted beans- cooling automatically. It use double layer carbon steel drum, powerful uniform burner , adapt with high technology and self developed roasting app , help you calculate the roasting data , and adjust fire and damper automatically, reach good repeat roasting, will develop your roasting quality and save your labor cost.
-discharge roasted beans- cooling automatically. It use double layer carbon steel drum, powerful uniform burner , adapt with high technology and self developed roasting app , help you calculate the roasting data , and adjust fire and damper automatically, reach good repeat roasting, will develop your roasting quality and save your labor cost.
Specification
Product name | WS-3 master full automatic Coffee roaster |
Warranty | 1 year |
Motors | 4 |
Drum material | Carbon steel drum with two layer |
Power (W) | Electric heating model 8Kw/Gas model 1000w |
Voltage (V) | 110V with transformer /220V single phase 50/60HZ |
Temperature sensor | BT ET PT100 sensor |
Timer | Equipped |
Type | Commercial, Drum Coffee Roaster, full automatic roaster |
Temperature range | 0-300 ℃ |
Data record | BT ,ET ,ROR ,Burner volume, air damper volume (5 curves) |
Connection Type | Bluetooth/Wifi |
Batch Roasting Capacity | 500g-3.2kg |
Warm up Function | Warm up to 200 ℃ |
Over temperature protect | Equipped |
Maintain Door | Equipped |
Drum Speed control | Equipped |
Cooling fan and mixing arm | Equipped |
Chaff collector | Equipped |
Manual Damper | Equipped |
Light | three color light with magnifying lence |
Movable hopper | Equipped |
Auto close feeding handle | Equipped |
Auto Ignite | Equipped |
Roasting Time | 8-12 minutes/per drum |
Hot air pressure gauge | Option |
Smoke filter | Option |
Sample spoon | Wooden made sample spoon |
Hourly capacity | 3kg to 15kg green coffee beans |
Heating Source | LPG/NG/PROPANE/Electric infrared |
Heating Power | 8000W (Electric roaster model only) |
Temperature Range | 0-300C |
Roaster Weight | N.W.:180kg, G.W.230kg |
Machine Dimension: | 112*73*125cm |
Applications | Cafe, coffee shop, restaurant, coffee House, Roastery house |
Package Size | 116 *58 *116cm Main unit 105*33*50 cm Chaff Collector |
Double wall drum
WS-3 coffee roaster use a double-layer drum coffee roaster，the drum is made of two layers carbon steel , drum total thickness is
10 mm. Carbon steel conduct heat better than stainless steel. When it starts heating up, the hot air quickly full fill in the gap
between two layers, the inner drum is surrounded by hot air, and the hot air can evenly through inner drum to beans , let your
roasting flavor better, don't burnt the beans.
10 mm. Carbon steel conduct heat better than stainless steel. When it starts heating up, the hot air quickly full fill in the gap
between two layers, the inner drum is surrounded by hot air, and the hot air can evenly through inner drum to beans , let your
roasting flavor better, don't burnt the beans.
Powerful uniform burner
Our team work hard for developing high performance heating burner.It is easy to ignite the fire on burner and keep it in strong to
heat up the drum, plus the durable insulation layer around the drum, you can maximum use the heats only to beans which saves the
fuel.It can increase 16 degree per min, 8 min get first crack, and the beans won't be burnt, and develop the sweetness of beans.
heat up the drum, plus the durable insulation layer around the drum, you can maximum use the heats only to beans which saves the
fuel.It can increase 16 degree per min, 8 min get first crack, and the beans won't be burnt, and develop the sweetness of beans.
Hot Air Pressure Gauge
Controlling airflow is very important during roast, Normally, we control airflow is only by manual damper.
But once you forget to clean up the exhaust pipe and exhaust fan motor in time, the dust and chaff may block the pipe or motor, or
if you meet the bad weather (like strong wind, heavy rain etc.), you may not get exact pressure value by manual damper.Then the
hot air pressure gauge can help you get the real airflow pressure value in any condition, that makes your roast more
precisely.
But once you forget to clean up the exhaust pipe and exhaust fan motor in time, the dust and chaff may block the pipe or motor, or
if you meet the bad weather (like strong wind, heavy rain etc.), you may not get exact pressure value by manual damper.Then the
hot air pressure gauge can help you get the real airflow pressure value in any condition, that makes your roast more
precisely.

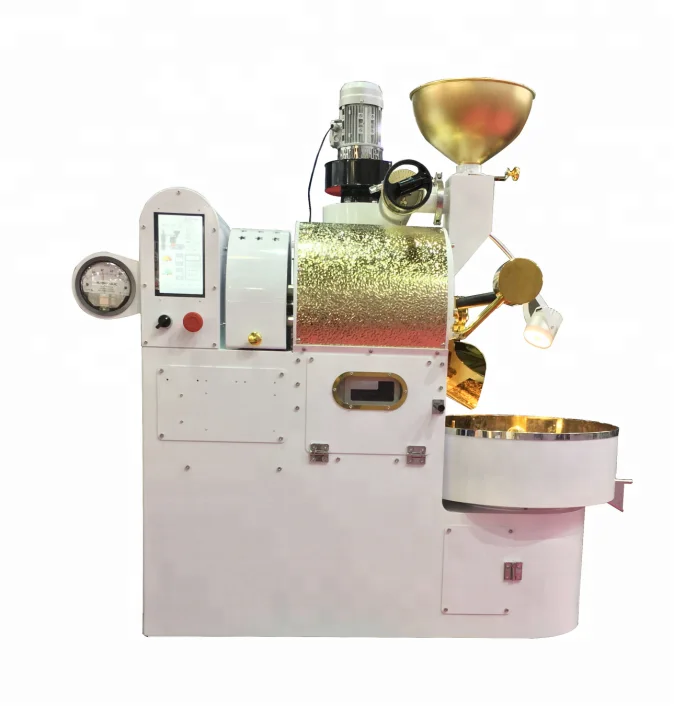

WS-3 touch screen control
WS-3 automatic model have an touch screen,
The touch screen can operate roaster, control burner and damper volume from 0-100%, can record BT ET , burner volume and damper
volume , record charge time, dry time, first crack time , second crack time, drop time, also calculate ROR development ratio and
real time temperature and temperature change value.
This touch screen will help you roasting more professional .
The touch screen can operate roaster, control burner and damper volume from 0-100%, can record BT ET , burner volume and damper
volume , record charge time, dry time, first crack time , second crack time, drop time, also calculate ROR development ratio and
real time temperature and temperature change value.
This touch screen will help you roasting more professional .
Automatic roasting app
Except the touch screen, WS-3 automatic model also have an android app to do manual and automatic roasting
In manual mode, you can control the burner damper on app , and can record BT ET , burner volume and damper volume , record charge
time, dry time, first crack time , second crack time, drop time, also calculate ROR development ratio and real time temperature
and temperature change value.
In manual mode, you can control the burner damper on app , and can record BT ET , burner volume and damper volume , record charge
time, dry time, first crack time , second crack time, drop time, also calculate ROR development ratio and real time temperature
and temperature change value.
In automatic roasting mode, you can choose a curve , click start, the roaster will adjust burner and damper automatically
according to the data.
You can see the roasting effort, BT and ET are almost coincide.
according to the data.
You can see the roasting effort, BT and ET are almost coincide.
Chaff filter and exhaust system
WS-3 roaster have a system to separate the chaff , as soon as the chaff drop from the beans, it will be soon flow out by the fan,
won't make your beans and smoke smell. We customize the fan and develop the fan and exhaust structure, the fan won't be blcok and
don't need to clean the fan, maintain is much easier.
won't make your beans and smoke smell. We customize the fan and develop the fan and exhaust structure, the fan won't be blcok and
don't need to clean the fan, maintain is much easier.
Large Maintains access
WS-3 is designed with large maintenance access which is easy to clean and replace parts.
If you need to clean or replace the gas pressure meter or the gas burner, you just need to screw off the little bolts on the
maintenance access door to finish it. This is the great improvement from our previous model.
If you need to clean or replace the gas pressure meter or the gas burner, you just need to screw off the little bolts on the
maintenance access door to finish it. This is the great improvement from our previous model.
Fast cooling
WS-3 coffee roaster adapt with large power cooling fan and cooling mixing arms, can cool the beans in 2 minutes, let your coffee
flavor be kept.During cooling, you can roast next batch coffee at the same time.
flavor be kept.During cooling, you can roast next batch coffee at the same time.
Upgrade light
WS-3 roaster have upgrade light help you view the beans during roasting. It have three color light, in the middle is a magnifying
glass. You can choose different light color in different light environment. And you can view the beans size change and color
change more clearly.
glass. You can choose different light color in different light environment. And you can view the beans size change and color
change more clearly.
Choices
WS-3 manual
WS-3 Manual type is designed by manual control panel.
WS-3 manual model can record roasting data .
WS-3 automatic
WS-3 Automatic type is designed by PLC control panel.
WS-3 automatic model can record and repeat roasting data.
WS-3 electric heating
Electric type heating source is : heating elements, Heating Power is : 8KW
WS-3 Automatic type is designed by PLC control panel.
WS-3 Automatic type is designed by PLC control panel.
WS-3 gas heating
Gas type heating source is LPG or NG or Propane
You can adjust the heats by gas pressure knob which is below of the control panel.
You can adjust the heats by gas pressure knob which is below of the control panel.
Red +rose gold
Black+rose gold
White + rose gold
