Машина для литья покрытий линия по производству фотобумаги и

Машина для литья покрытий линия по производству фотобумаги и

Категория: Станки для обработки бумаги >>>
Поставщик: Qingdao,Jieruixin,Machinery,And,Technology,Co.,Ltd.

Цена:230 000,00 $ - 238 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	273700.65 $*	287385.54 $*
Aug-19-2025	271400.39 $*	284970.48 $*
Jul-19-2025	227700.44 $*	239085.68 $*
Jun-19-2025	266800.32 $*	280140.52 $*
May-19-2025	232300.56 $*	243915.8 $*
Apr-19-2025	262200.38 $*	275310.19 $*
Mar-19-2025	259900.34 $*	272895.98 $*
Feb-19-2025	257600.31 $*	270480.67 $*
Jan-19-2025	255300.60 $*	268065.98 $*

Характеристики

1092 Digital Photo Paper / High Gloss Paper

Cast Coating Machine

Technical Description

1.Overview

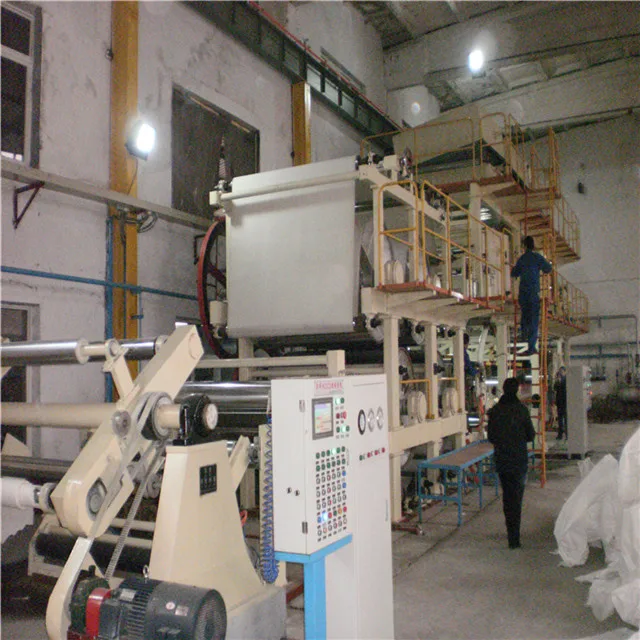

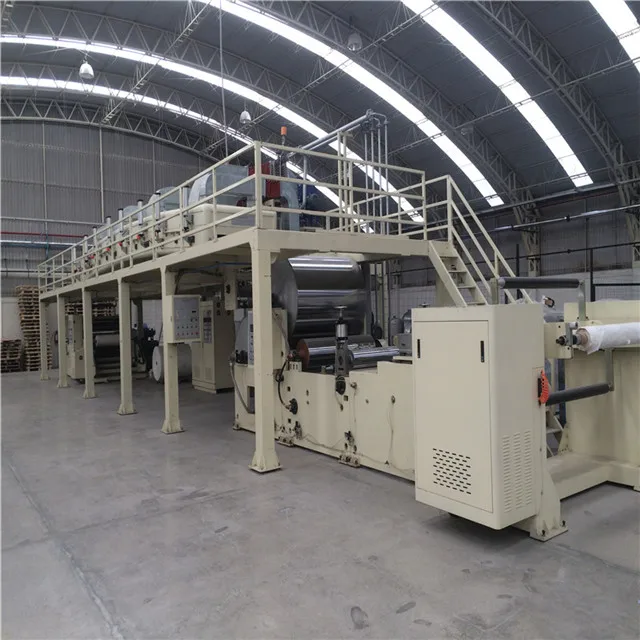

1092 Cast coating machine consist of : paper-unwinding stand , air - knife coating device , pneumatic open type hot air drying system , large diameter glazing cylinder , paper reeling machine , drive system and electrical control seven parts.

Cast coat paper characteristic : High gloss , Glossiness > 85° . High ink absorption . High adaptability for ink .

Cast coat paper main use for printing senior art pictures, color ads, calendars, stickers trademark, trade patterns, greeting cards, invitations, bags for fine crafts.etc

2.Work flow

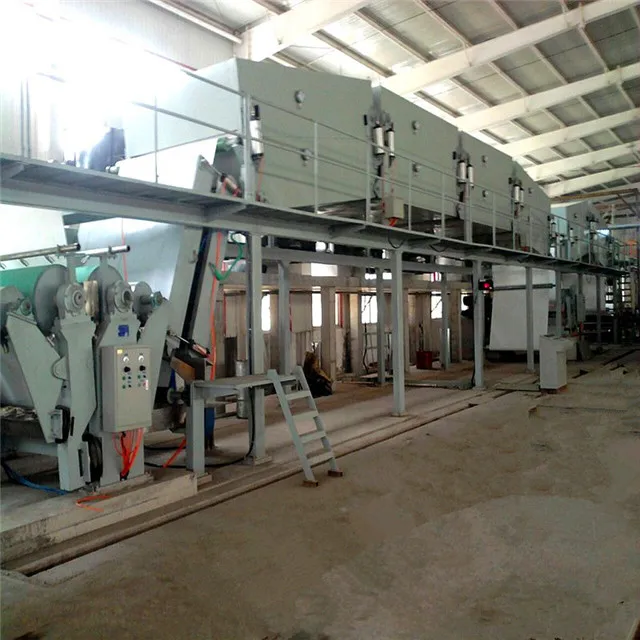

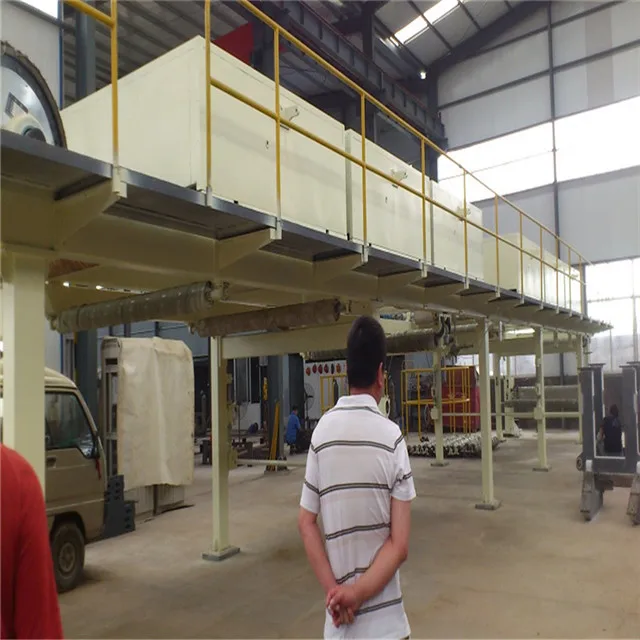

Paper-unwinding stand → Air - knife coating device → Drying box → glazing cylinder → paper reeling machine.

3.Description

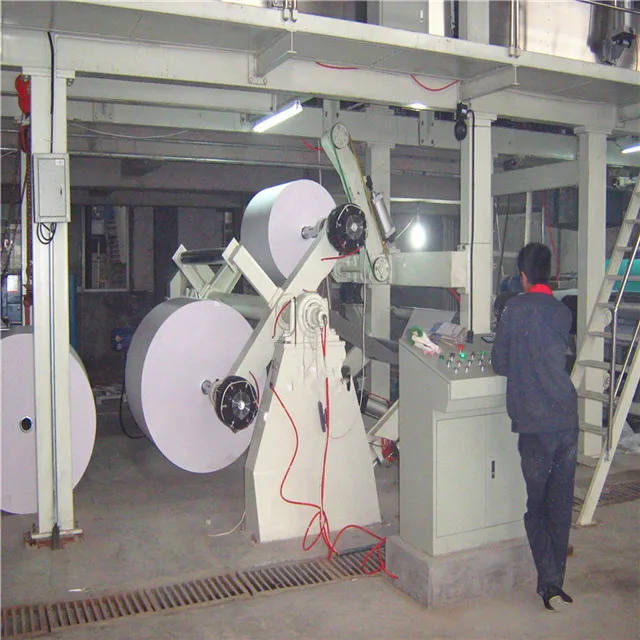

Paper-unwinding stand using new type electric Paper-unwinding stand.

Air - knife coating device consist of bracket , Air - knife unit , backup roll , coating roll , coating trough . knife lip using stainless steel , knife body using alufer . knife lip and knife body interstice 0.4-1.0mm , can omnibearing separate adjust , maintain uniform coating .

Drive system using electric motor drive , speed control by frequency variation , speed accuracy , high stability.

Electrical control using electric cabinet and pneumatic valve , easy to operation and use .

4.Technical parameters

Net paper width	1092mm	1092mm	1092mm
Design speed	20 m/min	25 m/min	30 m/min
Working speed	10-15 m/min	15-20 m/min	20-25 m/min
Raw paper weight	80-250 g/m^2	80-250 g/m^2	80-250 g/m^2
Coating weight	20-50 g/m^2	20-50 g/m^2	20-50 g/m^2
Production capacity	2-3 ton/day	3-4 ton/day	4-5 ton/day
Coating way	air-knife	air-knife	air-knife
Number of air-knife	1	1	1
Drying way	drying box	drying box	drying box
Number of drying box	2	2	2
Size of drying box	3000*3700 / mm	3000*3700 / mm	3000*3700 / mm
Working temperature	100-140ºC	120-140ºC	120-140ºC
Working pressure	0.5 MPa	0.5 MPa	0.5 MPa
Number of glazing cylinder	1	1	1
Size of glazing cylinder	1500*2950 / mm	2000*2950 / mm	2500*2950 / mm
Drive type	VVVF ; separately transmission	VVVF ; separately transmission	VVVF ; separately transmission
Control type	electric cabinet & pneumatic valve	electric cabinet & pneumatic valve	electric cabinet & pneumatic valve
Machine layout	singlelayer / double layer	singlelayer / double layer	singlelayer / double layer
