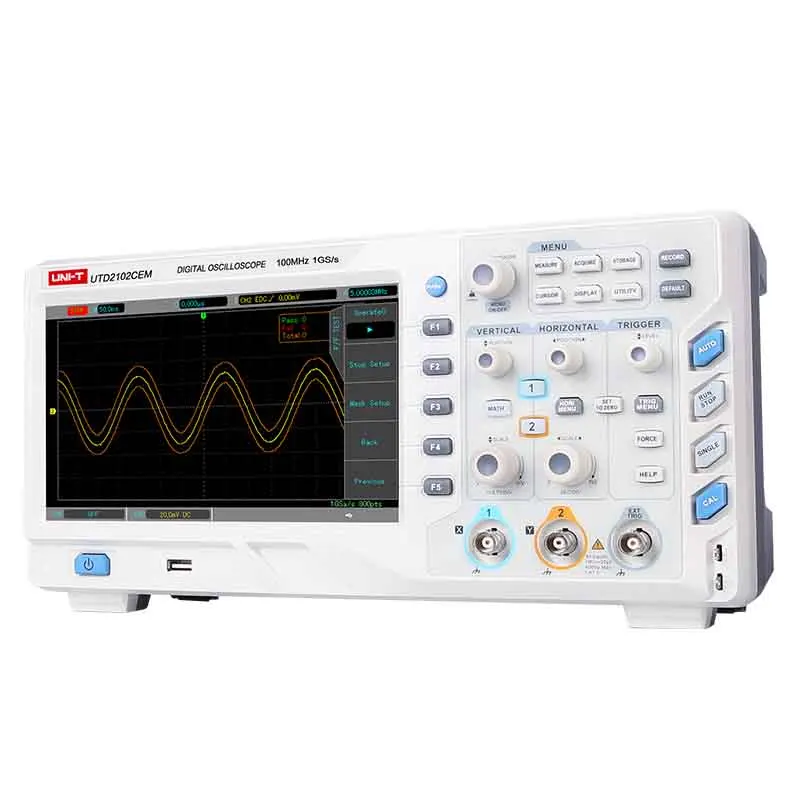

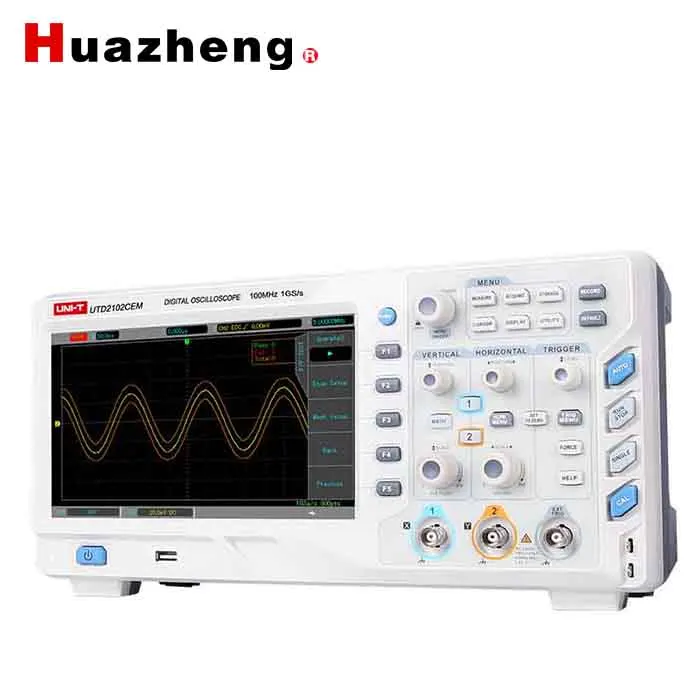

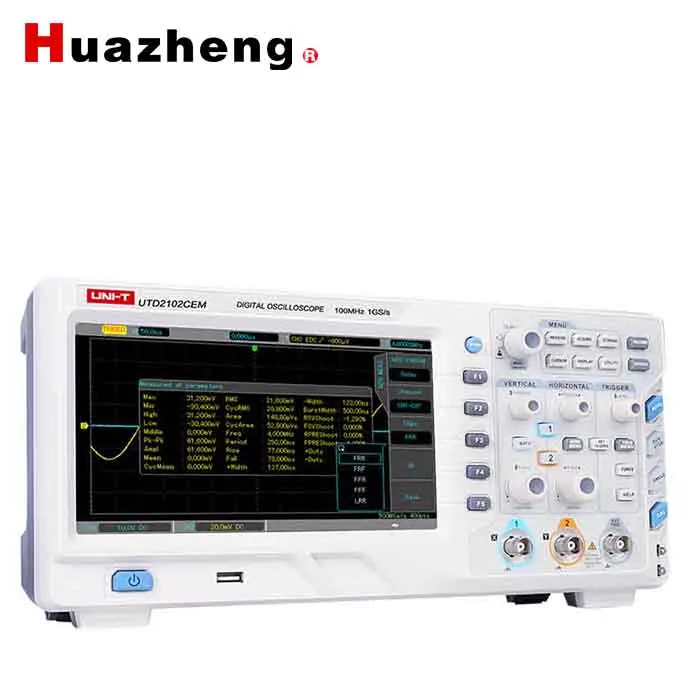

1. 2 channels, wide vertical range: 1mV/div~20V/div; 2. 7 inch widescreen LCD display; 3. The new interface style; 4. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device; 5. USB drive system software upgrade; 6. Storage of waveform setups and interface waveform and setup reproduction; 7. Automatic measurement of 32 waveform parameters; 8. Unique waveform record and replay function; 9. Multilingual menu available
Technical specifications:
Specifications
UTD2102CEX
Channels
2
Bandwidth
100MHz
Sample Rate
1GS/s
Rise Time
≤3.5ns
Memory Depth
25kpts
Waveform Acquisition Rate
≥2000wfms/s
Vertical Sensitivity (V/div)
1mV/div~20V/div
Timebase Range (s/div)
2ns/div~50s/div
Storage
Setup, Wave, Bitmap
Trigger Modes
Edge, Pluse, Video, Slope, Alternate
Interface
USB OTG
General Characteristics
Power
100-240VAC, 45-440Hz
Display
7 inches 64k Color TFT LCD, 800×480
Product Color
White and grey
Product Net Weight
2.2kg
Product Size (W×H×D)
306mm ×147mm × 122mm
Standard Accessories
Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD
Standard Individual Packing
Gift Box, English Manual
Standard Quantity Per Carton
2pcs
Standard Carton Measurement (L×W×H)
450mm× 420mm × 280mm
Standard Carton Gross Weight
8.5kg
Optional Accessories
LA Module
Accessories:
Probe×2 (1×, 10× switchable), Power Cord, USB Cable, PC Software CD, LA Module (UT-M09)*
