Недорогой цифровой осциллограф для хранения

Категория: Осциллографы >>>
Поставщик: Huazheng,Electric,Manufacturing,(baoding),Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.25 $*	0.43 $*
Aug-15-2025	0.26 $*	0.37 $*
Jul-15-2025	0.73 $*	0.18 $*
Jun-15-2025	0.81 $*	0.5 $*
May-15-2025	0.72 $*	0.44 $*
Apr-15-2025	0.24 $*	0.40 $*
Mar-15-2025	0.93 $*	0.35 $*
Feb-15-2025	0.99 $*	0.50 $*
Jan-15-2025	0.66 $*	0.4 $*

Характеристики

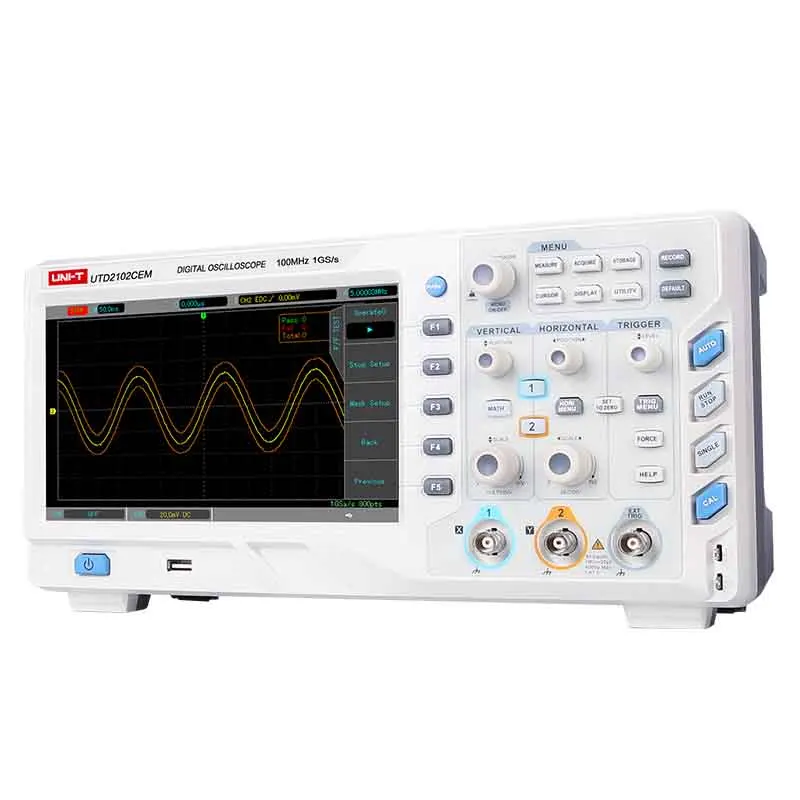

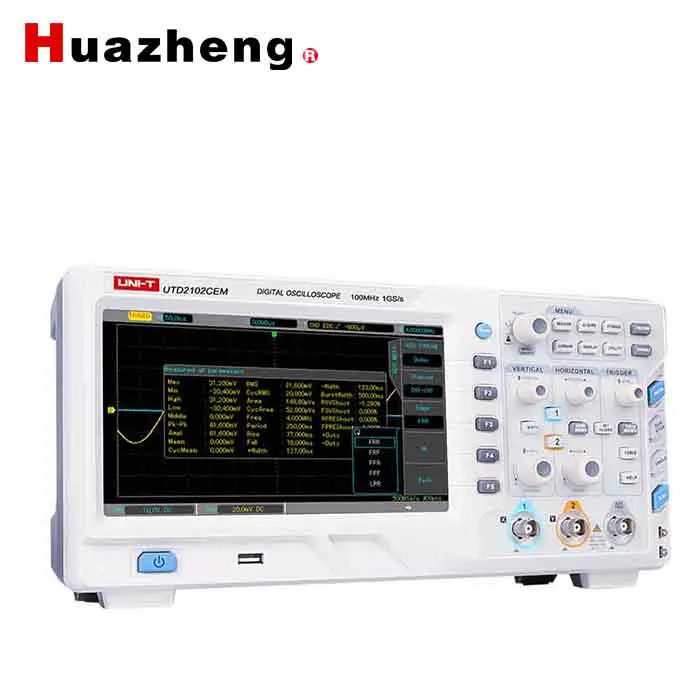

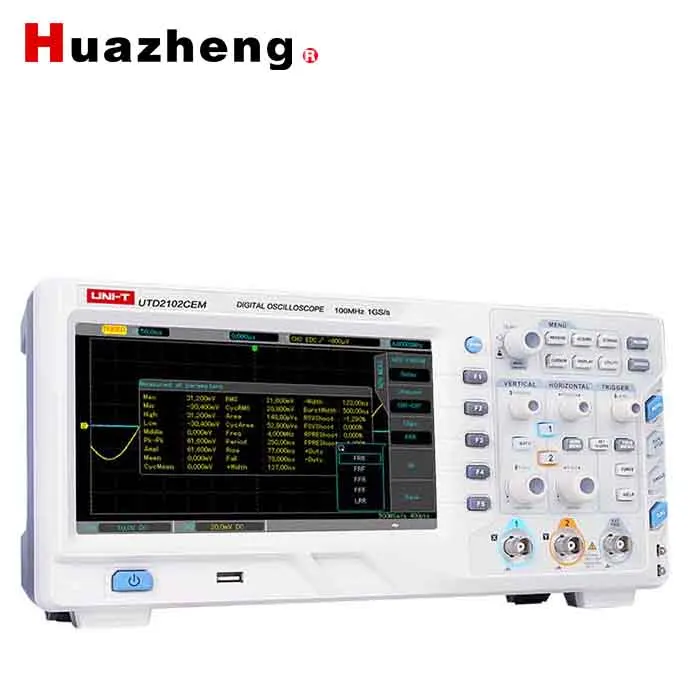

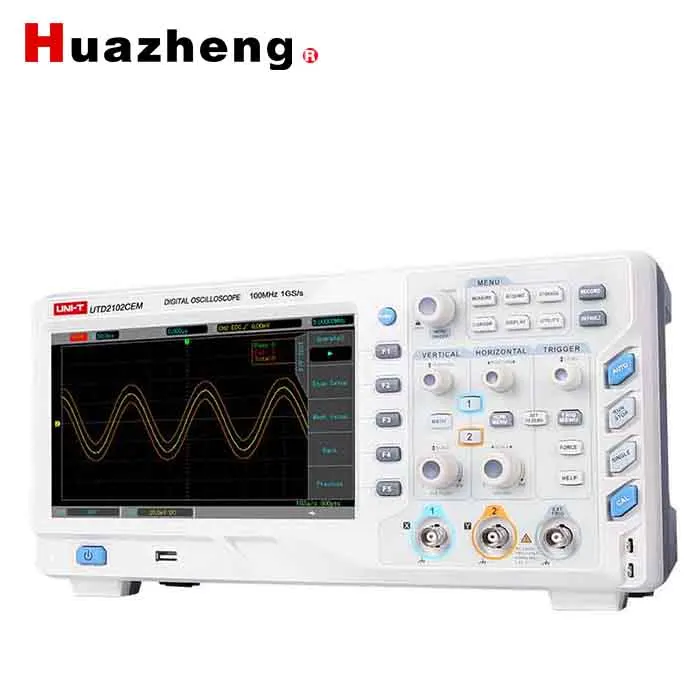

low cost Digital storage Oscilloscope for Students

Product Description

1. 2 channels, wide vertical range: 1mV/div~20V/div;
2. 7 inch widescreen LCD display;
3. The new interface style;
4. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5. USB drive system software upgrade;
6. Storage of waveform setups and interface waveform and setup reproduction;
7. Automatic measurement of 32 waveform parameters;
8. Unique waveform record and replay function;
9. Multilingual menu available

Technical specifications:

Specifications	UTD2102CEX
Channels	2
Bandwidth	100MHz
Sample Rate	1GS/s
Rise Time	≤3.5ns
Memory Depth	25kpts
Waveform Acquisition Rate	≥2000wfms/s
Vertical Sensitivity (V/div)	1mV/div~20V/div
Timebase Range (s/div)	2ns/div~50s/div
Storage	Setup, Wave, Bitmap
Trigger Modes	Edge, Pluse, Video, Slope, Alternate
Interface	USB OTG
General Characteristics
Power	100-240VAC, 45-440Hz
Display	7 inches 64k Color TFT LCD, 800×480
Product Color	White and grey
Product Net Weight	2.2kg
Product Size (W×H×D)	306mm ×147mm × 122mm
Standard Accessories	Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	2pcs
Standard Carton Measurement (L×W×H)	450mm× 420mm × 280mm
Standard Carton Gross Weight	8.5kg
Optional Accessories
LA Module

Accessories:

Probe×2 (1×, 10× switchable),
Power Cord,
USB Cable,
PC Software CD,
LA Module (UT-M09)*

Certifications

Oscilloscope for Students

Quality Control

Packaging & Shipping

Our Services

From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
