Экологически чистая светодиодная светоотверждающая камера HTLD 365 нм/коробка/печь УФ-отверждаемая
- Категория: Сушильное оборудование >>>
- Поставщик: Shenzhen,Height-Led,Opto-Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 44825.42 $* | 47066.93 $* |
| Aug-18-2025 | 44448.10 $* | 46670.31 $* |
| Jul-18-2025 | 37291.78 $* | 39156.12 $* |
| Jun-18-2025 | 43695.13 $* | 45880.89 $* |
| May-18-2025 | 38045.47 $* | 39947.57 $* |
| Apr-18-2025 | 42942.99 $* | 45089.60 $* |
| Mar-18-2025 | 42565.1 $* | 44693.4 $* |
| Feb-18-2025 | 42188.53 $* | 44297.73 $* |
| Jan-18-2025 | 41811.63 $* | 43902.85 $* |
Характеристики

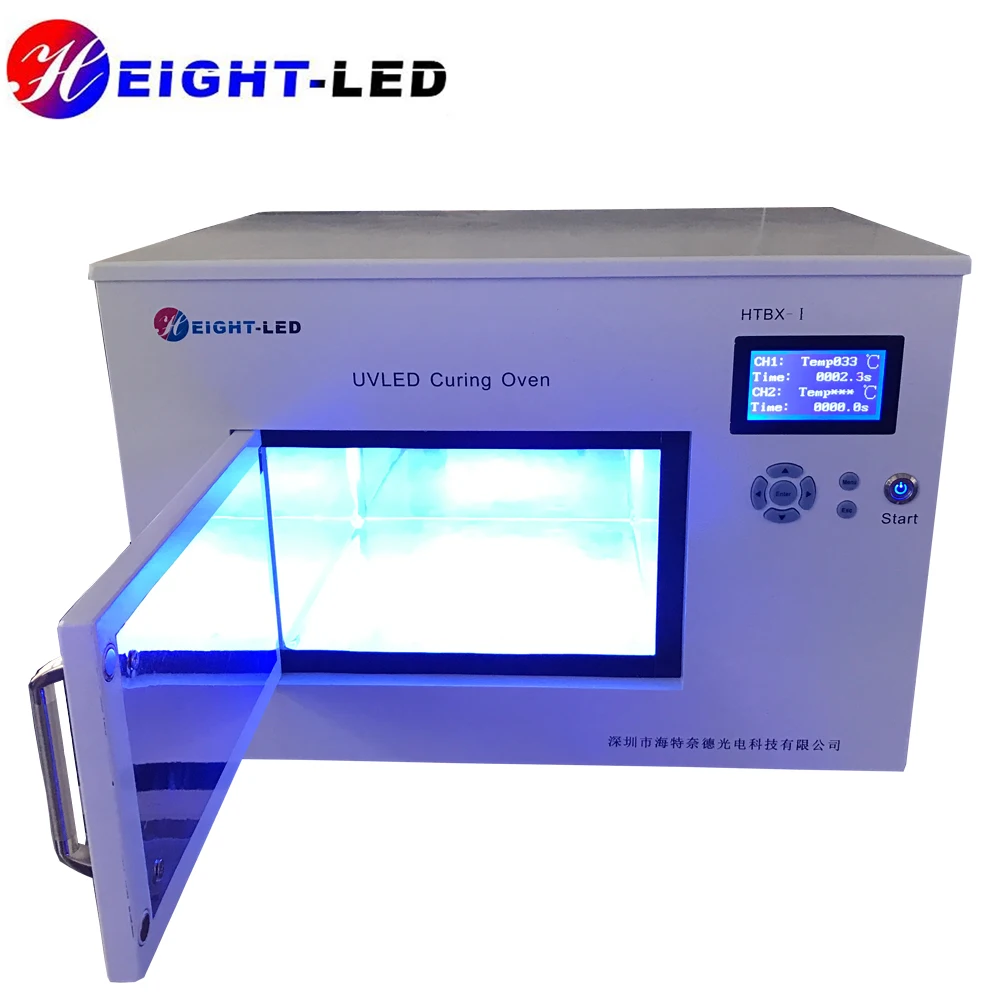

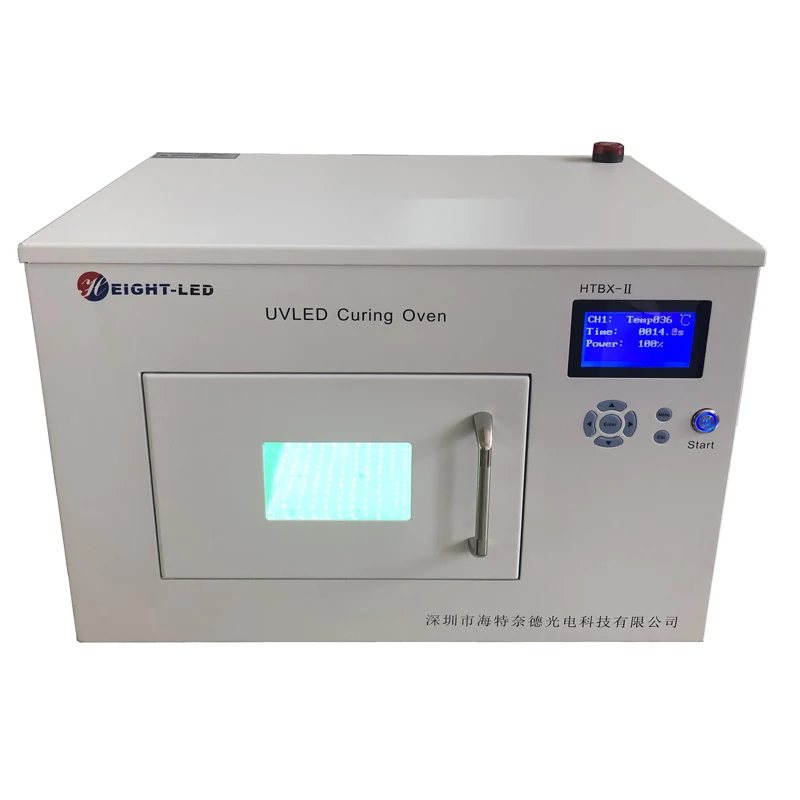

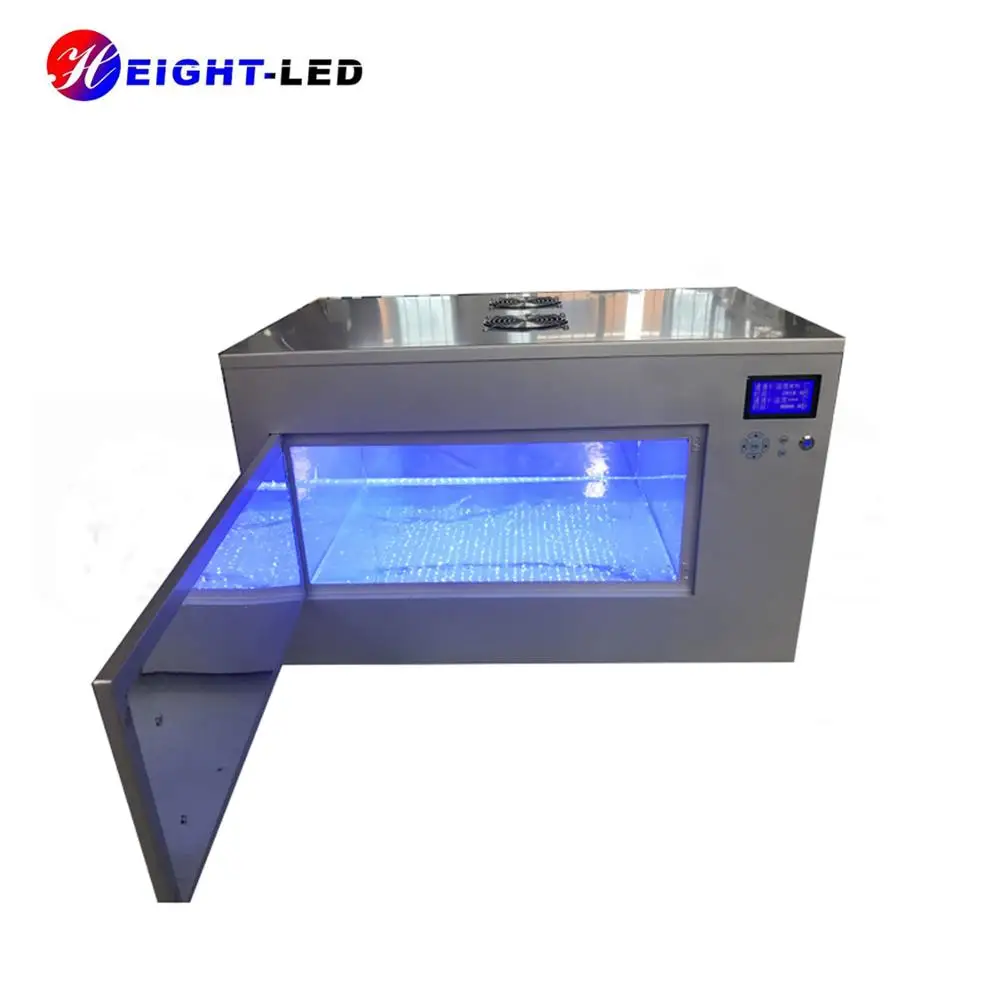

HTLD Eco-friendly led 365nm light chamber/ box /oven uv curing resin
Kinds of uv curing ovens description
| No. | wavelength | Curing size | Peak irradiance(mw/cm2) | cooling method |
| HTLD-100X100 | 365nm | 100x100mm | 1700 | fan |
| HTLD-100X100 | 395nm | 100x100mm | 3000 | fan |
| HTLD-200X150 | 365nm | 200x150mm | 800 | fan |
| HTLD-200X150 | 395nm | 200x150mm | 1500 | fan |
| HTLD-300X200 | 365nm | 290x180mm | 1000 | fan |
| HTLD-300X200 | 395nm | 290x180mm | 1700 | fan |
| HTLD-220X230 | 365nm | 220X230mm | 800 | fan |
| HTLD-220X230 | 395nm | 220X230mm | 1200 | fan |
| Features: |
| 1: Special design ( Contorller and UV LED head integrated) |
|
2: Good uniformity |
| 3: Adjustable working distance |

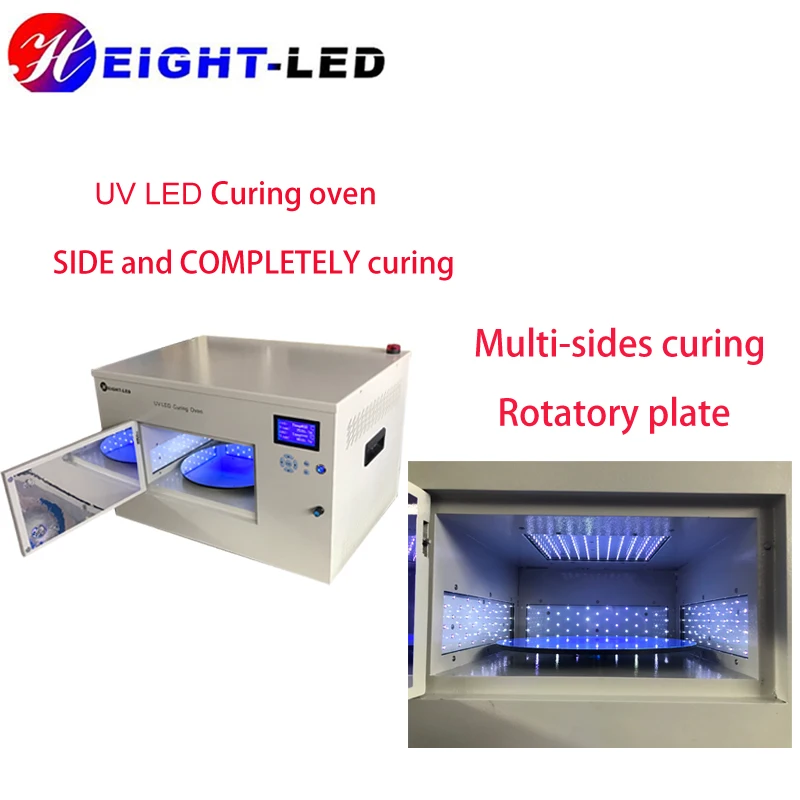

| 4: Multi-sides Curing, rotatory plate |
| 5: High intensity |
| 6:Multiple wavelength ( 365nm/385nm/ 395nm/ 405nm) |
Applications

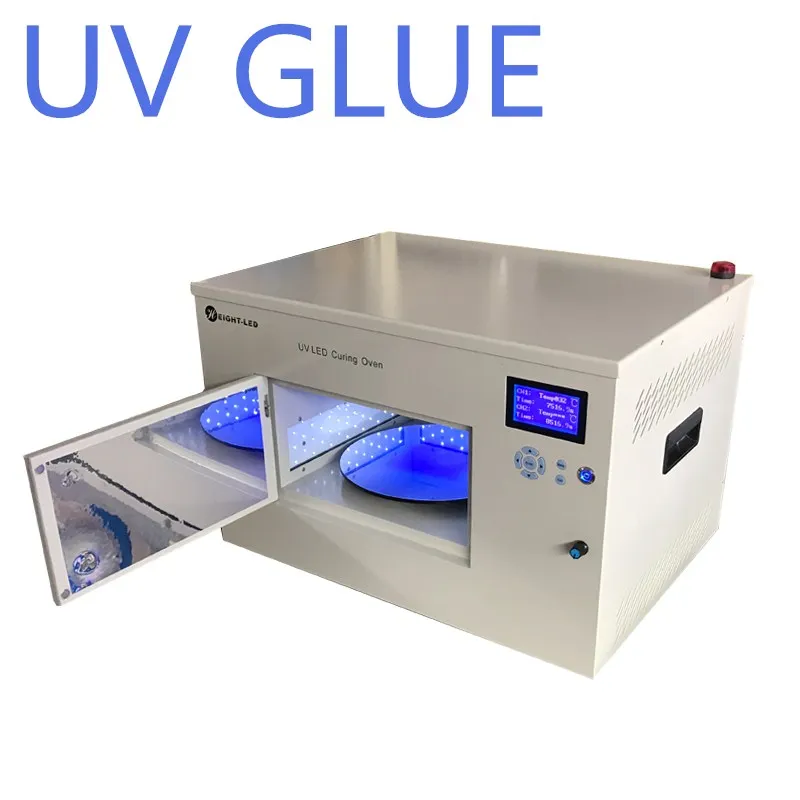

uv led curing resin box/oven for uv glue curing.uv ink.uv paint.etc
![uv glue curing]()
Company information
Shenzhen Height-LED Opto-electronics Technology Co., Ltd located in Shenzhen, Guangdong, China. Starting in 2007, Height-LED engaged in UV-LED curing UV ink, UV adhesive UV paint, UV varnish and other UV sensitive materials. Our team has more than 10 years combined experience in UV curing systems and can meet the requirements of each client.
![-1]()
![]()
FAQ
Q1: Why choose HTLD UV LED curing system?
A:The team has over 10 years combined experience in UV LED curing industry and can meet the requirements of each client.
Q2: What's the application of HTLD UV LED curing system ?
A:HTLD UV LED curing system can be used for curing UV glue, UV ink, UV adhesive, UV paint, UV varnish and other UV sensitive materials.
Q3: What is the major advantages of UV LED curing system’s than other UV curing system?
A:Extra-long life, energy saving and environment friendly.
Q4: Which wavelength do I need?
A:It depends on your UV sensitive materials.
Q5: What's the emitting window do I need?
A:It depends on your product’s size that need to be cure.
Q6: What's the Peak Irradiance do I need?
A:It depends on your UV sensitive materials and your Production efficiency.
Q7: The common emitting window and Peak Irradiance can not meet my requirements?
A:Do not worry! Any sizes of emitting window and Peak Irradiance can be customized .
Q8: Where is your company located?
A: 2/F, Towel B, Sanhe international science and technology Building, Da Lang Road,Long Hua District, ShenZhen, Guang Dong Province, China.
Q9: I do not know how to choose a set of uv led curing system.
A: Please click here.
Contact Us
-
Contact: Belle XiaoTEL:+8615970035586
Wechat:+8615970035586
WhatsApp/Skype: +86 15970035586Похожие товары
![]()
![]()
![]()
