Линия по производству фруктового сока/асептическая машина для розлива холодного молока и чая/оборудование

Washing Part:

The bottle enters into the rinsing part of three-in-one machine through air conveyor.

The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again

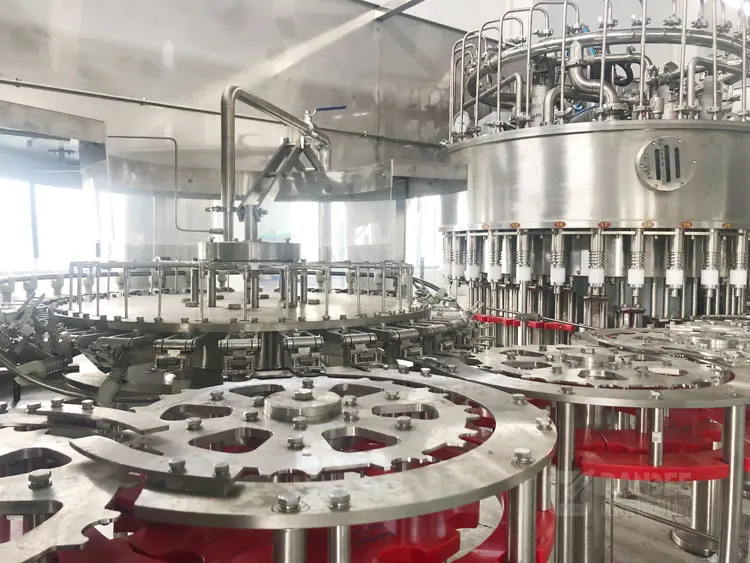

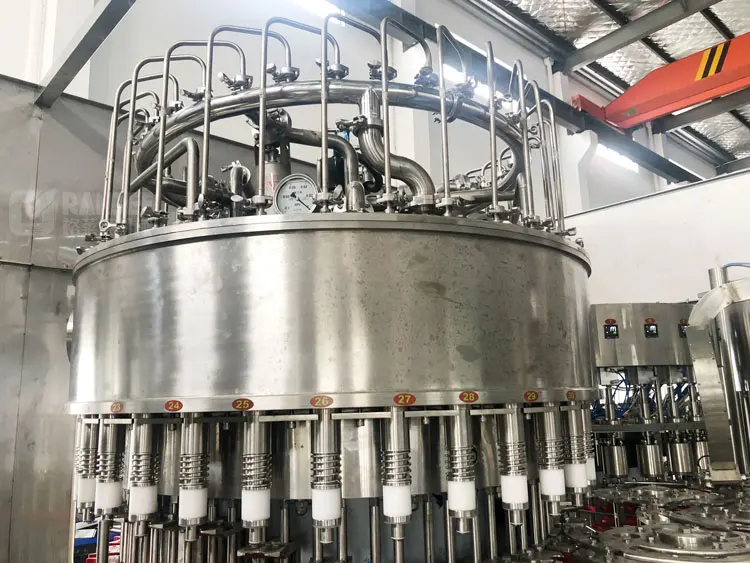

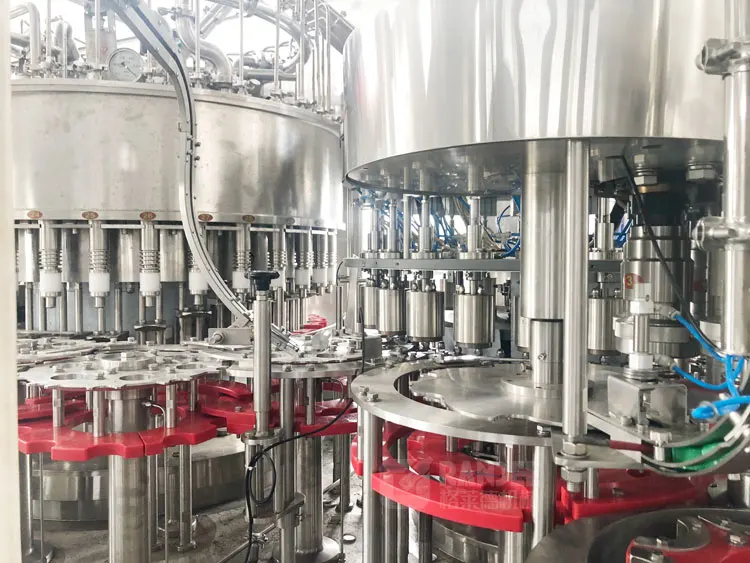

Filling valve:

The design of filling structure is reasonable and without hygiene dead angle,the run of equipment is stable,the control accuracy is within ±2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator,after filling valve contact the bottleneck ,it start to fill.

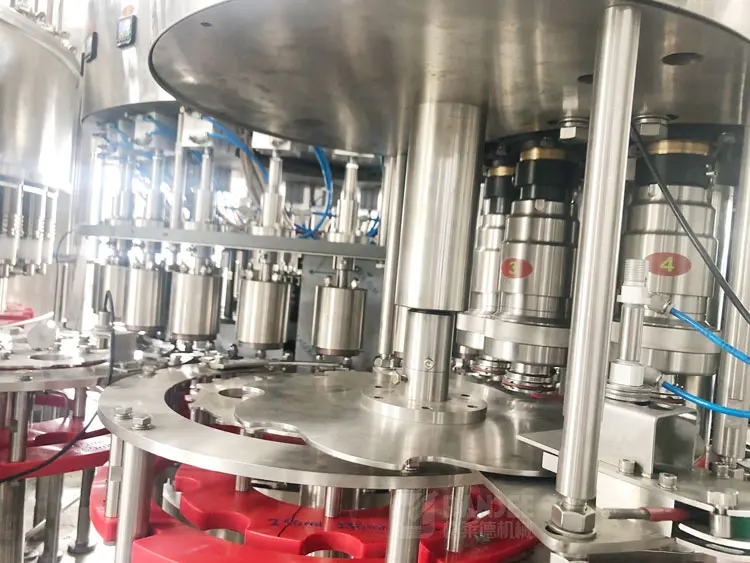

Capping Part:

Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
The heads are raised and lowered by the action of a follower that is riding on a shaped cam.

RO System

Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department.

This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.

This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.

This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.

We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc

Blowing Machine with different options:

1. Semiautomatic Blowing Machine for 800BPH-2000bph from  0.2-2.5L bottle  with 2 or 4 cavities.

2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle.

Full automatic sleeve labeling machine

Capacity: 100-350bottles/min can be choosed

Label material: PVC PET OPS,etc

Bottle material: PET PE PP Glass

Bottle Diameter: 28 ~ 120mm

Bottle Height: 15~320mm

Bottle shape: round, square, ellipse, rectangular

Label length: 30~250mm(max)

Label thickness: 0.03~0.13mm

Linear PE film shrink packing machine

Film material: PE

Shrink membrane thickness: 70~100um

Capacity: 8-35 packages/ min can be chosen

Conveyor belt max width: 600mm

Height is: 1000~1100mm
