Высокочастотный цифровой осциллограф серии AV7000 полоса пропускания 60 ~ 350 МГц частота выборки 2

Описание и отзывы

Трекер стоимости

Характеристики

Product Overview

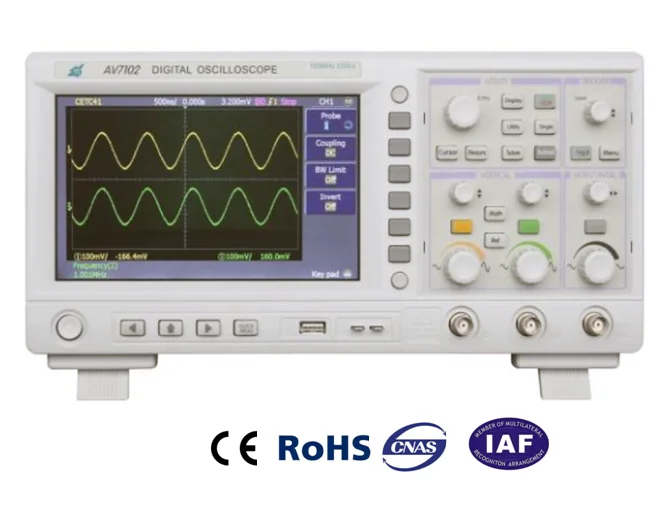

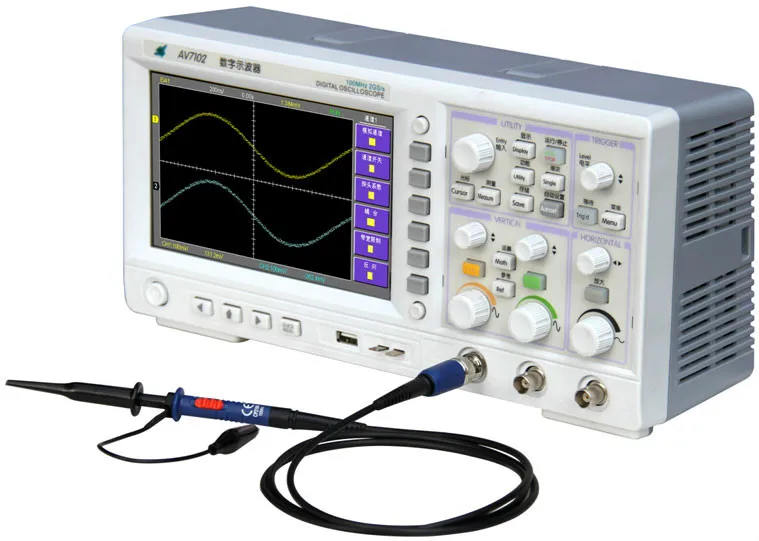

AV7000 Series Digital Oscilloscope are portable digital oscilloscopes with dual channel, bandwidth
60~350MHz and sampling rate 2GSa/s. Visual, convenient and shortcut buttons and knobs, as well as
numerous superior measurement functions and universal design make it easy to deal with the challenge for
various measurement applications.
With dual timebase sweep function, this instrument is available in time window zooming and movable
observation, in the meanwhile of observing panoramic view of waveform, it is also possible to observe or
measure waveform details through the delayed sweep window. The pulse width trigger function allows
triggering positive or negative burr signal, and pulse in bigger or small width than the specified width.

Main Features
    High sampling rate and dual timebase sweep
    7" color wide-screen TFT LCD (resolution 800×480)

    Unique multifunctional shortcut design
    Similar operation to analog oscilloscope
    RS-232 and USB expansion interfaces
    Abundant triggering function
    FFT function
    Operating temperature range: 0~50℃
    Compact and light, less than 3kg

    High sampling rate and dual timebase sweep

    High sampling rate of 2GSa/s enables real-time collection of waveform details of input signals, and the
equivalent sampling rate of25GSa/s enables a more fine and vivid repeated waveform display. The dual
timebase mode enables positioning and expansion of some part in the main sweep so as to facilitate detailed
analysis of signal. The main sweep is presented on the upper part of display screen and the delayed sweep

is presented on the lower part of display screen.





 Unique multifunctional shortcut design
Facilitating quick switching between cursor and measuring results, offering more convenience for use!





Similar operation to analog oscilloscope





Peak detection
Peak detection function helps you detecting peak interference even at very low signal frequency





FFT function
Available in FFT amplitude, frequency and frequency difference, etc. measurement functions





Waveform operation
Operating addition and subtraction in two channels





Automatic testing of pulse parameters
Available in amplitude and time, etc. automatic testing function, with graphic shortcut menu for common
testing items





Measurement with cursor
Manually measuring waveform amplitude and time, etc. parameters with cursor, and available in the cursor
locking function.





BW Limit
Reduced high-frequency noise of signals allows a clearer view of interested signals and great improvement
in working efficienc





Storage capacity
Capacity for storing at least 10 sets of waveforms and 10 front-panel settings, supporting 8G U-disk for
expanding storage space





Screen printing easy and fast operation



Typical Applications
Design and commissioning of electronic circuit

Design and analysis of electromechanical products
Circuit function testing
Scientific research and development
Investigation of instantaneous signal

Industrial control and measurement
Product quality control
Education and training
Service and maintenance
