Wintop поставка от производителя полностью из нержавеющей стали электрическая/газовая машина для запекания кофе 1 кг жаровня кофейных зерен полный комплект
- Категория: Coffee Roasters >>>
- Поставщик: Henan,Wintop,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3868.50 $* | 4061.26 $* |
| Aug-16-2025 | 3835.52 $* | 4027.90 $* |
| Jul-16-2025 | 3218.55 $* | 3379.47 $* |
| Jun-16-2025 | 3770.79 $* | 3959.93 $* |
| May-16-2025 | 3283.35 $* | 3447.62 $* |
| Apr-16-2025 | 3705.34 $* | 3890.72 $* |
| Mar-16-2025 | 3673.80 $* | 3857.89 $* |
| Feb-16-2025 | 3640.86 $* | 3822.10 $* |
| Jan-16-2025 | 3608.18 $* | 3788.93 $* |
Характеристики
Product Description
Specification
WK-1KG coffee roaster Technical Data | ||||||
Batch Capacity | 100g-1500g | Data Logger | Available (option) | |||
Roasts per hour | 4-5 | Machines Dimensions | 96*63*92cm | |||
Roast time | 12-15 minutes | Smoke Filter | Available (option) | |||
Capacity per Hour | 4-7.5kg | Heating Power | 4.8KW | |||
Heating: | Electric/Natural Gas/Propane/LPG | Temperature Range | 0-300℃ | |||
BTU/hr, max | 20000 | Gas Consumption | 0.2kg/Hr | |||
Electrical Power | Single phase 220V/ 50or 60Hz | Drum Motor | 25W | |||
Package Dimension | 110*70*85 cm | Exhaust Fan | 60W | |||
N/G Weight | 94kg/132kg | Cooling tray fan | 200W | |||
Package | Plywood | Cooling mixing | 10W | |||
Wk-1kg coffee bean roaster Features
1.Food level 304 stainless steel drum with the mixing blades to ensure the best blending and even roast.
2.Roasting and cooling can work at same time, separated chaff cyclone for effective chaff separation.
3.High quality stainless steel cooling tray with bin agitator
4.Factory made high quality burner for effective heating, fuel saving.
5.Self ignition with adjustable heat controls
6.High grade insulation layer for keeping heat inside the drum
7.Sight glass, burner window glass, chaff windown ,sampler spoon and the real-time temperature displays for accurate
monitoring during roasting.
8.Programmable Temperature preset with alarm feature & manual settings.
9.Four high quality motors to control drum, hot air volume, Cooling tray and Cooling mixing.
10.Non-stop roasting from 200g-2500g
11.Both electric and manual controls of air flow to maximize coffee taste
12.Auxiliary LED Lamp attached
13.USB Data logging
2.Roasting and cooling can work at same time, separated chaff cyclone for effective chaff separation.
3.High quality stainless steel cooling tray with bin agitator
4.Factory made high quality burner for effective heating, fuel saving.
5.Self ignition with adjustable heat controls
6.High grade insulation layer for keeping heat inside the drum
7.Sight glass, burner window glass, chaff windown ,sampler spoon and the real-time temperature displays for accurate
monitoring during roasting.
8.Programmable Temperature preset with alarm feature & manual settings.
9.Four high quality motors to control drum, hot air volume, Cooling tray and Cooling mixing.
10.Non-stop roasting from 200g-2500g
11.Both electric and manual controls of air flow to maximize coffee taste
12.Auxiliary LED Lamp attached
13.USB Data logging
14.Smoke filter (option)
15.Colors available: Silver Black, rose gold black, full black, silver white, rose gold white, black
15.Colors available: Silver Black, rose gold black, full black, silver white, rose gold white, black
Details
Manual and Electric Dampers
WK 1kg coffee bean roaster is built combined with both electric and manual damper, which you can control your airflow is more
precisely. The manual damper handle is made of aluminium alloy instead of the plastic one which can't be easy broken due to the
overheat with using machine often.
precisely. The manual damper handle is made of aluminium alloy instead of the plastic one which can't be easy broken due to the
overheat with using machine often.
Smoke Exhaust System
The chaff collector connects to the main unit directly by a hoop, one person can complete the installation, we phased out the long
exhaust pipe connects to machine and chaff unit, the new direct connection greatly improves the exhaust system working efficiency.
exhaust pipe connects to machine and chaff unit, the new direct connection greatly improves the exhaust system working efficiency.
Drum Speed Control and Data Logger
WK-1kg is designed with the drum speed control and data logger. We use the Japan brand variation speed motor for drum speed
adjustment which is more durable, the adjust range is 0-100 RPM, it helps you develop more of your roasting skills.
The USB port is next to the drum speed control switch on back of the machine, the computer USB works with Artisan software for
data logger function.
adjustment which is more durable, the adjust range is 0-100 RPM, it helps you develop more of your roasting skills.
The USB port is next to the drum speed control switch on back of the machine, the computer USB works with Artisan software for
data logger function.
Chaff Collector Cyclone
WK series chaff cyclone is fully made of stainless steel with a latch type door on bottom, you can easy to open and clean out the chaff by one hand.
On the top of the chaff unit, there is a stainless steel insulation layer (the white round part) to stop the heats keep delivering
to the fan motor which sit on top of chaff collector while roasting, In this way, the fan motor is not easy to broken because of
overheat. There are several bolts fasten a cover to chaff unit wall on top , that helps you clean up the chaff unit deeply by just
taking off the bolts.
On the top of the chaff unit, there is a stainless steel insulation layer (the white round part) to stop the heats keep delivering
to the fan motor which sit on top of chaff collector while roasting, In this way, the fan motor is not easy to broken because of
overheat. There are several bolts fasten a cover to chaff unit wall on top , that helps you clean up the chaff unit deeply by just
taking off the bolts.
High Performance Burner
WK gas burner made in high quality and produces strong fire flame to fit different roasting requirements, fire flame can be
adjusted to weak or strong by adjusting the gas gauge knob. It is can be converted from LPG ( NG) to NG (LPG) by replacing
nozzles. wherever you want to use LPG or move to a place for NG,WK gas roasters follow up you in roasting anywhere.
adjusted to weak or strong by adjusting the gas gauge knob. It is can be converted from LPG ( NG) to NG (LPG) by replacing
nozzles. wherever you want to use LPG or move to a place for NG,WK gas roasters follow up you in roasting anywhere.

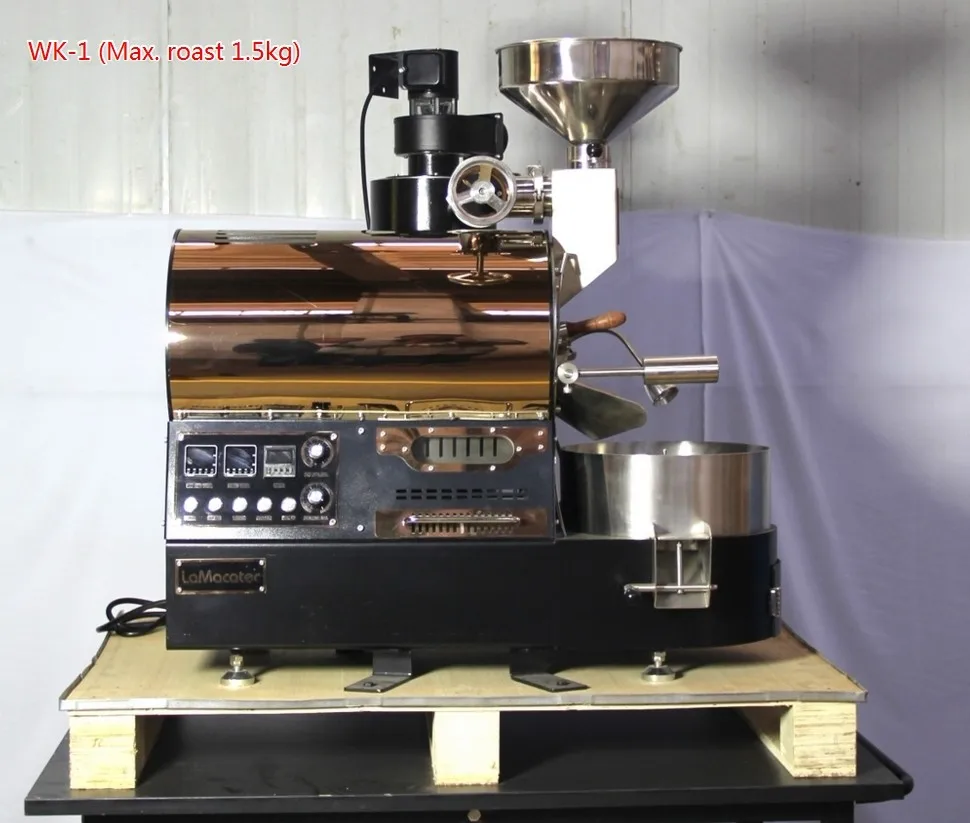

Roast your beans in WK-1
You can do a sample roast in this 1 kg coffee roaster, since it minimum can roast 200 g to maximum 1.5 kg. Front bearing is full
stainless steel type which avoid any possible crack, large volume sampler spoon and roasting room glass window help you check your
roasting level by every second. Machine runs very quiet, you can clearly hear the sounds of the first and second cracks, we are
sure you will you love your roasts with WK-1.
stainless steel type which avoid any possible crack, large volume sampler spoon and roasting room glass window help you check your
roasting level by every second. Machine runs very quiet, you can clearly hear the sounds of the first and second cracks, we are
sure you will you love your roasts with WK-1.
Cooling Tray and Cleaning Access
Cooling tray works separately from the main unit, you can do roast and cooling job at the same time. Cooling tray powerful motor
works with mixers for cooling down the roasted beans rapidly.
The cleaning access is on bottom of the cooling tray with a latch door, if you roast often, Please clean it once a week by a
brush.
works with mixers for cooling down the roasted beans rapidly.
The cleaning access is on bottom of the cooling tray with a latch door, if you roast often, Please clean it once a week by a
brush.
The WK-1 kg coffee bean roaster can connect to the computer Artisan Data logger
The Artisan data logger can record the BT and ET ,you can check the curve from the computer .and if you would like add the Vacuum Pressure Gauge ,also can be ok ,but need pay the Extra money .
The body color can be Black,Whit,and Red .The drum color can be silver,rose golden ,and black ,don't need add money ,but if you would like to choose the customized drum color ,pls consult Doris pls .
More Photos
Packing & Delivery
We use the soft material protect the drum housings first, then use the PE films twine the whole machine to avoid the sea water corrosion during the transportation to customers.
