Product Description

Key Specifications/Special Features:

Description:

1 GSa/s real-time sampling rate and 25GSa/s the equivalent sampling rate

• 70MHz Simulate Broadband

• Powerful trigger

• Large screen and humanized operation interface

• Integrated USB host, support U disk storage, USB interface system upgrade

• 7" 64K color TFT true color LCD screen, waveform display and clear realistic

Ultra-thin design, light volume, easy to carry

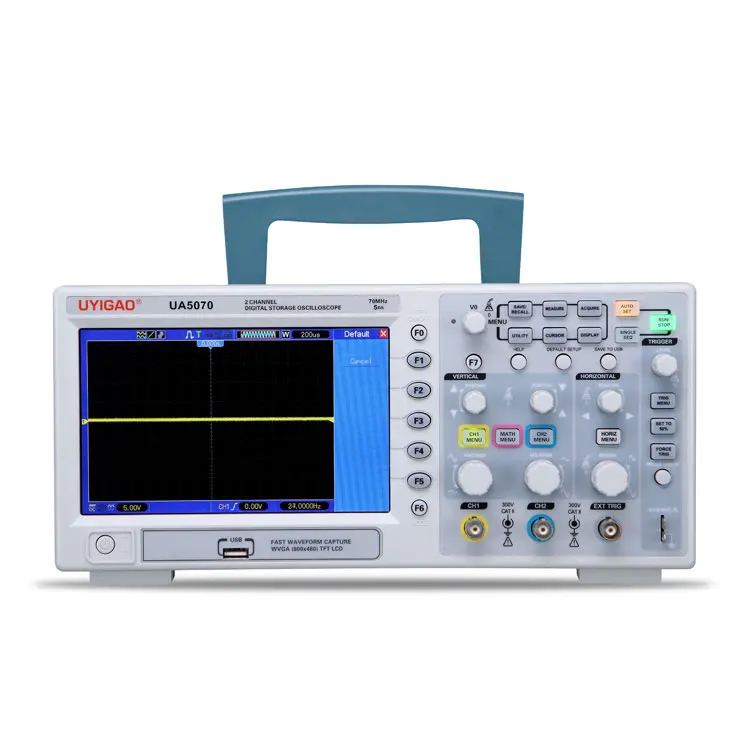

Model	UA5070
Simulate Broadband	70MHz
Real-time sampling	1GSa/s
Equivalent sampling	25GSa/s
Record length	40K
Time base scope (s/div)	4nS/div-40S/div
Channel delay	500ps
Vertical system
AD converter	8 bit resolution, two channel acquisition at the same time
Vertical sensitivity	2mV/div-5V/div(In the BNC input)
Vertical displacement range	±50V(5V/div),±40V(2V/div~500mV/div), ±2V(200mV/div-50mV/div)±400mV(20mV/div-2mV/div)
Rise time(BNC )	≤5ns
DC Gain Accuracy	2mV/div-5mV/div ±4% (sampling or average sampling) 10mV/div-5V/div±3% (sampling or average sampling)
Trigger system	EXT (typical) from dc to 40 MHZ to 200 mv
Trigger sensitivity (edge-triggered type)	EXT (typical) from dc to 40 MHz to 1V
	AC:attenuation 10Hz below signal
	high frequency suppression: > 80KHz will decay signal
	Low frequency suppression: < 150KHz will decay signal
	Noise suppression: reduce the triggering sensitivity
Trigger level range	External (EXT) : + / - 1.2 V external failure (EXT / 5) : ±6V
Trigger level range accuracy (typical) rising and falling time≥20ns	Internal (ch1 and ch2) :±(0.3div×V/div)±4div from the center of screen
	External(EXT): ±(6%set value+40mV)
	External attenuation5(EXT/5): ±(6%set value+200mV)
Scope	100ns-10s
Trigger type
Edge-triggered	rising and falling
Trigger pulse width	Trigger mode: (greater than, less than, equal to, is not equal to) pulse width, (greater than, less than, equal to, is not equal to) the negative pulse width; Pulse width of the range:20nS-10S
Video trigger	Signal system: support standard NTSC, PAL and SECAM broadcasting; range:1-525 (NTSC) and 1-625 (PAL/SECAM)
Slope trigger	Trigger mode: (greater than, less than, equal to, is not equal to) positive slope, (greater than, less than, equal to, is not equal to) the negative slope; Set time:20nS – 10S
Timeout triggers	Starting along: rising, falling edge; Set time:20ns-10s
Alternate trigger	Internal trigger: edge, pulse width, video, slope
Triggering frequency counter	Readout resolution: 6 Precision (typical) : ±30 PPM (including all reference frequency error and calculation error + 1) Frequency range: exchange coupling, from the least 10 hz to nominal bandwidth
Measurement
Crsor measurement	Manual mode:Voltage difference between the cursor V;Time lag between the cursor T; The reciprocal of T,Hz UNIT(1/ T) Tracking mode: waveform voltage value and time value
Automatic measurement (32)	Frequency, cycle, average, fengfeng value, RMS, maximum, minimum, rise time, fall time, wide frequency width of positive and negative frequency rising and falling edge along the phase difference and phase difference, the duty ratio of positive and negative duty ratio, the bottom of the value, the top value, median, amplitude, overshoot, piercing, the average cycle, cycle mean square value, drop down the overshoot, rise along the piercing,BWIDTH,FRF,FFR,LRR,LRF,LFR,LFF
Display
Display type	7"TFT 16-bit true color LCD screen
Display resolution	800*480 dots
Contrast	16 file can adjustable screen and display progress bar
Interface	USB master-slave
Power
Power supply	100-120VACRMS(±10%),45Hz-440Hz,CATⅡ 120-240VACRMS(±10%),45Hz-66Hz,CATⅡ
Power consumption	<30W
Fuse	2A,Tlevel,250V
Mechanical specifications
Size	Long (313 mm) wide (108 mm) high (142 mm)
weight	Net weight:2.08KG
