GPOE-12-1U стеллаж для выставки товаров вмонтированой корпусной панелью Gigabit PoE инжектор 12 портный

Описание и отзывы

Трекер стоимости

Характеристики

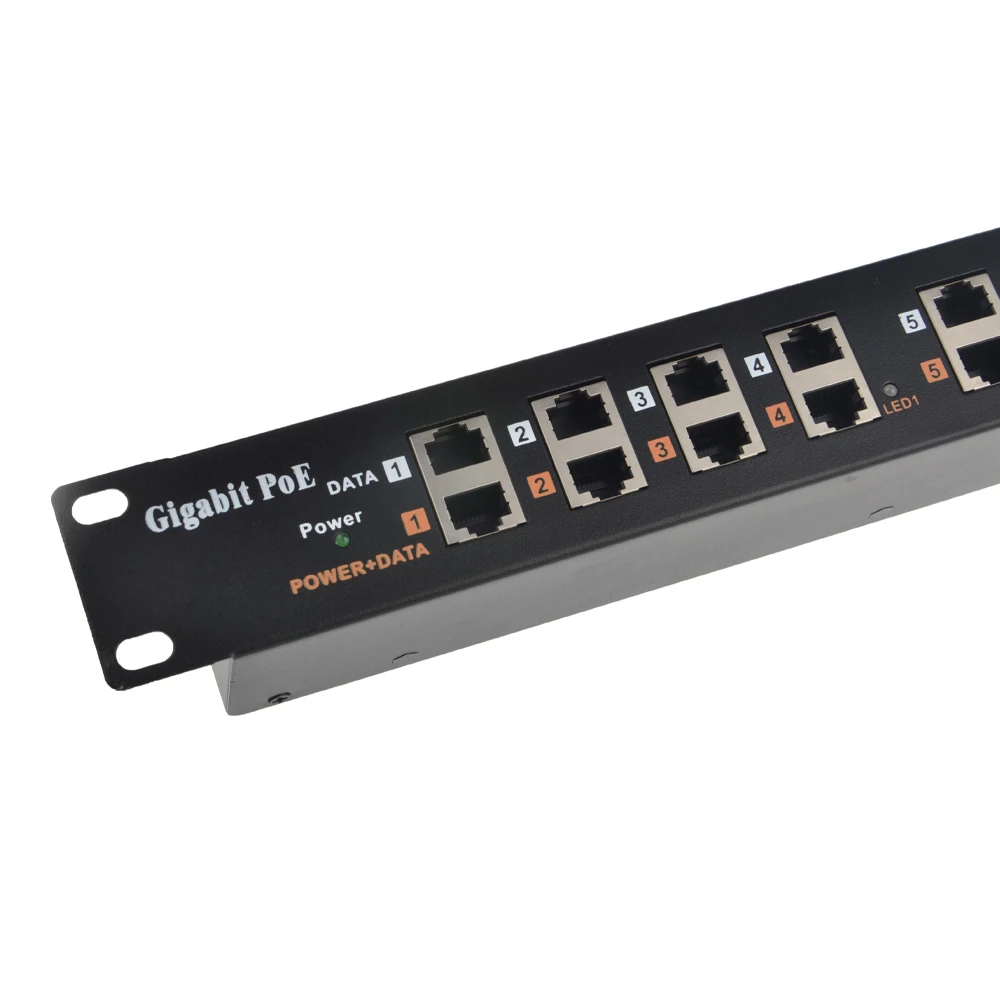

Rack Mount Gigabit PoE Injector 12 Port PoE Midspan



USE 10/100/1000M Gigabit Ethernet;

Flexible power (DC 18V TO 57V);

Each Port Current Protection (650mA+/-15%);

Built-in LED Indicator;

For 19’’ Rack



OVERVIEW

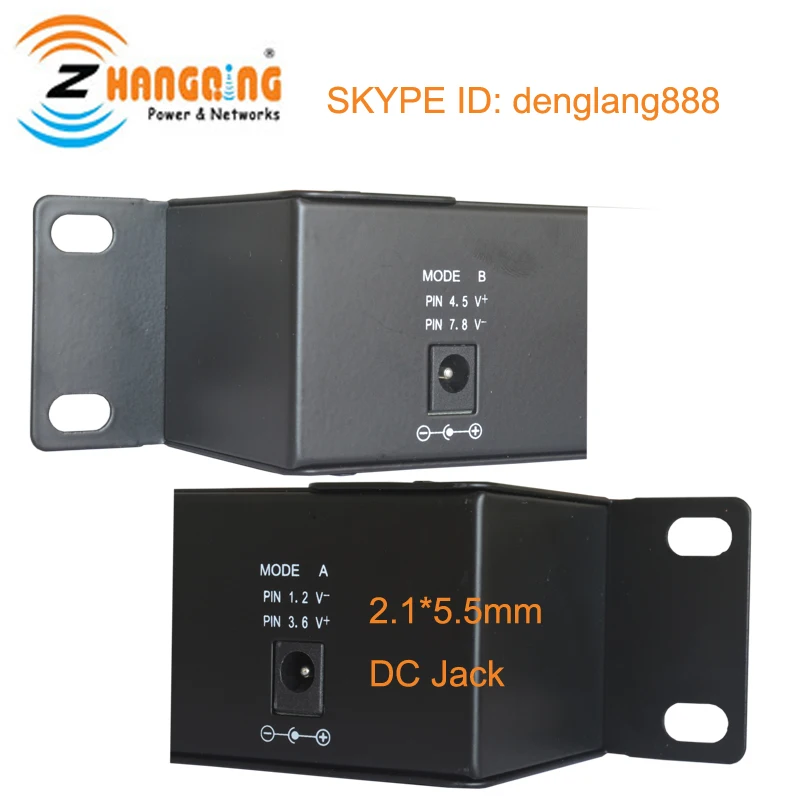

The 12 port gigabit PoE panel is used 10/100/1000M Ethernet, The upper Rj45 sockets is fo “LAN/Switch/PC ” 1/2&3/6&4/5&7/8 are transmitting data. The under RJ45 (power +data) socket is to deliver data and power:1/2&3/6&4/5&7/8 transmitting data,1/2(-)&3/6(+)for power. passive POE is composed of 12 set of Rj45 sockets and two 60V DC power jack. Input power requests120W or more AC TO DC power converter. The input dc hole diameter is 2.5mm and the other end OD id 5.5mm.

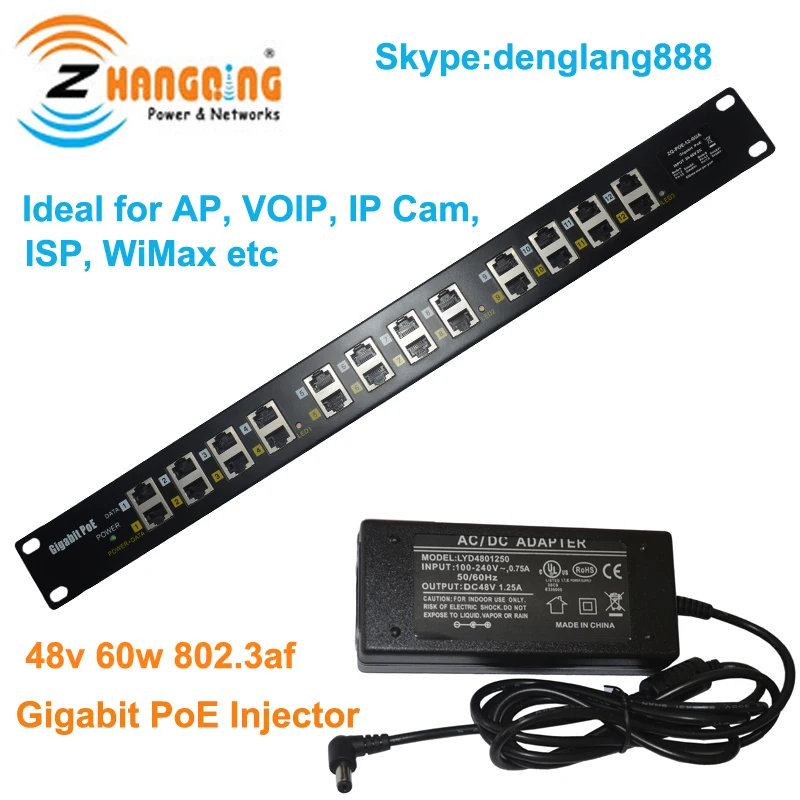

Each socket provides protection against short overflow (current protection 650mA+15%-15%). The sum total output power must be lower than the MAX input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter is 10W per RJ45 set (1 set = 2 x RJ45sockets). For example, 12 x 10W = 120W for 12 port Passive PoE panel.

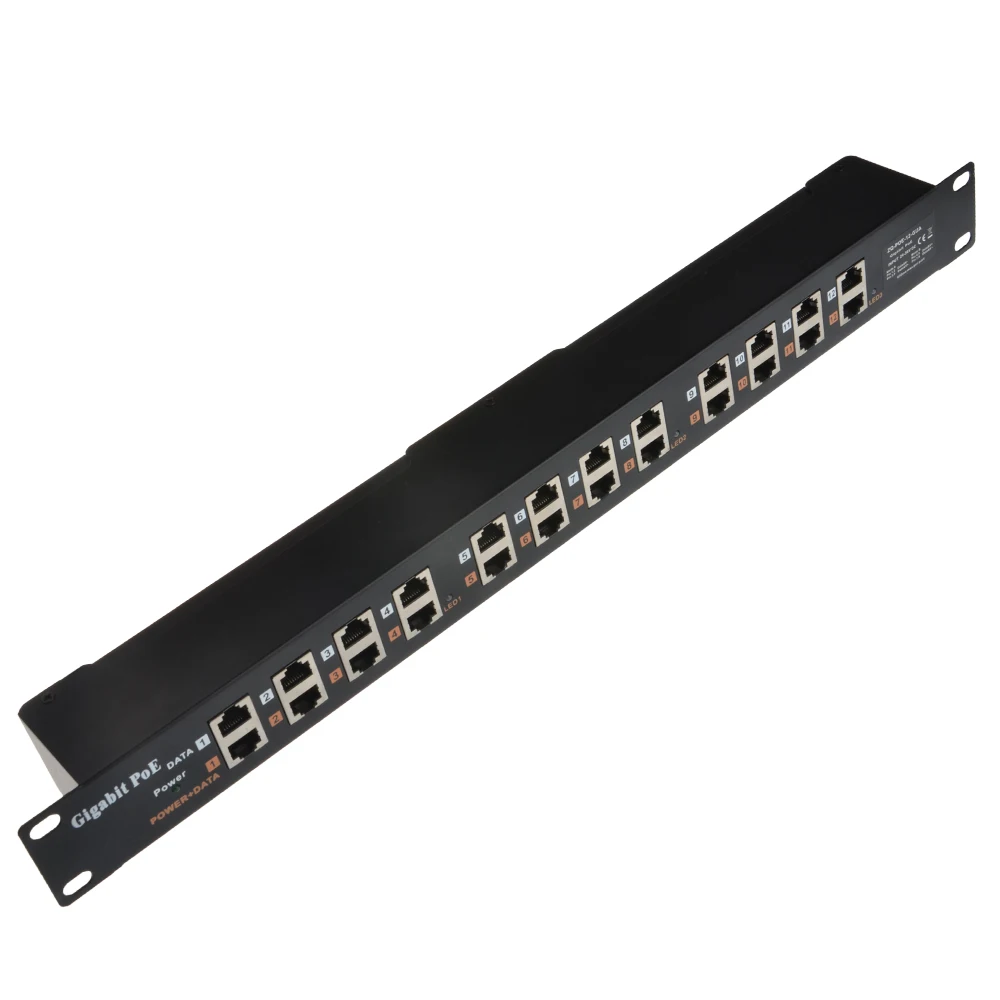

The configuration size of panel is 1U (height), 19” (width) and 52mm (thickness), as is available to answer market demand and convenient to be installed directly.



LED Indicator

1-4 RJ45 Socket	LED 1	5-8 RJ45 Socket	LED 2	9-12 RJ45 Socket	LED3
Port current 0-20ma	off		Off		Off
Port current 0-400ma	Green		Green		Green
Port current >400ma	Red		Red		Red



SPECIFICATIONS

Input  /output 18volt to 57volt

Data 1/2&3/6&4/5&7/8

Power3/6&4/5+,1/2-&7/8-

Data In Connects PC/HUB/Switch

Weight 12 Port 1.2Kg

Dimensions 482.6mm×44.3mm×52mm

Case of material metal work material

Ethernet Cable TIA/EIA 568 Cat. 5

Data rate 10/100/1000Mbps

Connector RJ-45

Operating Temperature 0°C ~ 40°C

Storage Temperature -40°C~+70°C

Operating Humidity 10%~80%RH

Storage Humidity 5%~90%RH

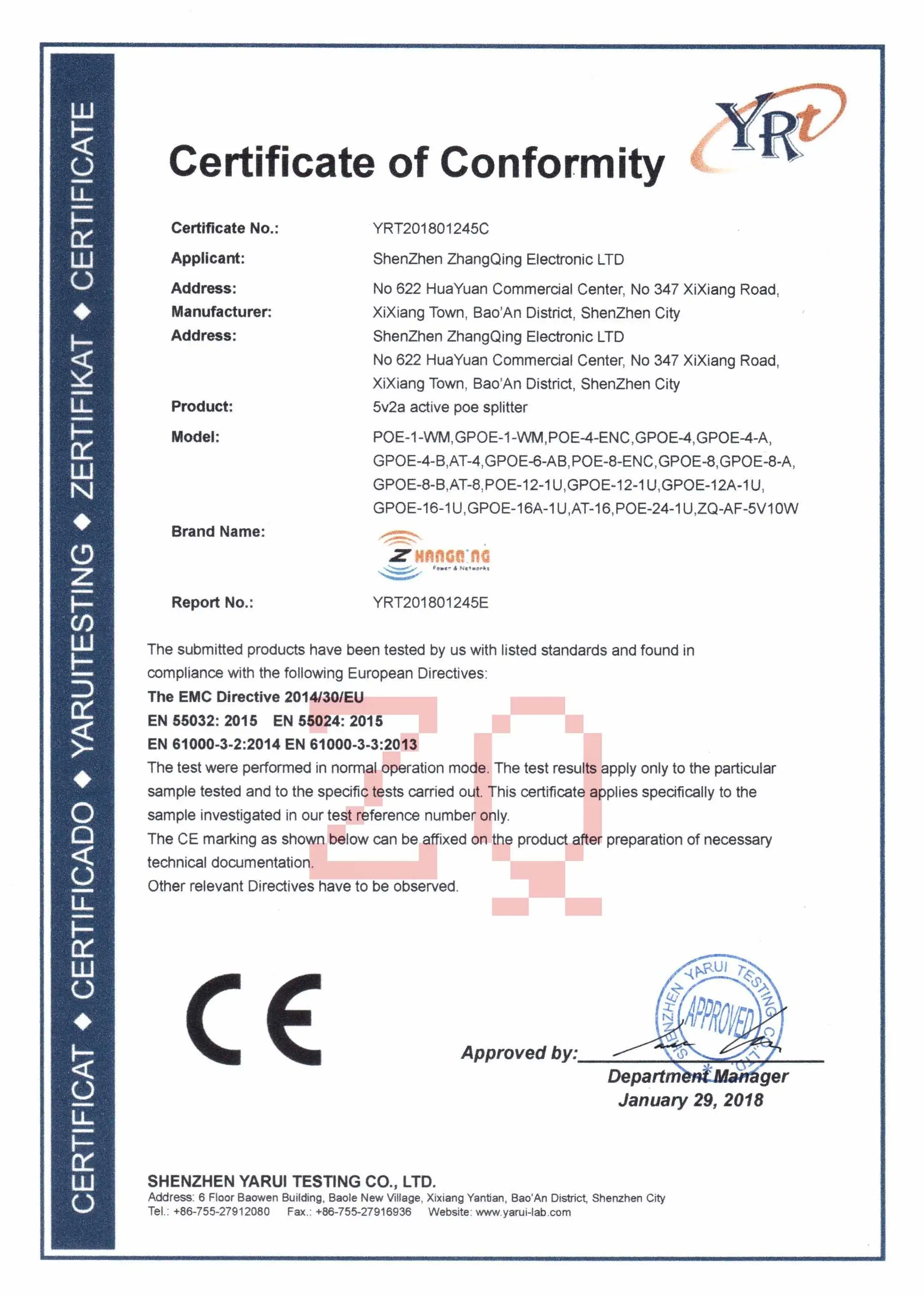

Certification CE



How To Order

GPOE-12-1U Gigabit POE Panel 3/6&4/5+,1/2-&7/8-

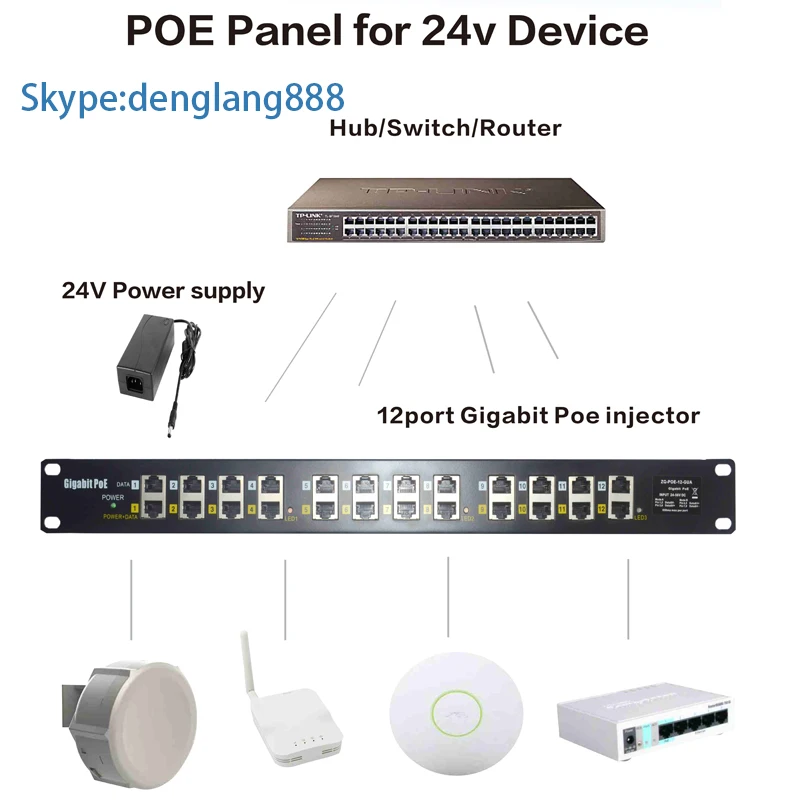

Application:



IP/VoIP Phone



Wireless Access Point (WiFi AP), such as MikroTik, Ubiquiti, OpenMesh etc



WiMAX Basestation



IP Survellance Camera



Door Security



POS



Netbook/mini Notebook



Kiosks



LED Lights
