Распродажа портативный осциллограф DSO203 DS203 для электронных измерений 4 канала пропускная способность 8
- Категория: Осциллографы >>>
- Поставщик: Shenzhen,Sunhokey,Electronics,Co.,Ltd.,[Guangdong,China]Shenzhen
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 11498.54 $* | 12073.6 $* |
| Aug-15-2025 | 11401.53 $* | 11971.32 $* |
| Jul-15-2025 | 9565.67 $* | 10043.15 $* |
| Jun-15-2025 | 11208.13 $* | 11768.80 $* |
| May-15-2025 | 9759.45 $* | 10247.0 $* |
| Apr-15-2025 | 11015.63 $* | 11566.17 $* |
| Mar-15-2025 | 10918.32 $* | 11464.77 $* |
| Feb-15-2025 | 10821.98 $* | 11362.70 $* |
| Jan-15-2025 | 10725.46 $* | 11261.74 $* |
Характеристики

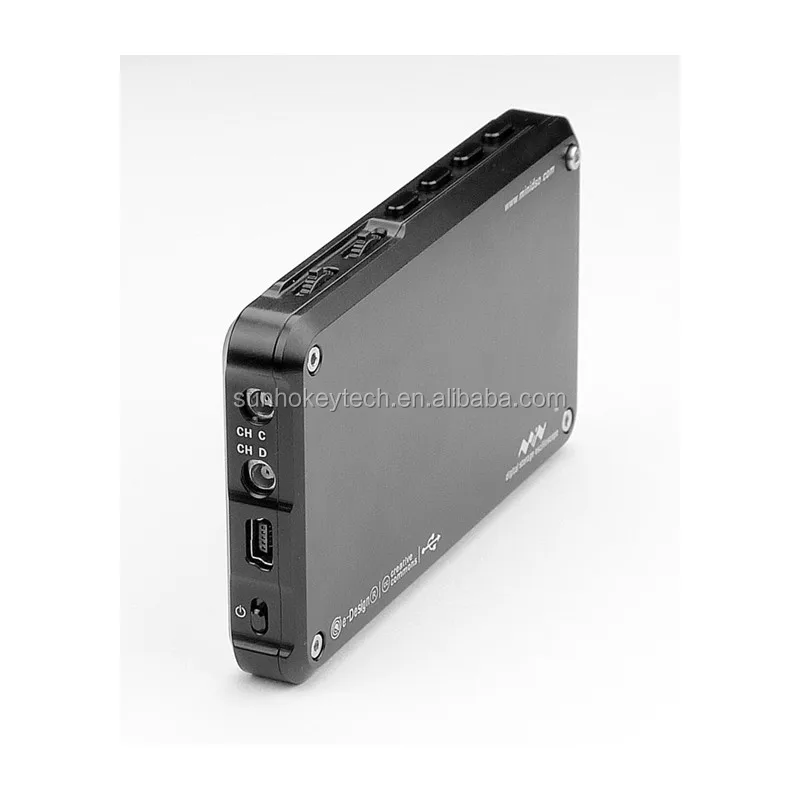

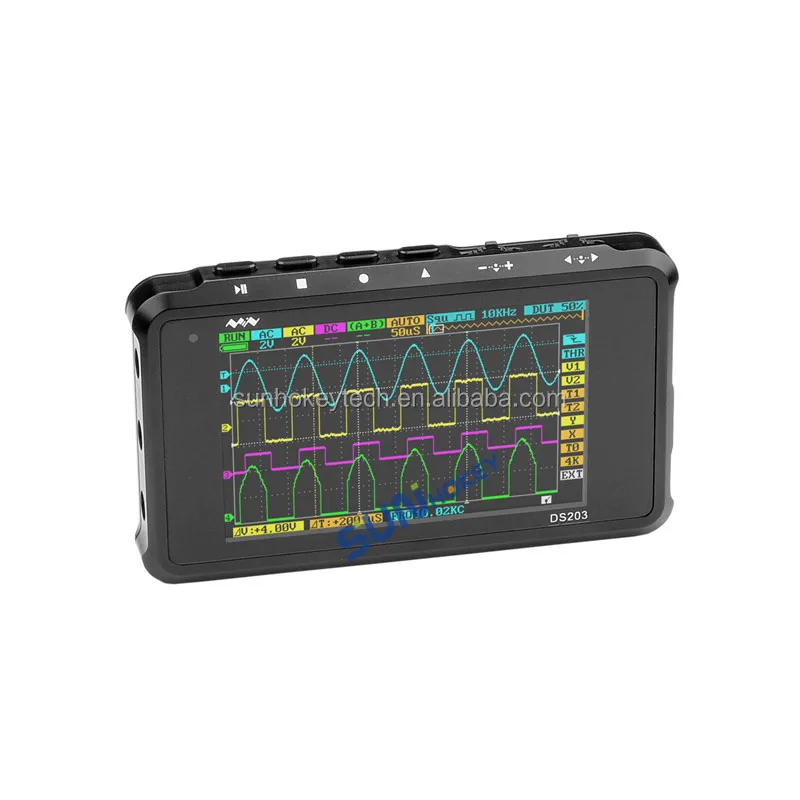

Hot Selling 8MHz Bandwidth 4 Channels Portable Storage Oscilloscope DSO203 DS203 for Electronic Measuring
Specification:
Analog channel * 2 | [CH_A] [CH_B] |
Digital channel * 2 | [CH_C] [CH_D] |
Vertical Scale | 20mV-10V/div (1-2-5 step) on x1 probe / 200mV -100V/div (1-2-5 step) on probe |
Vertical resolution | 8 bit |
Input coupling | AC/DC |
Max input voltage | 80Vpp (x1 probe) / 400Vpp (x10 probe) |
Storage | 4K per channel / 8K on single channel |
Software trigger type | edge, pulse, level (to be added) |
Hardware trigger type | edge |
Trigger source | CH1/CH2/EXT |
Trigger mode | Auto, Normal, Single, SCAN, None |
Test Signal generater | 10Hz to 8Mhz 2.8Vpp Square Wave, duty circle 10~90% adjustable / 10Hz to 20Khz 2.8Vpp Sin, Square, Saw, Triangle wave |
Storage | internal 2MB USB disk, BMP, DAT file |
Auto measure | Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty |
Cursor measurement | Level, Voltage |
Display mode | CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2 |
Sampling mode | real time |
Sampling rate | 30S/s - 72MS/s |
Power | Lipo battery |
Dimension | 98 * 60 * 14.5 (mm) |
Weight | 80g (excluded battery) |

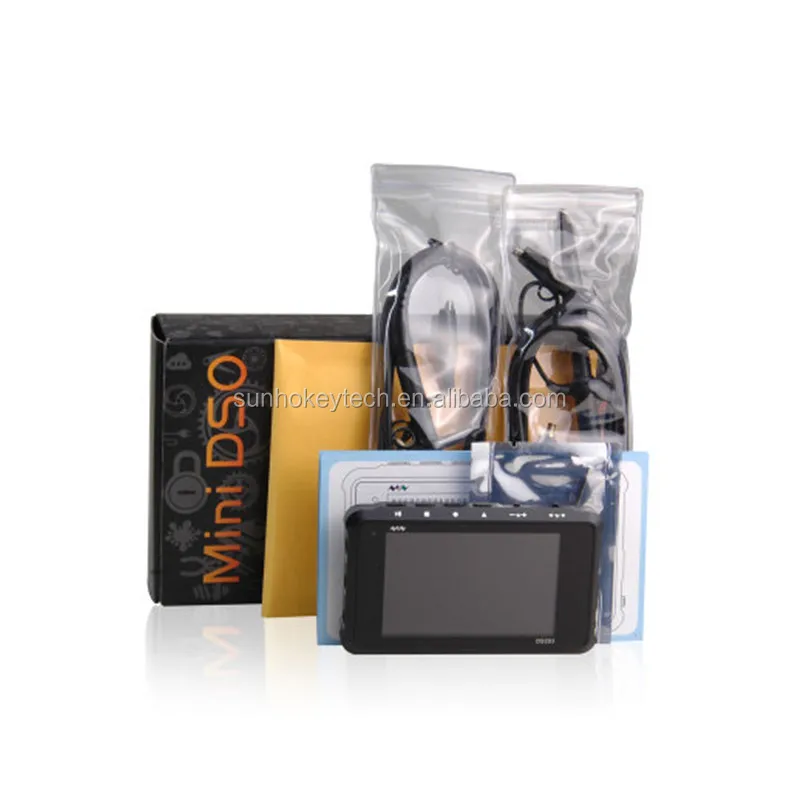

Package list:
DSO203 *1

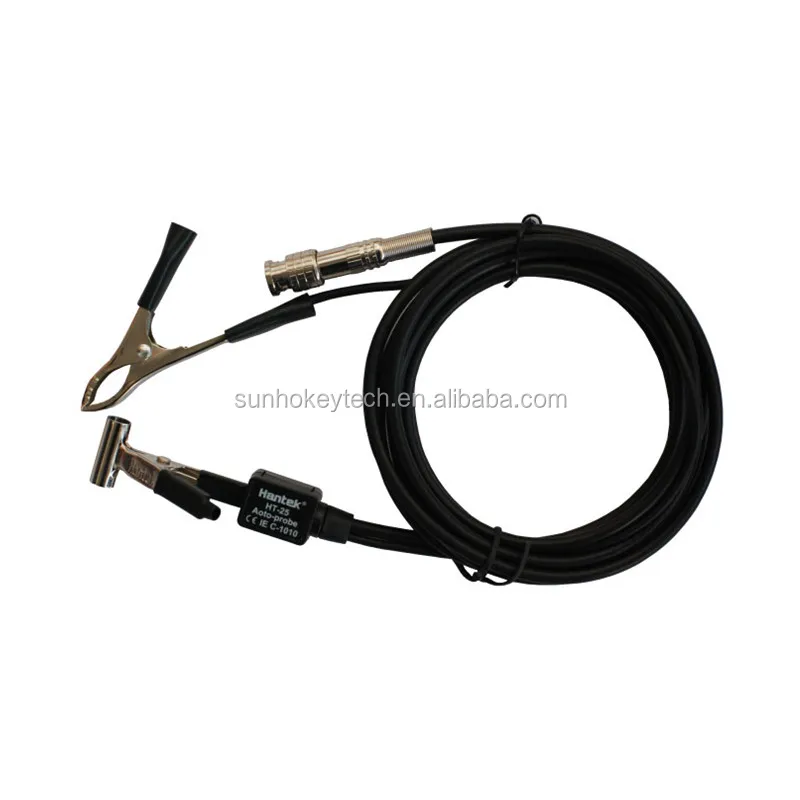

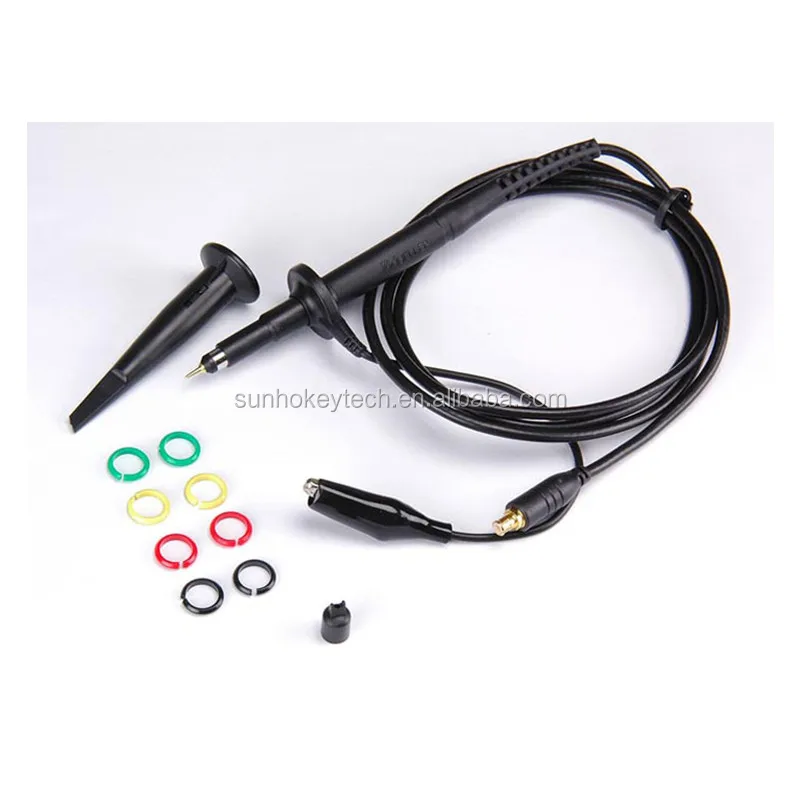

Probe *2
Mini USB*1
Bag*1
