false ceiling tile making machine pvc film lamination machine
Specification
1.Easy to install and take apart
2.Full-automatic and semi-automatic
3.Saving energy and labor cost
4.Fast delivery
Product Description
Full Automatic PVC Laminated Gypsum Ceiling Board Production Line
Chief Introduction:
This machine adopts latest coating and laminating technology, and is to laminate the functional or decorative films with the board together. The whole machine is in synchronous way.
Technical parameter:
Effective laminating width
1300mm
Sheet thickness
5-30mm
Laminating speed
15m/min
Speed adjustment way
Frequency conversion synchronous speed regulating
Electrical control
PLC
Annual capacity
2-4 million Sq.m
Film material
PVC film, aluminum foils, decorative material, etc.
Board sheet material
PVC baseboard, gypsum board, wood board,
sectional board, PVC foam board,etc
It can customize according to customer’s requirements.
Usage:
Gypsum ceiling board is laminated PVC film in front side and aluminum film in backside of paper faced gypsum board. The features are waterproof, moisture proof, flame resistant, thermal insulation,radiation proof, anti-sagging, non-deformed, etc.
Main equipments of this production line

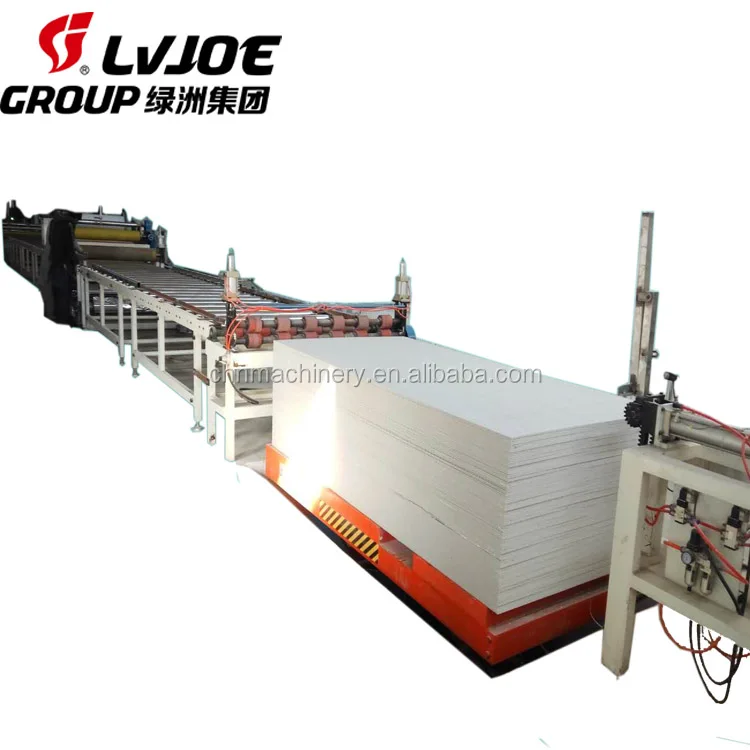

1. Automatic loading device

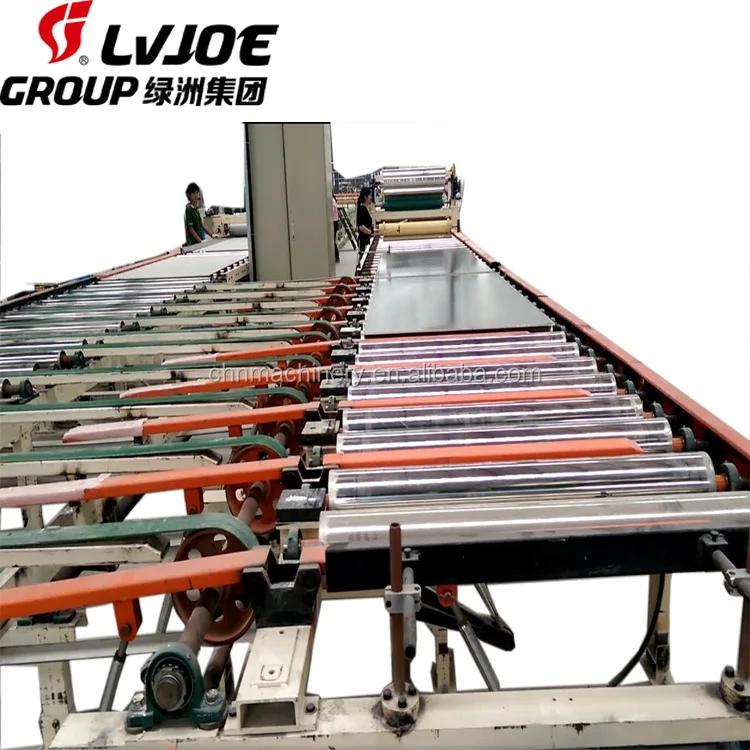

2. Lamination machine
The lamination machine is used to paste the decorative film and boards together.

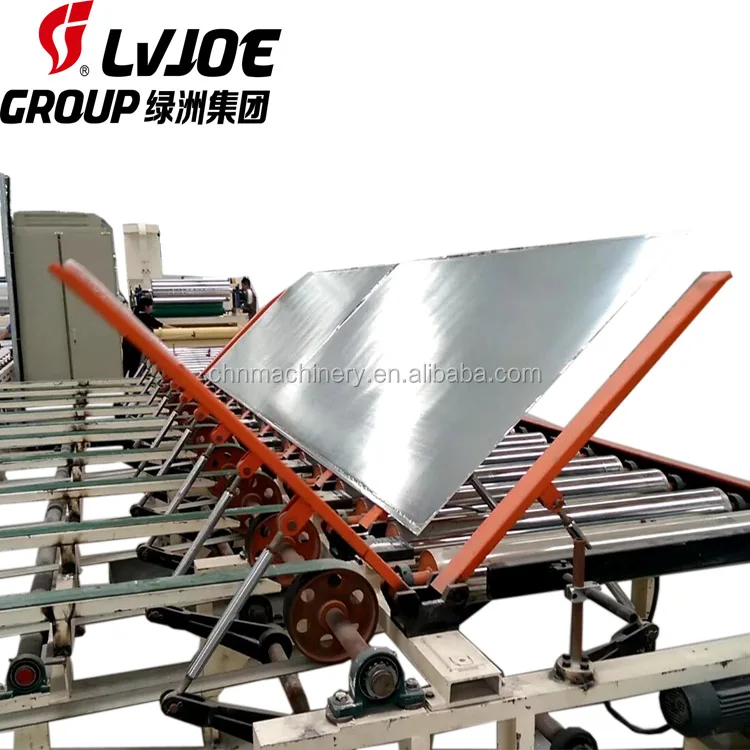

First, put the board on the rollers. After the dust collection process, coat the glue
on the boards, the glue will be qualitatived after conveying on the guide rollers.
Then it will be combined with the film and enters into the recombination mechanism.
After passing and cyclic rolling of the two lines of press roller, pinch roller and
forming roller, the recombination is finished.
3. Automatic cutting machine
The machine is used for cutting the laminated gypsum boards to be certain small pieces which are going to be used in the decoration. First, put the boards on the conveying rollers, then go to the first cutting device. After passing the second cutting device, the board will beformed.
4. The Electrostatic Pulse Bag Style Dust Collector
The machine is used in the dust collector of the automatic cutter of the laminated gypsum board. It equipped with big sized dust exhaust fan and dust exhaust pipe. It can efficiently reach to the purpose of the dust exhausting.
5. Automatic package machine
Flowchart Of Full-automatic Laminating Machine
Automatic board feeding——pre dusting——coating——drying and conveying—— aluminium foil unwinding——pneumatic lamination for film and gypsum board——cutting——conveying——automatic overturn——coating——drying and conveying——PVCfilm unwinding——pneumatic lamination for film and gypsum board——cutting——drying and conveying——lengthwise cutting——horizontal cutting——belt conveyor output——autolift stacking conveying——stretch packing——conveying——lift(finished products stacking)

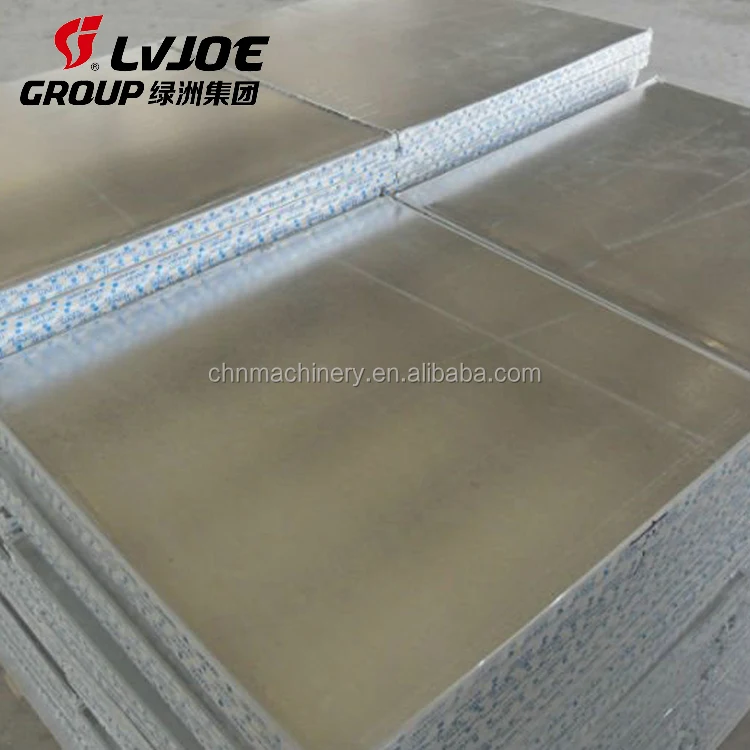

Laminated Gypsum Board and Application
Packaging & Shipping
Standard package for exporting or as per request.
Our Services
Our Service
1. Our company has professional installation & debug teams. We will install and
debug the production line at the customers' place until the equipment produces
the qualified products.
2. We supply the accessories all the year round. The guarantee time of the equipment
is one year.
3. We are responsible for the technical consultation and service all the year around
and solve all kinds of technical problems at any time.
4. We can help the customer to do the consignment and the relevant procedure
for import and export.
5. Our company will supply the information of the seller for all kinds of raw material
and relevant information.
6.If the buyer can not run the machine well then we will send the production engineers
to help the buyer to run the machine, and we can cooperate for long terms.
