Аксессуары для пружинной обмоточной машины ручная машина выпрямления проводов медной проволоки 0 1-4


Поделиться:


Цена:29 073,88 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 36923.21 $* 37661.84 $*
Jul-19-2025 29945.19 $* 30544.34 $*
Jun-19-2025 36341.44 $* 37068.79 $*
May-19-2025 36051.62 $* 36772.96 $*
Apr-19-2025 28782.78 $* 29358.35 $*
Mar-19-2025 35469.53 $* 36178.61 $*
Feb-19-2025 35178.19 $* 35882.34 $*
Jan-19-2025 34888.7 $* 35586.66 $*

Характеристики

Product Description

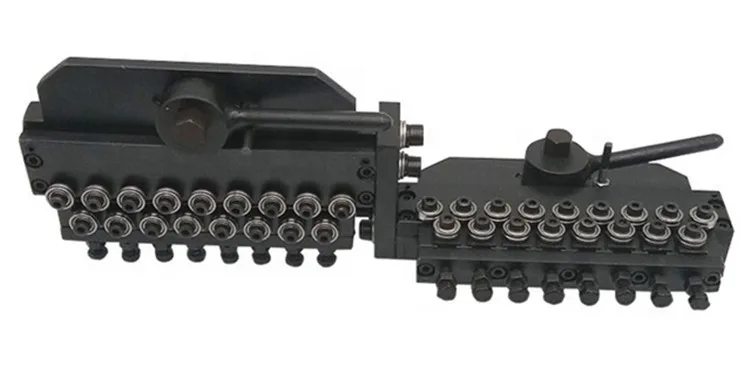

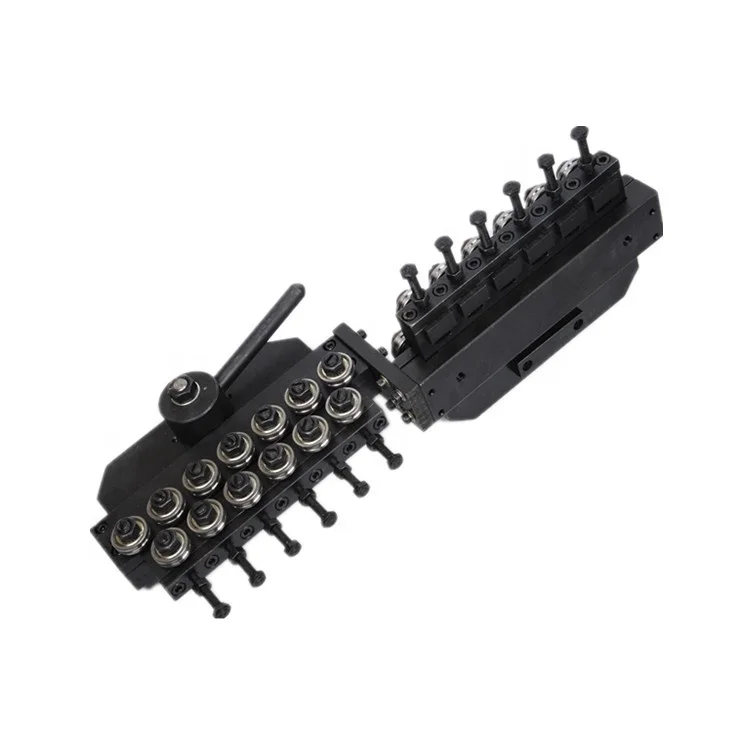

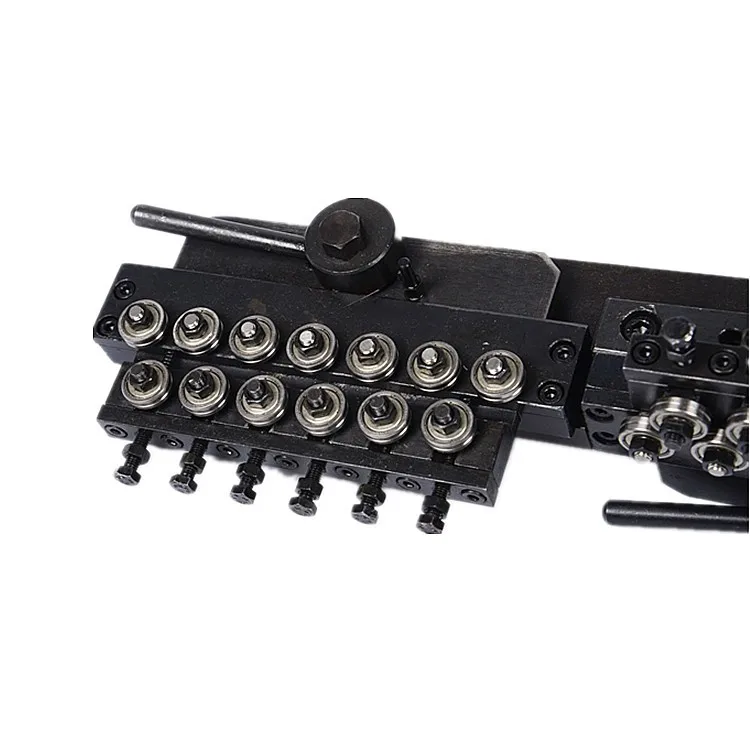

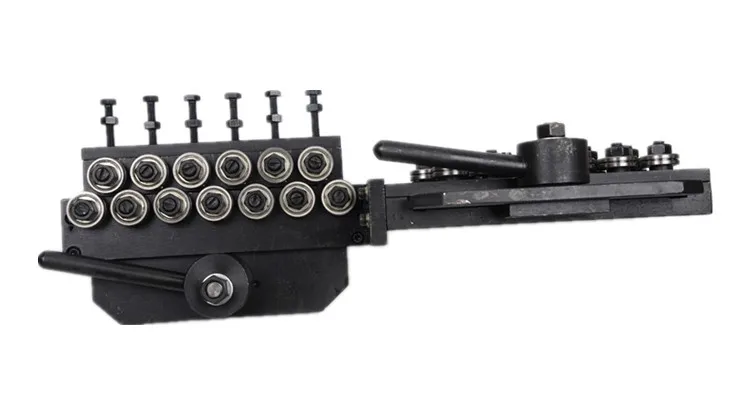

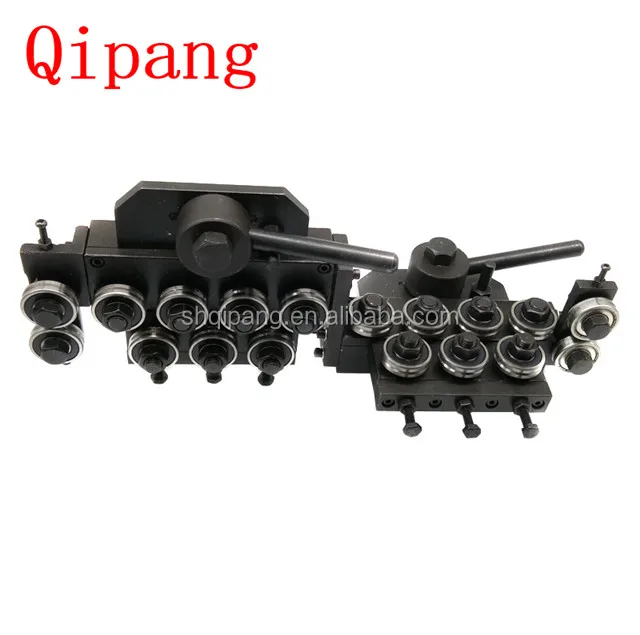

Accessories for spring winding machine Manual Wire straightening machine for 0.1-4mm copper wire ,


Specifications


Small flat bar straightening machines metal wire straightening machines JZQ--5/22

Model: JZQ--18/30 with a guide for the line between 0.8-4mm  material oh.., and we also have more straighteners with more rollers such as:10, 18,  22, 26, rollers.
(Note: two pieces: the 18 rounds, a total of 18 rounds according to customer requirements)
Specification: suitable for 0.8--4mm wires
School of linear material: low, medium and high carbon steel wire, copper wire, molybdenum wire, wire, wire. Welding wire, wire, etc.
Diameter of straightening wheel is: 30mm
The wheels is smooth and no grooves.
Number of straightening wheel: 18 wheel ----30
Straight line material form: single group: horizontal straightening device; combination: vertical or horizontal or pneumatic straightening form.
The straightening wheel is separate to adjust, it is easy to find the centre.
Straightening device total quality: bare metal 11KG, even the packaging of about 12 kg.
The size of the straightening device is: 18 rounds of one: 416mm*162mm*162mm

Models represent:

Straightening machine type letter explanation: for example: J Z Q---18/30
JZQ--- straightener (first letter).
The number of 18------ alignment wheels is 18;
Diameter of 30------ straightening wheel.
A------- points: A type straightening device is the overall opening and closing form; B is a single straightening wheel independent movement adjustment; T is a special straightening device.
V------- is the groove of the straightening wheel; V, R, U and custom.


Besides this one, we have different straighteners with: 7+7 rollers, 9+9 rollers, 11+11 rollers, 13+13 rollers.  We can customized the machine according you diameter and material.

parameter list




Product model



Wire diameter
Roller number
Roller diameter
JZQ0.1-0.3/24.A.V
0.1-0.3
24
7
JZQ0.3-0.5/34.A.V
0.3-0.5
34
12
JZQ0.5-0.8/26.A.V
0.5-0.8
26
16
JZQ0.8-2.0/18.B.V
0.8-2.0
26(14, 18,22 rollers)
23
JZQ2.0-4.0/18.A.V
2.0-4.0
18(14, 22rollers)
30
JZQ4.0-7.0/18.A.V
4.0-7.0
18(10, 14, 22, 26 rollers)
44/50
JZQ7.0-12.0/18.A.V
7.0-12
18(10, 14, 22, 26 rollers)
47/70
JZQ12.0-20.0/18.A.V
12-20
18(10, 14, 22, 26 rollers)
70
JZQ0.8-4.0/5.A.V
0.8-4
5
23
JZQ 4.0-10.0/5.A.V
4-10
5
42
JZQ 4.0-10.0/18.B.V
4-10
18(10,14,22rollers)
42
Related products
Other Products
Our Company

Shanghai Qi Pang Industrial Co., LTD is a professional manufacturer which is specialized in making rolling ring linear drives , Wire straightener , Take-up Machine , Winding Machines , winding machine and coiling machine (traverse unit, rolling ring drive, linear actuators, linear motion assemblies), The company is located in the JiaDing district ,Anting Town,

Shanghai Qi Pang Industrial Co., LTD was established in 2013. Our company is a high-tech enterprise that develops and make the series polished shaft rolling ring drive and wire straightener earliest in China. The company is located in the JiaDing, Anting auto city, which is the world financial center in Shanghai. It is very convenient.

We always adhere to the talent oriented and honest business principles since our company established . Our company will continue to attract talents in various fields and advance foreign advanced technology to make our products have a high quality and precision. Our company developed a new type machine in 2015. It is a new type of machine : Frequency Take-up machine.

We always adhere to the principle of quality first, credit first and customer first. We sincerely welcome our old and new customers to cooperate and create a better future.
Except wire straigthener, C&H also supply tube straighteners, wire guides, tube guides, tube feeders and wire feeders or drive units, cable straighteners, strip straighteners, flatwire straighteners, custom built feeding machines, straightening rolls ,

preformers or preform heads , sleeve rolls for high speed and high temperature applications, computerized wire straightener and tube straightener adjustment systems.
