Характеристики

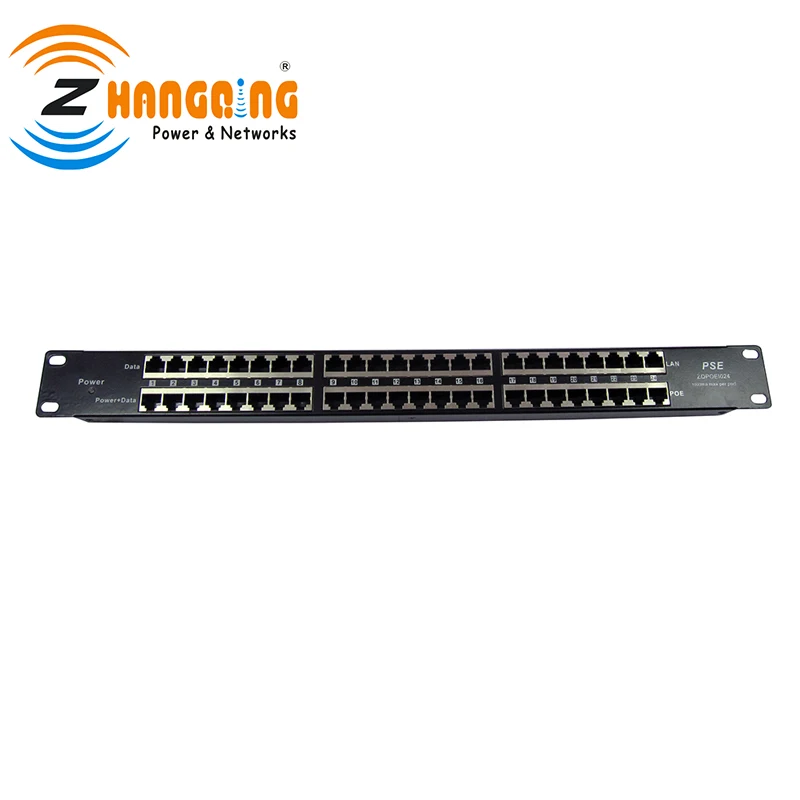

24port rack mount 100 Mbps RJ45 1U Ethernet Network Patch Panel Passive POE injector
Product Description
Mode No: ZQPOEI024
24V 120W power adapter for 24V passive POE PDs, for MikroTik and 24V UBNT, Openmesh.
48V 120W adapter for most IP camera, 802.3af/at WiFi AP. 12V 1A for 12V IP camera.
This Passive PoE injector, whis a simple, cost-saving and convenient equipment for IP camera, IP phone, WiFi Access point, powered onver Ethernet cable.
The PoE injector can power PDs 100 meters far away from power source with safety, low-cost and easy installation.
This PoE injector is passive PoE but compatible with all IEEE802.3af/at powered devices, while power pins 4/5(+), 7/8(-) midspan. Because 802.3af/at standards support power pins 4/5V+, 7/8V- and 1/2V+, 3/6V-.

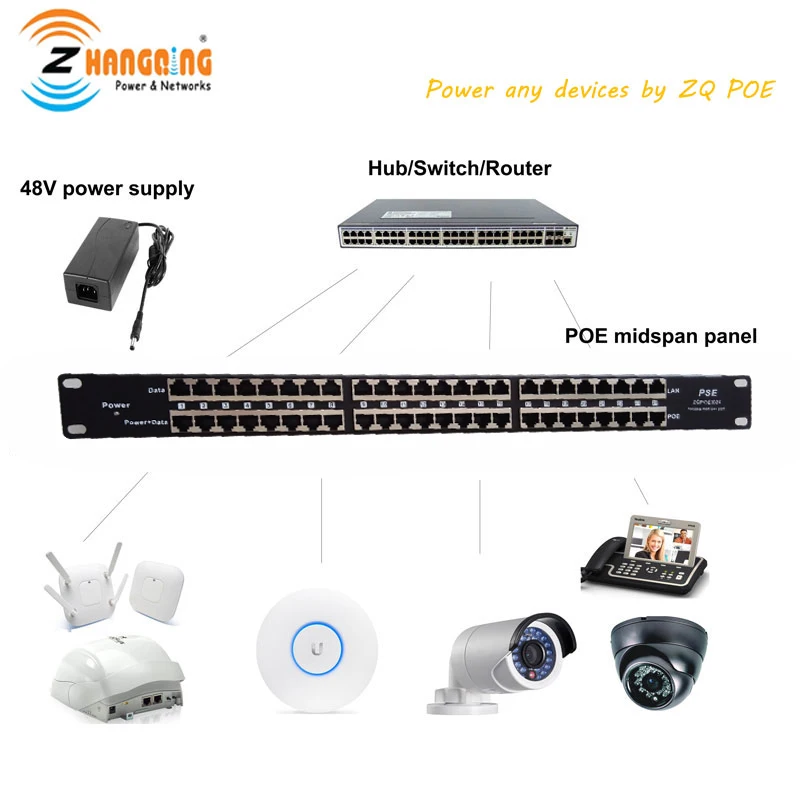

As you know, POE switch is expensive, while POE injector+normal switch= POE switch, which share the same function, but POE injector+mormal switch are much more economical.
(For most IP cameras, about 6 watts per camera, 8 watts if they have PTZ or IR features. If "12, POE" cameras, it still need 48V Powered Over Ethernet.)
Many popular devices like Ubiquiti use this method to centralize the power source - you can go for 328 ft with a 24v supply to a typical Access Point.
Connect the power supply you need (24v for Ubiquiti, 48v for 802.3at or 802.3af) and reduce the mess of cables. Reboot all 24 devices from one central location.

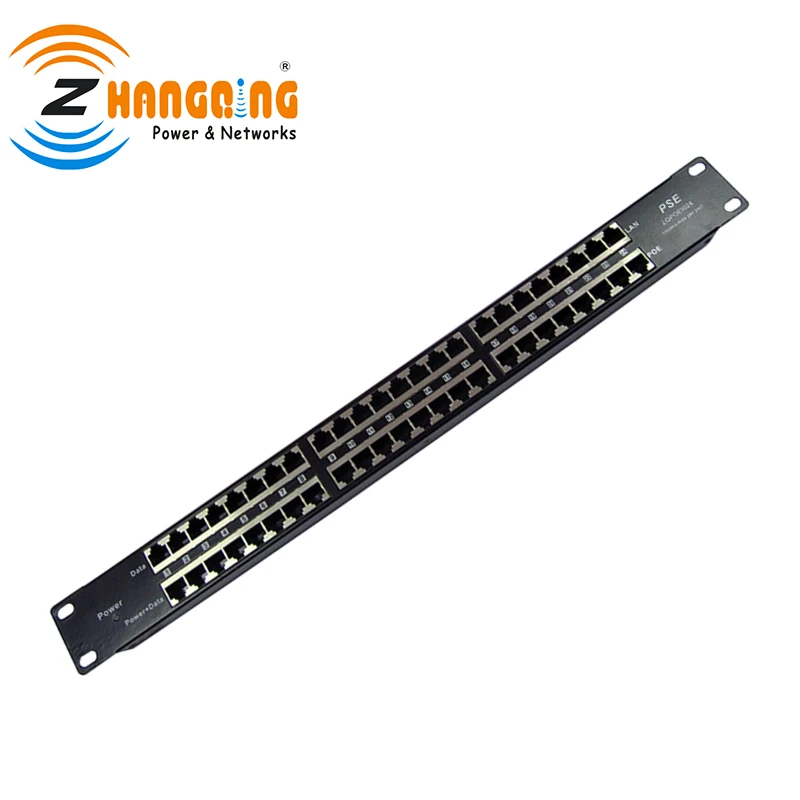

24port rack mount 100 Mbps RJ45 1U Ethernet Network Patch Panel Passive POE injector
FEATURES
1. For 19’’ Rack
2. USE 10/100M Ethernet
3. Flexible power(DC 24V TO 57V)
4. Each Port Current Protection (650mA+/-15%)
5. With POE and LAN plug, with LED
6. With 2.1*5.5mm DC Female plug
7. with screw socket for power
8. Pin4/5 positiv, Pin7/8 passive
9. CE/ROSH certificate
OVERVIEW

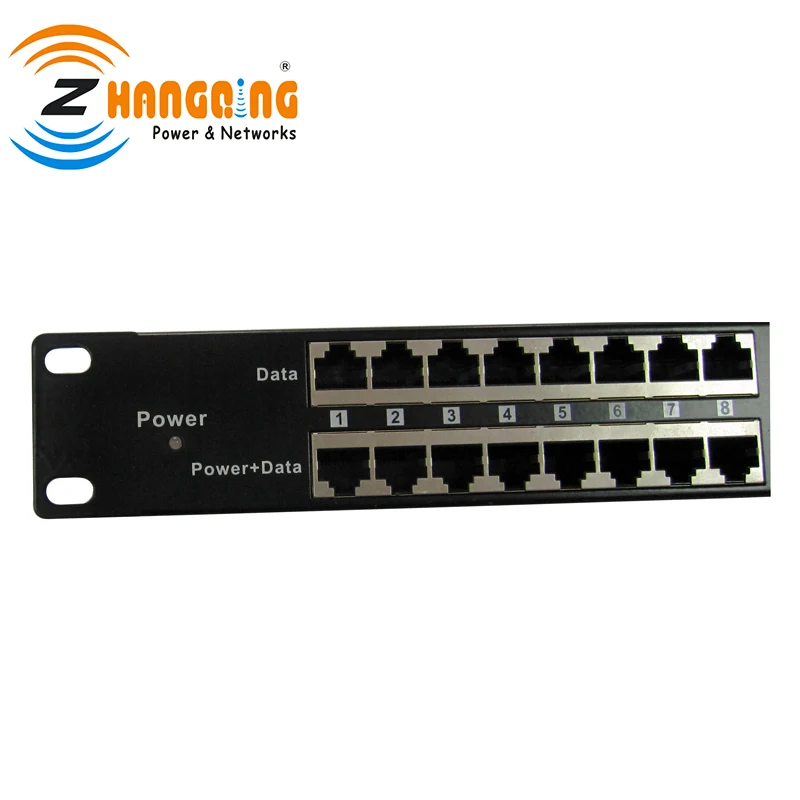

The 24 port PoE panel is used 10/100M Ethernet, The upper Rj45 sockets is form “LAN/Switch/PC ”1/2&3/6 are transmitting data .

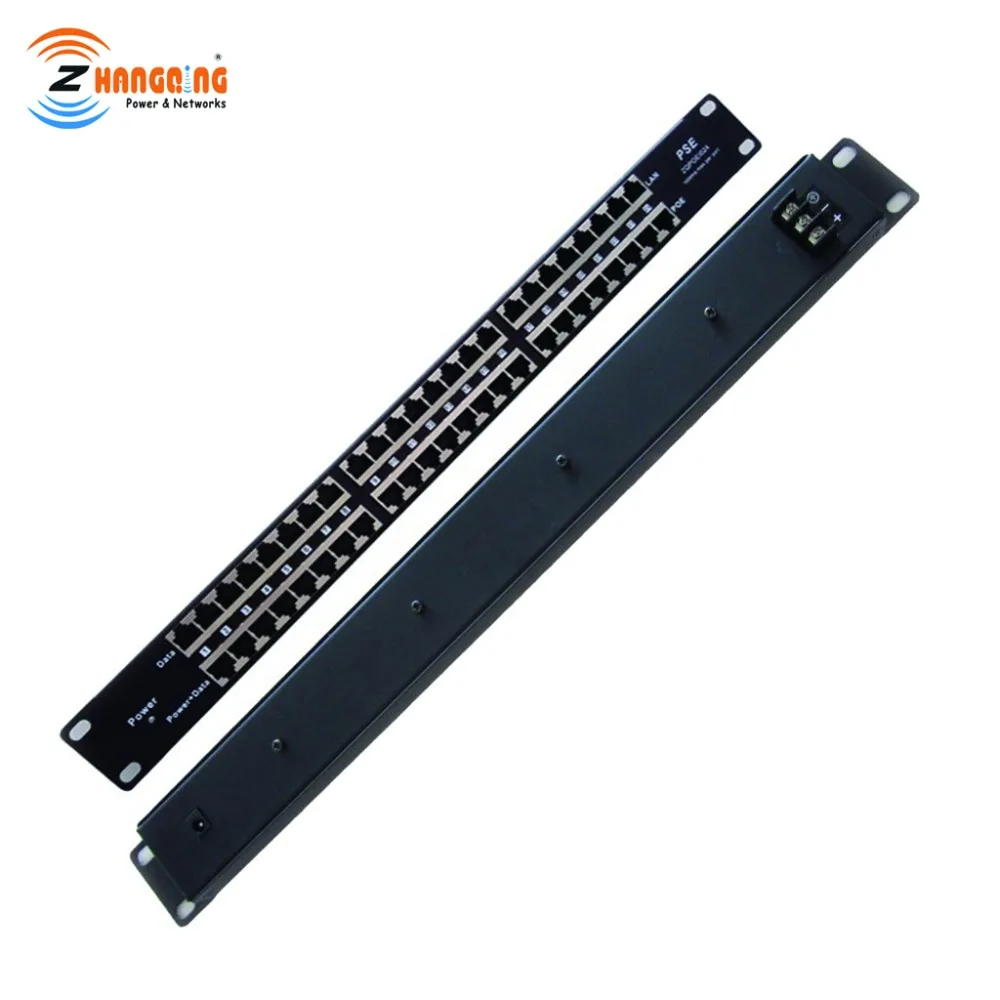

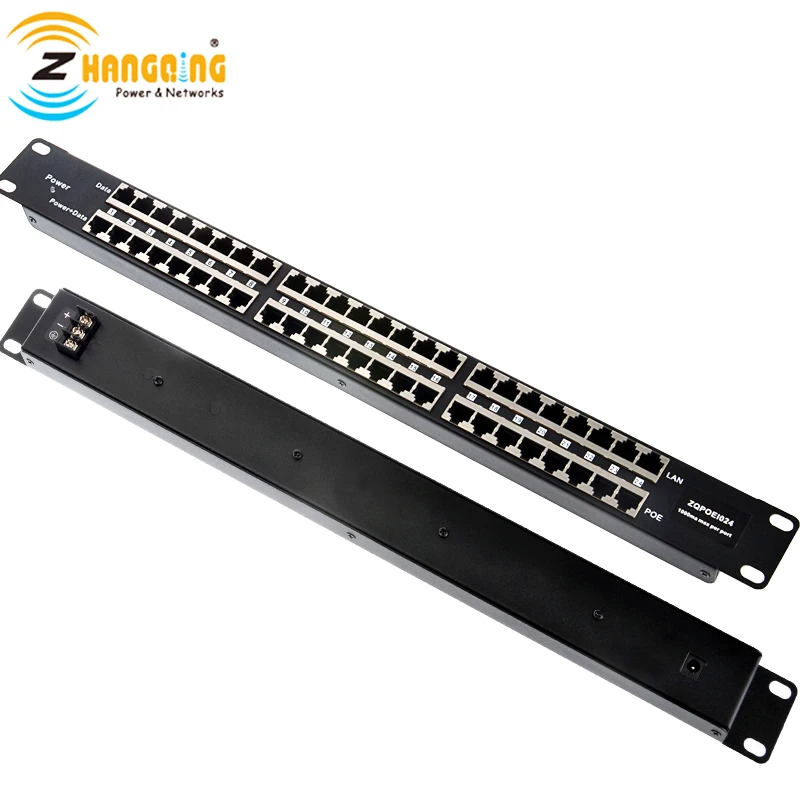

The under RJ45(power+data) socket is to deliver data and power: 1/2&3/6 transmitting data, 4/5(+)&7/8(-)forpower.Passive POE iscomposed of 12 set of Rj45 sockets , one 60V DC power jack and 3 PIN din power connector. Input power requests 360W or more AC TO DC power converter.The input dc hole diameter is 2.1mm and the other end OD id 5.5mm. And the other is 3 PIN(V+,V-,GND) din power connector for Input.
Each socket provides protection against short overflow (current protection 1000mA+10%-10%).
The sum total output power must be lower than the MAX input power of AC-DCpower converter.
If not, it is necessary to consider taking higher AC-DC power converter. Therecommended formula
for AC-DC power converter is 15W per RJ45 set (1 set = 2 x RJ45sockets). For example,
24 x 15W = 360W for 24 port Passive PoE panel .
The configuration size of panel is 1U (height), 19” (width) and 25mm(thickness), as isavailable to
answer market demand and convenient to be installed directly.
LED INDICATOR
POWER LED
POWER OFF off 4/5 (V+),7/8 (V-) green 4/5 (V-),7/8 (V+) red
SPECIFICATIONS
| Input | 12 TO 57 V 8A Max(Use DC Jack) 12 TO 57 V 16A Max(Use 3PIN connector )
|
| Data | 1/2&3/6 |
| Power | 4/5 V+ & 7/8 V |
Data In | Connects PC/HUB/Switch |
| Weight | 670g |
| Dimensions | 482.6mm×44.3mm×25mm |
| Case of material: | metal work material |
| Ethernet Cable | TIA/EIA 568 Cat. 5 |
| Data rate | 10/100Mbps |
| Connector | RJ-45 |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C~+70°C |
| Operating Humidity | 10%~80%RH |
| Storage Humidity | 5%~90%RH |
| Certification | CE ROHS |
