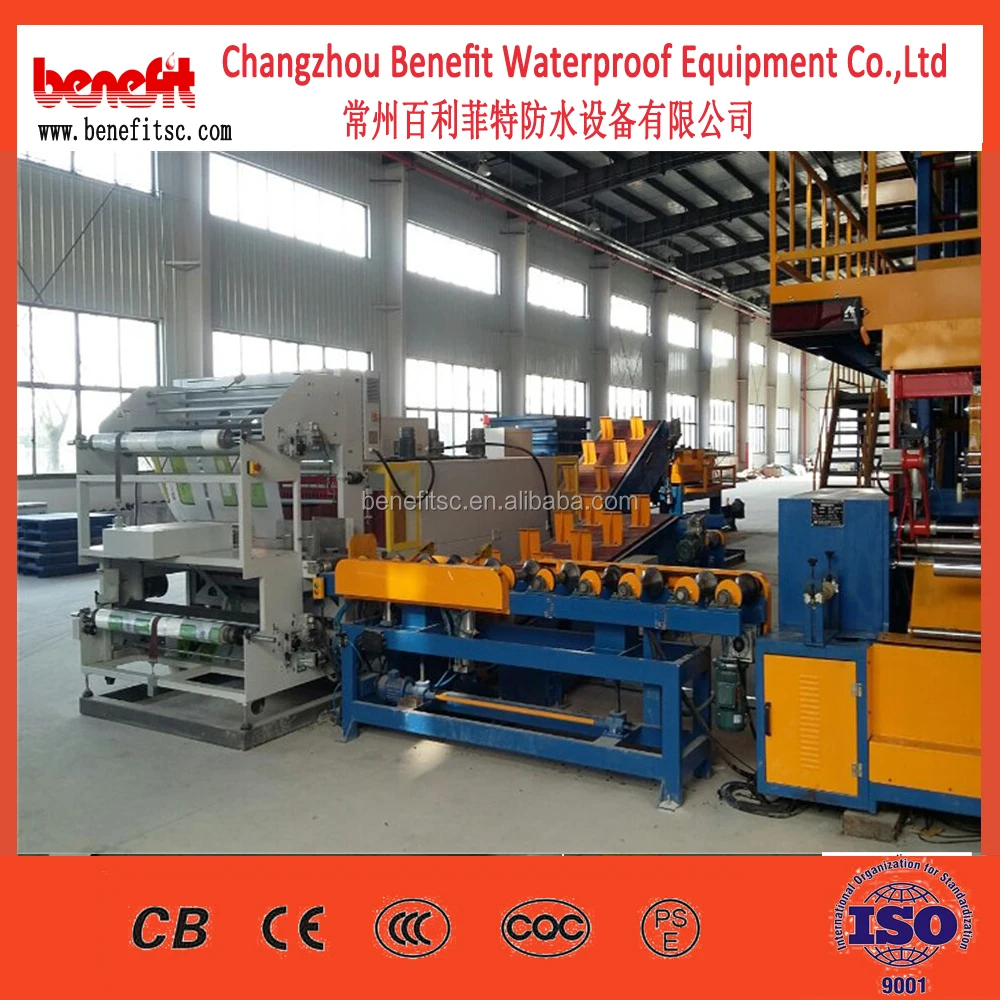

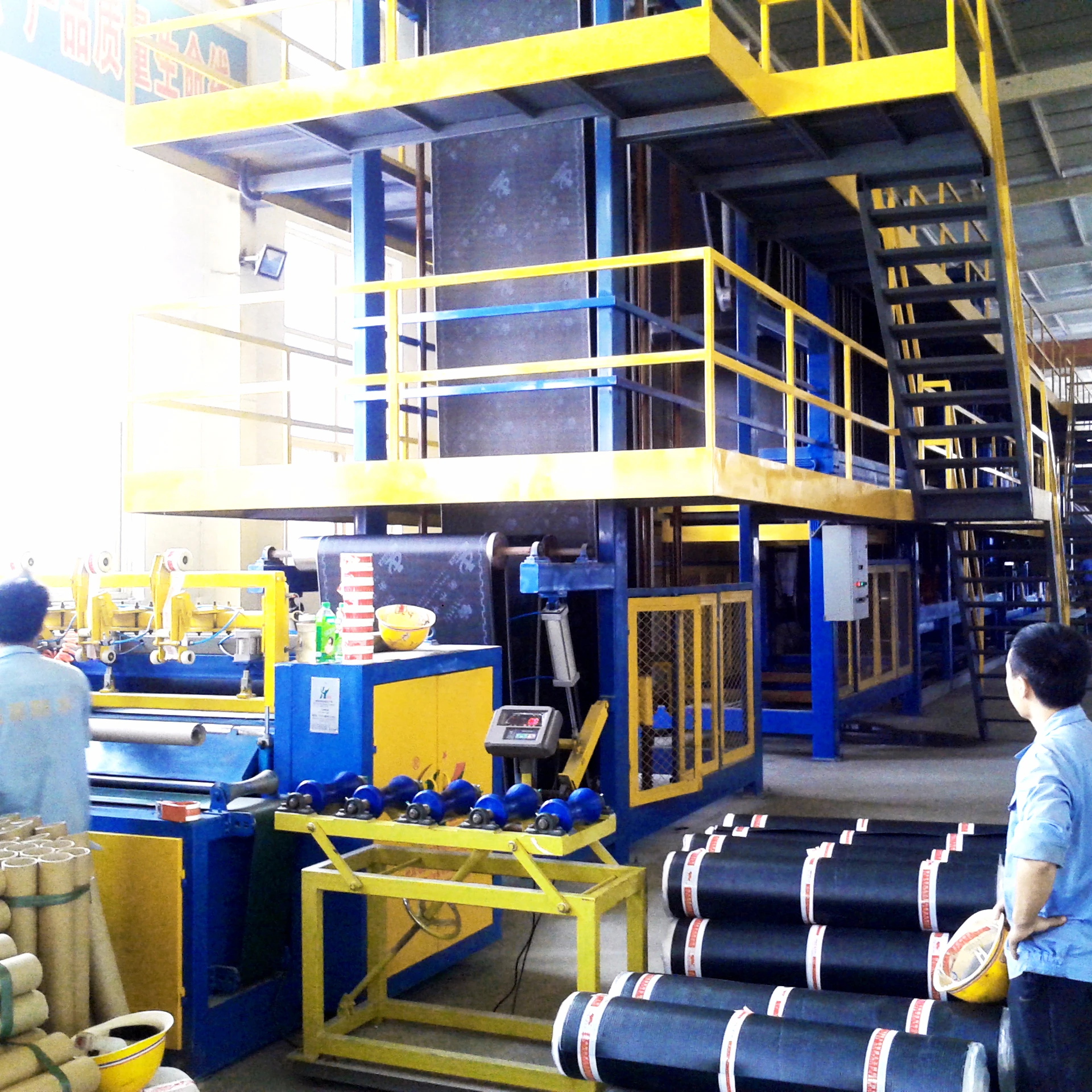

Flexible Roofing Material SBS Modified Bitumen Membrane Production Line

The main parts of the modified bitumen waterproof membrane line













Technical Data



ITEM		APP/SBS Modified Bitumen Membrane Production Line Technical Parameters
Capacity ,m2/year		For 3mm-thick products ,the annual output of various modified bitumen  waterproofing membrane can be 10 millions sqm per year , with 250 annual manufacturing days per year ,2 working shifts  per day and 8 hour working time per shift
Width		1000mm
Reinforcement		Polyester mat ,fiberglass, compound
Modified materials		SBS,APP,Rubber powder
Facing materials		Self-adhesive ,Silver sand ,Slate flakes ,PE film ,Aluminum foil ,etc
Linear speed		5-60m/min(adjustable)





Working principle



The whole working principle can be divided into 3 steps.

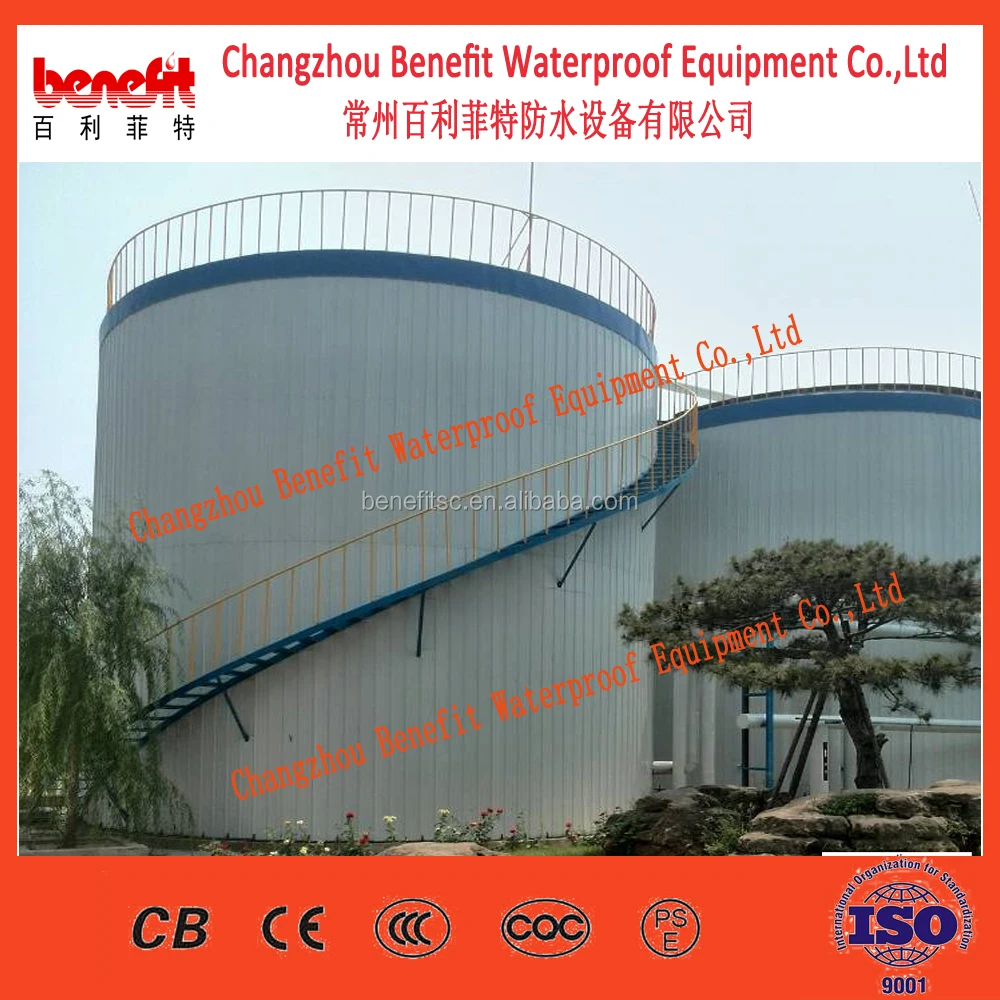

1.To mix the bitumen,rubber powder , talcum powder , engine oil and some other raw materialsvia mixing tanks(the mixing tank should be kept warm by conduction oil).The finished mixtures can be called bituminous mixtures .

2.The bituminous mixtures will be deliveryed into coating pools.Then the base material(reinforcement) will be coated with the bituminous mixtures.At last ,the coated reinforcement will be covered by PE film or sand or other materials.At that time ,the bitumen membrane preliminary forming.

3.The finished products will be cooled by water and air,then be rolled by auto-winder.





Finished production images



Finished products (bitumen membrane)type(surfacing):

· Two sides with PE film(Embossing or smooth)

· One side with PE film,one side with sand(Coarse aggregate)

· One side with PE film,one side with aluminum film(Embossing or smooth)

· Self-adhesive bitumen waterproof membrane





Charateristice



1. Easy installation and dimensional stability: Able to be wieldable under wide range of temperature and experience minus dimensional change in thermal treatment

2. High tensile strength and elongation thus can accommodate movements of substrates

3. Good flexibility under low temperature, good adaptability to ambient temperature difference

4. Secure anti-puncture and good rooting resistance, no pollution caused to environment when being welded and good waterproofing choice for plant roofs.

5. Good plasticity: Convenient and fast treatment of detailed parts of corners and edges

6. 3 meters width reduces the joints and helps saving materials or labor cost



Application method



1.Make sure the roof deck smooth,clean and dry(Moisture<9%),then apply the surface of roof deck homogeneously with a kind bitumen paint till dry to start application.

2.There are two methods in application:

One way is by heating and melting method---Heat the polyethylene film of the membrane and roof deck surface by heating and melting method to be nearly melted (not flowing),then install the membrane fully bonded to the roof deck with overlaps of 5-10cm.

The other way is by cold adhesive method---Pour the cold adhesive homogeneously on the roof deck,then roll the membrane to install it to be fully sticked to roof deck.

By heating and melting method and by cold adhesive can be used in alternation in application as requested.

3.After application ,a full serious inspection is required to sure no air bubble,no fold,no falling away etc. to guarantee the waterproof life.





Company information



Changzhou Benefit Waterproof Equipment Co.,Ltd,established in 1990, is a professional manufacturer which is specialized in researching, producing, marketing and service waterproof equipment. As a private-owned enterprise, Our company is a famous supplier in the line of waterproof equipment in China, also an important supplier in the international markets. On the basis of absorbing foreign advanced science and technology, our factory has developed various kinds of advanced waterproof equipment plants, and has got many national patents. The factory is strictly in accordance with international quality system to ensure product quality. Our factory pursues the enterprise culture of sincere, realistic and innovation, adheres to the service goal of honesty, customer-oriented and win-win situation. We are looking forward to cooperating with you.

Our Exhibition
