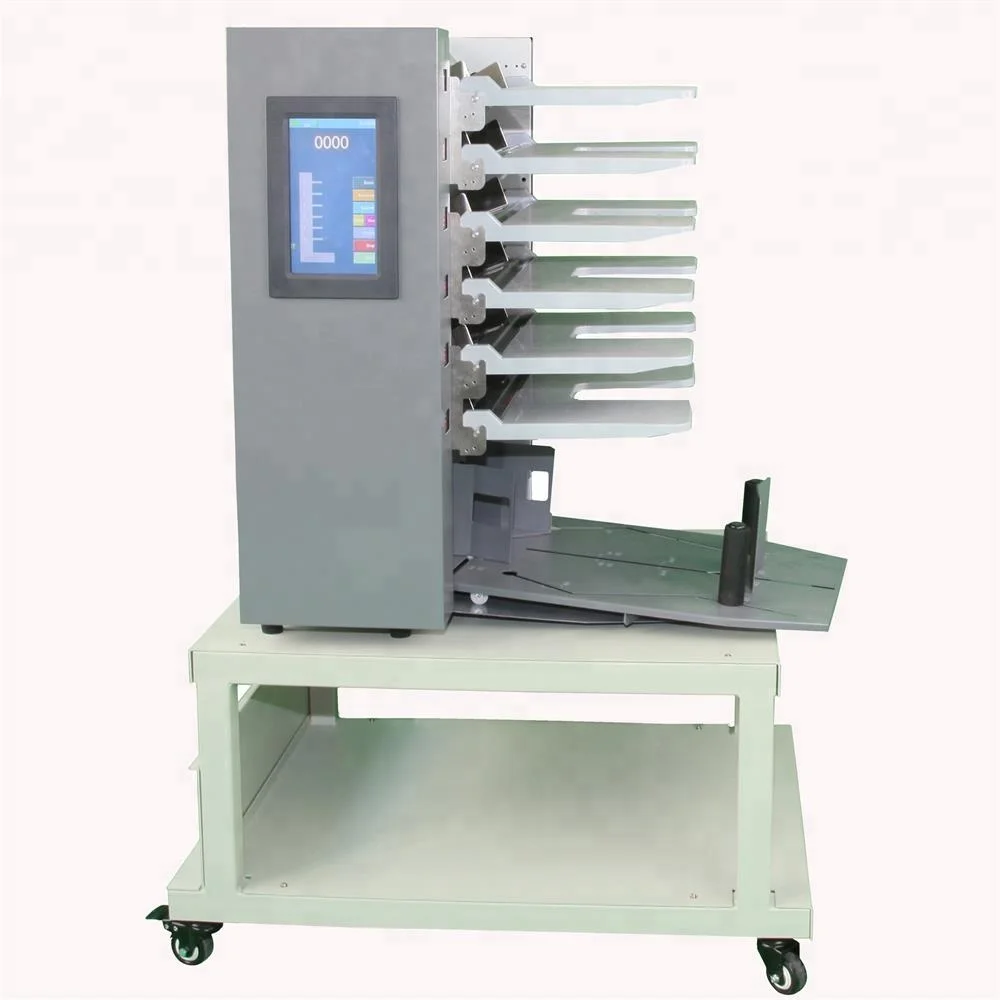

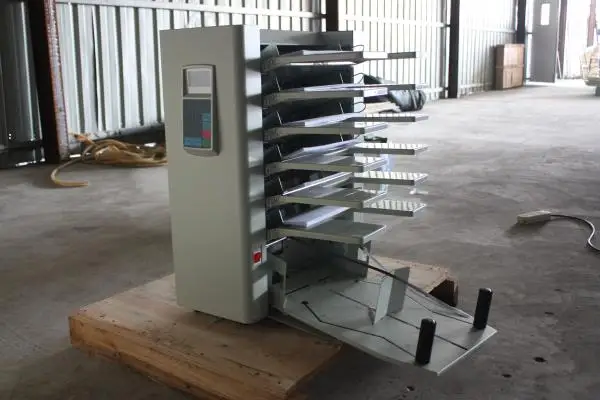

New Type 6 Feed Stations Digital Paper Collator

Features of 6 feed stations digital paper collator

1. Paper-feed stand of fully automatic lift

2. Presetting of number of copies available

3. Automatic shutdown display for paper double-feed, Paper jam, out-of-paper, paper tray full.

4. Drawer-type paper tray, Cross-type deliver tray

5. Provides two stacking modes

6. Crisscross stacking mode, Straight stacking mode.



Unique Interface

 XSHEEN digital paper collator is equipped with soft-touch liquid crystal display, easy and simple to operate



Flexible count mode

XSHEEN digital paper collator provides two count modes:

Count-down mode and count-forward mode



Count-down mode

Set the desired collating number before start. The collating machine counts down. The Machine automatically stops when the number turns to zero.

Count-forward mode

The paper collator counts forward until all printed sheets are completely collated.

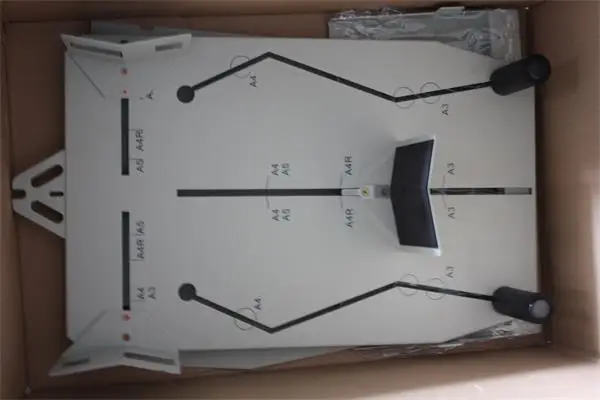

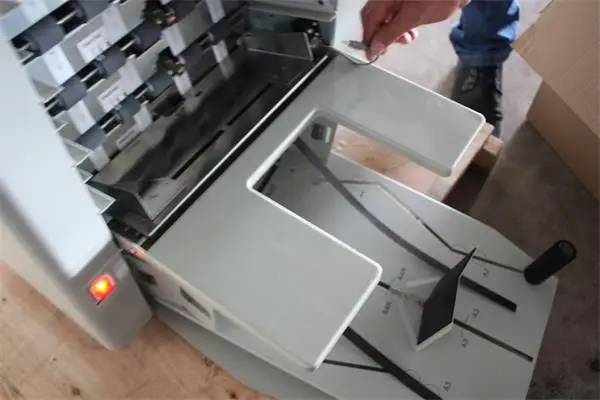

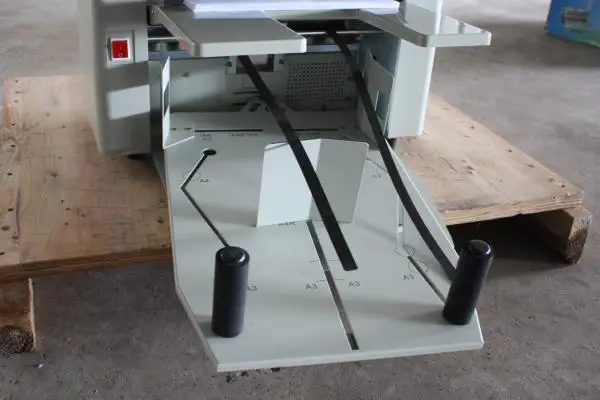

Clear sheet collecting design

XSHEEN digital paper collator is equipped with cross-type sheet collecting stand. After collation, the sheets are placed crosswise to reduce incompletely separated phenomenon of previous and next sheets due to sheets due to sheets sliding.



Remarks: The collators can be connected with the XSHEEN stapler



Technical data of 6 feed stations digital paper collator

Model	XH-C10	XH-C6
Station	10	6
Speed	2000-5000shets/hour  (A4-size paper)	2000-5000sheets/hour (A3-size paper)
Paper size	A3-A5
Papwe quality	40-210g/m²
Station capacity	250sheets
Stacking capacity	600sheets
Stacking device	cross collating
Error display	double-feed, paper jam, out-of paper, no paper, deliver tray full, Paper miss-feed, back door open.
Power	AC220V  180W
Net weight	approx.73kg	63kg
Gross weight	approx.93kg	78kg
Volume	1270*710*970mm(XH-I)	900*710*970mm(XH-I I)



Machine details
