Pls Contact me to get video, quotation and more onformation

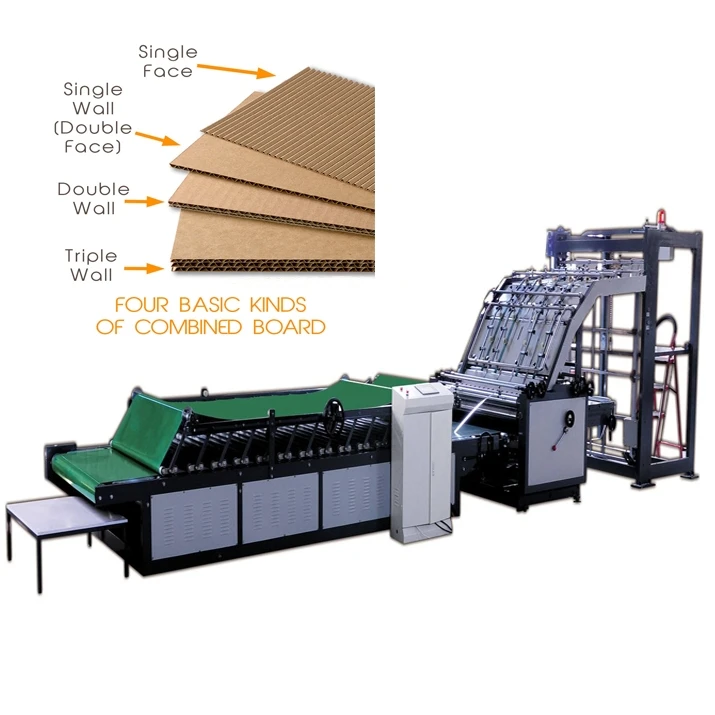

HRBTMJ-H-II type servo machine is based on HRBTMJ-H-I, improved the automatic up and down surface paper system. Surface paper can pile up the height of 1m once time, useing photoelectric automatic up. So this design reduced more time for moving the surface paper.



Main feature:



1. The top paper can pile up the height of 1m once time ,it makes delivery more easier and efficient



2. Adopt PLC & Taiwan servo motor control system, working is more precision and stable,improved the speed, circuit faults can automatically alarm.



3. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking



4. Entire new concept,front gauge registration, position high accuracy, bottom sheet never exceedes the top sheet.



5. Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm



6. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;



7. The scientific design of the metering roller speed to ensure the glue evently on the same time, to avoid rejection of glue at high speed.



8. Using the rubber roller cleaning to make cleaning thoroughly, and so that the back of the corrugated cardboard never gets glue, and eliminating the trouble of frequent replacement of blade.



9. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick



10. Control of water tank cleaning cycle using an independent method, clean, hard rubber product;



11.Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating;



Technological parameter:



Model	HRBTMJ-1300H-II	HRBTMJ-1500H-II	HRBTMJ-1600H-II
Max size of cover face	1300mmX1100mm	1500mmX1250mm	1600mmX1250mm
Mix size of cover face	360mmX360mm	360mmX360mm	360mmX360mm
Economic speed	0-100 piece/min	0-100 piece/min	0-100 piece/min
Precision	±1	±1	±1
Power	7kw	7kw	7kw
Size	10m x 2m x 2.2m	10m x 2.2m x 2.2m	8.8m x 2.3m x 2.2m
Weight	About 3.5T	About 4.0T	About 4.0T
