ET310B мультиметр осциллографа 2в1 DSO DMM 80M выборка 20 МГц полоса пропускания цифровой для хранения измеритель объема
- Категория: Oscilloscopes >>>
- Поставщик: Zhuhai,E-One,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 131.42 $* | 134.46 $* |
| Jul-16-2025 | 106.5 $* | 108.40 $* |
| Jun-16-2025 | 129.64 $* | 132.37 $* |
| May-16-2025 | 128.28 $* | 131.62 $* |
| Apr-16-2025 | 102.40 $* | 104.17 $* |
| Mar-16-2025 | 126.73 $* | 129.66 $* |
| Feb-16-2025 | 125.4 $* | 128.83 $* |
| Jan-16-2025 | 124.82 $* | 126.48 $* |
Характеристики
Product Description
ET310B Digital Bluetooth oscilloscope multimeter
ET310B: It's the perfect combination of the multimeter & Oscilloscope! Uniquely, the bluetooth wireless extended design enables you easily deal with the measuring datas and waveforms on the Android Phone and tablet!

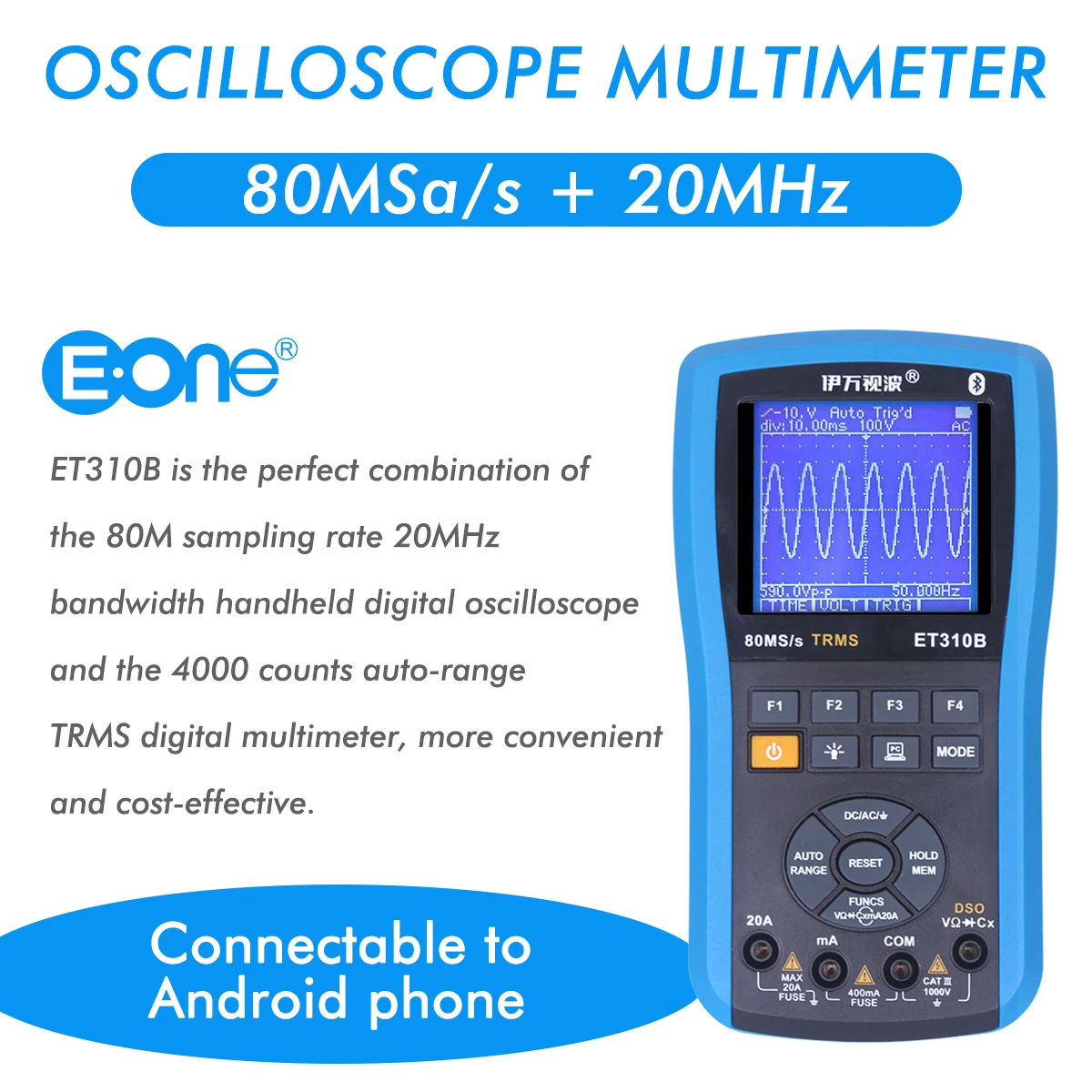

1· Combination of a 4000 counts auto-range True RMS DMM and a 80M sampling / 20MHz analog bandwidth handheld Digital Storage Oscilloscope at the size and the cost of a multimeter.
2· DMM functions include True RMS AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, dBm, diode and continuity tests.
3· Full auto set up for volt/div and time/div of DSO
4· DSO Trigger mode: Auto/normal/single
5· DSO Auto measure: Vpp, Vavg, Vrms, dBm
6· DSO Cursor readout: dV, dt, 1/dt (frequency)
7· Screen hold function
8· Save and recall up to 100 waveform and data
9· High contrast FSTN LCD with white LED backlight
10· Auto power off in 5~60min or continuous on
11· Inner Polymer Li-Ion Battery with AC adapter
Features:
1. LCD display Oscilloscope and TRMS Multimeter in 1 lab meter, portable design, more convenient and cost-effective.

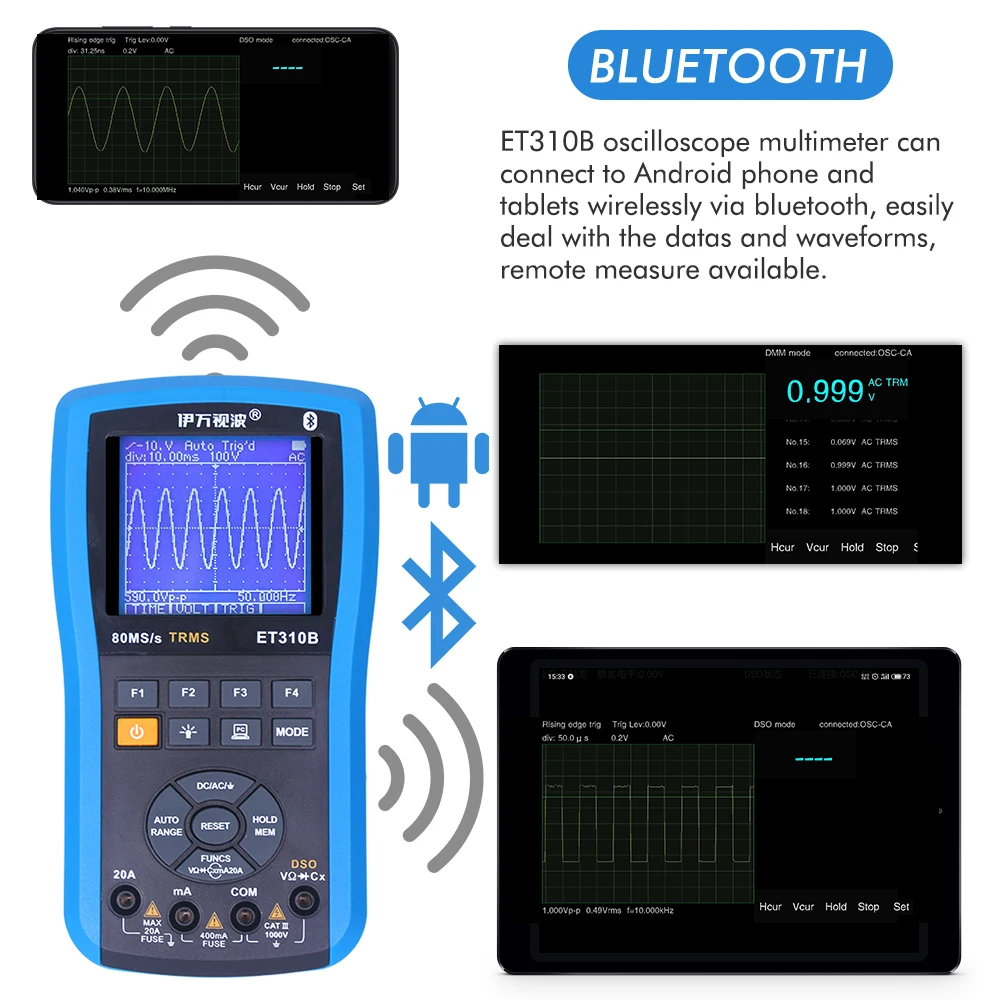

2. Connectable to Android phone and tablet via bluetooth, remote testing available, suitable for test in difficult environment.

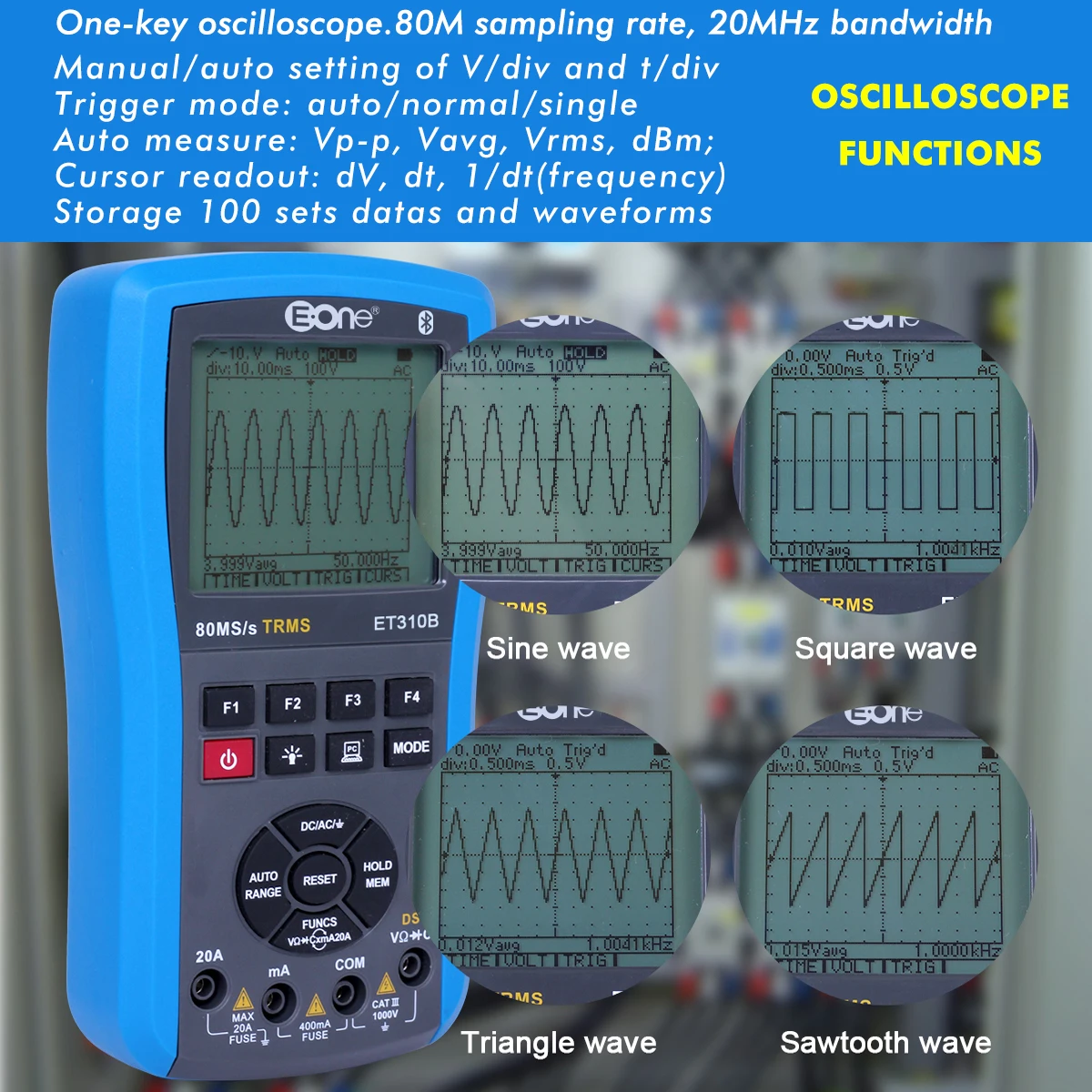

3. Oscilloscope functions: 80M sampling rate, 20MHz analog bandwidth, one-key oscilloscope, auto waveform capture, three trigger modes: single, normal, auto.

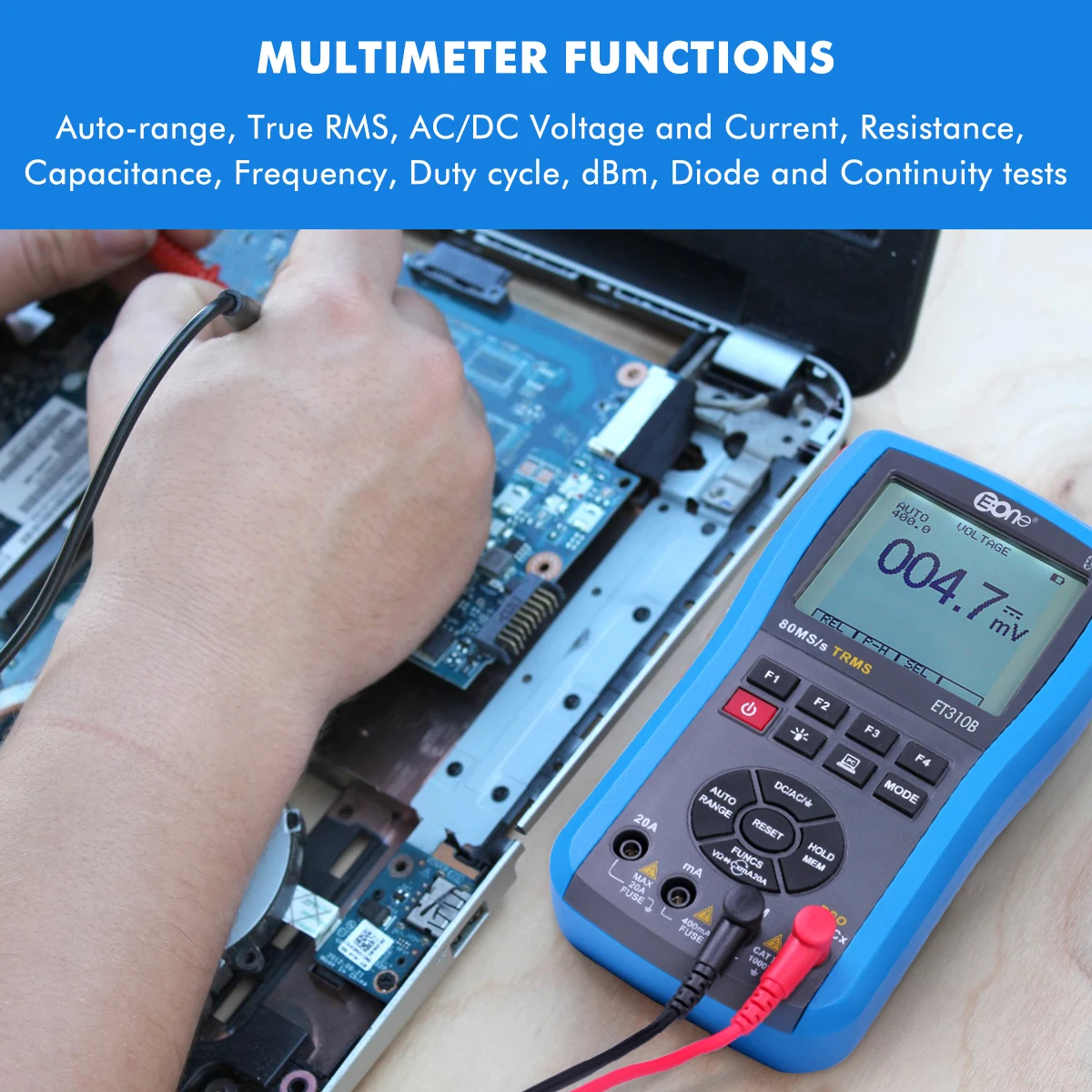

4. Multimeter functions: 4000-counts, automatic range, TRMS, AC/DC voltage, AC/DC current, resistance, frequency, capacitance, diode test, duty ratio, continuity test.
5. Display maximum value, minimum value, difference value and relative value on the same screen. Storage/readout 100 sets waveform and 100 sets data. Adjustable backlight, timed work available.
General characteristics:

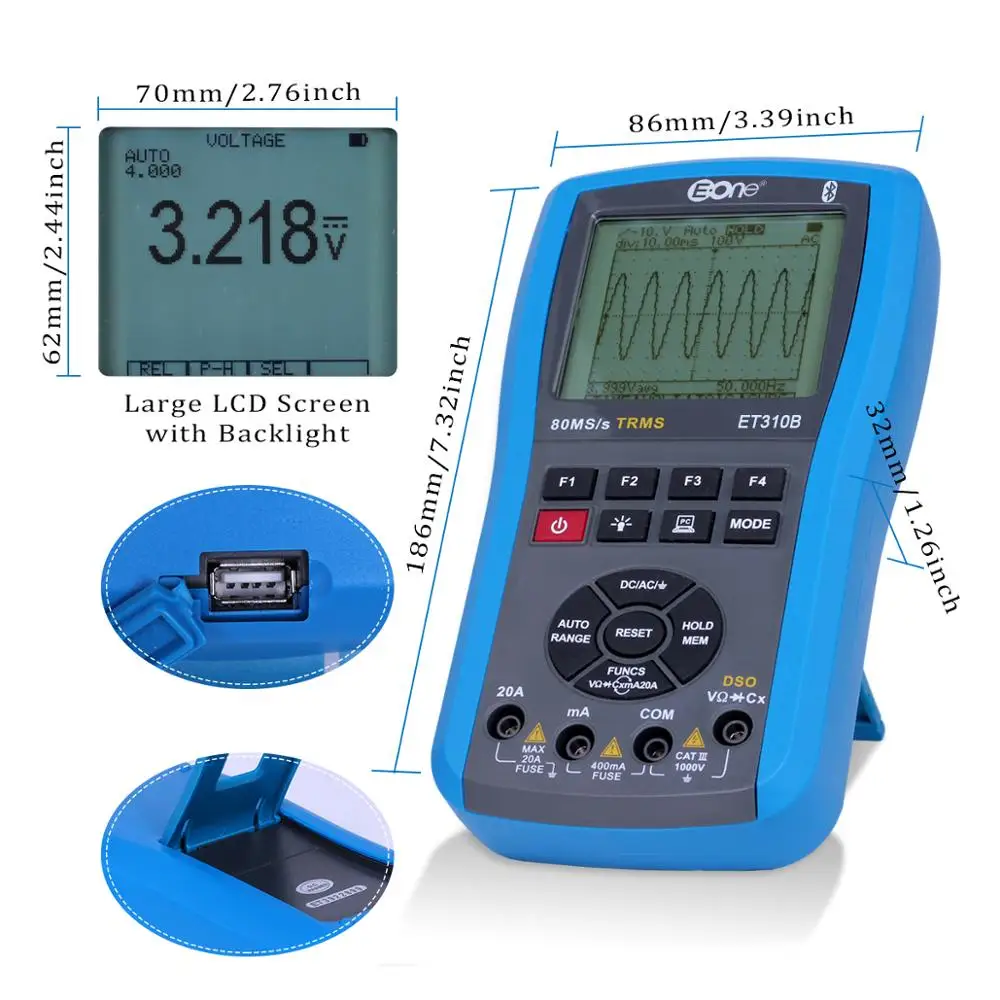

Dimensions: 86mm X 186mm X 32mm
weight: 325g (excluding other accessories)
weight: 325g (excluding other accessories)
display: 128 x 128 dot matrix graphic FSTN LCD
observation area: 72mm X 72mm
backlight: white, adjustable brightness, two levels
input resistance: 10MΩ
battery: 1000mAH lithium polymer battery
Charging time: 2-3h
working hours: about 10 hours
storage capacity: 100 sets DMM datas and 100 sets DSO waveforms
use environment: 0 ~ +40 degrees Celsius
storage conditions: -10 ~ +60 degrees Celsius
power adapter: 100V~250V switching power supply
Software calibration technology, memory calibration factor
observation area: 72mm X 72mm
backlight: white, adjustable brightness, two levels
input resistance: 10MΩ
battery: 1000mAH lithium polymer battery
Charging time: 2-3h
working hours: about 10 hours
storage capacity: 100 sets DMM datas and 100 sets DSO waveforms
use environment: 0 ~ +40 degrees Celsius
storage conditions: -10 ~ +60 degrees Celsius
power adapter: 100V~250V switching power supply
Software calibration technology, memory calibration factor
Product | Oscilloscope multimeter |
Model | ET310B |
Special | Connectable to Android phone and tablet |
Details Images

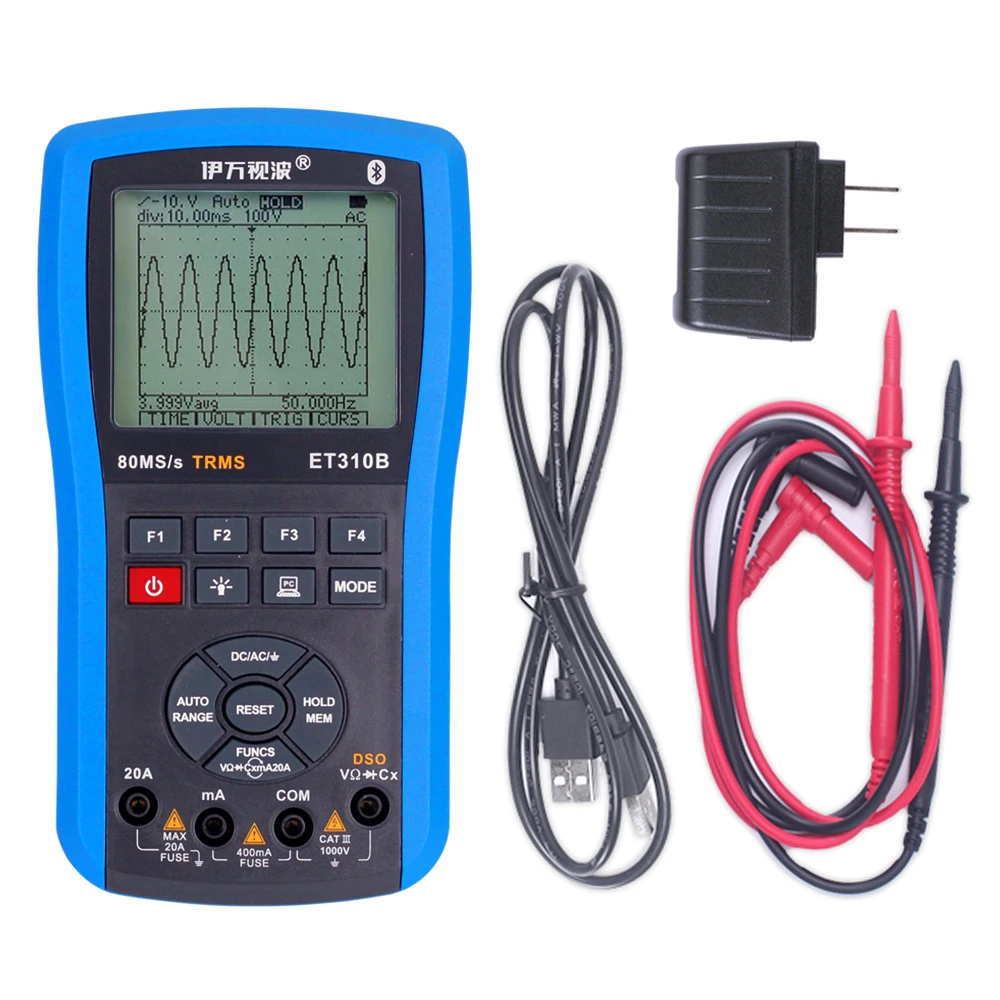

Product packaging
Service
1. Free maintenance provided within one year.
2. Technical guidance provided for life, including manuals, videos etc.
3. If any questions, please feel free to contact with us at: kaho @eairpack.com
2. Technical guidance provided for life, including manuals, videos etc.
3. If any questions, please feel free to contact with us at: kaho @eairpack.com
Company Profile
Zhuhai E-ONE Science and Technology Co.,Ltd. was founded in 1996, is a high-tech enterprise which has integrated with researching& developing, production, sales and after services. We have professional R&D teams with many years of technical experiences and independent intellectual property rights. Our company has launched hundreds of products in the market in past twenty years. This is our competitiveness to provide reliable, efficient and low cost ODM/OEM services to our customers.
Our company's main business: oscilloscope, clamp meter, multimeter, digital power meter, digital megohmmeter, infrared thermometer, laser-excited theodolite and other dozens of series, nearly 100 kinds of products.
Through independent innovation, our company obtained a number of domestic and foreign patents. In 2008, the company first launched the oscilloscope series of products, and proposed the concept of the third generation multimeter. With its global marketing network, rich product range and personalized solutions, Ivan products have been effectively promoted and applied in many countries and regions around the world, and have won recognition from domestic and foreign customers.
Our company's main business: oscilloscope, clamp meter, multimeter, digital power meter, digital megohmmeter, infrared thermometer, laser-excited theodolite and other dozens of series, nearly 100 kinds of products.
Through independent innovation, our company obtained a number of domestic and foreign patents. In 2008, the company first launched the oscilloscope series of products, and proposed the concept of the third generation multimeter. With its global marketing network, rich product range and personalized solutions, Ivan products have been effectively promoted and applied in many countries and regions around the world, and have won recognition from domestic and foreign customers.
FAQ
1.Why choose EONE?
We are the manufacturer of electonic instruments, which leads at the top of the industry. Built in 1996, we have professional specialists and excellent research and development team, have cooperated with more than seven hundreds companies all over the world.
All products are sent out from our factory directly, save much time and cost for you.
2.What electronic measuring instruments do you produce?
We are the manufacturer of Multimeters, Oscilloscopes, Clamp Meters, Megohmmeters, Earth Resistance Tester etc.
3.What are your products mainly applied in?
Home appliance, power amplifier maintenance,industrial control and maintenance,electrician and electromechanical device detection, digital products, automotive electronics, plant equipment maintenance and electronic components.
4.Do you have certifications for your products?
Yes. We can provide the certifications for your need.
5.How long is the warranty of your products?
We provide one year after-sales service for customers.
6.Do you have logo on your products?
We have our brand logo on the products. Also, we can print special logo according to your demands.
7.When will you dispatch the goods after ordering?
After payment, we will send out the goods during 1 working days. We have freight forwarder which has cooperated for many years, they will help to send the products to you fast and safely. If you want to ship by your own forwarder, it's also ok.
8.Can you provide ODM&OEM service?
Yes, we have professional R&D teams which have more than 20 years experience, have provides customization services for hundreds of companies all over the world.
We are the manufacturer of electonic instruments, which leads at the top of the industry. Built in 1996, we have professional specialists and excellent research and development team, have cooperated with more than seven hundreds companies all over the world.
All products are sent out from our factory directly, save much time and cost for you.
2.What electronic measuring instruments do you produce?
We are the manufacturer of Multimeters, Oscilloscopes, Clamp Meters, Megohmmeters, Earth Resistance Tester etc.
3.What are your products mainly applied in?
Home appliance, power amplifier maintenance,industrial control and maintenance,electrician and electromechanical device detection, digital products, automotive electronics, plant equipment maintenance and electronic components.
4.Do you have certifications for your products?
Yes. We can provide the certifications for your need.
5.How long is the warranty of your products?
We provide one year after-sales service for customers.
6.Do you have logo on your products?
We have our brand logo on the products. Also, we can print special logo according to your demands.
7.When will you dispatch the goods after ordering?
After payment, we will send out the goods during 1 working days. We have freight forwarder which has cooperated for many years, they will help to send the products to you fast and safely. If you want to ship by your own forwarder, it's also ok.
8.Can you provide ODM&OEM service?
Yes, we have professional R&D teams which have more than 20 years experience, have provides customization services for hundreds of companies all over the world.
