Автоматическая машина для розлива и запечатывания стеклянных бутылок IV раствор азота большого объема медицинской
- Категория: Filling Machines >>>
- Поставщик: Pharmec,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 15113.47 $* | 15869.9 $* |
| Aug-16-2025 | 14986.97 $* | 15735.38 $* |
| Jul-16-2025 | 12573.86 $* | 13202.37 $* |
| Jun-16-2025 | 14732.92 $* | 15469.34 $* |
| May-16-2025 | 12827.42 $* | 13468.5 $* |
| Apr-16-2025 | 14478.89 $* | 15202.25 $* |
| Mar-16-2025 | 14351.73 $* | 15069.57 $* |
| Feb-16-2025 | 14224.63 $* | 14935.77 $* |
| Jan-16-2025 | 14097.39 $* | 14802.54 $* |
Характеристики
Products Description
Introduction

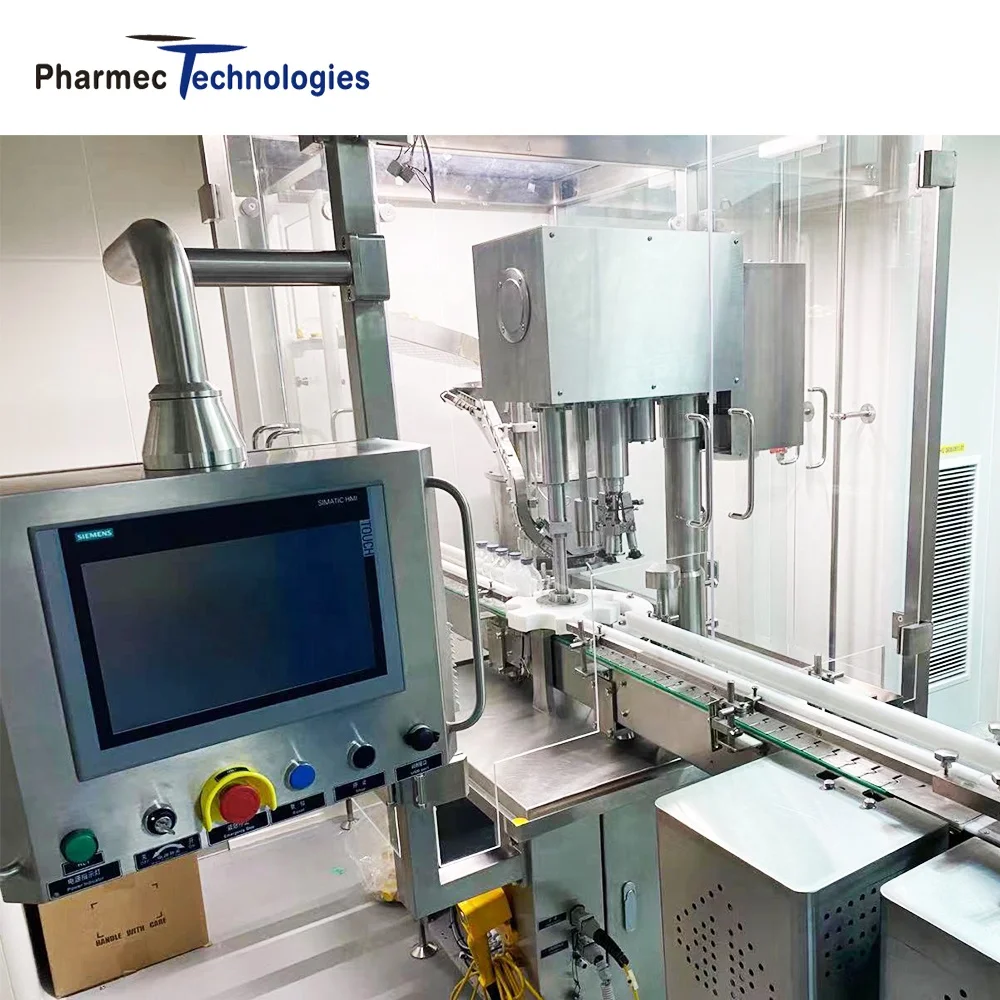

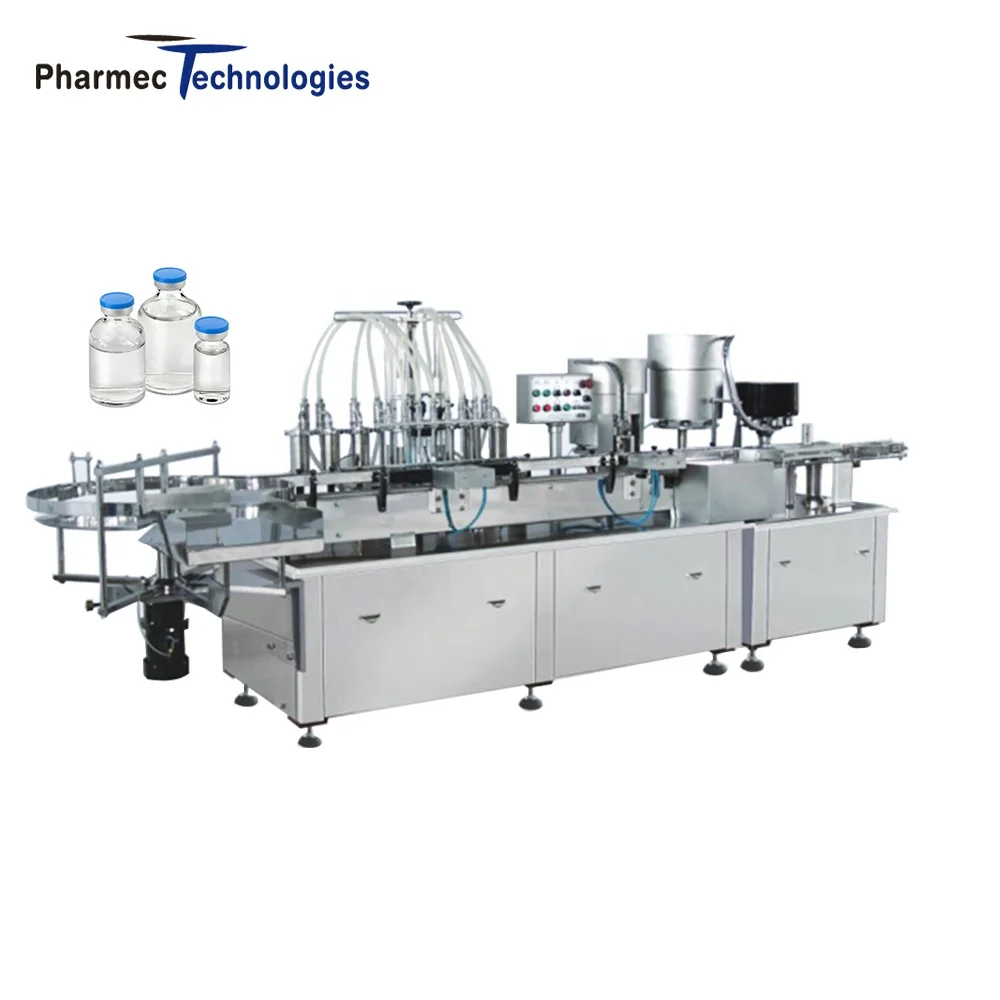

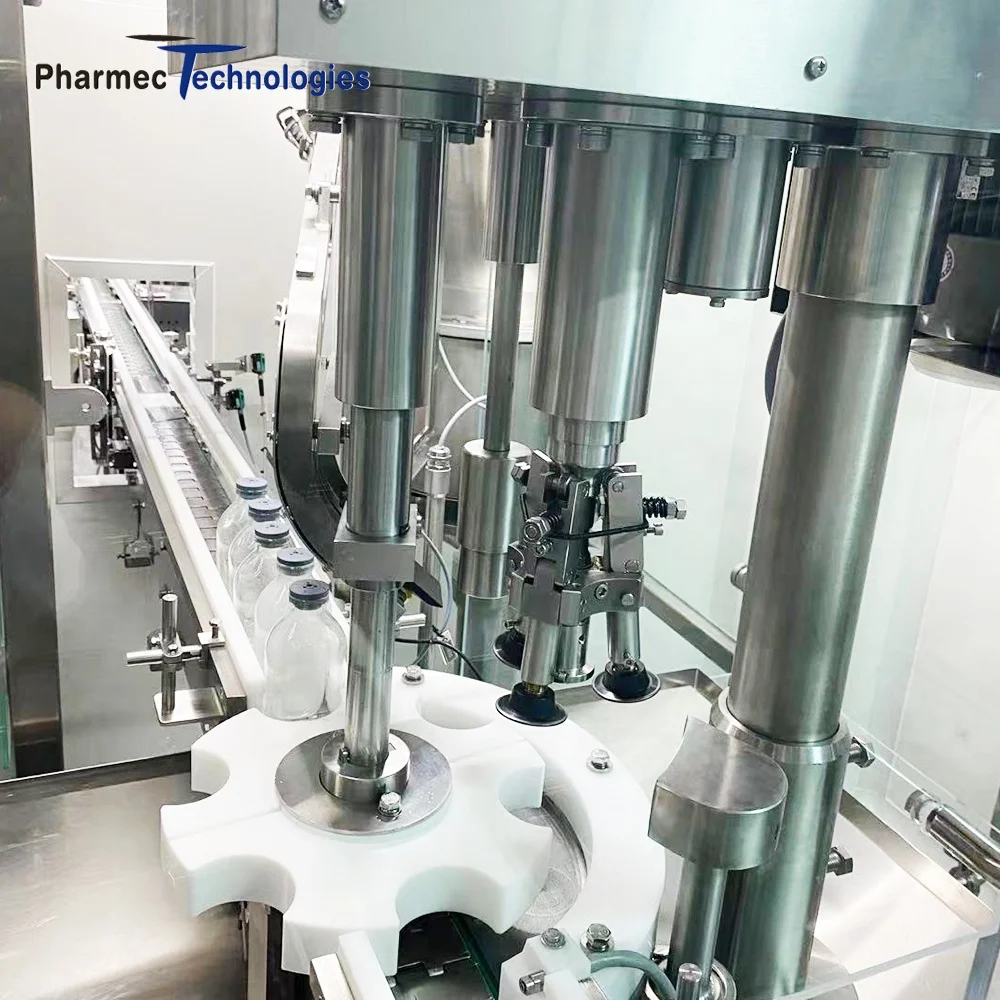

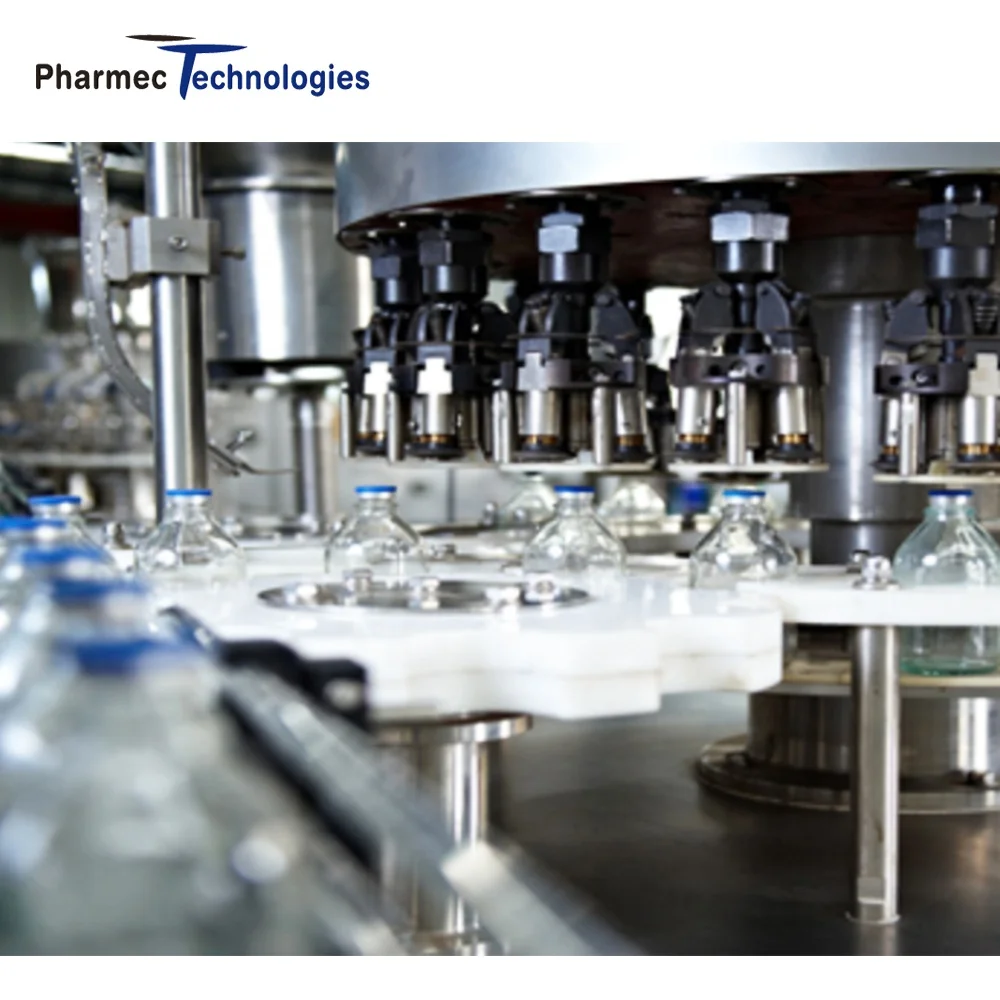

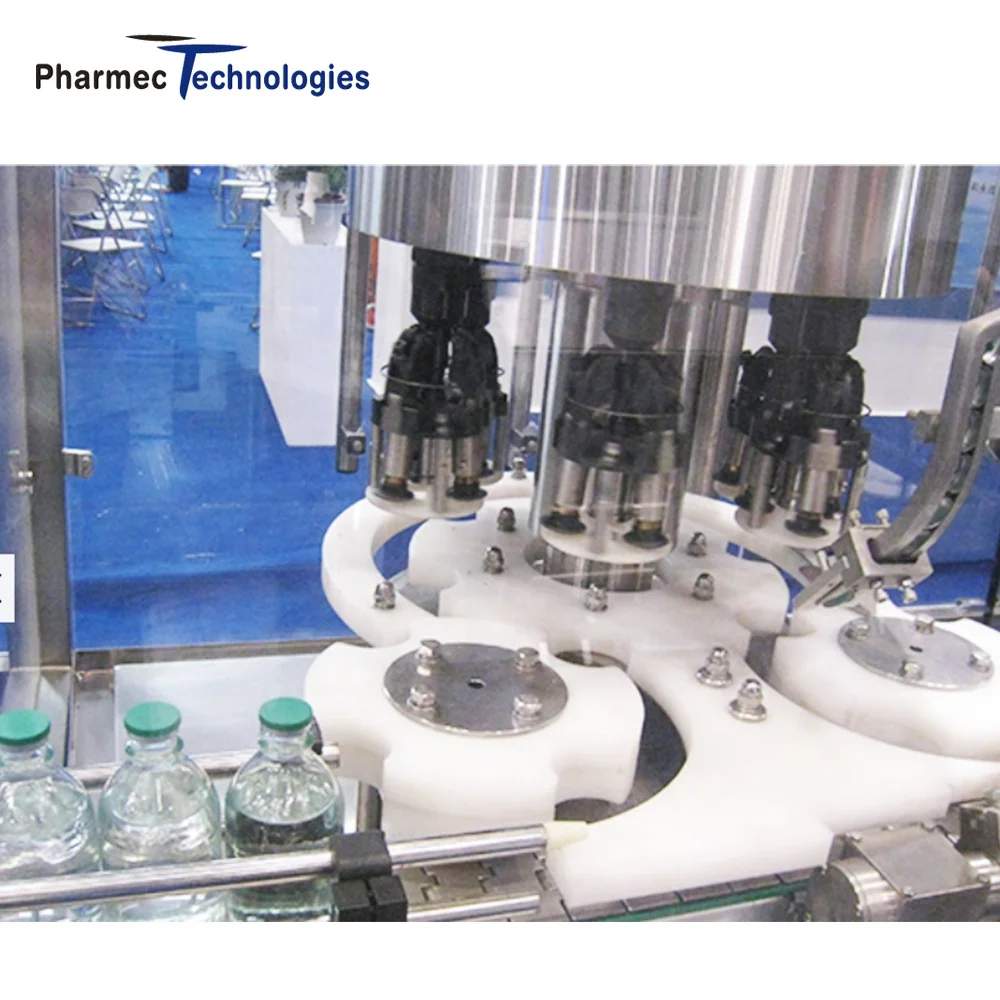

DYG4A series high-dose liquid filling and cap screwing machine is the main equipment of antibiotic vial of water injection, oil seepage and high-dose infusion bottle filling, the main working principle is the use of peristaltic pumps to control the raw liquid material filling required filling volume to antibiotics vial, and screw the cap.
This machine is automatic high-dose quantitative filling machine can be used in liquid, thin mucus in the body of the filling
operation, the design based on pneumatic linear motion means, the use of PLC logic controllers and various detection sensors and cylinder retractable time difference, the vessel stopped at the filling position until the filling is completed, it will be filling the container opening while filling the containers are not transported to the filling position, and so forth movement, to the effect of automatic filling.
Features
* Ceramic pump, peristaltic pump or high precision peristaltic pump, with high rotary precision is high running speed and filling precision.
* Filling, stoppering and capping monoblock machine. Space saving and simple structure. Good appearance and easy to clean.
* Cylinder positioning with high precision, running is stable can fill different size of bottles.
* Easy operation, speed controlled by inverter, high automation degree.
* No bottle, no filling; no stopper, machine auto stops; alarm when insufficient stoppers.
* With auto counting function
* CE certified, standard electric installation, safety guarantee on operation.
* Optional acrylic glass protection hood and 100-class laminar flow
* Optional pre-filling and after-filling nitrogen filling.
* The whole machine is designed according to GMP requirements.
Technical Data
DYG4A series high-dose liquid filling and cap screwing machine is the main equipment of antibiotic vial of water injection, oil seepage and high-dose infusion bottle filling, the main working principle is the use of peristaltic pumps to control the raw liquid material filling required filling volume to antibiotics vial, and screw the cap.
This machine is automatic high-dose quantitative filling machine can be used in liquid, thin mucus in the body of the filling
operation, the design based on pneumatic linear motion means, the use of PLC logic controllers and various detection sensors and cylinder retractable time difference, the vessel stopped at the filling position until the filling is completed, it will be filling the container opening while filling the containers are not transported to the filling position, and so forth movement, to the effect of automatic filling.
Features
* Ceramic pump, peristaltic pump or high precision peristaltic pump, with high rotary precision is high running speed and filling precision.
* Filling, stoppering and capping monoblock machine. Space saving and simple structure. Good appearance and easy to clean.
* Cylinder positioning with high precision, running is stable can fill different size of bottles.
* Easy operation, speed controlled by inverter, high automation degree.
* No bottle, no filling; no stopper, machine auto stops; alarm when insufficient stoppers.
* With auto counting function
* CE certified, standard electric installation, safety guarantee on operation.
* Optional acrylic glass protection hood and 100-class laminar flow
* Optional pre-filling and after-filling nitrogen filling.
* The whole machine is designed according to GMP requirements.
Technical Data

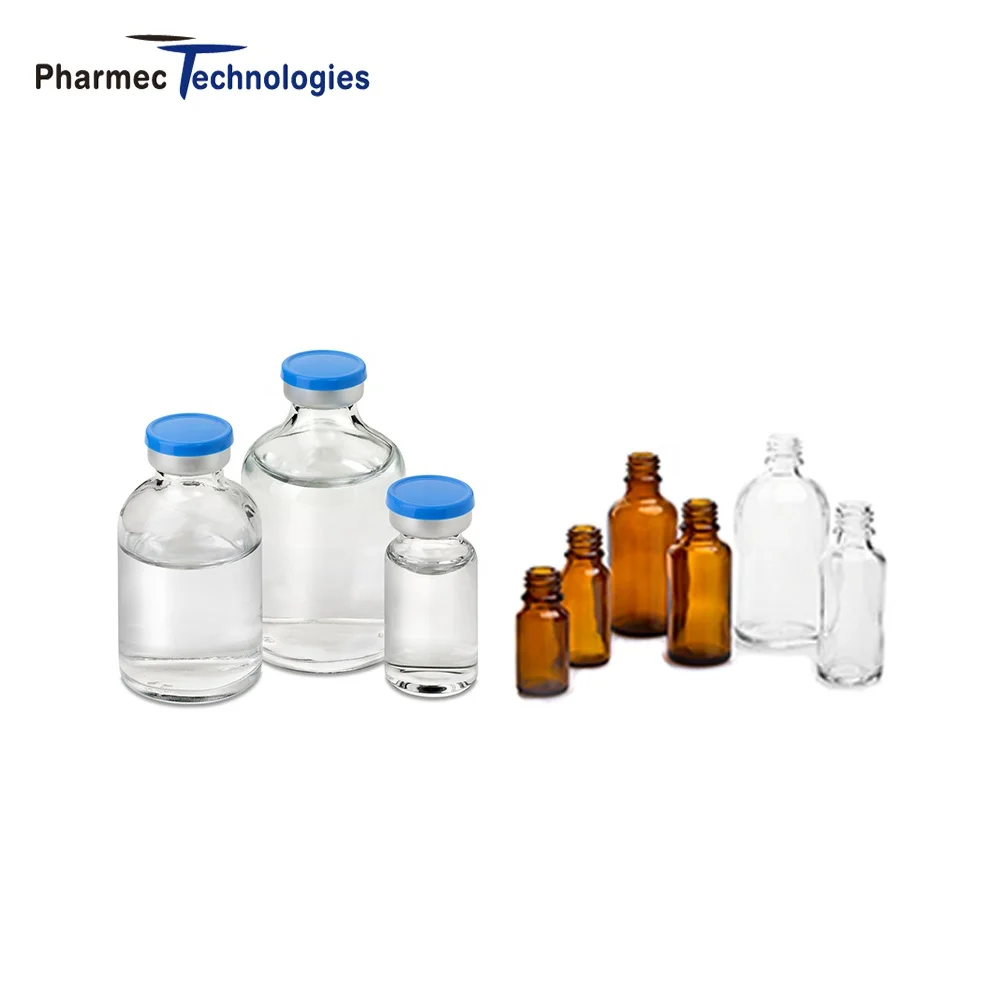

Suitable bottle range | 30/50/150/200ml |
Filling error | ±2% |
Auto stoppering ratio | ≥99% |
Power supply | 380V 50Hz |
Power | 1.5 KW |
Productivity | 30ml 50-60vials/min |
Compress air pressure | 0.5-0.6Mpa 40m3/h |
Filling head | 4pcs |
Single machine noise | ≤70dB |
Weight | (approx) 1200Kg |
Dimension | 3500×900×1750mm |
