Двухфункциональная Автоматическая производственная линия для оборудования сэндвич-панелей легкая машина настенных панелей

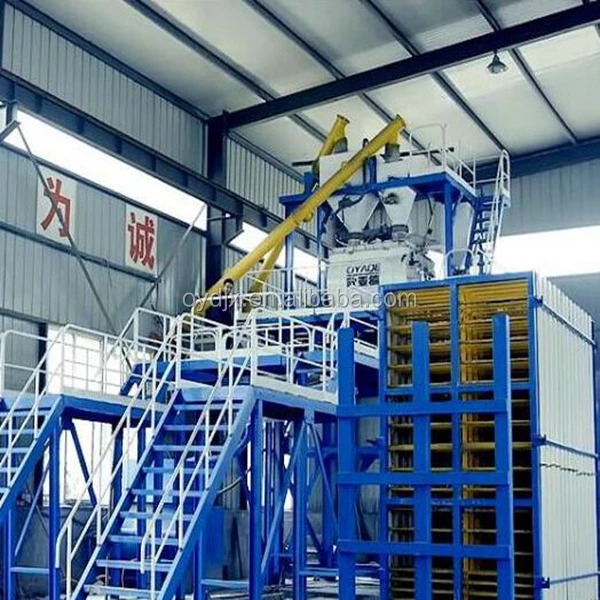

Name: full automatic mixing platform

Brand: OYD brand

Measuring materials. Weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process. We adopt double-shaft mixer, which has compact structure, beautiful appearance, stable running, convenient operation, high production efficiency.

Full automatic meteriing for raw materials

Each raw material is automatically mesured, so can ensure the eaxct formula.

Mixer

The Mixer is double -shaft , stable and convenient operation and high production efficiency.Beside, the blade is only 3mm to the mixer wall so that can guarantee mixing even .End of shaft has four seal, no oil leakage, no slurry leakage , automatic oil filling maintenance.
Besides ,the mixer is sealed, so there is only a small quantity dust and no need dust collector , so that can help you save cost .

Name: Pumping system
Brand: OYD brand

We use the pump to cast the slurry into the mould car , in this way , the slurry will be more even ,with less bubble ,besides it can keep the working platform clear without wasted raw material .
Besides , it can avoid the difference between two end of two board by workers vibration,and protect the integrity of the calcium silicate board , and ensure the compactness of both sides.

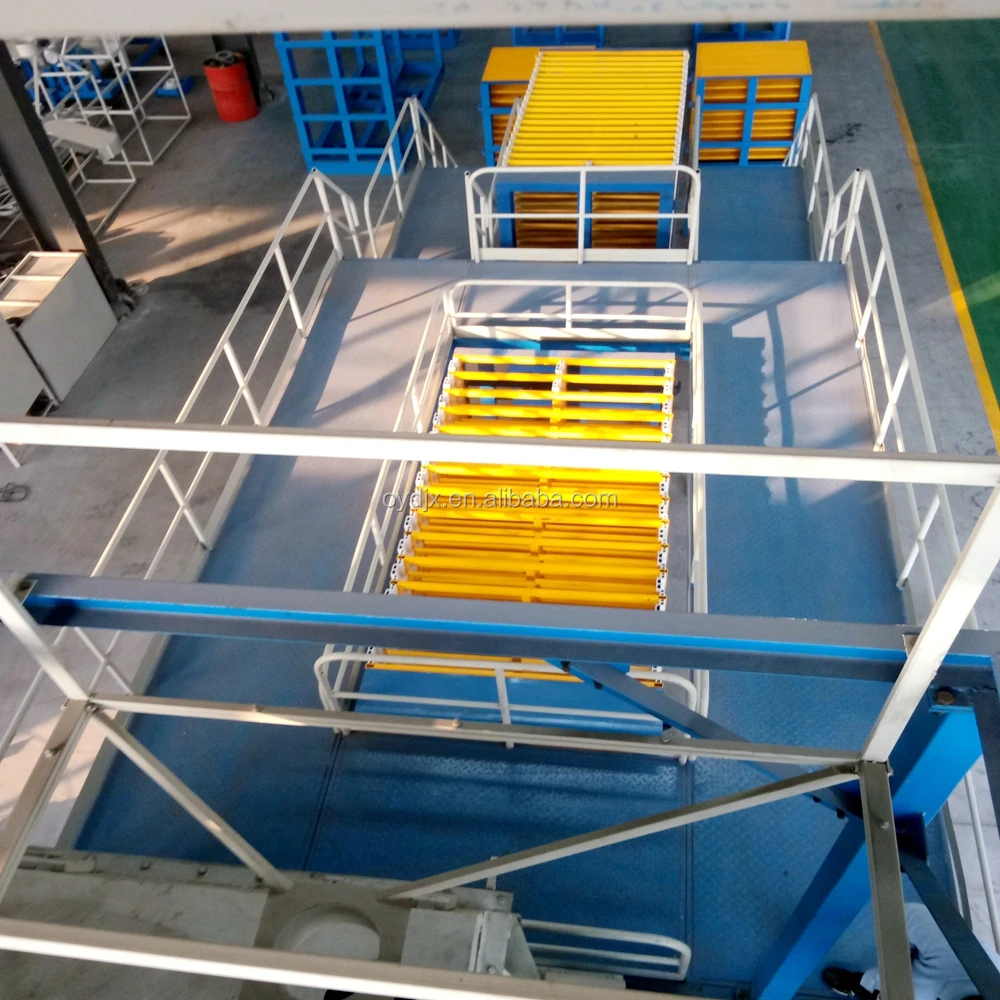

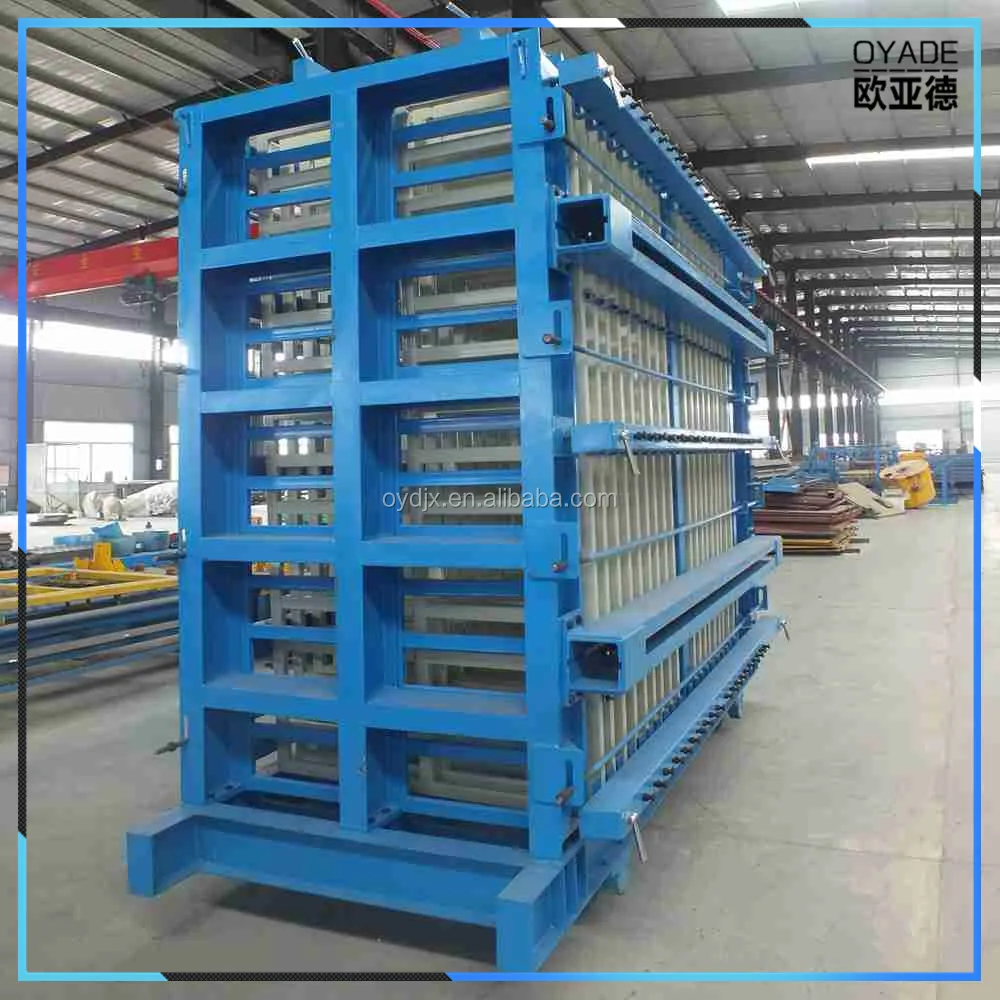

Name: Full automatic mould car
Brand: OYD brand

Full automatic open and demoulding, no need workers to lift the panel

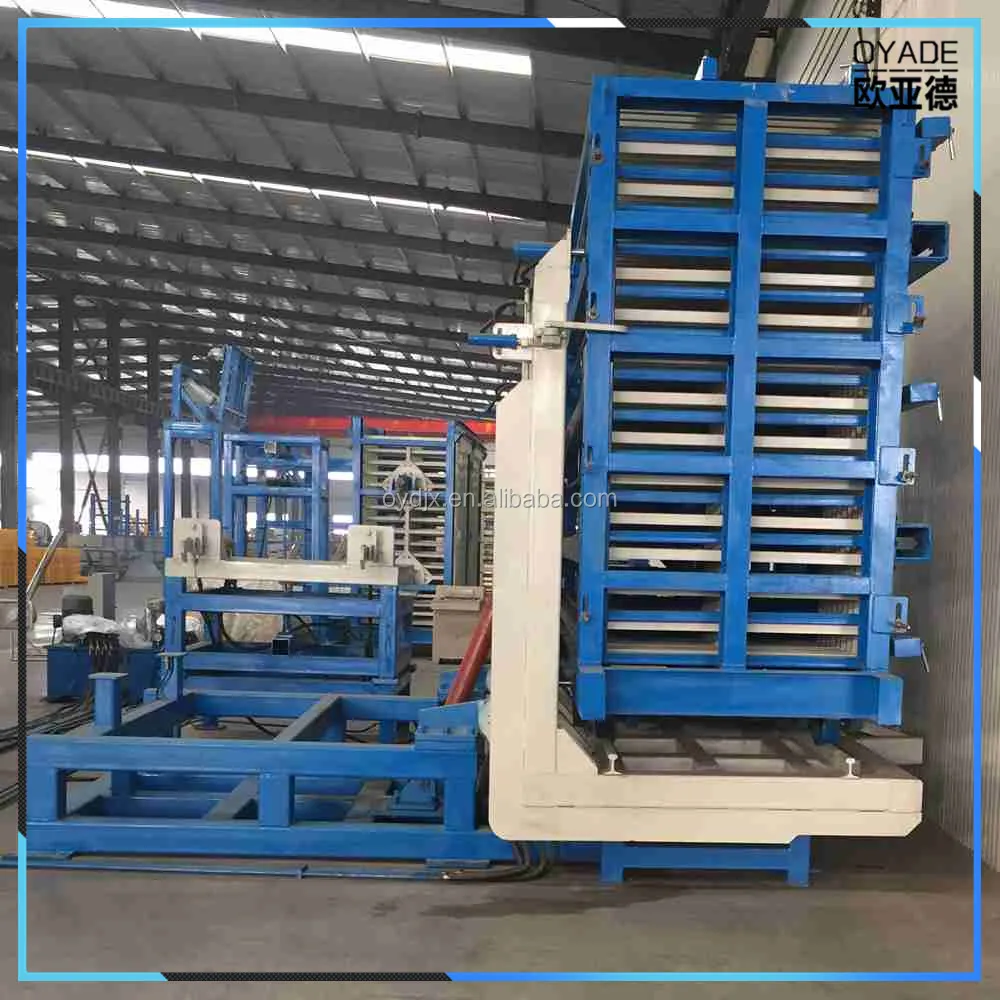

Name: Automatic unloading machine
Brand: OYD brand

we have full automatic demoulding system to reduce the working strength, this is our patent technology and it is very mature now . each time can pull out 20pieces wall panel , compared with manual demoulding which need about 30-40minutes , automatic demoulding only need around 10-20 minutes
