Китайский Гидравлический масляный фильтр машина для переработки

Name

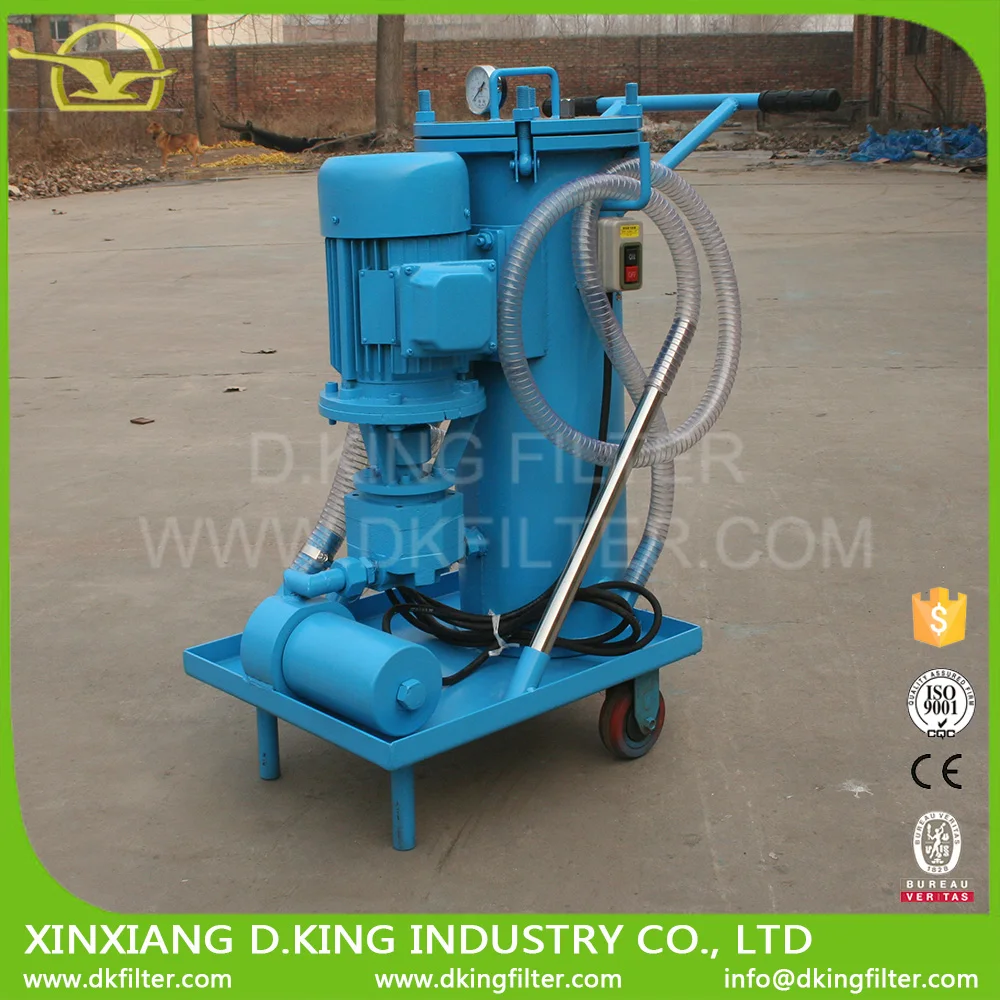

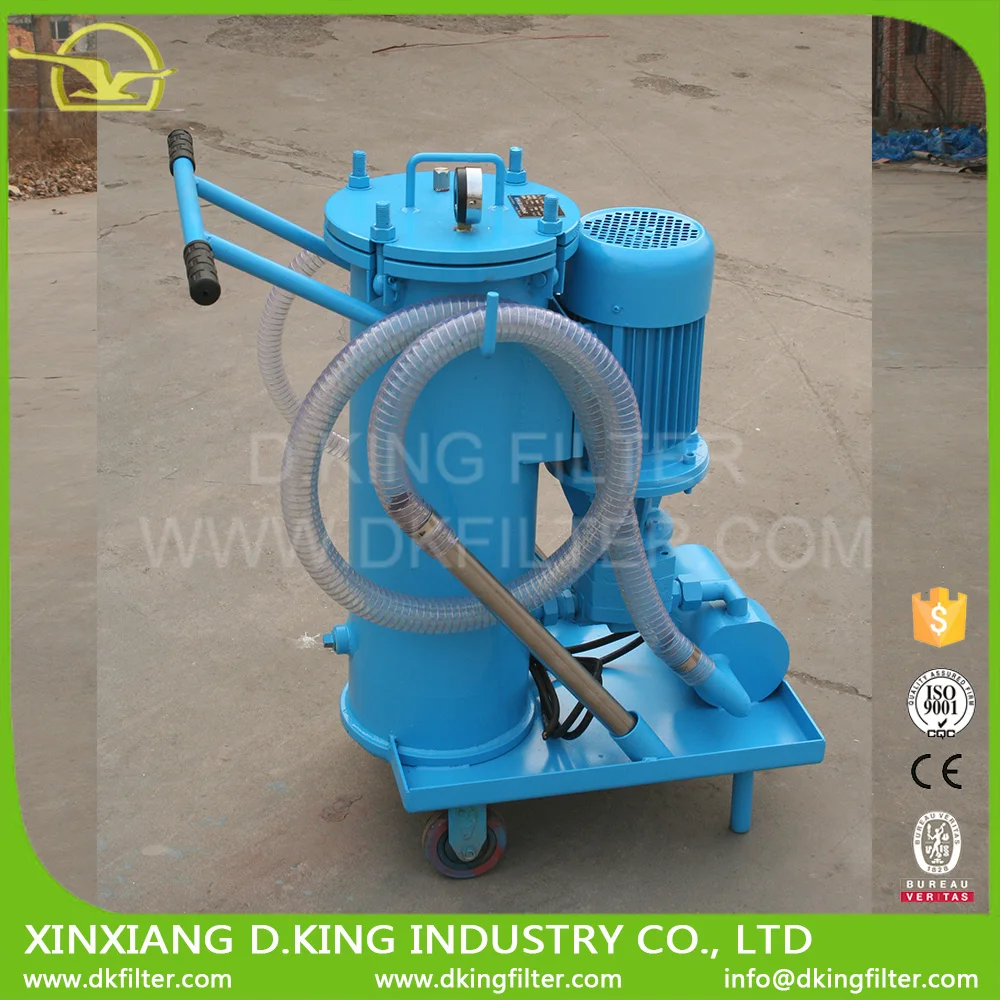

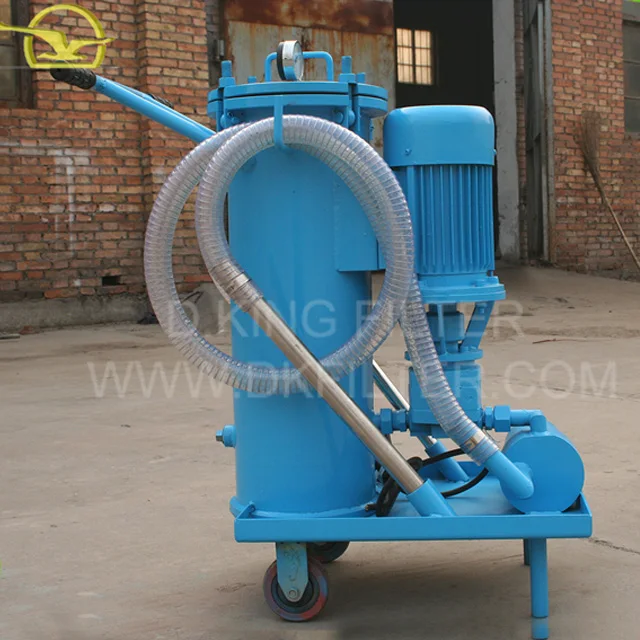

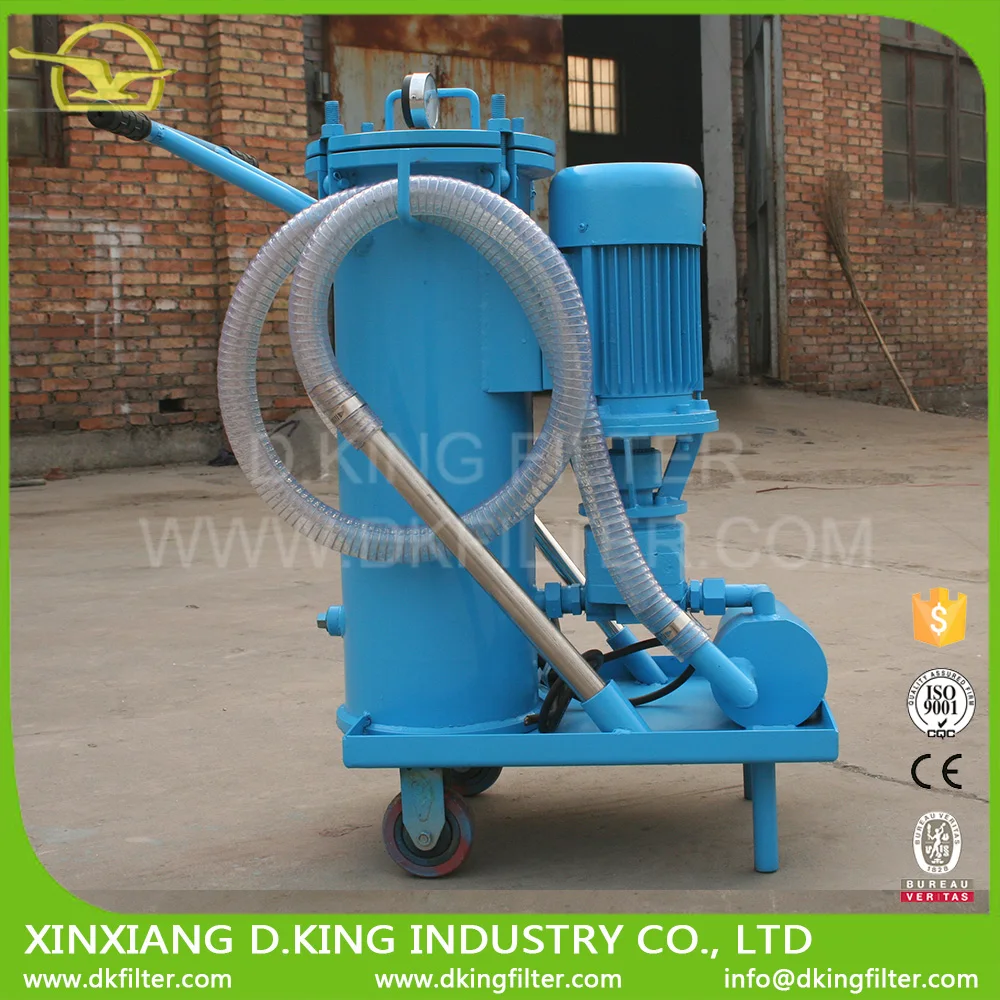

oil filter vehicle

Feature

oil filter vehicle

1.  quality control system: ISO9001-2015

2.  function: oil filter

3.  filter fineness: 1-40 micron

4.  easy to instal

5.  The biggest characteristic is fine fuel oil filter,

6.   reliable performance

7.   high precision, compact structure

8.   beautiful appearance,

9.   convenient usage and maintenance

10.  flexible mobile

11.  oil filter precision for 3, 5, 10, 20, 30 and 40 microns. Users can choose according to need freedom

12.  changing different precision filter can be achieved by using requirements

13.  completely interchangeable with original element

14.  any size

15.  sample is available

16.  energy efficient filters

17.  efficiency: 99.99%

18.  high integrity design to save your space

19.  OEM product is welcomed

OEM serivce:

YES

Specifications:

oil filter vehicle

1.  Introductions: Along with the rapid development of industry, decompression of hydraulic system on the first lesson of work put forward higher request, at present, the hydraulic system failure is due to have around 70% of oil pollution, in order to control the hydraulic system of pollution, except in the hydraulic system installed in the tube. For the new oil injection system needed by filtering pais, also used in hydraulic systems for fuel filter, oil circulation-filtering system.

2.   Using scope: Fine filter for hydraulic systems, fuel systems, lubricating system and the pressure of hydraulic oil system for infusion or regular filtering. For dirty oil also has a certain economic effect, is the ideal energy saving equipment.

Fine filter, oil filter in the deformed only impurities. The index of oil.

3.   Characteristic: The biggest characteristic is fine fuel oil filter, reliable performance, high precision, compact structure, beautiful appearance, convenient usage and maintenance, flexible mobile oil filter precision for 3, 5, 10, 20, 30 and 40 microns. Users can choose according to need freedom, changing different precision filter can be achieved by using requirements.

Oil filter vehicle use and maintenance

oil filter vehicle

1.Oil filter vehicle pump start-up cannot use after confirmation to reverse when, can work normally.

2. In order to guarantee the normal work, fine filter can be open to vent air filter canister,.

3. Oil filter vehicle use after period of time, for crude oil filter clogging caused by noise increases, should be timely cleaning crude filter.

4. Fine filter used after period of time, high pressure for pollutants caused jams, should be timely 0.4 MPa clean or replace.

5. If oil filter vehicle no oil pump, should check whether correctly, steering pump suction mailbox to sealing is reliable, oil absorption mouth whether leave oil absorption, oil or already finished.

6. When found pais decrease flow, should check whether the rough and fine filter clogging pump shaft seals, whether caused by the wear or to blow out, inhaled air.

7. Filtering pressure drop suddenly, please check whether it is fine filter breakdown.

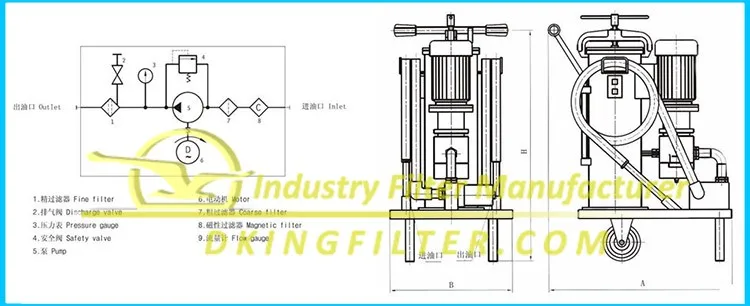

Model

Nominal flow(L/min)

Gross micron rating  (um)

Fine micron rating (um)

Original pressure loss (MPa)

Motor power(kw)

Motor voltage (V)

Weight (kg)

Sixe(mm)

H

A

B

LUC-16×#

16

100

3

5

10

20

30

No more than 0.02

0.37

380

60

920

470

350

LUC-40×#

40

0.75

90

930

560

400

LUC-63×#

63

1.1

100

960

560

400

LUC-100×#

100

1.5

100

960

560

400
