Промышленное оборудование для дозатора клея из жидкого стекла и эпоксидной

Цена:10 800,00 $ - 11 800,00 $*

Количество:

Products Description

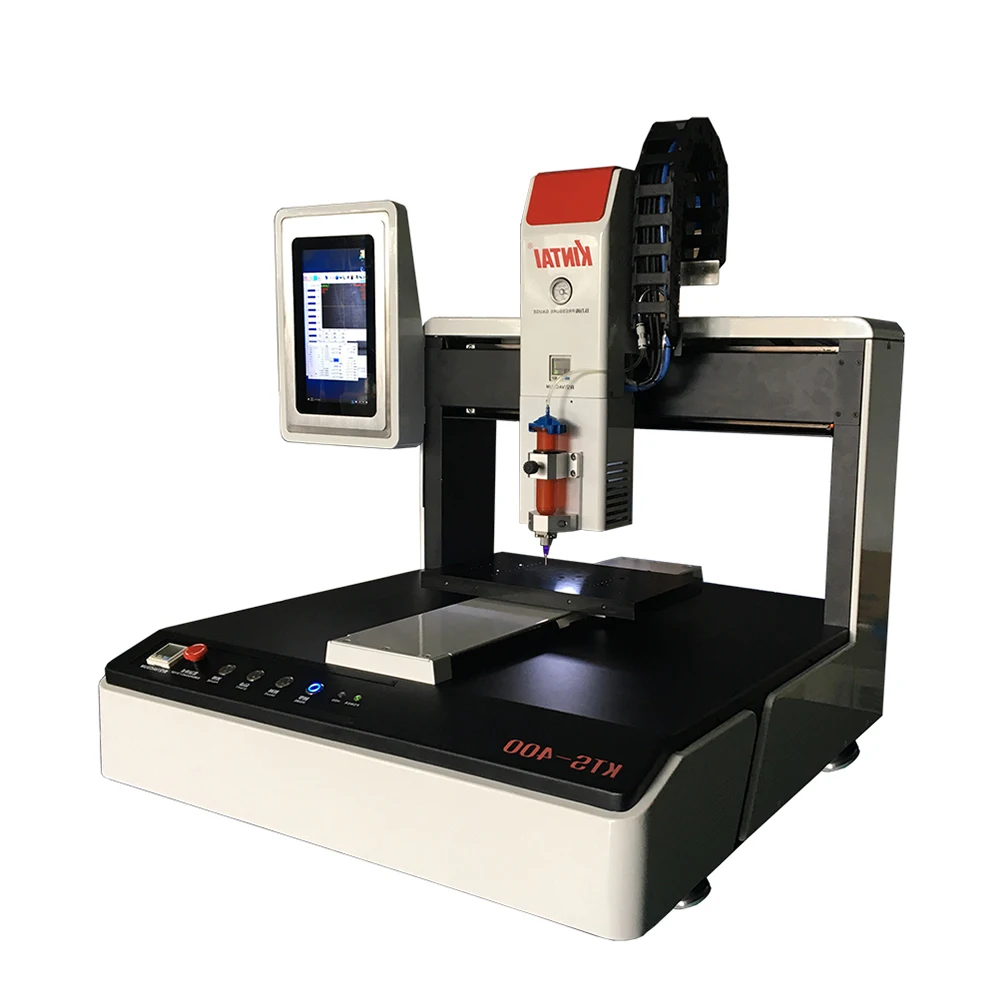

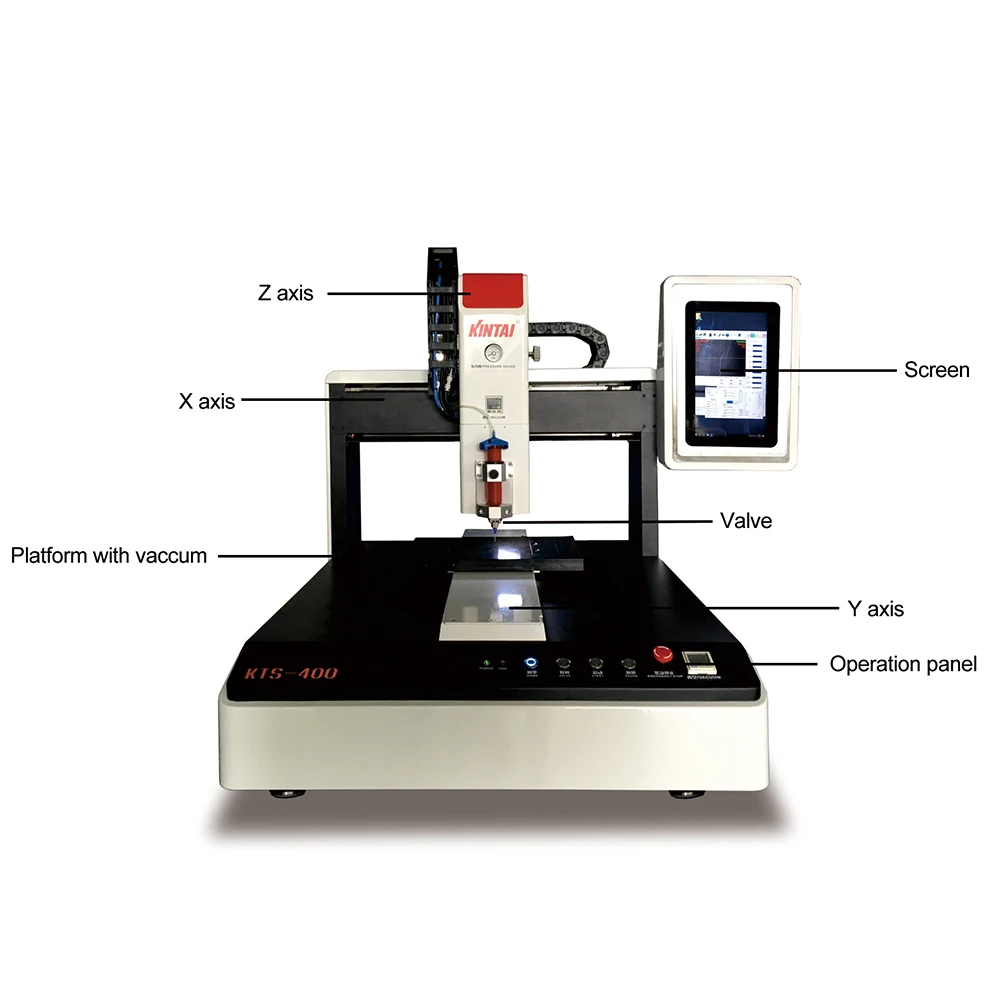

KTS-400 Bench Top Fluid Dispensing Robot

Features:

1.Computer Control, Windos OS;

2.Servo Motor + Ball Screw Driven;

3.X,Y,Z robotic arms repeatability accuracy up to 0.015mm;

4.Hidden PC design, compact external dimension;

5.Dispensing bench with Vacuum absorption function;

6.Visual dispensing patterns,easy programming;

Products Parameters

MODEL	KTS-400 Glue Dispensing Machine
Repeatability Accuracy	±0.015mm/Axis

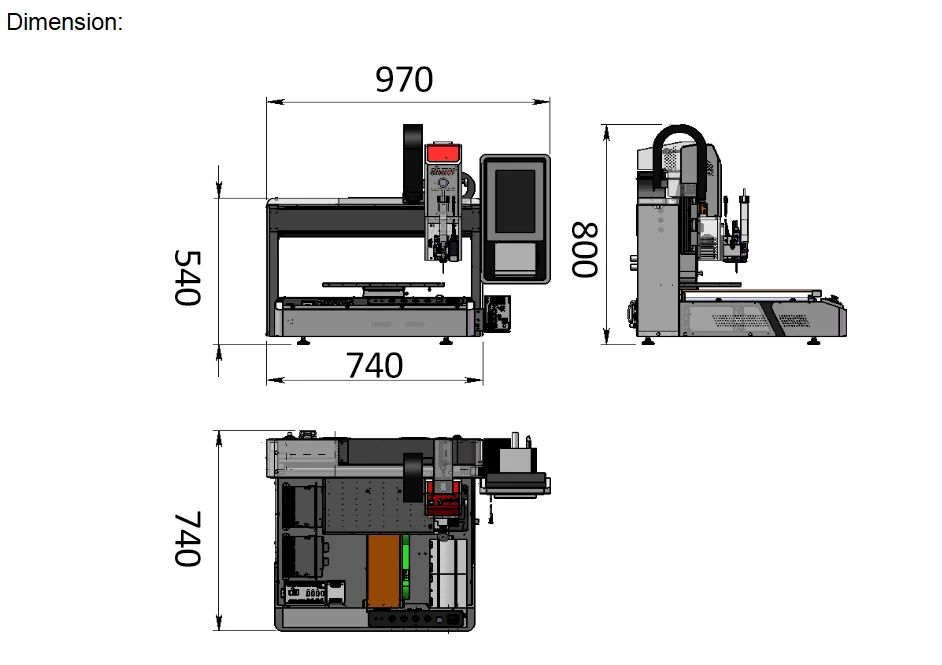

X/Y/Z Working Dispensing Range	X400mm * Y400mm * Z100mm
XY/Z Speed	Max:800/500 (mm/s)
Motion/Drive System	Servo Motor, Ball Screw, Linear Slide
Control Method	Industrial Computer + Motion Controller + LCD Display
Positioning	300,000 Resolution CCD Vision Camera
Material Supply(customized)	Glue Tank(2600ml optional) 5cc/10cc/30cc/50cc Cartridge(optional) 30cc syringe
Laser Height Measurement	Automatic Laser Height (precision:0.001mm) Detection & Z Axis Height Calibration Optional
Power Supply	AC 110/220V, 50/60Hz, 1Kw
Air Pressure	0.5-0.7Mpa, 0.2m²/h
CAD Impot	DXF Format
Low Fluid Sensor/Warning	Optional
Memory Capacity	1000 Programs - Unlimited (Data Storage via USB)
