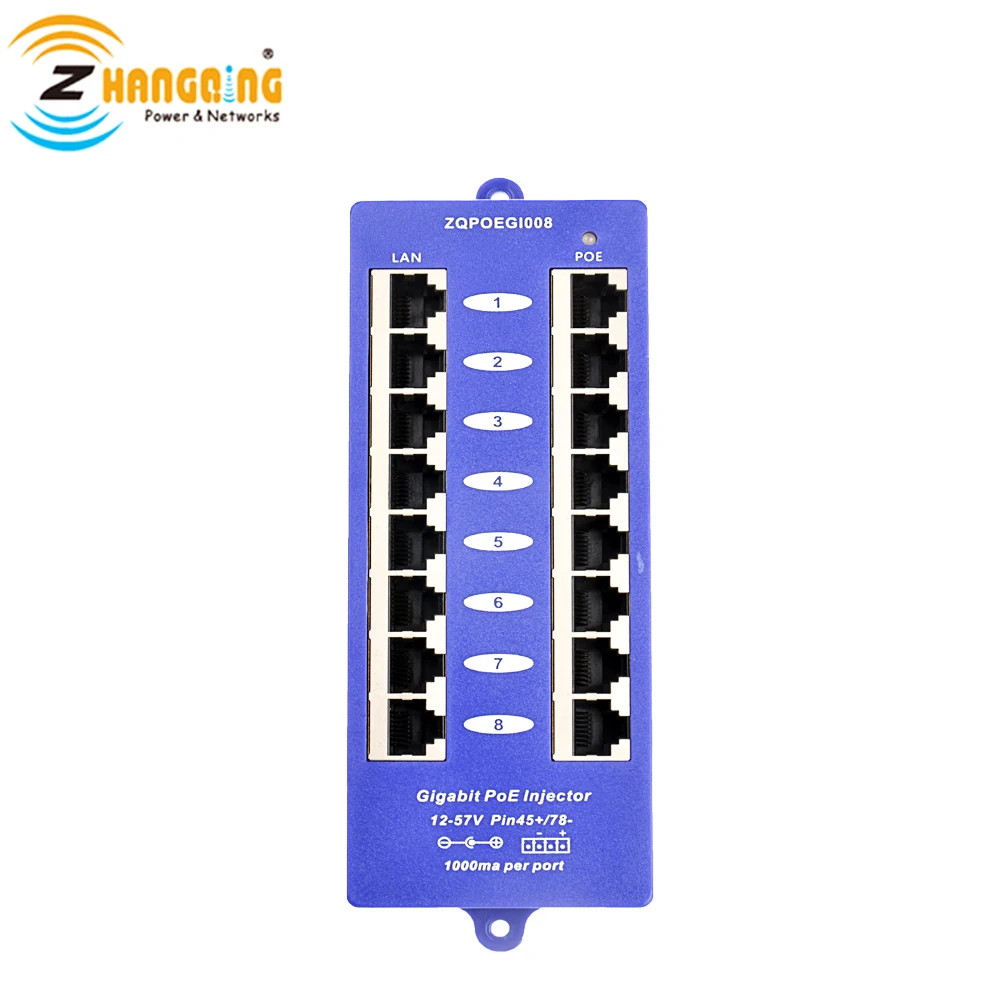

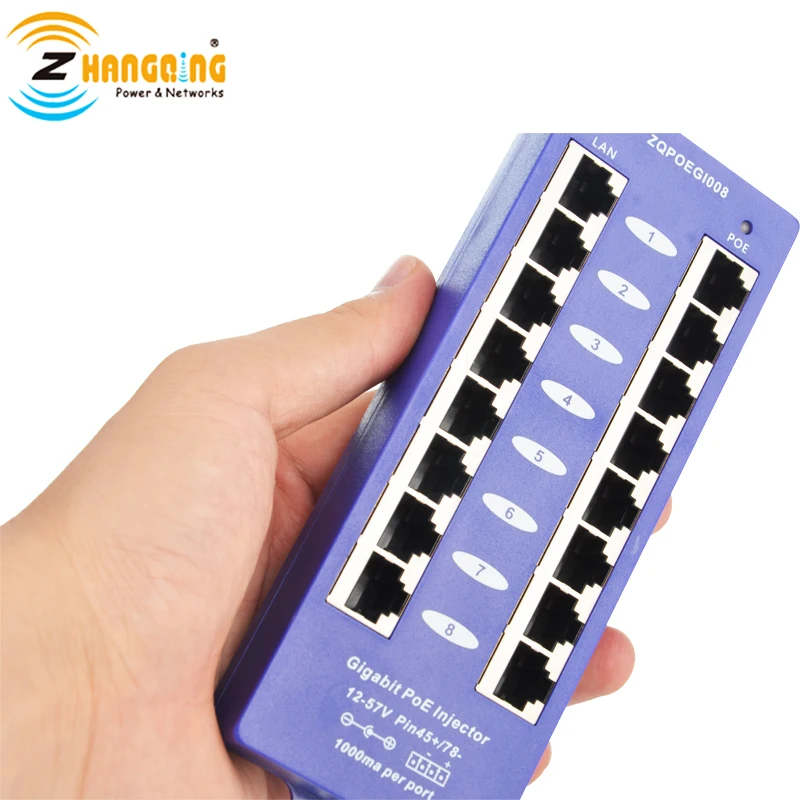

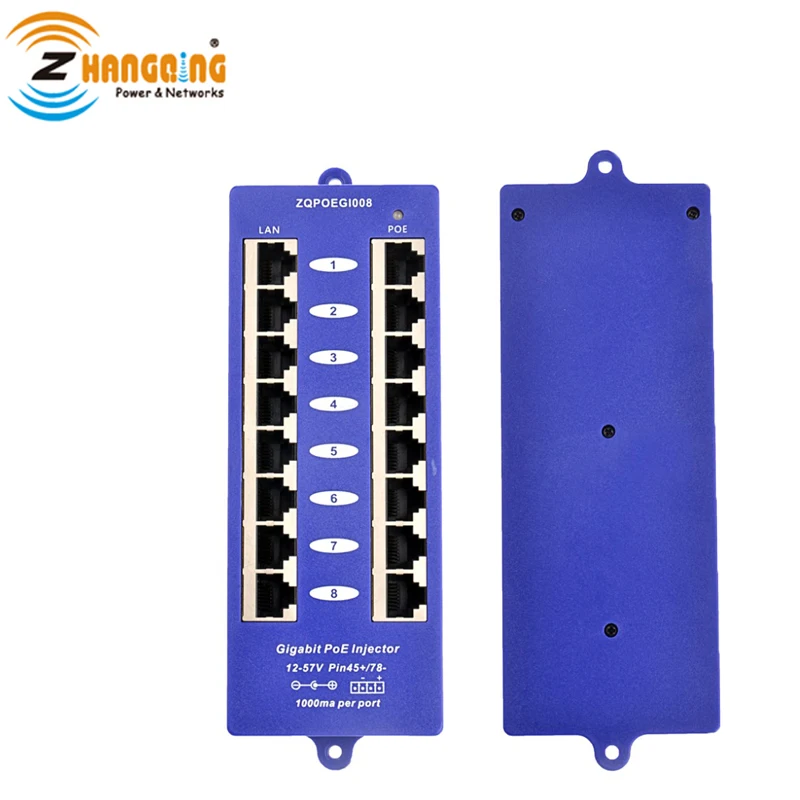

1000Mbps PoE Injector PoE Midspan Patch Panel 8 Port 802.3af/at Standard

FEATURES

1. With POE and LAN port
2. With 2.1*5.5mm DC Female dock
3. Pin4/5 positiv, Pin 7/8 negiative

5.Use with any ethernet switchn7/8 passive
4. CE/ROSH certificate

6.Flexible power(DC 12V TO 56V)
7.10/100/1000Mbps fast ethernet
8.Ideal for IP Cameras,VOIP,WiFi
9.8 Port Injector(8 Lan&8 Lan+PoE port)

OVERVIEW

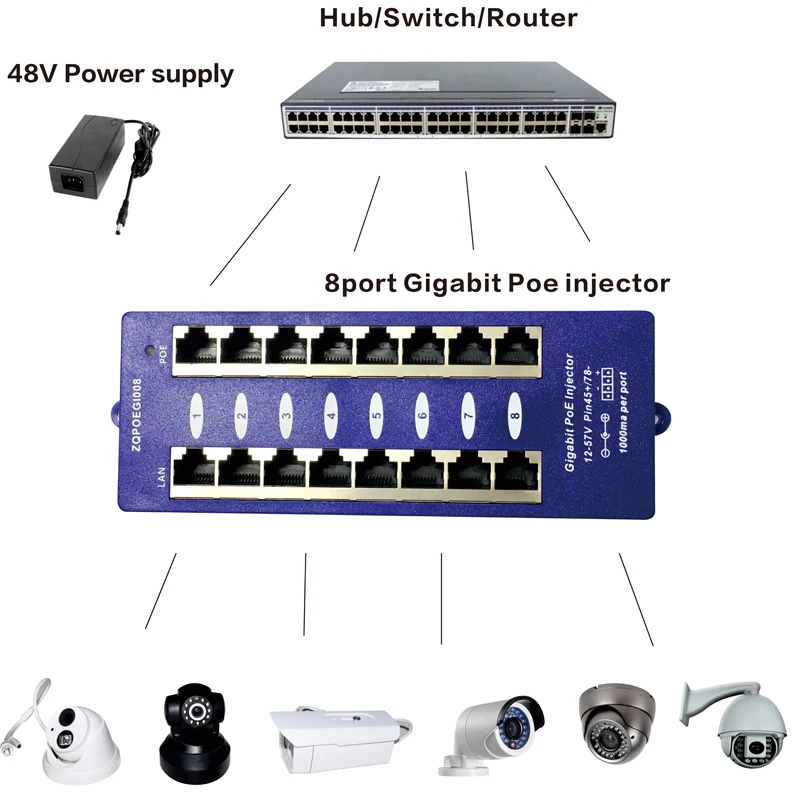

The ZQPOEGI008 passive Poe Injector is used 10/100/1000M Ethernet, The LAN rj-45 sockets is

form “Switch/PC/HUB ” 1/2&3/6 are transmitting data . The POE rj-45(power+data) socket is

to deliver data and power . Pin 1/2 & 3/6 transmitting data, Pin 4/5(+)&7/8(-) for power.

Passive PoE is composed of 8 set of Rj45 sockets and one 60V DC power jack.

Input power requests 60W or more Ac To Dc Power converter.The input dc hole diameter

is 2.1mm and the other end OD id is 5.5mm.The sum total output power must be lower than

the Max AC-DCpower converter. If not, it is necessary to consider taking power converter.

There commended formula for AC-DC power 10W per RJ45 set (1 set = 2 x Rj45 sockets).

For example, 8 x 10W = 80W for 8 port Passive PoE panel .

LED Indicator

POWER LED

POWER OFF     --Off                    4/5 (V+),7/8 (V-)--Green                    4/5 (V-),7/8 (V+)-- Rad

SPECIFICATIONS

1.Panel 8 integrating passive POE injector suitable for powering up to eight devices.

2.The RJ45 connectors on one side are connected Ethernet ports with no power (switch)

on the opposite side of the device used to connect power for Ethernet cable.

3.Are used to power the two unused pairs of the Ethernet cable.
4.Power couples: 4,5 (positive pole) / 7,8 (negative pole)

HOWTOORDER

ZQPOEGI008                                    8 PORT POE Panel                                   4/5+,7/8-

Note

1.The installation site must be away from heat source and electromagnetism interference source,

non-corrosive gas and metal dust.
2.Must not block the cooling hole of the equipment.
3.Installation must be stable fixed placing, not a violent shock.
4.Prevent to crash and conflict with other equipment during the installation, so as not to cause

local damage of the machine surface.

5.When storing, must be kept in dry warehouse, not exposure to sun and rain.
