Характеристики
Product Description

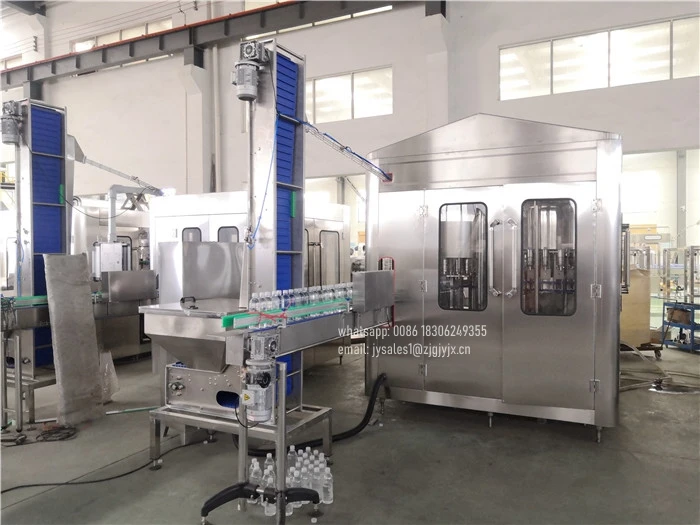

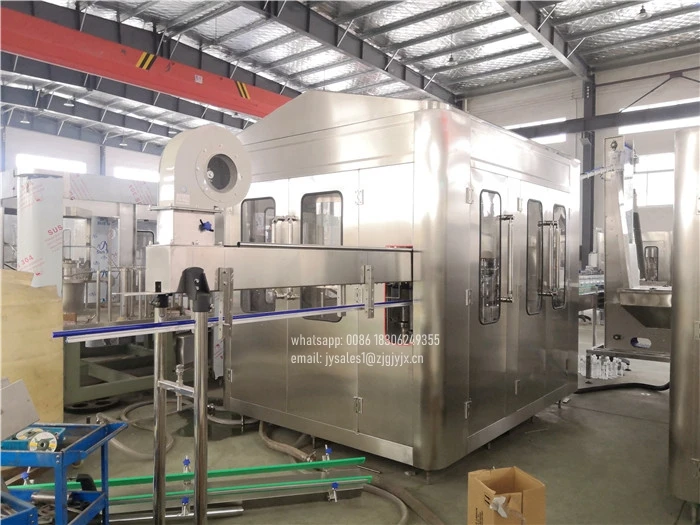

* CGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.
* Different models can satisfy various requirement of output from 2000BPH to 30000BPH.
* The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.
* Filling way using the gravity or micro pressure filling, make the speed is faster and morestable, so with the same model our machine output is higher and more efficient.
* The machine adopts advanced Mitsubishi programmable controller (PLC) to control，run automatically, inter working with inverter running more stable and reliable.
* The photoelectric sensor detect running stateof all parts, with high degree of automation, easy operation.
* Different models can satisfy various requirement of output from 2000BPH to 30000BPH.
* The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.
* Filling way using the gravity or micro pressure filling, make the speed is faster and morestable, so with the same model our machine output is higher and more efficient.
* The machine adopts advanced Mitsubishi programmable controller (PLC) to control，run automatically, inter working with inverter running more stable and reliable.
* The photoelectric sensor detect running stateof all parts, with high degree of automation, easy operation.

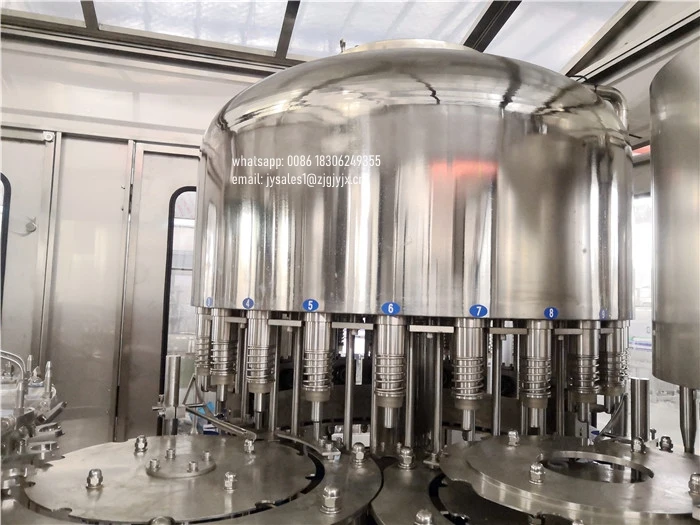

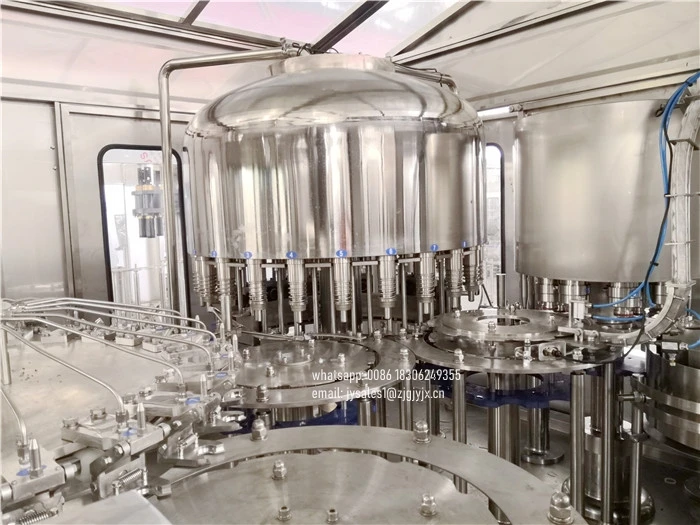

RINSING FILLING
CAPPING FINAL PRODUCT
Specification
Model | CGF24-24-8 |
Capacity | 10000bph (500ml PET bottle) |
Bottle Height | 150-320mm |
Bottle Diameter | 40-108mm |
Filling Temperature | ambient |
Filling Technology | gravity filling |
Applications | purified water and mineral water |
Power supply | 380V 50Hz 3Phases or customized |
Total power | 6.57KW |
Dimension | 2750*2200*2300mm |
Weight | 5000kg |
We can provide the complete line plants:
Related products
water treatment system
raw water tank--water pump--silica sand filter-- active carbon filter-- sodium- ion exchanger-- precision filter
--reverseosmosis system --Ozone sterilizer --pure water tank
--reverseosmosis system --Ozone sterilizer --pure water tank
automaitc sleeve labeling machine
The machine can be used for various bottle types, such as: round bottle, square bottle, flat bottle, curve bottle, cup, and so on.
automatic shrink wrapping machine
350/500/550/600/750/1000/1500/2000ml
large package: 4*6, 4*5
Small package: 3*4, 3*5 (2)1L/1.5L/2L/2.5L
large package:3*3,3*4 Small Package:2*2,2*3
large package: 4*6, 4*5
Small package: 3*4, 3*5 (2)1L/1.5L/2L/2.5L
large package:3*3,3*4 Small Package:2*2,2*3
PET bottle making machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
air conveyor
Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are blocked on the neck in the
conveyor and transported into filling machine by blowing power.
conveyor and transported into filling machine by blowing power.
Belt Conveyor System
Stepless adjustable speed motor
Adopt the excellent engeering platstic
The bracket is stainless steel.
FAQ
1. A: Are you factory?How many workers do you have?
B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.
2. A: What about after sale service?
B: 12months of electrical part and 18 months of mechanical part after machine installed and running normally.
.3. A: What do we do if we encounter problem about the machine ?
B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).
5. A: How can you control the quality and delivery?
B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery.
.
.
