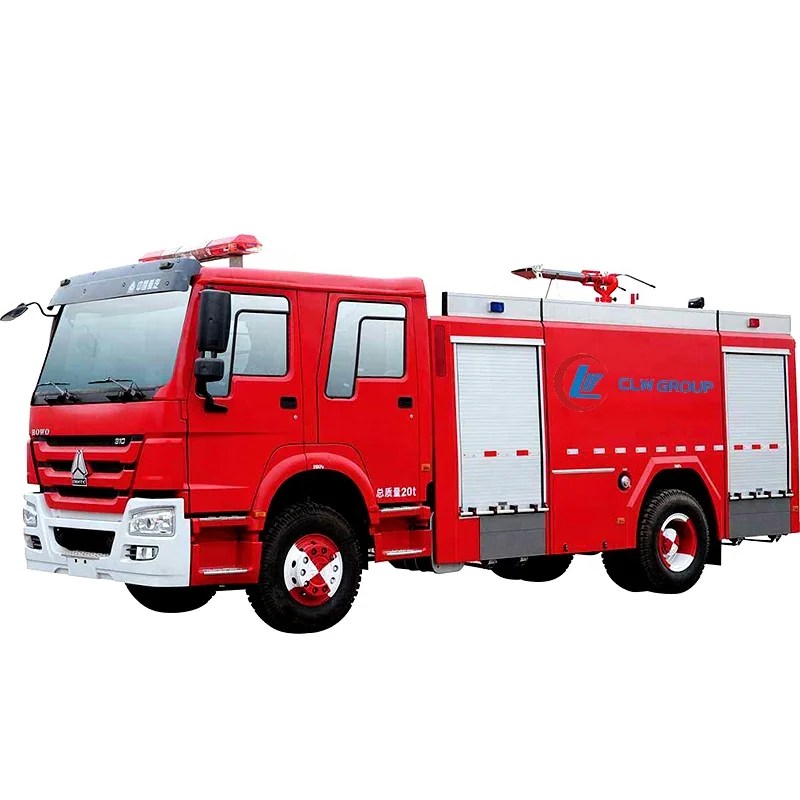

Hot sale water/foam howo new fire truck/ 10000 liter aerial tower fire truck
A firefighting apparatus is vehicle that has been customized for use during firefighting operations.
Our vehicles are highly customized depending on their needs and the duty they will be performing. These duties can include firefighting, vehicle extrication, dangerous goods investigations, urban search and rescue, medical emergency, swift water rescue and plane crashes.
Item | Unit | Description | ||||||||
Model | Howo brand Fire Truck | |||||||||
Dimension | mm | 8780*2500*3460 | ||||||||
Tank Dimension | m3 | Water Tank | Foam Tank | |||||||
8~10 | ||||||||||
Material | Carbon Steel | Stainless steel | ||||||||
Curb Weight | kg | 11350 | ||||||||
Wheel Base | mm | 4600 | ||||||||
F/R track base | mm | 2022 / 1830 | ||||||||
F/R Axled-Load | Kg | 7300 / 13000 | ||||||||
Approach/Departure angle | . | 16 / 10 | ||||||||
Traction system | 4*2, Or 4*4 | Tire Specification/Number | 12.00-20 / 6+1 Units | |||||||
Max speed | 100 km/h | Number of axles/ability | 2 | |||||||
Engine model | WD615.92 | Emission/kw | 9726 ml/196 kw, 263 Hp | |||||||
Diesel, 6 Cylinder , direct-line, turbocharge and Water Cooling | ||||||||||
Engine Manufacturer | Sino Truck Engine Power Group | |||||||||
Steering | Power | Transmission | 9F&1R | |||||||
Cab passenger | 6~7 | Electric System | 24V | |||||||
Dirve system | Left hand Or Right hand driven. | |||||||||
Fire Cannon Specification on the top fo fire truck | ||||||||||
Fire Cannon model | PS 50, water | Working Range | Water >65 m | |||||||
PP 24, Multi | Foam >60 m | |||||||||
Working angle | - 30 ~ 80 | Operation | Mannual | |||||||
working pressure | 1~1.2 Mpa | |||||||||
Flowing Speed | 50 L / s | |||||||||
Fire Pump Specification | ||||||||||
Fire Pump model | CB 10 / 60 | |||||||||
Flowing Speed | 60L/s | Pressure | ||||||||
Flowing Speed | 42L/s | Pressure | 1<P | |||||||
Water input Port | DN 125mm x 1 | Water suction pipe | 8 m, one Unit | |||||||
Liquid Output Port | DN 80mm x 2 , with ball valve control | |||||||||
Liquid Output Port | DN 65mm x 2, with ball valve control | |||||||||
Outside water input port | ||||||||||
Liqid input Port | DN 65 x 2 Unit, at two side of fire truck | |||||||||
Foam tank specifiation | ||||||||||
2000 liter, pipe and valve are all stainless steel material | ||||||||||
Installing | ||||||||||
Long beem alarm light, light detector x2~12V60W, 5 Unit Window type warehous, Rear climp ladder |
The above-mentioned informations are for reference only. We can produce according to your requirement. If you have any questions, please feel free to contact me at any time.
Fire truck produce flow:

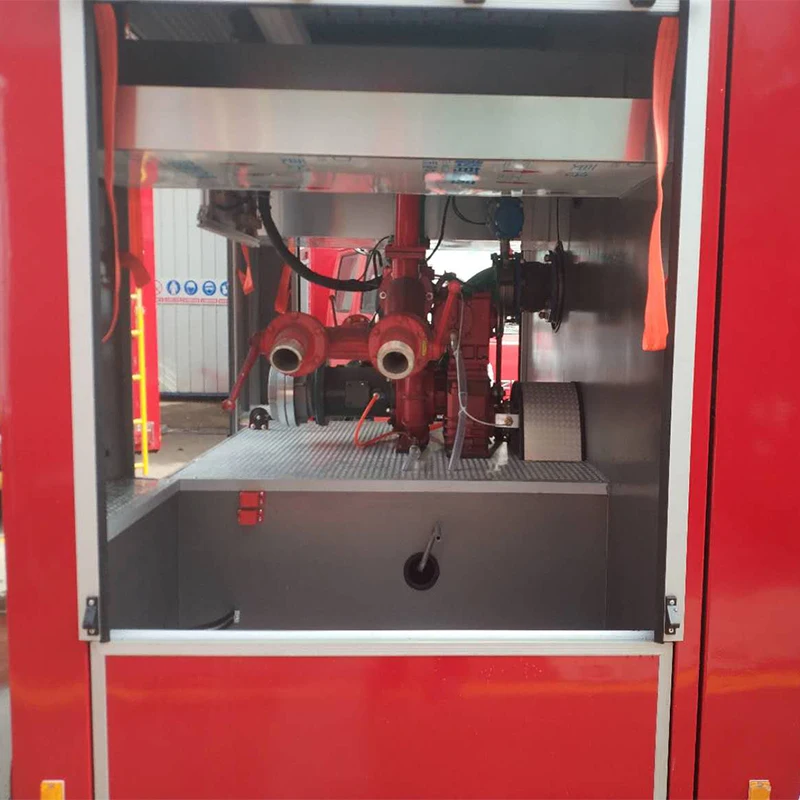

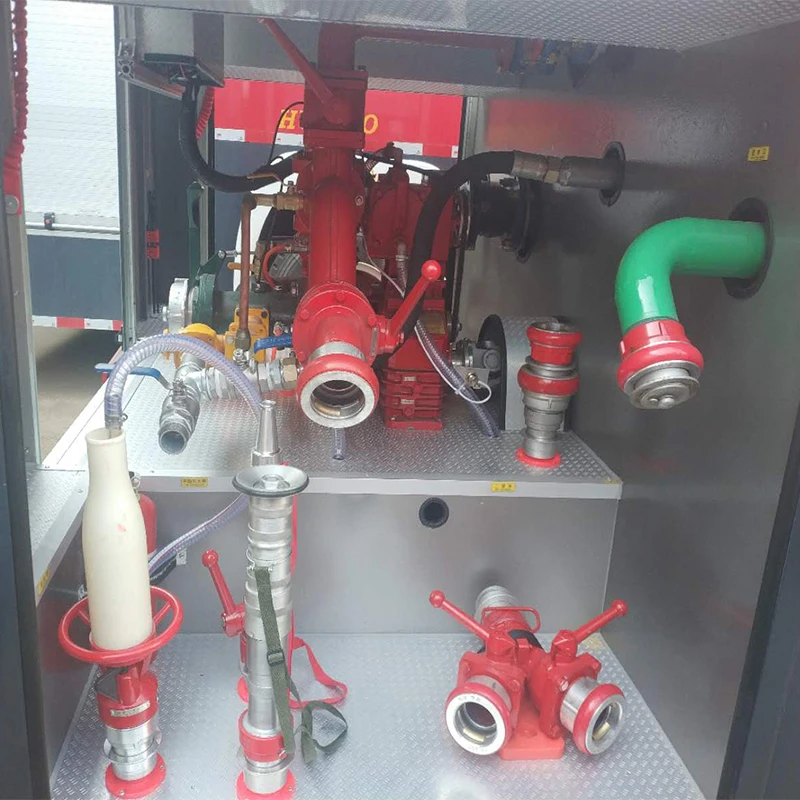

The parts of fire truck:
The work shop of fire fighting truck:
Packaging&Shipping
1. TT or LC AT SIGHT 30% down payment, 70% balance paid before shipment, all by T/T or by 100% LC at sight.
Min order: 1 unit
Delivery time: 15-20days after get the deposit or LC
Packing: nacked package, waxed before delivery by sea.
Documents: B/L, Commercial invoice, Packing list, Certificate of origin etc
Company information:
Cheng Li Special Automobile Corporation Limited, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW and SNJ. Our company has independent export right and has amount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.
Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.
Factory showing:
1. Factory direct supply: reliable quality and fast delivery.
2. Warranty: From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs.
3. Tracking service: lifelong.
4. Chassis question: When the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station.
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
Q1: Are you manufacturer or trading company?
A: We are direct manufacturer with more than 11 years’ experience.
Q2: What is the lead time?
A: Normally it will take 10-25 working days after getting down payment.
Q3: How should I pay for you if I place order to you?
A: We prefer T/T, 30% as deposit, balance before shipment, L/C is also acceptable and negotiable.
Q4: If I do not like the color, could I change the color?
A: Yes, most of our trucks have standard colors, if all colors could not meet your needs; we could customize by your request.
Q5: Can you supply the spare parts of this truck?
A: Yes, We can supply the spare parts for all the trucks we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
Q6: Do you have oversea service?
A: When you have some problems which you cannot solve, we will arrange our engineers to your country to help you.
Q7: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
