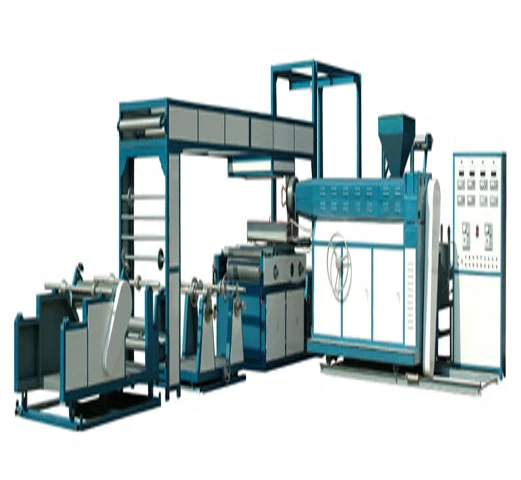

Laminating Machine

Description:

This machine laminates plastic film or Kraft-paper on the surface of PP or PE woven fabric with the adhesive material at melting status, or laminates color-printed OPP, CPP film to produce compounded bags.

This machine is highly automatic featured in advanced workmanship, easy operation, low power-consumption and high efficiency. It adopts double extrusion-dies with compounded double-roller to make even compounding. Its finished products are all high intensity and good performance both in application and appearance. This machine is equipped with auto-correcting device for auto guiding and sending processed material. It is speed-adjustable, easy to operate and adaptable to various sizes o

Main Technical data:

Model	SJ-FMZ1000
Die Width(mm)	1000
Die Number	2
Max. Coated Film Width (mm)	800
L/D Ratio of Screw	1:25
Power of  Extruder Motor (kw)	11
Heating Power (kw)	30
Coating Speed (m/min)	30--80
Installation Dimension (L×W×H) (m)	16 × 6 × 2.6
Weight (kg)	6000



Certificate



1.Has  several  senior engineers service in many countries, all the year round with our after-sales office in multiple countries.

2.Machines with good quality in one year, life-long maintenance.

3.Have many machines can be monitored via the Internet, solve customer requirements in a timely manner.

4.Has several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.

5.Undertake various non-standard machinery, solve the customers' requirements.
