Солнечный инвертор насоса
Чистая синусоида 3 фазы солнечный насос инвертор с MPPT 30kw

Чистая синусоида 3 фазы солнечный насос инвертор с MPPT 30kw

Категория: Солнечный инвертор насоса >>>
Поставщик: Foshan,Sunchees,Energy,Technology,Co.,Ltd.

Цена:0,38 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.80 $*	0.39 $*
Aug-16-2025	0.88 $*	0.39 $*
Jul-16-2025	0.27 $*	0.42 $*
Jun-16-2025	0.77 $*	0.79 $*
May-16-2025	0.97 $*	0.71 $*
Apr-16-2025	0.83 $*	0.0 $*
Mar-16-2025	0.29 $*	0.4 $*
Feb-16-2025	0.47 $*	0.29 $*
Jan-16-2025	0.22 $*	0.48 $*

Характеристики

Pure Sine Wave 3 Phase Solar Pump Inverter With MPPT 30kw 45kw

Product Description

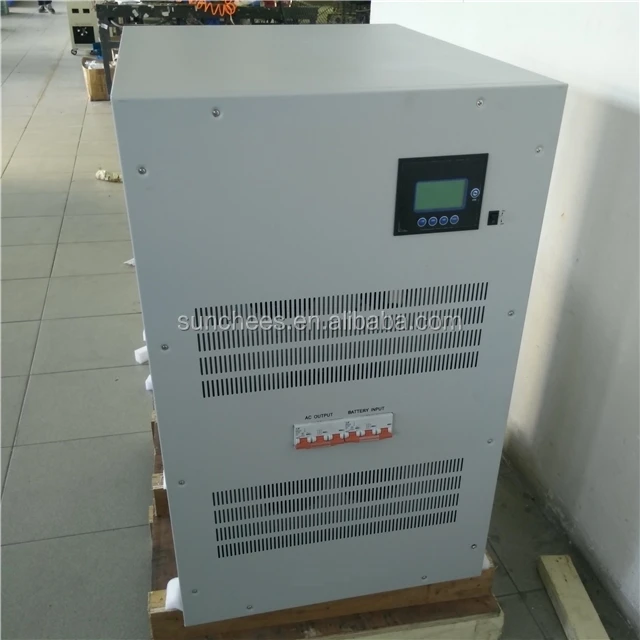

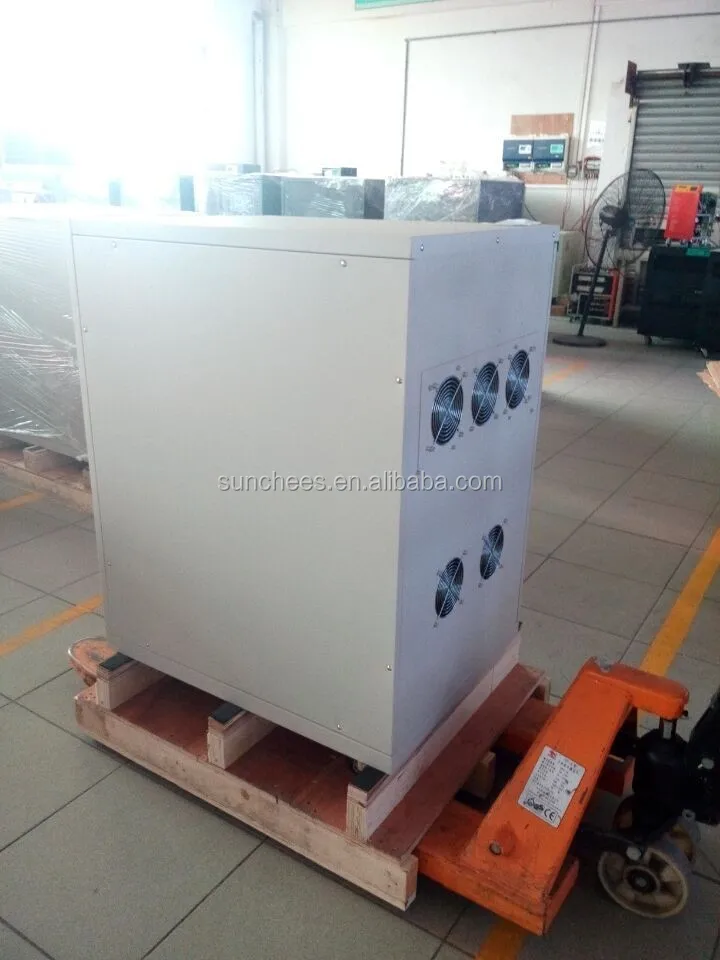

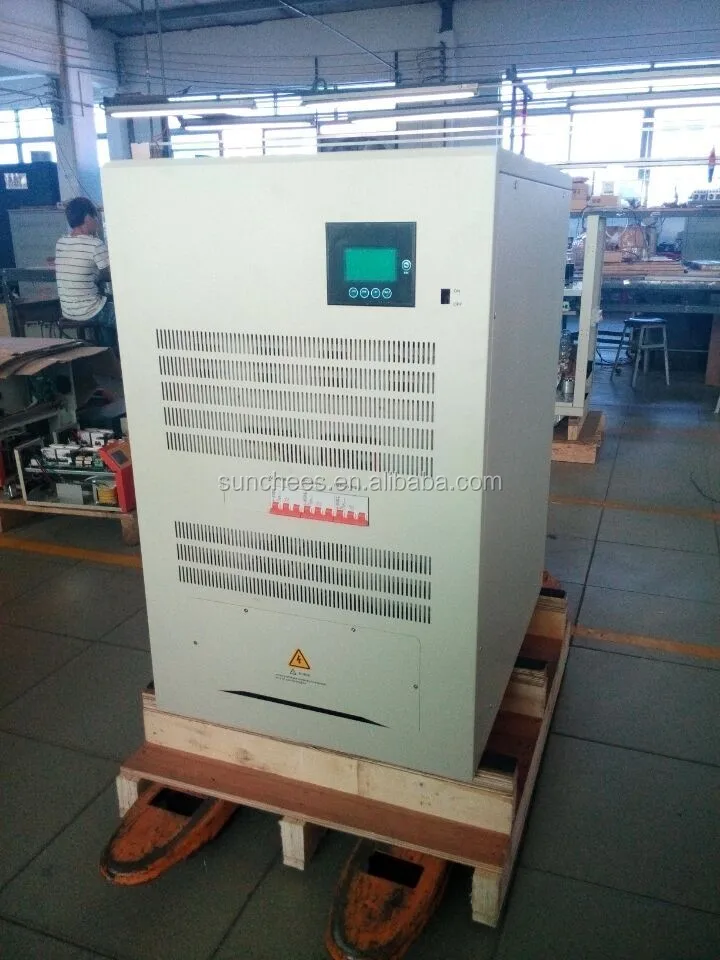

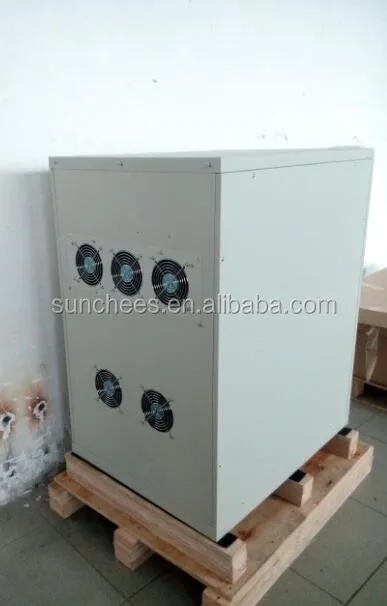

Sunchees 30kw 3 phase inverter features

1. This series of products use high-speed microprocessor (MCU) and programmable logic devices (CPLD), the control software programming. Power device adopts the most advanced fifth-generation low loss of high power IGBT and static switch. This series of products is the latest control devices and the most advanced software for the integration of power supply products. Widely used in building lighting, road lighting, electric power, communications, medical, industrial mining enterprises etc.

2. In some cases, the inverter device can cause radio interference, some sensitive devices (such as television, radio, etc.) may be disturbed, so you should protect the interference from it for a long distance.

30kw 3 phase pure sine wave inverter specification

Model (IGBT Model )		T30KW
Rated capacity		30KW
Working mode and principle		DSP precision control technology and double built-in microprocessor PWM (pulse width modulation) output power is completely isolated
AC input	phase	3phases +N+G
	voltage	AC220V/AC380V±20%
	frequency	50Hz/60Hz±5%
DC system	DC voltage	DC192V/DC220V/DC240V/DC384V (You can choose16-32pcs 12V batteries)
	Floating battery	Single section battery13.6V×battery No.(such as 13.6V×16pcs=217.6V)
	Cut-off voltage	Single section battery10.8V×battery No.(such as 10.8V×16pcs=172.8V)
AC output	phase	3phases +N+G
	voltage	AC110V/AC380V±1%(steady state load)
	frequency	50Hz/60Hz±5%(city power) 50Hz±0.01%(battery powered)
	efficiency	≥95%(load100%)
	Output waveform	Pure sine wave
	Total harmonic distortion	Linear load<3% nonlinear load<5%
	Dynamic load voltage transients	<±5%(from 0 to 100% saltus)
	Back in time	<10ms
	Switch time of battery and city power	3S-5S
	Unbalanced voltage	<±3% <±1%(balanced load voltage)
	Over load ability	120% 20s; more than 150%, 100ms
System index	Working efficiency	100%load≥95%
	Operating temperature	-10~40℃
	Relative humidity	0~90%no condensation
	noise	40-50dB
structure	Size D×W×H(mm)	580750920
	Weight(Kg)	270
