Солнечный насос, инвертор для орошения 20 кВт 55 кВт, трехфазный
US $100.00-$500.00
Инвертор солнечного насоса для водяных насосов переменного тока INVT BPD Series 220 230 240
- Категория: Солнечный инвертор насоса >>>
- Поставщик: Shenzhen,Invt,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1269.78 $* | 1294.13 $* |
| Jul-16-2025 | 1029.3 $* | 1050.31 $* |
| Jun-16-2025 | 1249.48 $* | 1274.84 $* |
| May-16-2025 | 1239.28 $* | 1264.62 $* |
| Apr-16-2025 | 989.6 $* | 1009.38 $* |
| Mar-16-2025 | 1219.36 $* | 1243.21 $* |
| Feb-16-2025 | 1209.67 $* | 1233.11 $* |
| Jan-16-2025 | 1199.48 $* | 1223.25 $* |
Характеристики
Product Details

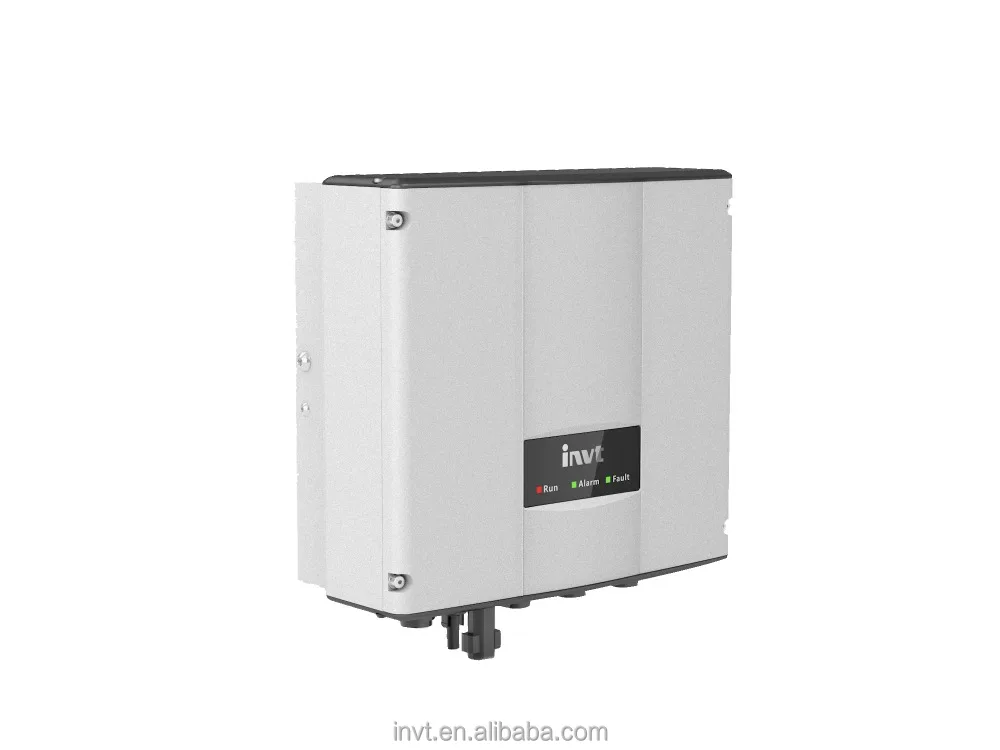

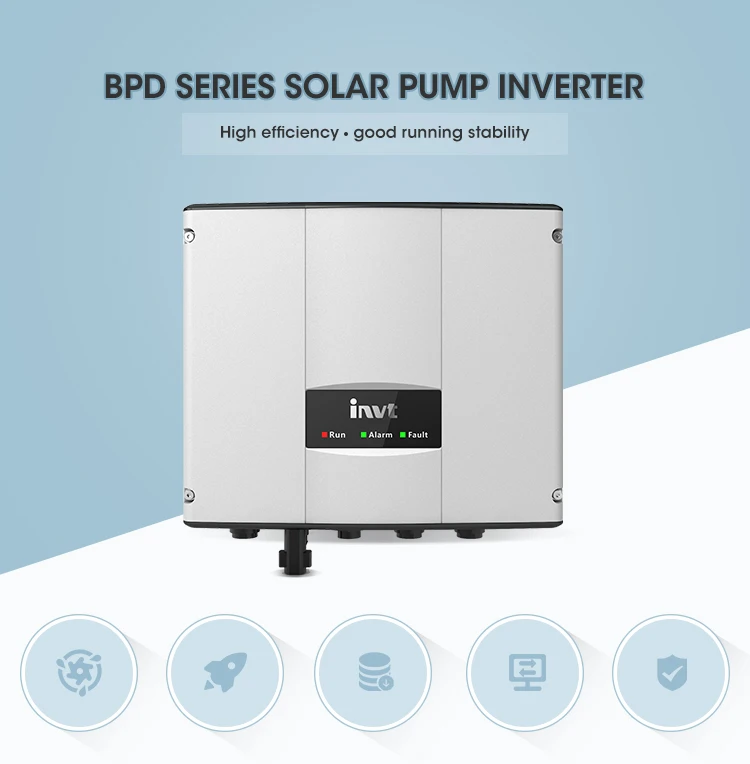

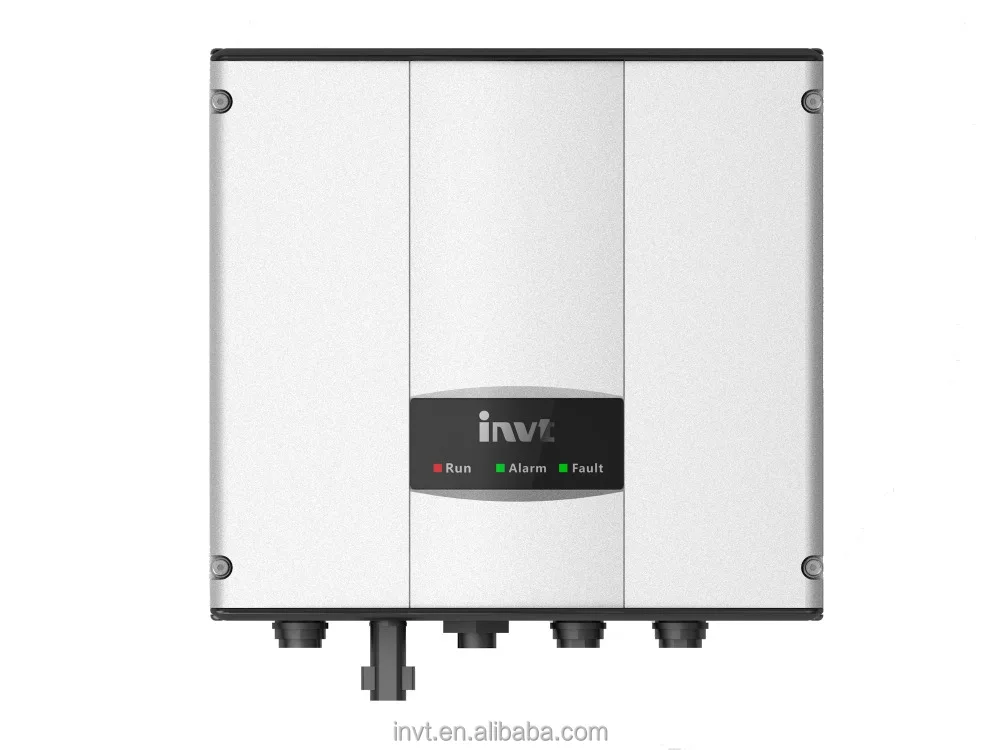

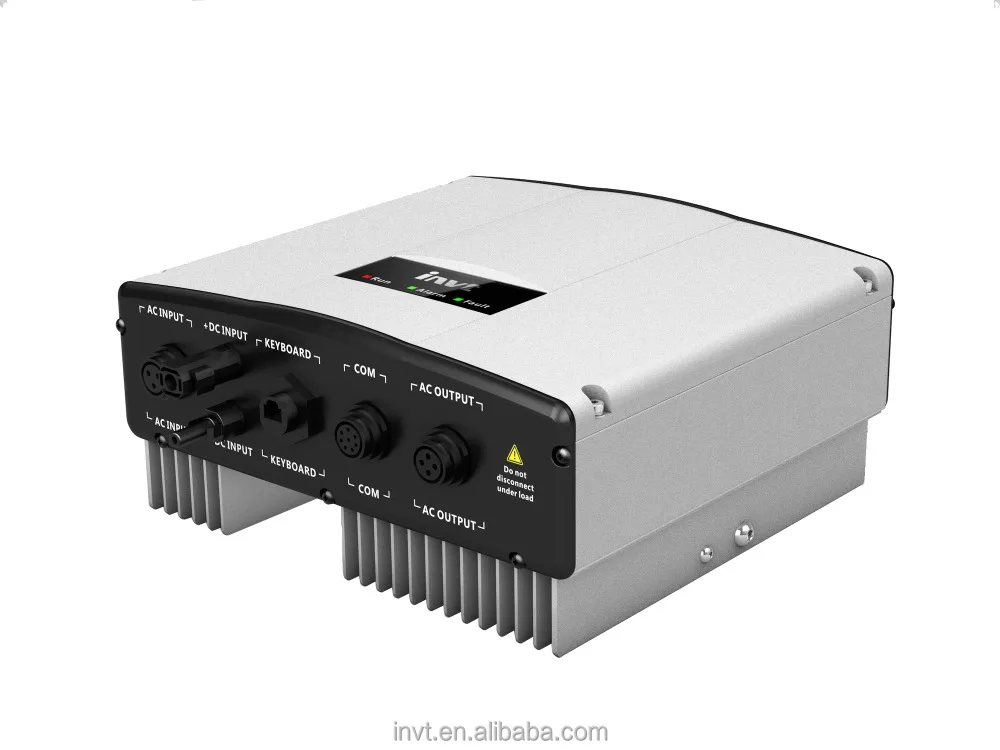

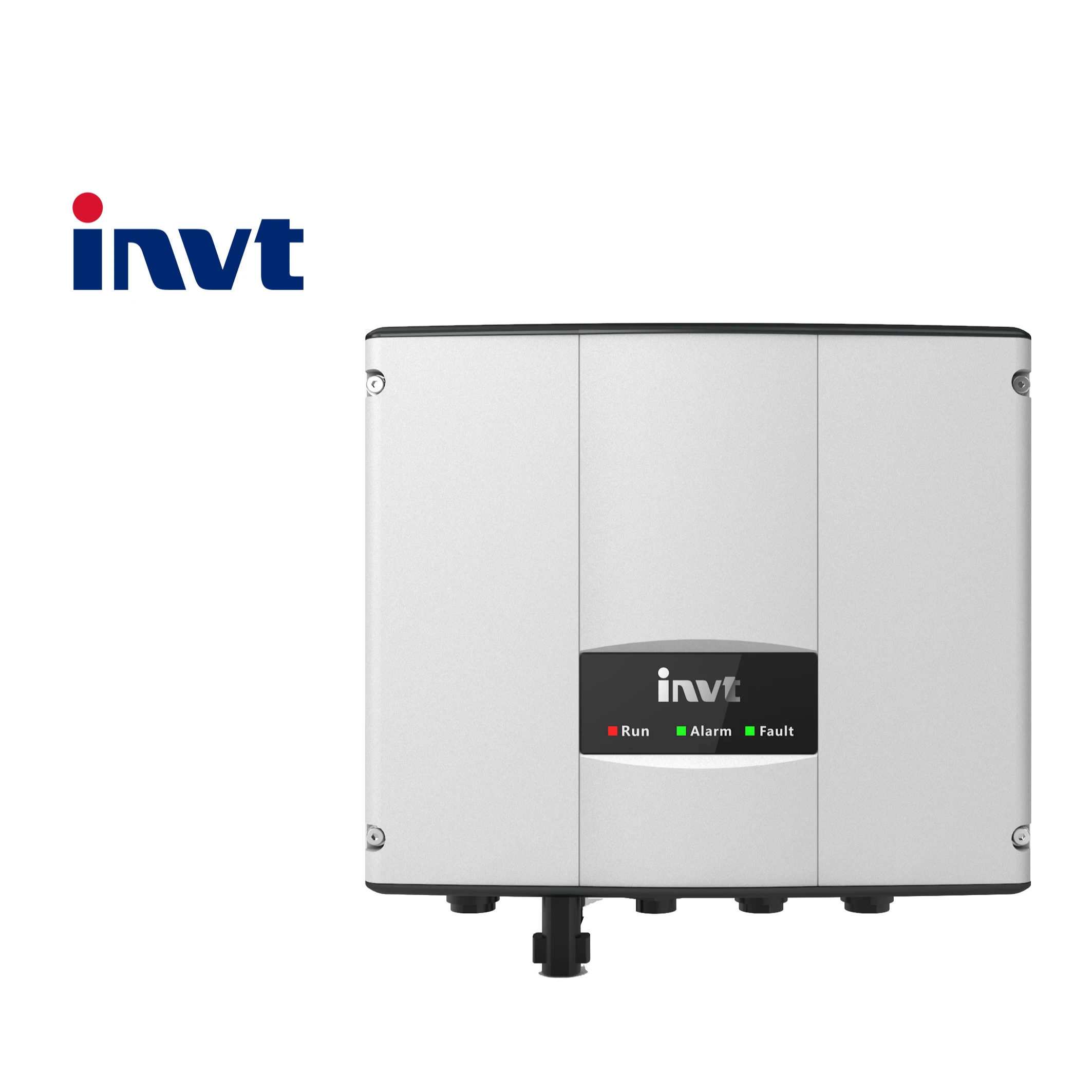

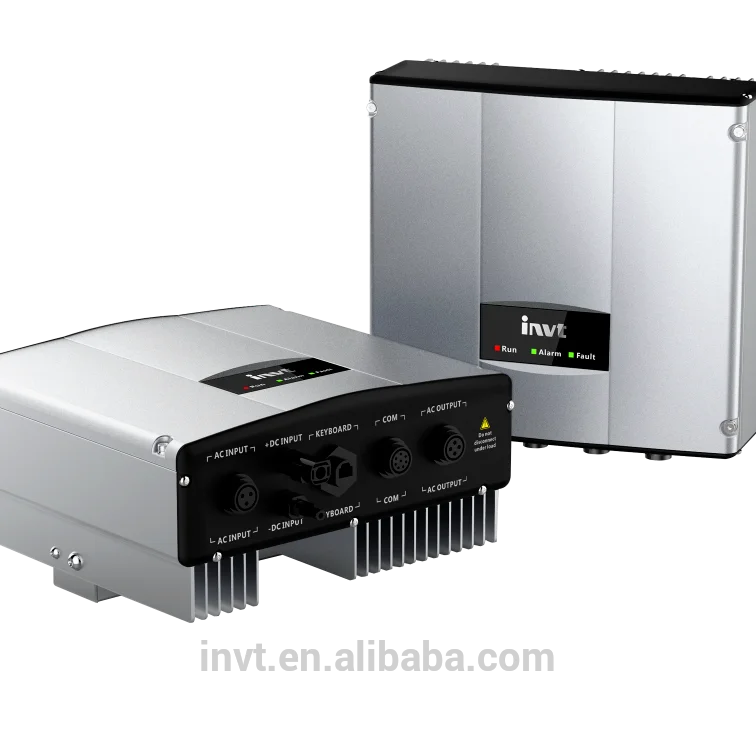

BPD Series Solar Pump Inverter
BPD series solar water-pump inverter adopts the dynamic VI MPPT technology and motor control technology, and is suitable for AC water pumps with prompt response, high efficiency and stable performance.
The features：
1. Support direct driving for single-phase motor (don't tear down Start Capacitor), also support the three-phase 220V motor.
2. One pump inverter can equip with mutiple motors, support vector control.
3. Protection class IP65 and fanless system design, apply quick connection terminals, with convenient installation, and meet various harsh outdoor environment.
4. Has a bypass function, can support 220V Utility Power input and diesel engine input; optional water level detection module and diesel engine start/stop module.
5. Low start voltage and wide input voltage range give more possibilities for accepting multi PV strings configuration and different type of PV module.
6. Digital intelligent control can Flexible adjusting and setting pump's speed range. In addition to soft start function also can provide lightning protection, overvoltage, over current, overload protection function etc.
Product Introduction
Layers Puzzle Type Parking Equipment
In some application, people need the pump working day and night, in order to increase the efficiency. If use the general solar inverter, people need to add the peripheral control devices to finish the switch circuit, make the power input from PV to AC grid. It will make the entire system more complex. And about the general solar inverter, it needs the high input PV voltage, to confirm the driver output voltage meet the rated voltage of water pump. a new product iMars BPD series solar inverter will supply a safe and complete solution.
Product Parameters
MODEL | BPD0K7TN | BPD1K5TN | BPD2K2TN | |||
Input (DC) | ||||||
Max DC Voltage (V) | 300 | 450 | ||||
Starting voltage（V） | 80 | 100 | ||||
Minimum working voltage（V） | 60 | 80 | ||||
MPPT Operating Voltage Range (V) | 80～250 | 120～400 | ||||
Number of MPPT/String | Single :MC4 | |||||
Max. DC Current(A) | 9 | 12 | 12 | |||
Bypass input（AC） | ||||||
Input voltage (VAC) | 220/230/240(1PH)（-15%～+10%） | |||||
Input frequency (Hz) | 47～63 | |||||
Input connect method (AC) | 1P2L | |||||
Output(AC) | ||||||
Rated power(W) | 750 | 1500 | 2200 | |||
Rated current(A) | 5.1（1PH） | 10.2（1PH） | 14（1PH） | |||
4.2（3PH） | 7.5（3PH） | 10（3PH） | ||||
Output voltage (Vac) | 0～Input voltage | |||||
Output connect method | 1P2L/3P3L | |||||
Output frequency (Hz) | 1～400 | |||||
Performance | ||||||
Control mode | Motor control technology | |||||
Type of motor | asynchronous machine | |||||
Other Parameter | ||||||
Dimension (H x W x D mm) | 280×300×130 | |||||
Weight (kg) | ≤10.5 | |||||
Protection | IP65 | |||||
Cooling | Natural Cooling | |||||
HMI | LED screen extend（not support LCD screen） | |||||
Communication | ||||||
External Communication | RS485/Single Digital Input/Analog Input (0-10V) | |||||
Certification | ||||||
Certification | CE；IEC61800-3 C3 | |||||
Working environment | ||||||
Ambient temperature | (-25℃～60℃ More than 45 ℃ derating) | |||||
Working altitude | 3000m（more than 2000m derating） | |||||
Design life | 5 years (warranty 18 months) | |||||
Recommended Solar Array Configuration | ||||||
250Wp（Open-circuit voltage 38V±3V） | 4*1 | 8*1 | 11*1 | |||
300Wp（Open-circuit voltage 45V±3V） | 3*1 | 6*1 | 9*1 | |||
Detailed Images
Our Advantages：
1. A high-tech giant owning 16 subsidiaries, 2 production bases and over 3000 employees
2. 12 major R&D centers，17 years of Technology R&D and patents number reaching over 850
3. Established more than 30 domestic offices and warranty centers and 8 overseas branches
4. Products sold to more than 60 countries and regions
5. 400 call center provides customers with around-the-clock technical consulting and repair service.
6. Provide professional products and industrial solutions
Product Details
BPD Series Solar Pump Inverter
BPD series solar water-pump inverter adopts the dynamic VI MPPT technology and motor control technology, and is suitable for AC water pumps with prompt response, high efficiency and stable performance.
The features：
1. Support direct driving for single-phase motor (don't tear down Start Capacitor), also support the three-phase 220V motor.
2. One pump inverter can equip with mutiple motors, support vector control.
3. Protection class IP65 and fanless system design, apply quick connection terminals, with convenient installation, and meet various harsh outdoor environment.
4. Has a bypass function, can support 220V Utility Power input and diesel engine input; optional water level detection module and diesel engine start/stop module.
5. Low start voltage and wide input voltage range give more possibilities for accepting multi PV strings configuration and different type of PV module.
6. Digital intelligent control can Flexible adjusting and setting pump's speed range. In addition to soft start function also can provide lightning protection, overvoltage, over current, overload protection function etc.
2. One pump inverter can equip with mutiple motors, support vector control.
3. Protection class IP65 and fanless system design, apply quick connection terminals, with convenient installation, and meet various harsh outdoor environment.
4. Has a bypass function, can support 220V Utility Power input and diesel engine input; optional water level detection module and diesel engine start/stop module.
5. Low start voltage and wide input voltage range give more possibilities for accepting multi PV strings configuration and different type of PV module.
6. Digital intelligent control can Flexible adjusting and setting pump's speed range. In addition to soft start function also can provide lightning protection, overvoltage, over current, overload protection function etc.
Product Introduction
BPD can let pumps use new solar energy, no need to waste too much electricity any more.
About the water pump application, most pumps for household is single phase pump, generally the input power is from AC grid. With the development of the photovoltaic industry, more and more people start to use the new energy, recent years the working efficiency of PV panel becomes more and more high, benefited from the development of the electronic control devices, the performance of the drivers and controllers are more reliable. But until now there is not a suitable solar driver for single phase pump, except INVT iMars BPD series inverter. In some application, people need the pump working day and night, in order to increase the efficiency. If use the general solar inverter, people need to add the peripheral control devices to finish the switch circuit, make the power input from PV to AC grid. It will make the entire system more complex. And about the general solar inverter, it needs the high input PV voltage, to confirm the driver output voltage meet the rated voltage of water pump.BPD series solar inverter will supply a safe and complete solution.
Product Parameters
MODEL | BPD0K7TN | BPD1K5TN | BPD2K2TN | |||
Input (DC) | ||||||
Max DC Voltage (V) | 450 | 450 | ||||
Starting voltage（V） | 80 | 100 | ||||
Minimum working voltage（V） | 60 | 80 | ||||
MPPT Operating Voltage Range (V) | 80～400 | 100～400 | ||||
Number of MPPT/String | Single :MC4 | |||||
Max. DC Current(A) | 9 | 12 | 12 | |||
Bypass input（AC） | ||||||
Input voltage (VAC) | 220/230/240(1PH)（-15%～+10%） | |||||
Input frequency (Hz) | 47～63 | |||||
Input connect method (AC) | 1P2L | |||||
Output(AC) | ||||||
Rated power(W) | 750 | 1500 | 2200 | |||
Rated current(A) | 5.1（1PH） | 10.2（1PH） | 14（1PH） | |||
4.2（3PH） | 7.5（3PH） | 10（3PH） | ||||
Output voltage (Vac) | 0～Input voltage | |||||
Output connect method | 1P2L/2P3L/3P3L | |||||
Output frequency (Hz) | 1～400 | |||||
Performance | ||||||
Control mode | V/F | |||||
Type of motor | Asynchronous machine | |||||
Other Parameter | ||||||
Dimension (H x W x D mm) | 255×300×130 | 280×300×130 | ||||
Weight (kg) | 6.4 | 7 | ||||
Protection | IP65 | |||||
Cooling | Natural Cooling | |||||
HMI | LED screen extend（not support LCD screen） | |||||
Communication | ||||||
External Communication | RS485/3 Digital Input/Analog Input (0-10V) | |||||
Certification | ||||||
Certification | CE；IEC61800-3 C3 | |||||
Working environment | ||||||
Ambient temperature | (-25℃～60℃ More than 45 ℃ derating) | |||||
Working altitude | 3000m（more than 2000m derating） | |||||
Warranty | 18 months | |||||
Recommended Solar Array Configuration | ||||||
250Wp（Open-circuit voltage 38V±3V） | 4*1 | 8*1 | 11*1 | |||
300Wp（Open-circuit voltage 45V±3V） | 3*1 | 6*1 | 9*1 | |||
