SG-490 промышленная машина для ламинирования обложек книг a2


Поделиться:


Цена:925,00 $ - 945,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-18-2025 1175.56 $* 1199.71 $*
Jul-18-2025 953.56 $* 972.50 $*
Jun-18-2025 1156.90 $* 1179.22 $*
May-18-2025 1147.80 $* 1170.18 $*
Apr-18-2025 916.23 $* 934.15 $*
Mar-18-2025 1129.52 $* 1152.30 $*
Feb-18-2025 1119.6 $* 1141.68 $*
Jan-18-2025 1110.57 $* 1132.4 $*

Характеристики


Product Description

SG-490 A2/A3/A4 Semi-Automatic Electric Laminating Machine With Auto Feed Paper

.

This machine covers a small area, is operated conveniently, run fast. It's equipped with automatic temperature-control and speed-regulation, automatic feeding. Several rolls or redundant rolls can be slit at one time, so this machine is regarded as a slitter.

The machine adopts pre-coated film as the material. It is widely used for lamination on the surface of window packing paper boxes, various books, maps, pictures, certificates, holographic cellphone etc. After the above products are laminated, they have the features of water-resistance, clear graphic arts and strong three-dimensional sense.

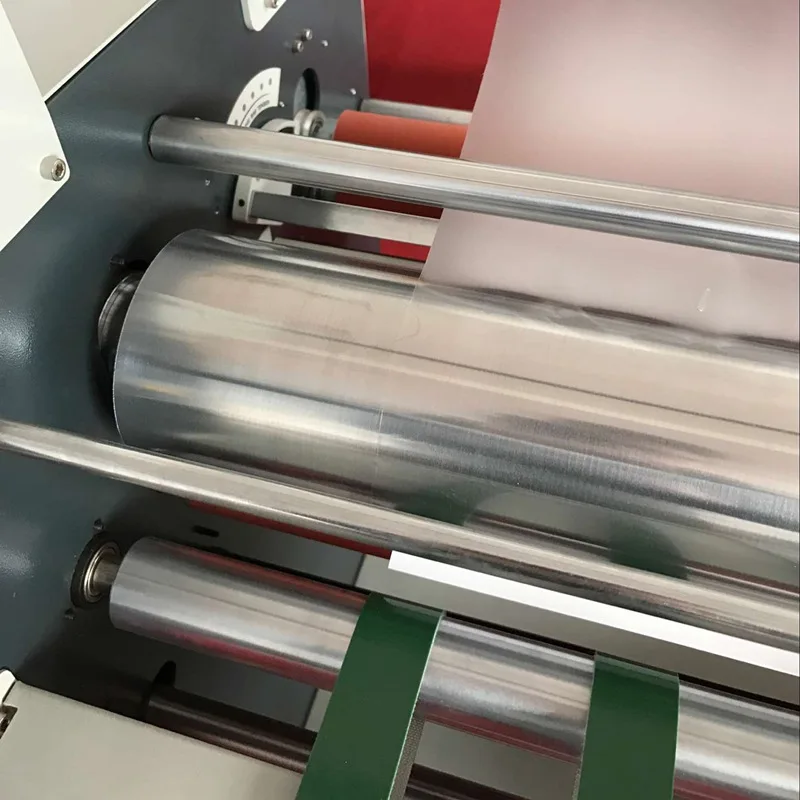

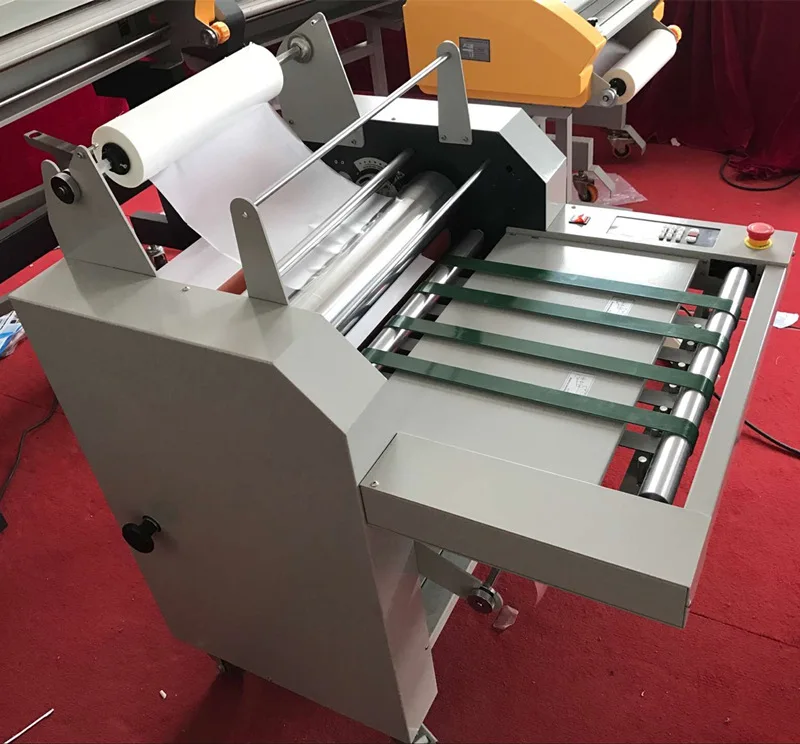

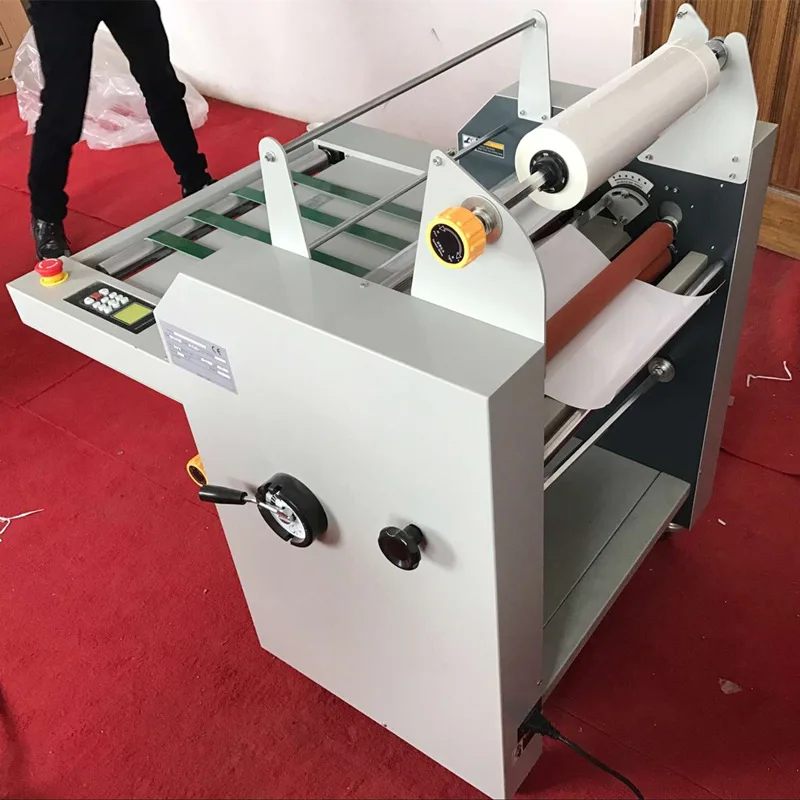

Detailed Images

SG-490 Electric Laminating Machine YouTube Video Link: https://youtu.be/SWA4bMiuuxQ

\t
Model Name
\t
SG-490
\t
Max. Laminate Width
\t
490mm
\t
Laminate Thickness
\t
60-800gsm
\t
Max. Laminate Speed
\t
10m/min
\t
Warming Up Time
\t
10min
\t
Suggested Laminate BOPP Film
\t
25-250mic
\t
Max. Temperature
\t
150 degree
\t
Operating Panel
\t
LCD Screen
\t
Auto Feed Paper with Belt
\t
Yes
\t
Single Laminate
\t
Yes
\t
Double Laminate
\t
Yes
\t
Cold&Hot Laminate
\t
Yes
\t
Cut film knife
\t
Yes
\t
Perforating knife
\t
Yes
\t
Auto rewinding paper
\t
Yes
\t
Reverse
\t
Yes
\t
Dia. of core
\t
1",1.5",3"
\t
The quantity of roller
\t
4pcs
\t
Speed control
\t
9 gear
\t
Power
\t
2.2KW
\t
Voltage
\t
AC110V(60HZ)
AC210V~230V(50HZ)
\t
Package
\t
1pcs/Wooden Case
\t
Machine Size
\t
86*75*105cm
\t
Carton Size
\t
102*89*111cm
\t
G.W.
\t
130kgs
\t
N.W.
\t
110kgs

                                                                                      Details Parts

\t
1. Conveyor belt
\t
7. Rull fim handle
\t
2. Bottom film
\t
8.Power switch
\t
3.Emergency stop
\t
9. Adjust upper film adapter
\t
4.Adjust bottom film adapter
\t
10.Upper film
\t
5. Operating panel
\t
11. Cut knife
\t
6. Handle
\t
12. Perforating knife
\t
13. Safty cover
\t
19. Pull film roller
\t
14. Limting block
\t
\t
15.Heating upper steel roller
\t
\t
16. Temperature sensor
\t
\t
17. Anti curling bar limiting
\t
\t
18. Anti curling bar
\t
\t
                                                                  TROUBLESHOOTING
\t
Machine will
Not turn on
\t
a.Power switch is in “o”
(Off) position
b. Tripped circuit breaker.
c. Blown main power fuse
\t
a.Put the power switch to
the “l” (On) position
b. Reset the circuit breaker.
c. Replace the fuse.
\t
There is power, but the rollers are not turning after the “RUN” button is pressed
\t
a.Safety cover is not closed.
b.Paper guide is not installed correctly
c.Blown motor fuse.
\t
a.Close the safety cover to active the safety switch.
b.Properly install the paper guide so that the micro switch is activated.
c.Replace the motor fuse.
\t
The unit is not heating up
\t
a.The machine is in “COLD” mode.
b.Set temperature is lower than the room temperature.
\t
a.Switch to “HOT” mode.
b.Raise the temperature according to the recommended film temperature.
\t
The paper is not automatic feeding
\t
a.The paper feeding roller is damaged.
b.Paper board is too high
\t
a.Change the roller
b.Lower the paper board.
\t
Many papers are feeding at the same time
\t
a. Paper board is too low
\t
a. Turn the paper board up.
\t
Curled lamination:
\t
The main roller temperatures are too low and/or lamination speed is too fast.
\t
Raise the roller temperatures and/or lower the lamination speed.
Packing & Delivery
Our Company

Hangzhou Fuyang Sigao Office Supplies CO., LTD was founded in 2003. Our company is a synthetical enterprise occupying more than ten thousand square meters of factory building. We own import and export right.

The major products of our corporation are text binding machines, paper processing machinery, and various of file folder/binding materl (Binding plstic comb, double loops wire, spiral coil, paper cover, PVC cover, slide binder,etc). In addition, we also deal with office consumption, such as cover paper of binding,clamp bars, plastic and rubber rings, and iron rings. Our products have won high reputation among customer at home and abroad for the reliable performance and novel design.

Welcome to visit our company and cooperate with us.

FAQ

How does your factory do regarding quality control?

Quality is priority. Our factory always attach great importance to quality controlling from the verybeginning to the very end. Our factory has gained CQC, ISO, SGS,FSC authentication

Where is your factory located?

Our factory is located in Hangzhou City, Zhejiang Province, China, around 1 hours train from Shanghai .Around

1hour from "Hanghou Internatil Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!

What's the material of laminator body ?

Hot sale YYFM, QDFM series hydraulic lamianting machine very strongly. The roller imported from abroad to guarantee the quality.

How can i get some samples?

We are honored to offer you sample!

You should charge for freight & laminating machin.

What's the terms of payment?

We accept T/T, Westunion, Credit Card, T/T Checking, Paypal. Just for your choose.

Less than USD10,000, you need pay 100% in advance. Large than USD10,000, we accept 30% in advacne, 70% before shipping.

Are you a factory?

Yes.We are factory at Fuyang, Hangzhou City ,We wainly produce binding system/ cutting system/laminating system/office products and material,etc. any time welcome visit us.
