16 портов 10/100M POE смарт-переключатель с гигабитными волоконными
- Категория: Переключатели дистанционного управления >>>
- Поставщик: Optical,Network,Video,Technologies,(shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.62 $* | 0.88 $* |
| Aug-16-2025 | 0.1 $* | 0.71 $* |
| Jul-16-2025 | 0.69 $* | 0.56 $* |
| Jun-16-2025 | 0.30 $* | 0.25 $* |
| May-16-2025 | 0.33 $* | 0.71 $* |
| Apr-16-2025 | 0.41 $* | 0.18 $* |
| Mar-16-2025 | 0.76 $* | 0.20 $* |
| Feb-16-2025 | 0.74 $* | 0.15 $* |
| Jan-16-2025 | 0.78 $* | 0.4 $* |
Характеристики
ONV-POE31016PFM

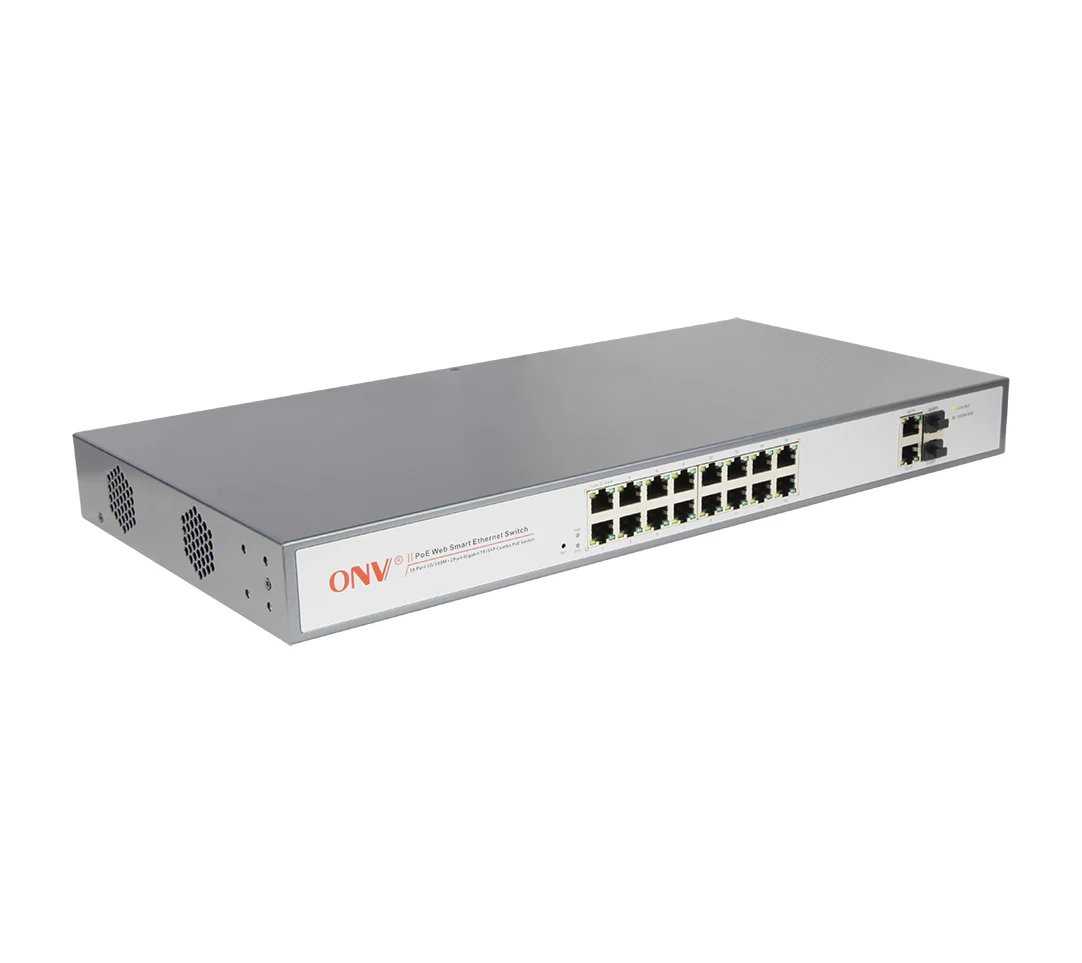

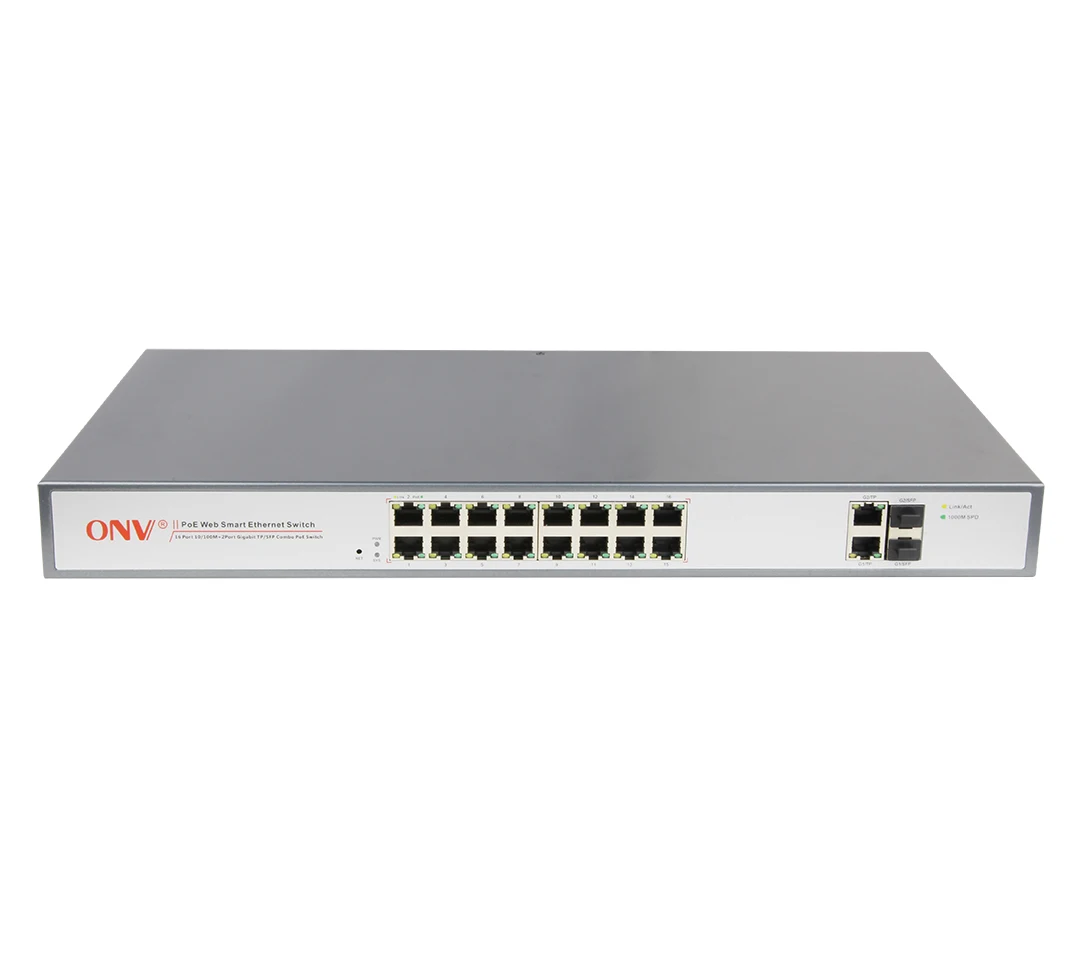

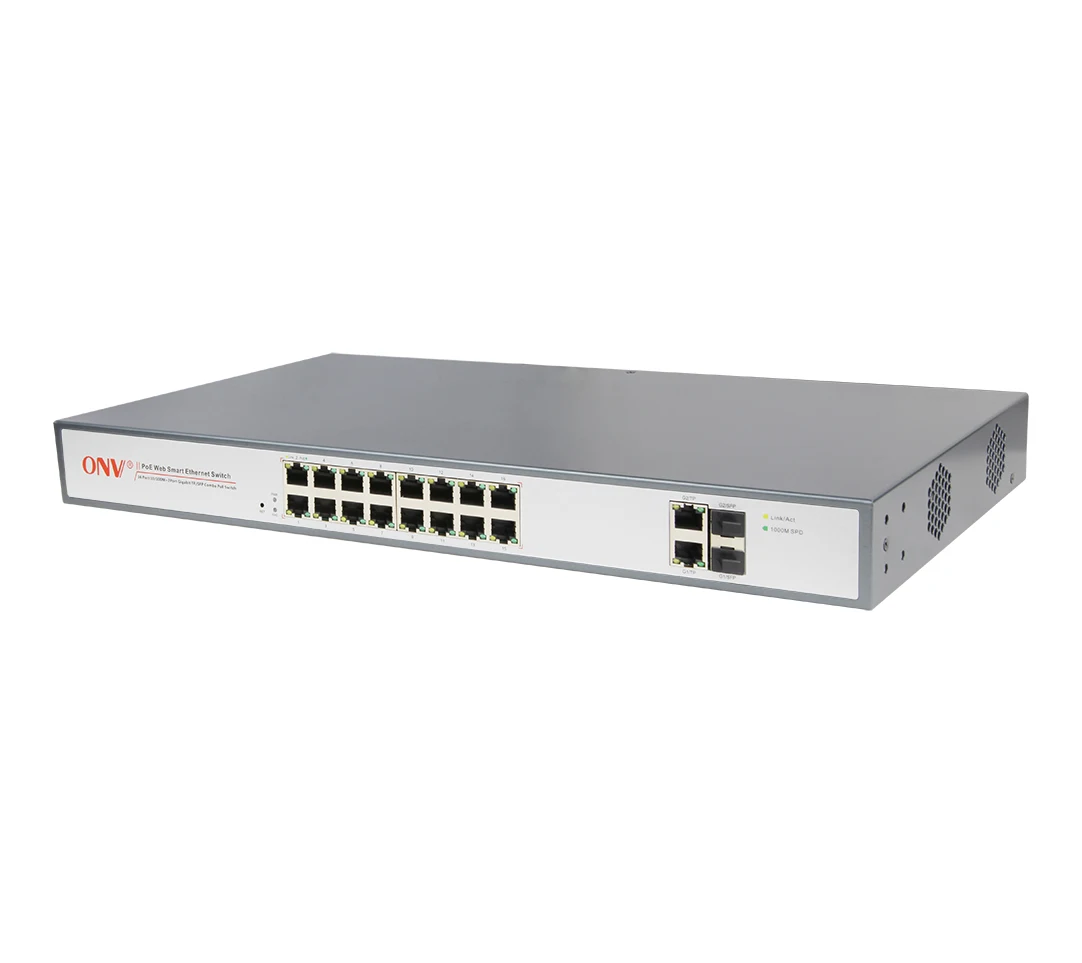

The ONV-POE31016PFM series is a Gigabit uplink managed PoE fiber switch independently developed by ONV. It has 16*10/100M RJ45 ports and 2*10/100/1000M RJ45 ports and 2 *100/1000M SFP fiber slot ports (combo port), Port 1-16 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 250W(at-400W). and each port can realize line-speed forwarding.
The ONV-POE31016PFM series adopts a new generation of high-performance hardware and software platforms to provide flexible and cost-effective 100Mbps access and uplink ports. It supports complete security protection mechanisms, complete ACL/QoS policies, and flexible VLAN functions, and is easy to manage and maintain. As a PoE power supply device, it can automatically detect and identify the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, parks, attractions, supermarkets, Factory quarters and small and medium-sized enterprises form a cost-effective network.
The ONV-POE31016PFM series adopts a new generation of high-performance hardware and software platforms to provide flexible and cost-effective 100Mbps access and uplink ports. It supports complete security protection mechanisms, complete ACL/QoS policies, and flexible VLAN functions, and is easy to manage and maintain. As a PoE power supply device, it can automatically detect and identify the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, parks, attractions, supermarkets, Factory quarters and small and medium-sized enterprises form a cost-effective network.
100Mbps Access, Gigabit (TP/SFP) Combo Port Uplink
— All series support “10/100M Ethernet port and Gigabit combo port” combination, which enables users to flexibly build networking to meet the needs of various scenarios;
— Support non-blocking wire-speed forwarding;
— Support full-duplex based on IEEE802.3x and half-duplex based on backpressure
Intelligent PoE Power Supply Function
— 16*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.16
— IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
— Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
— PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
Strong Business Processing Capability
— IEEE802.1Q VLAN, flexible VLAN division and QinQ configuration.
— QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.
— ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
— IGMP V1/V2 and IGMP Snooping.
— ERPS/STP/RSTP/MSTP.
— Static and dynamic aggregation.
Security
— 802.1X authentication.
— Port isolation,Storm control.
— IP-MAC-VLAN-Port binding.
Stable and Reliable
— Low power consumption, fan-less mute design, galvanized steel metal casing.
— Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
— CE, FCC, RoHS, CCC.
— The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.
One-stop Remote Control and Management
— Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
— HTTPS, SSLV3, and SSHV1/V2.
— RMON, system log, LLDP, and port traffic statistics.
— CPU monitoring, memory monitoring, Ping test, and cable diagnose.
Model | ONV-POE31016PFM | ONV-POE31016PFM-at | ||
Interface Characteristics | ||||
Fixed Port | 16*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 2*1000M uplink SFP fiber slot ports (Data) 1*Console port (command line ) 1*Console RS232 port | |||
POE Port | Port 1 - 16 can support IEEE802.3af PoE standard | |||
SFP Slot Port | Gigabit SFP fiber interface (Fiber module is not included, need to order separately, module options include single/multi mode,single/dual fiber, LC) | |||
Chip Parameter | ||||
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX/FX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3x | |||
PoE Standard | IEEE802.3af/at | |||
Ethernet Port | Port 1-16 10/100Base-TX,Auto-sensing, Port 17-18: 10/100/1000Base-T, auto-sensing,full/half duplex MDI/MDI-X self-adaption. | |||
Forwarding Mode | Store and Forward(Full Wire Speed) | |||
Switching Capacity | 64Gbps | |||
Forwarding Rate@64byte | 5.36Mpps | |||
MAC | 16K | |||
Buffer Memory | 4M | |||
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |||
Optical Fiber Cable | Multi Mode: 850nm 0-550M;Single Mode: 1310nm 0-40KM,1550nm 0-120KM. | |||
PoE & Power | ||||
PoE Port | Port 1 to Port 16 | |||
Power Supply Pin | Default: 1/2 (+), 3/6 (-) ; optional:4/5 (+), 7/8 (-) | |||
Max / Average Power Per Port | 30W/15.4W | 30W/30W | ||
Total PWR / Input Voltage | 250W (AC100-240V) | 400W (AC100-240V) | ||
Power Consumption | Standby:<15W;Full load:<240W | Standby:<20W; Full load:<380W | ||
LED Indicator | Power indicator:PWR(green); data indicator:Link,Link/Act (yellow), PoE indicator: PoE (green); speed indicator: SPD (green) | |||

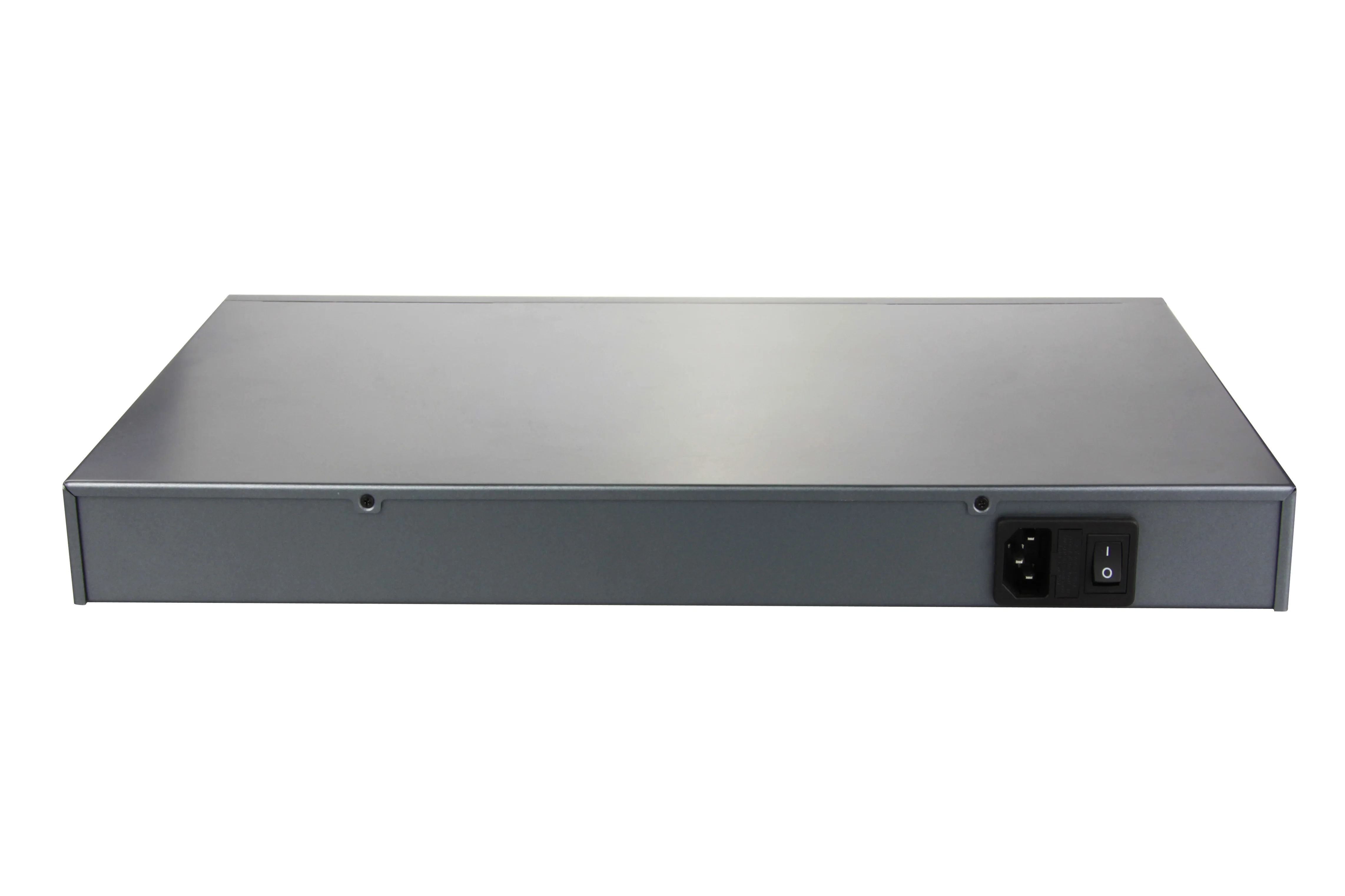

Power Supply | Built in power supply, AC100~240V 50-60Hz 4.1A | Built in power supply, AC100~240V 50-60Hz 5.0A | ||
Physical Parameter | ||||
Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing | |||
Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing | |||
Dimension (L*W*H) | 440*225*44mm | |||
Net /Gross Weight | <2.8kg /<3.5kg | |||
Installation | desktop type ,wall mounted,19 inch 1U cabinet installation | |||
Port Lightning Protection | Port lightning protection : 4KV 8/20us; | |||
Protection Level | Protection level: IP30 | |||
Certification & Warranty | ||||
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; | |||
Warranty | 3 years , lifelong maintenance. | |||
Network Management | ||||
Interface | IEEE802.3X (Full-duplex) The speed limit of the message flow in the access port. The minimum particle size is 64Kbps. | |||
PoE Management | PoE output priority configuration PoE working status Delay start of power supply Scheduling of PoE operation and time | |||
VLAN | 4K VLAN based on port, IEEE802.1q VLAN based on protocol QinQ configuration | |||
Port Aggregation | LACP, Static aggregation Max 8 aggregation groups and 8 ports per group. | |||
Spanning Tree | STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) | |||
Multicast | IGMP Snooping v1/v2/v3, Max 64 multicast groups, Fast log out MLD Snooping v1/v2,Multicast VLAN | |||
Port Mirroring | Bi-directional traffic mirroring supporting the basic port | |||
QoS | Diff-Serv QoS 16*Output queues of each port 802.1p/DSCP priority mapping Queue Scheduling Algorithm (SP,WRR,SP+WRR) Priority Mark/Remark | |||
ACL | L2-L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range and VLAN etc. Port-based Issuing ACL | |||
Security | Port isolation, Storm control. IP-MAC-VLAN-Port binding | |||
DHCP | DHCP Client,DHCP Snooping,DHCP Relay | |||
System & Management | Web Management (HTTPS) SNMP V1/V2C/V3 One-key recovery NTP System work log | |||
Model | Description | Recommended power supply |
ONV-POE31016PFM | L2 managed PoE fiber switch with 16* 10/100M RJ45 ports and 2*10/100/1000M RJ45 ports and 2*100/1000M SFP fiber slot ports , Port 1-16 can support IEEE 802.3af/at PoE standard, Built-in 250W power supply. | 250W |
ONV-POE31016PFM-at | L2 managed PoE fiber switch with 16* 10/100M RJ45 ports and 2*10/100/1000M RJ45 ports and 2*100/1000M SFP fiber slot ports , Port 1-16 can support IEEE 802.3af/at PoE standard, Built-in 400W power supply. | 400W |
PACKING LIST | CONTENT | QTY | UNIT |
18-Port gigabit uplink managed PoE switch | 1 | SET | |
AC Power Cable | 1 | PC | |
Mounting Kits | 1 | PC | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
